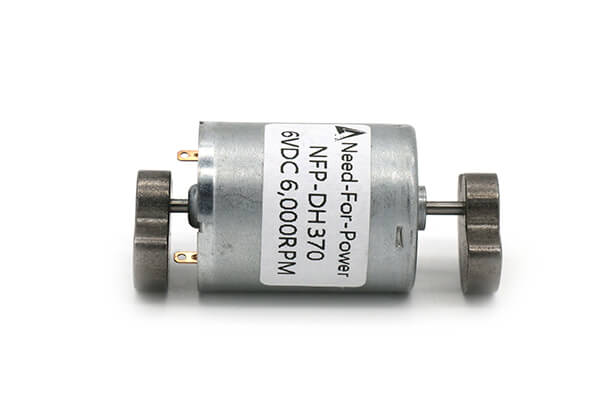

24mm Vibration Motor – 30mm Type Model NFP-DH370-DF
$7.50
24mm strong vibration motor with double heads, available in 6V 12V 24V. High RPM, stable output, ideal for industrial vibration and automation use.
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $7.50 | 0% |
| 10 - 49 | $7.00 | 6.67% |
| 50 - 99 | $5.00 | 33.33% |
| 100 - 999 | $4.00 | 46.67% |
| 1000+ | $3.00 | 60% |
Vibration Motor Arduino Model NFP-DH370 Double Heads
Product Overview
The NFP-DH370-DF is a strong double-head vibration motor. Therefore, it is suitable for products that need clear and strong vibration output.
The total motor length is 51mm, and the outer diameter is 24.2mm. In addition, the motor body length is 30mm.
Main Features
- Double-head design: The motor uses two iron fan-shaped heads. Therefore, it can create stronger vibration than many single-head motors.
- Multiple voltage options: Users can choose 6V, 12V, or 24V DC. As a result, the motor can match different power systems.
- Stable speed: The rated speed is 6,000RPM. In addition, this speed works well for strong vibration use.
- Simple DC drive: Users can run the motor with a suitable DC power supply. Therefore, it is easy to test in many projects.
- Industrial vibration use: The motor fits products that need strong shake, alert, or feedback.
Technical Specifications
The table below shows the main data of the NFP-DH370-DF motor. Therefore, users can check voltage, speed, mass type, options, and life before testing.
| Motor Model: | NFP-DH370-DF |
|---|---|
| Rated Voltage: | 6V / 12V / 24V DC |
| Rated Speed: | 6,000RPM |
| Eccentric Rotating Mass: | Double Iron Fan Shape Heads |
| Options: | 6V 6,000rpm; 12V 6,000rpm; 24V 6,000rpm |
| Lifetime: | No overload, no stall, 200hours |
Industrial Strength Vibrator Outline Drawing
Motor Size Drawing
The outline drawing below shows the double-head motor size. Therefore, users can check the space before product design.
Moreover, the two-head structure helps increase vibration strength. As a result, this motor is useful for equipment that needs stronger vibration feedback.
Typical Applications
- Arduino projects: The motor can work in test projects with a suitable driver and power supply.
- Alert devices: The strong vibration can provide clear shake alerts.
- Industrial tools: The motor can support strong vibration functions in small equipment.
- DIY products: Users can add vibration output to custom devices.
- Feedback systems: The motor can create strong tactile feedback for special use cases.
Use Notes
- Avoid overload: Do not run the motor above its safe load range.
- Avoid stall: Do not block the motor during use. Otherwise, the motor life may drop.
- Check voltage: Use the correct 6V, 12V, or 24V DC version.
- Use a driver: For Arduino control, use a suitable motor driver instead of powering the motor directly from the Arduino pin.
Keywords:
vibration motor, vibrating motor, vibrator motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
