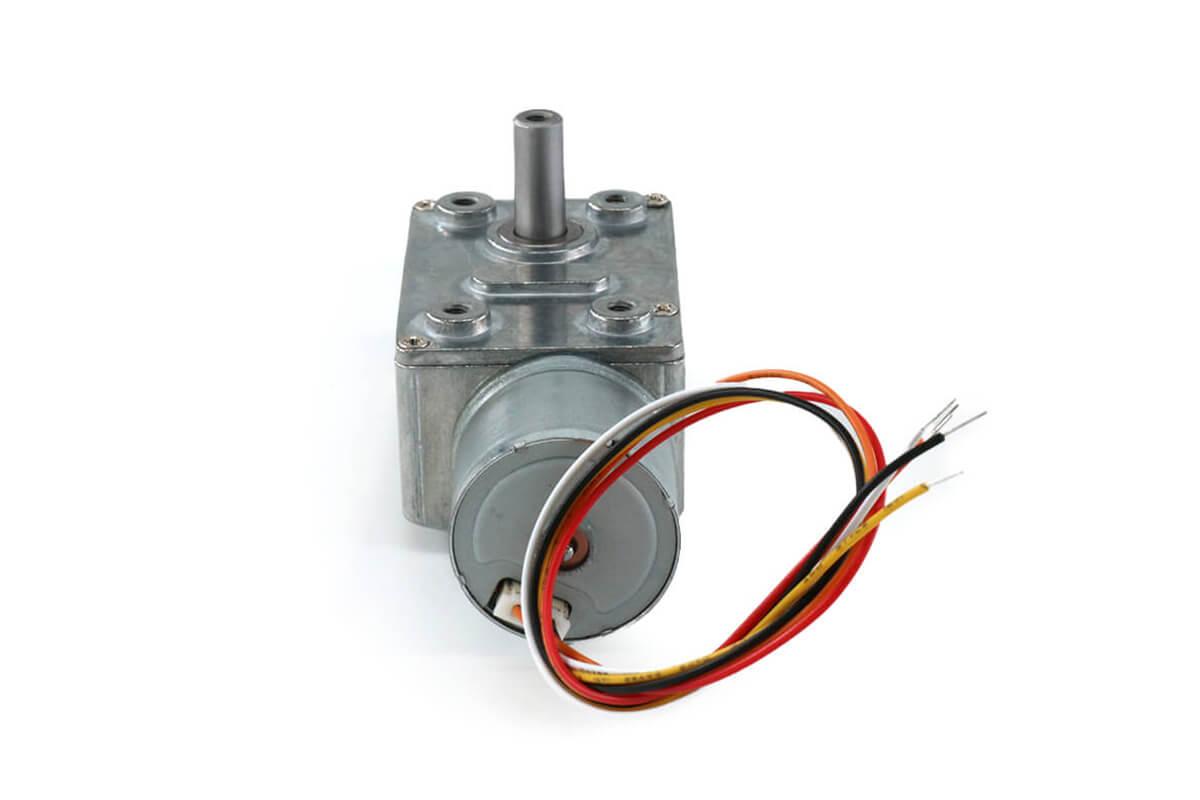

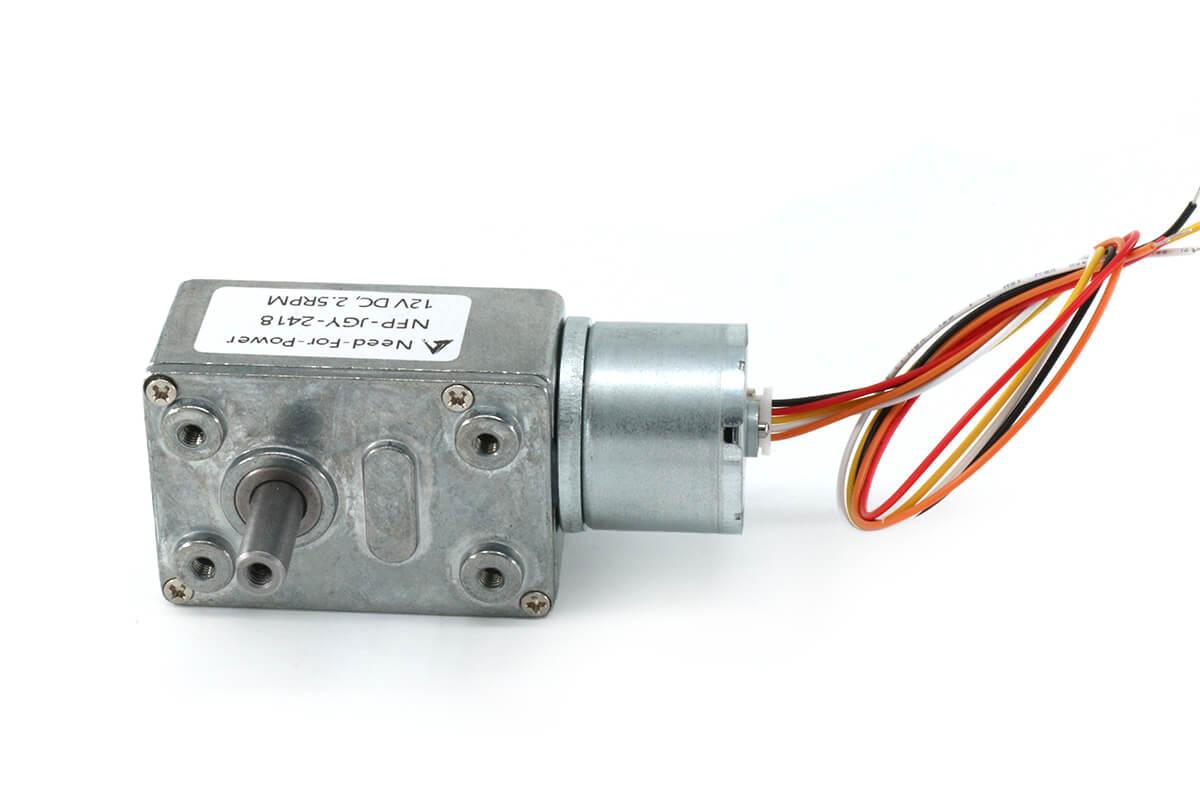

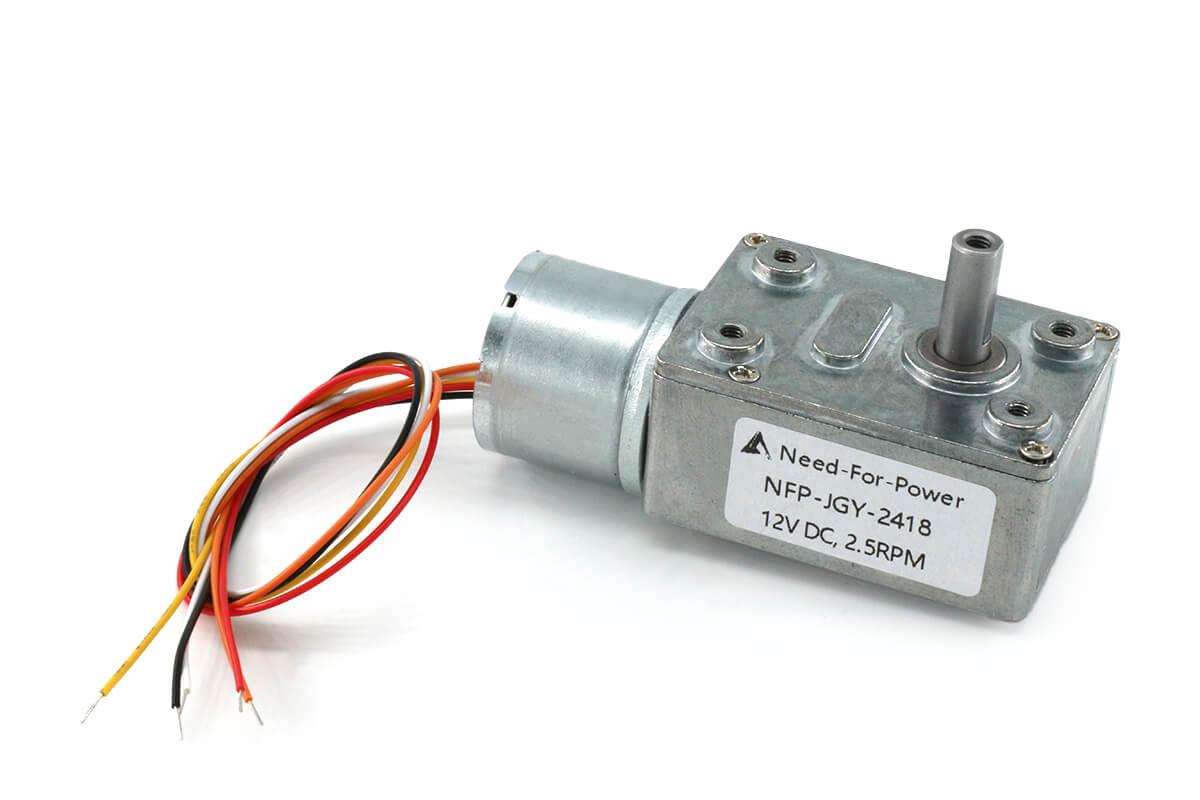

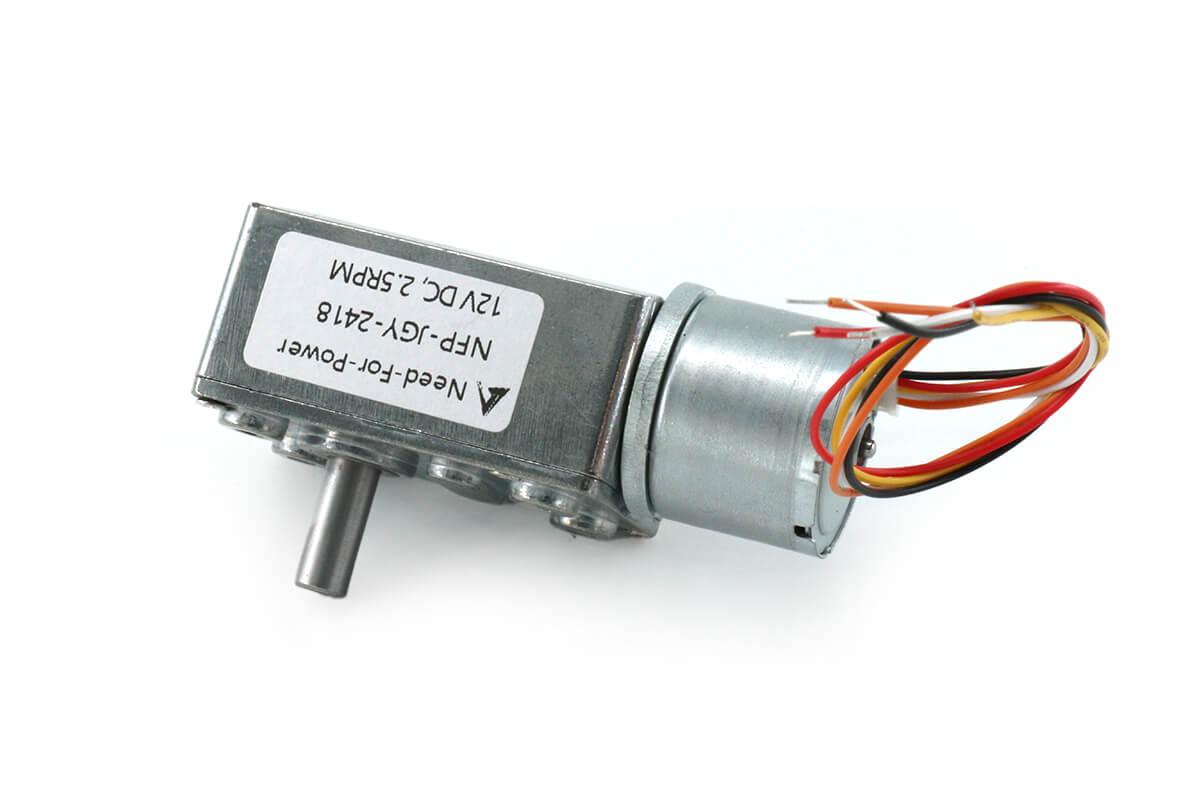

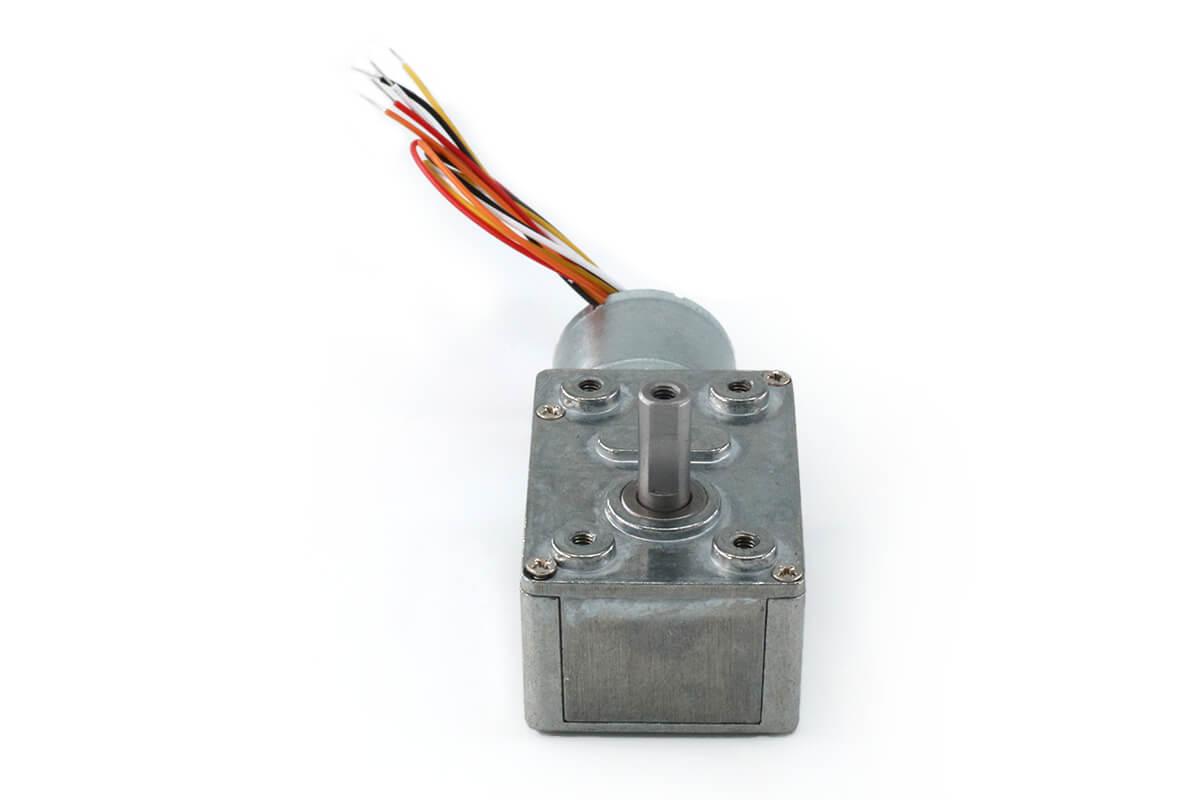

24mm Worm Gear Motor Model NFP-JGY3246-BL2418
$25.00
Power your projects with the innovative 2418 bldc brushless motor. Compact yet powerful, it is the ideal solution for modern applications!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 24 | $25.00 | 0% |
| 25 - 49 | $13.50 | 46% |
| 50+ | $12.80 | 48.80% |
Compact Worm Gear Motor Brushless Type Data Sheet
Product Overview
The NFP-JGY3246-BL2418 is a compact brushless worm gear motor for low-speed and high-torque drive systems. Therefore, it is suitable for small equipment that needs quiet running, long life, and stable output.
In addition, this motor supports 12V and 24V DC options. As a result, users can choose the right voltage for different power supplies and control boards.
Moreover, the worm gearbox offers a wide speed range from 1.5rpm to 241rpm. Therefore, users can select a suitable ratio for speed or torque needs.
Main Features
- Brushless motor type: The BLDC motor has no brush wear. Therefore, it can support longer service life.
- Compact worm gearbox: The gearbox helps save space. As a result, it fits small product layouts.
- High torque output: The max torque can reach 70kg.cm. Therefore, it works well for low-speed drive tasks.
- 12V and 24V options: Users can choose the voltage based on the power system. In addition, this helps match different controller designs.
- CW and CCW rotation: The motor supports forward and reverse rotation. Moreover, it is useful for two-way motion systems.
Basic Motor Specifications
The table below shows the main motor data. Therefore, users can check voltage, current, speed range, power, torque, shaft size, and weight before testing.
| Model | NFP-JGY3246-BL2418 |
|---|---|
| Voltage | 12V / 24V DC |
| No-load Current | 0.05A – 0.1A |
| No-load Speed | 1.5rpm – 241rpm |
| Power | 2W / 6W |
| Max Torque | 70kg.cm |
| Rotation | CW / CCW |
| Shaft Diameter | 6mm |
| Shaft Length | 14mm |
| Weight | 145g |
12V DC Performance Data
The table below shows the 12V DC version with 4,500rpm motor input. Therefore, users can compare ratio, speed, current, rated torque, stall torque, and stall current before choosing a model.
Model: NFP-JGY3246-BL2418-1245, 12V DC, 4,500rpm
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 37.3:1 | 120rpm | 0.05A | 101rpm | 0.15A | 0.2kg.cm | 0.6kg.cm | 0.31A |
| 65:1 | 69rpm | 0.05A | 58rpm | 0.15A | 0.3kg.cm | 1.1kg.cm | 0.31A |
| 90:1 | 50rpm | 0.05A | 42rpm | 0.15A | 0.5kg.cm | 1.5kg.cm | 0.31A |
| 150:1 | 30rpm | 0.05A | 25rpm | 0.15A | 0.8kg.cm | 2.6kg.cm | 0.31A |
| 200:1 | 22.5rpm | 0.05A | 19rpm | 0.15A | 1kg.cm | 3.4kg.cm | 0.31A |
| 260:1 | 17rpm | 0.05A | 14rpm | 0.15A | 1.3kg.cm | 4.4kg.cm | 0.31A |
| 338:1 | 13rpm | 0.05A | 11rpm | 0.15A | 1.7kg.cm | 5.7kg.cm | 0.31A |
| 600:1 | 7.5rpm | 0.05A | 6rpm | 0.15A | 3kg.cm | 10kg.cm | 0.31A |
| 1000:1 | 4.5rpm | 0.05A | 3.8rpm | 0.15A | 5kg.cm | 17kg.cm | 0.31A |
| 1800:1 | 2.5rpm | 0.05A | 2rpm | 0.15A | 9kg.cm | 30kg.cm | 0.31A |
| 3000:1 | 1.5rpm | 0.05A | 1.2rpm | 0.15A | 15kg.cm | 50kg.cm | 0.31A |
Note: all reduced no-load speeds have a tolerance of ±15%.
24V DC Performance Data
The table below shows the 24V DC version with 9,000rpm motor input. In addition, this version provides higher output speed than the 12V version.
Moreover, users can select this option for 24V systems that need higher speed and stronger torque output. Therefore, it is useful for compact worm drive projects.
Model: NFP-JGY3246-BL2418-2490, 24V DC, 9,000rpm
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 37.3:1 | 241rpm | 0.1A | 203rpm | 0.25A | 0.4kg.cm | 1.3kg.cm | 0.6A |
| 65:1 | 138rpm | 0.1A | 117rpm | 0.25A | 0.7kg.cm | 2.3kg.cm | 0.6A |
| 90:1 | 100rpm | 0.1A | 84rpm | 0.25A | 1kg.cm | 3.3kg.cm | 0.6A |
| 150:1 | 60rpm | 0.1A | 51rpm | 0.25A | 1.5kg.cm | 5.5kg.cm | 0.6A |
| 200:1 | 45rpm | 0.1A | 38rpm | 0.25A | 2kg.cm | 7kg.cm | 0.6A |
| 260:1 | 35rpm | 0.1A | 29rpm | 0.25A | 3kg.cm | 9.5kg.cm | 0.6A |
| 338:1 | 27rpm | 0.1A | 22rpm | 0.25A | 4kg.cm | 12kg.cm | 0.6A |
| 600:1 | 15rpm | 0.1A | 13rpm | 0.25A | 7kg.cm | 22kg.cm | 0.6A |
| 1000:1 | 9rpm | 0.1A | 7.5rpm | 0.25A | 11kg.cm | 36kg.cm | 0.6A |
| 1800:1 | 5rpm | 0.1A | 4rpm | 0.25A | 20kg.cm | 60kg.cm | 0.6A |
| 3000:1 | 3rpm | 0.1A | 2.5rpm | 0.25A | 30kg.cm | 100kg.cm | 0.6A |
Note: all reduced no-load speeds have a tolerance of ±15%.
12V 24V DC Worm Gear Motor Outline Drawing
Motor Outline
The outline drawing below shows the motor body, worm gearbox, output shaft, and mounting shape. Therefore, users can check the installation space before product design.
In addition, the compact worm gearbox helps provide low-speed output in a small layout. As a result, this motor is useful for smart devices and small automation systems.
Wiring Sequence Table
The wiring table below shows the built-in driver brushless motor wire sequence. Therefore, users should check each wire before power-on.
Moreover, correct wiring helps protect the motor and driver. As a result, users can reduce test risk during prototype setup.
Selection Notes
- For higher speed: Choose a lower gear ratio. Therefore, the output speed will be higher.
- For higher torque: Choose a higher gear ratio. As a result, the output speed will be lower, but torque will increase.
- For 12V systems: Choose the 12V version when the controller and power supply use 12V DC.
- For 24V systems: Choose the 24V version when the controller and power supply use 24V DC.
- For compact designs: Check shaft length, shaft diameter, and gearbox size before assembly.
Typical Applications
- Smart devices: The compact gearbox helps fit small product structures.
- Automation modules: The motor can provide low-speed torque for small mechanisms.
- Robotics: The motor can support controlled movement in compact robot systems.
- Electric locks: The worm gearbox can support slow and strong drive motion.
- Medical equipment: The low-noise BLDC motor can support quiet device operation.
Keywords:
Small worm gear motor 12v, Miniature worm gear motor, Low noise worm gear motor, High torque worm gear motor, Metal worm gear motor, Compact worm gear motor, 12v worm drive motor, Slow speed worm gear motor, Electric worm gear motor, Brushless worm gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
