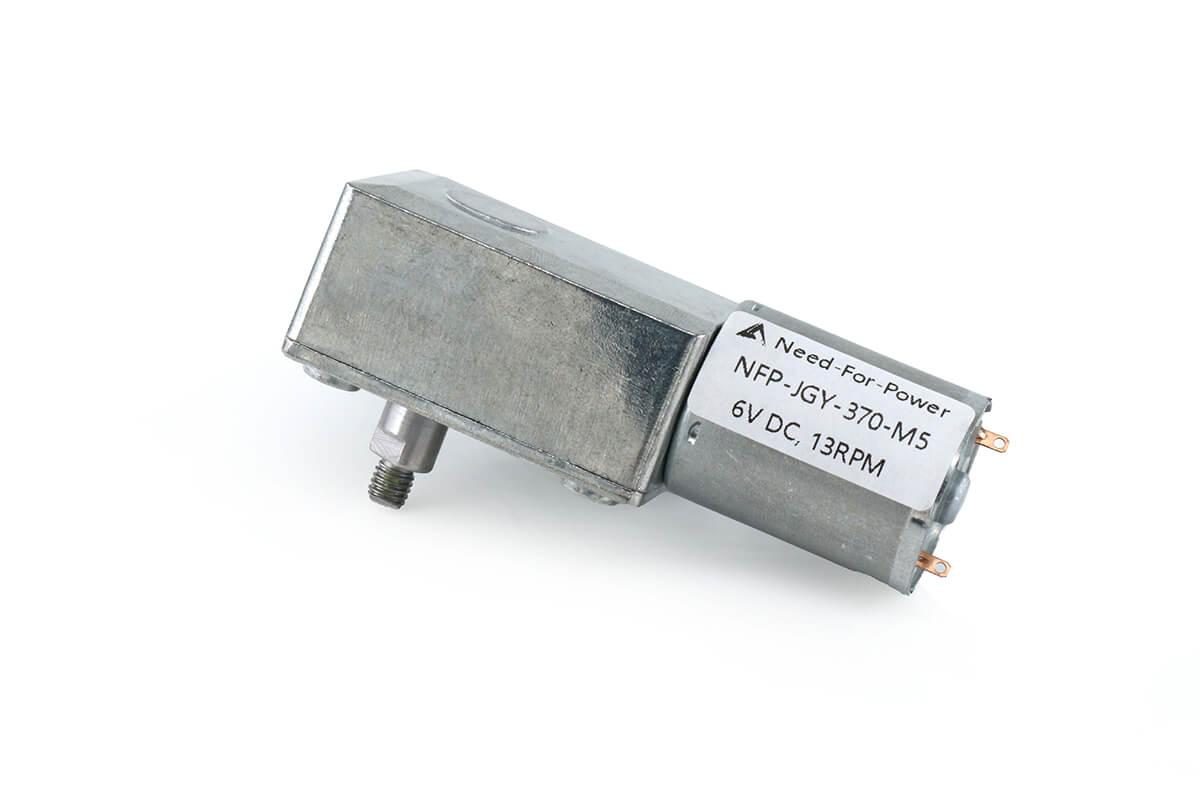

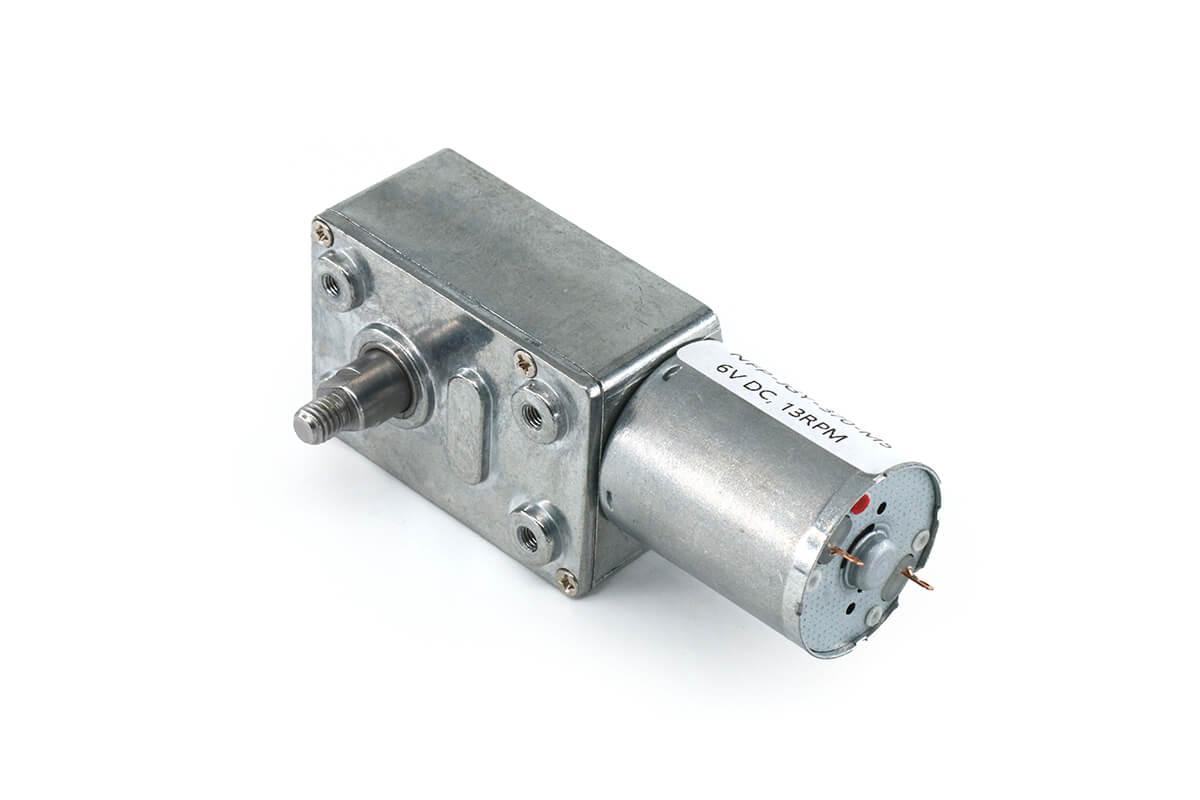

24mm Worm Gear Motor Model NFP-JGY3246-370-M5 Thread Shaft
$15.50
Maximize efficiency with our 370 worm gear motor screw shaft! Its design offers high torque in small applications. Order yours for top performance!
JGY-370 Worm Geared Motor Parameters
First, this small worm gear motor is built for compact products that need high torque and low speed. Also, the worm gearbox helps the motor hold position better than many standard gear motors. Therefore, it is a good choice for robotics, automation, medical equipment, packaging tools, and small machines.
In addition, the table below shows the main specifications for the NFP-JGY3246-370-M5 worm gear motor. As a result, you can quickly check the voltage range, speed range, torque, shaft size, and weight before choosing a ratio.
| Motor Model | NFP-JGY3246-370-M5 |
|---|---|
| Rated Voltage | 6V / 12V / 24V DC |
| No-load Speed | 1.2rpm - 210rpm |
| Efficiency | 1.6W - 4.8W |
| No-load Current | 0.02A - 0.1A |
| Maximum Torque | 25kg.cm |
| Rotation | CW/CCW |
| Thread Diameter | 5mm |
| D-axis Diameter | 8mm |
| Weight | 160g |
Furthermore, this motor can be used in several compact drive systems. For example, it is often selected when the product needs a right-angle output, strong torque, and stable low-speed movement.
- Compact worm gearbox with M5 thread shaft
- 6V and 12V options listed in the performance tables
- CW and CCW rotation support
- Suitable for robotics, automation, and small machine tools
Model: NFP-JGY3246-370-M5-0660, 6V, 6,000RPM
First, the 6V version gives several speed choices by changing the gear ratio. Also, a smaller ratio gives higher speed, while a larger ratio gives higher torque. Therefore, please choose the ratio based on the real load and working speed.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 40:1 | 150 | 0.1A | 100 | 0.4A | 1.2kg.cm | 4kg.cm | 1.8A |
| 65:1 | 90 | 0.1A | 70 | 0.4A | 2kg.cm | 6kg.cm | 1.8A |
| 87:1 | 68 | 0.1A | 51 | 0.4A | 2.8kg.cm | 8kg.cm | 1.8A |
| 150:1 | 40 | 0.1A | 30 | 0.4A | 4.5kg.cm | 15kg.cm | 1.8A |
| 200:1 | 30 | 0.1A | 22 | 0.4A | 6kg.cm | 20kg.cm | 1.8A |
| 260:1 | 23 | 0.1A | 17 | 0.4A | 8kg.cm | 26kg.cm | 1.8A |
| 340:1 | 18 | 0.1A | 13 | 0.4A | 12kg.cm | 34kg.cm | 1.8A |
| 448:1 | 13 | 0.1A | 10 | 0.4A | 13kg.cm | 40kg.cm | 1.8A |
| 600:1 | 10 | 0.1A | 7 | 0.4A | 17kg.cm | 54kg.cm | 1.8A |
| 1,000:1 | 6 | 0.1A | 4 | 0.4A | 25kg.cm | 91kg.cm | 1.8A |
| 1,800:1 | 3.3 | 0.1A | 2.5 | 0.4A | 25kg.cm | 91kg.cm | 1.8A |
| 3,000:1 | 2 | 0.1A | 1.5 | 0.4A | 25kg.cm | 91kg.cm | 1.8A |
In short, all reduced no-load speeds have a tolerance of ±15%. Therefore, the final speed may change slightly because of load, voltage, temperature, and production tolerance.
Model: NFP-JGY3246-370-M5-1260, 12V, 6,000RPM
Similarly, the 12V version uses the same ratio range but runs with lower current than the 6V version. Moreover, it is useful when the product already has a 12V power system.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 40:1 | 150 | 0.06A | 100 | 0.2A | 1.2kg.cm | 4kg.cm | 1.3A |
| 65:1 | 90 | 0.06A | 70 | 0.2A | 2kg.cm | 6kg.cm | 1.3A |
| 87:1 | 68 | 0.06A | 51 | 0.2A | 2.8kg.cm | 8kg.cm | 1.3A |
| 150:1 | 40 | 0.06A | 30 | 0.2A | 4.5kg.cm | 15kg.cm | 1.3A |
| 200:1 | 30 | 0.06A | 22 | 0.2A | 6kg.cm | 20kg.cm | 1.3A |
| 260:1 | 23 | 0.06A | 17 | 0.2A | 8kg.cm | 26kg.cm | 1.3A |
| 340:1 | 18 | 0.06A | 13 | 0.2A | 12kg.cm | 34kg.cm | 1.3A |
| 448:1 | 13 | 0.06A | 10 | 0.2A | 13kg.cm | 40kg.cm | 1.3A |
| 600:1 | 10 | 0.06A | 7 | 0.2A | 15kg.cm | 54kg.cm | 1.3A |
| 1,000:1 | 6 | 0.06A | 4 | 0.2A | 25kg.cm | 91kg.cm | 1.3A |
| 1,800:1 | 3.3 | 0.06A | 2.5 | 0.2A | 25kg.cm | 91kg.cm | 1.3A |
| 3,000:1 | 2 | 0.06A | 1.5 | 0.2A | 25kg.cm | 91kg.cm | 1.3A |
In conclusion, all reduced no-load speeds have a tolerance of ±15%. Therefore, please test the motor in the real product before mass production.
Customizable Worm Drive Gear Motor Manufacturer Outline Drawing
First, worm gear motors use a worm gear and an electric motor to create a compact drive system. Also, the worm gear can reduce speed and raise output torque. As a result, this design is useful when the product needs stable low-speed movement in a small space.
Furthermore, this worm drive gear motor can be used in many small machines and smart devices. For example, it can fit products that need a compact gearbox, simple control, and high torque output.
Applications
- Printing machine tools
- Flame cutting equipment
- Laser cutting equipment
- CNC machine tools
- Food packaging machines
- Automation equipment
- Aerospace tools
- Semiconductor equipment
- Medical equipment
- Robots and manipulators
- Communication equipment
Keywords: worm gear motor price, worm gear motor speed reducer, worm drive motor 12v
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
