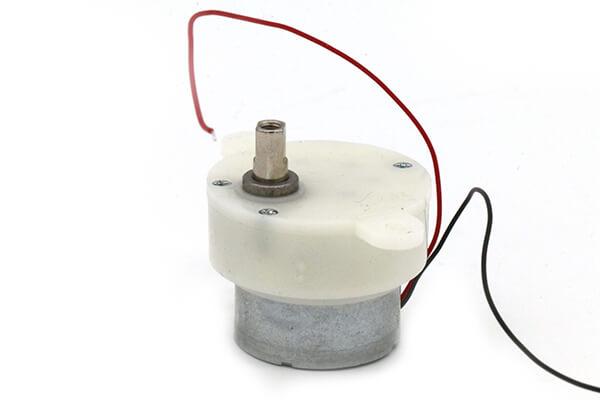

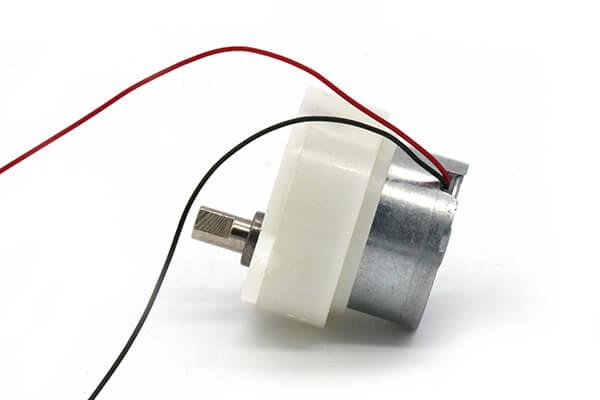

32mm Spur Gear Motor Model NFP-JS30
$5.00
Need power? Our 32mm Spur Gear Motor utilizes high performance magnets for enhanced torque output in demanding applications. Order yours now!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 99 | $5.00 | 0% |
| 100 - 999 | $3.50 | 30% |
| 1000+ | $2.37 | 52.60% |
6V DC Micro Gear Motor Model NFP-JS-30 Used For Lights, Showcase, Driver
一 Pure Copper Coil: Ensures efficient performance with low temperature rise for reliable, long-term operation.
一 High Performance Magnet: Delivers enhanced torque output for demanding applications.
一 Premium Components: Features high quality brush and branded bearings to significantly extend service life.
| Motor model: | NFP-JS30 |
|---|---|
| Rated Voltage: | 6V DC |
| Operating voltage: | 5V DC – 7V DC |
| Starting voltage: | 2.6V max |
| Speed: | 5rpm, 10rpm, 100rpm |
| Rotation: | CW/CCW |
| Rated load current: | 38mA max |
| Stall current: | ≤ 90mA |
| Starting torque | ≥ 1.6kg.cm |
| Insulation resistance: | 1.0M Ω min |
| Shaft length: | 7.5mm |
| Noise: | <55dB |
10 RPM DC Motor Outline Drawing
Note: the above dimensions are all manually measured, there may be positive and negative errors, please refer to the actual object when adapting.
Keywords:
micro dc gear motor, micro dc motors, micro gear motors, plastic gear motor
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
