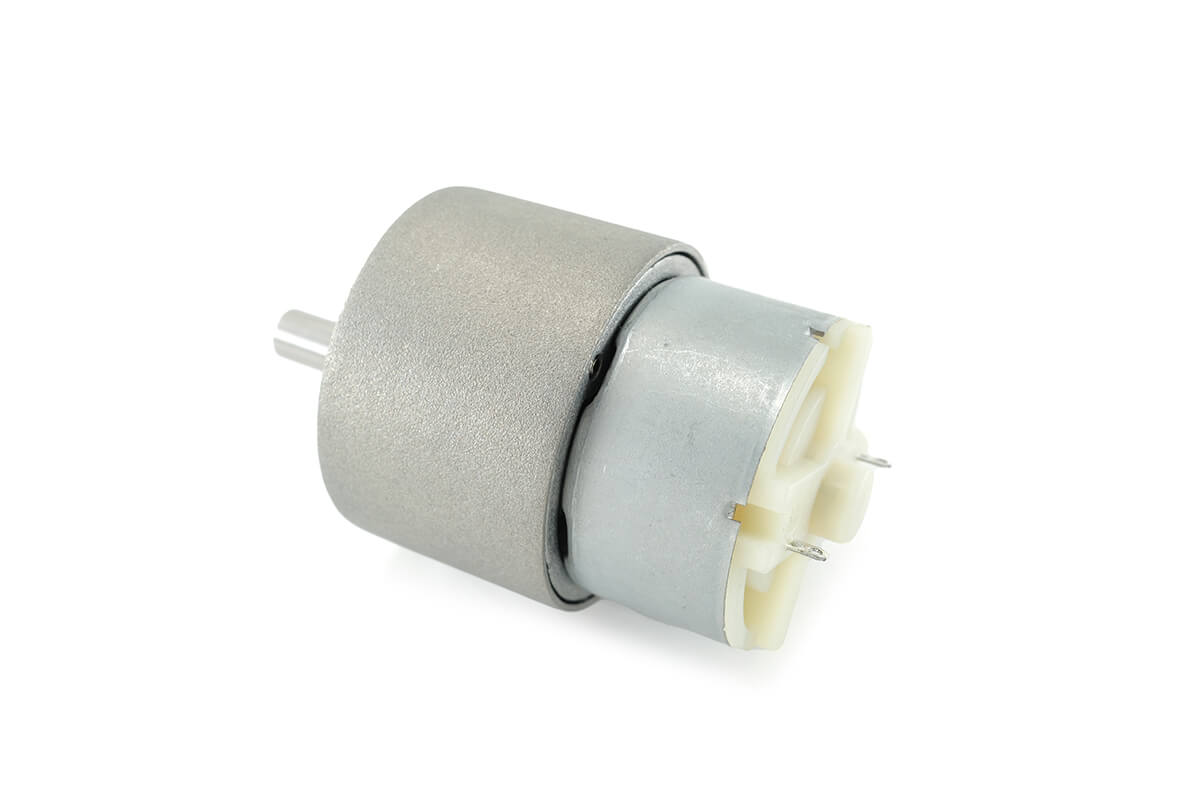

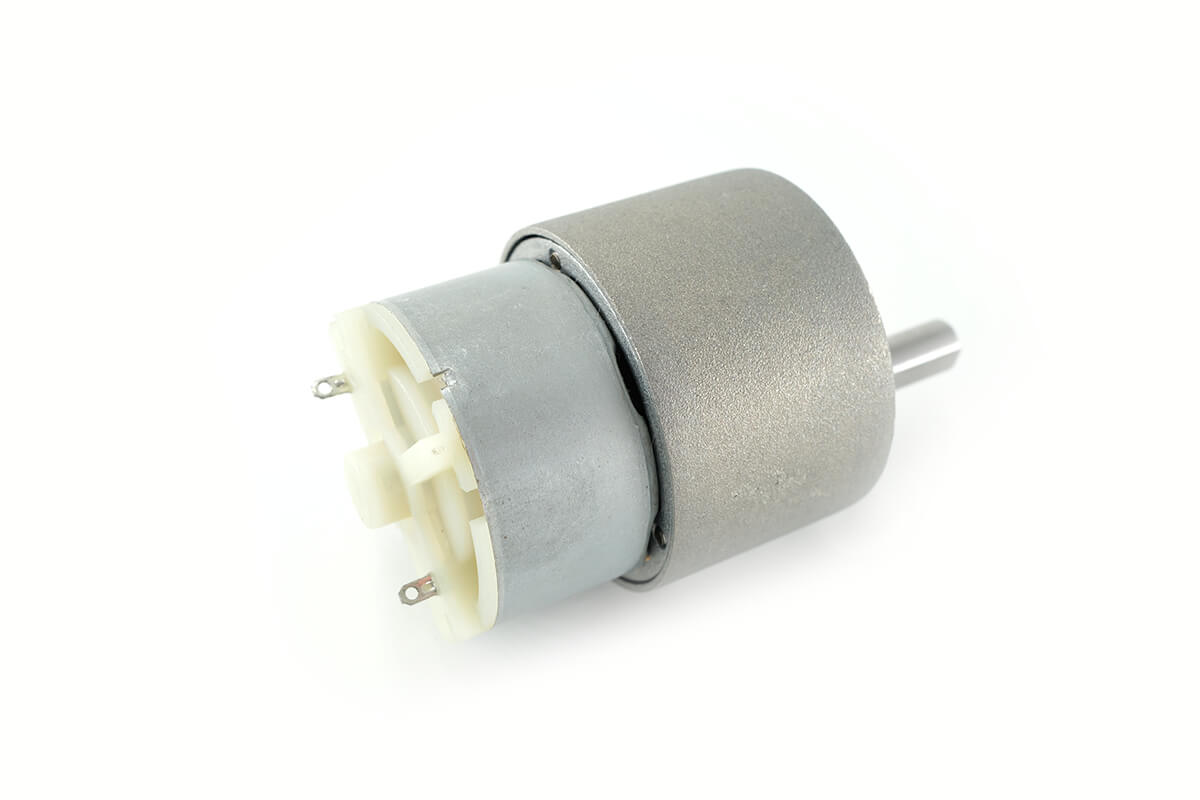

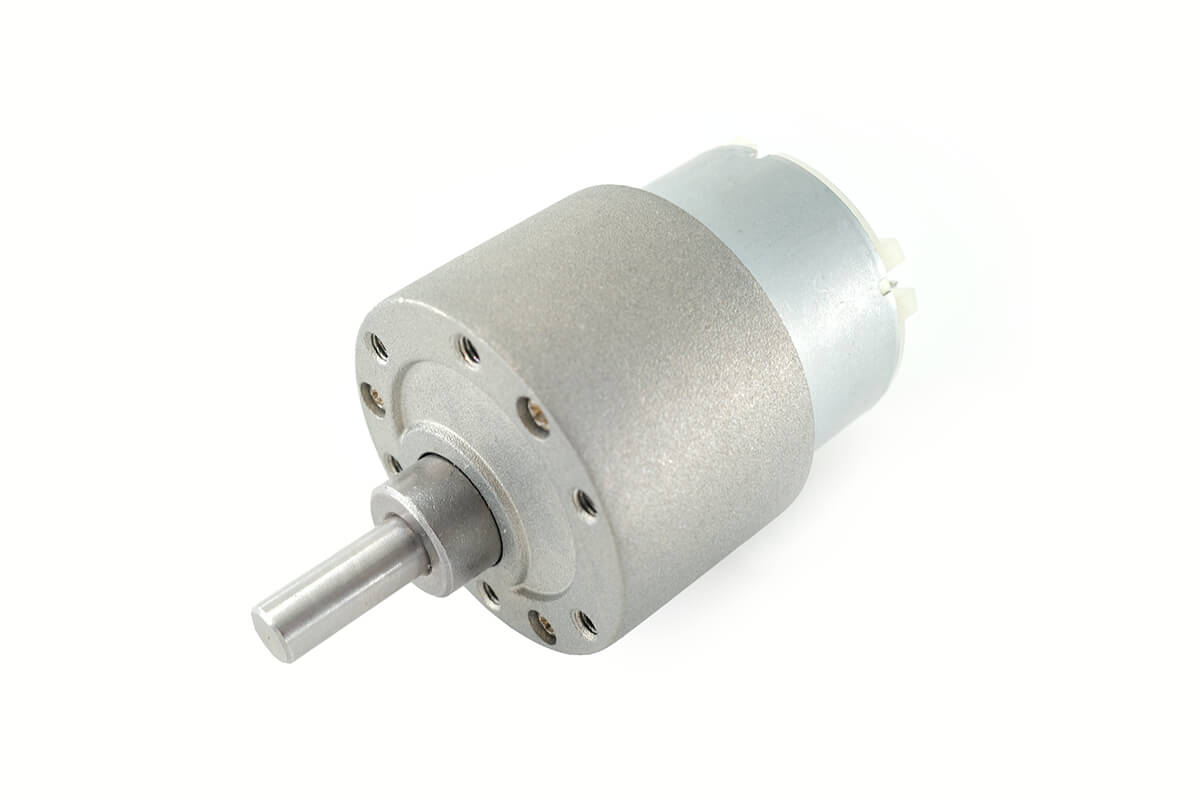

37mm Metal Gear Motor Model NFP-GM37-500
$15.00
Elevate your work with the 37mm PWM gear motor high torque! Designed for demanding applications, this motor delivers power and efficiency. Order now!
Powerful DC Motor NFP-37-500 Data Sheet
First, the NFP-GM37-500 is a powerful DC motor with a 37mm metal gearbox. Also, it is useful for compact drive systems that need strong torque, low speed, and steady output.
In addition, this motor supports 6V DC and 12V DC operating voltage. Therefore, users can choose the right voltage for different control boards and power systems.
Moreover, 24V DC can be customized. As a result, users can contact us when a higher-voltage option is needed.
Also, the motor weight is about 120g. However, the final weight may change as the reduction ratio increases.
Main Product Features
- First, 37mm metal gearbox: The gearbox helps provide strong low-speed torque.
- In addition, 500 motor: The motor gives steady output for compact drive tasks.
- Also, voltage options: The motor supports 6V DC and 12V DC.
- Next, custom voltage: 24V DC can be customized on request.
- Finally, wide ratio range: Users can choose higher speed or stronger torque.
General Motor Data
First, the list below shows the main motor data. Also, it helps users check voltage, weight, and custom options before choosing a ratio.
- First, operating voltage: 6V DC – 12V DC.
- In addition, custom voltage: 24V DC can be customized.
- Also, contact: Contact us for custom voltage needs.
- Next, weight: About 120g.
- Finally, weight note: Weight may vary as the reduction ratio increases.
Model: NFP-GM37-500-0632, 6V DC
First, the 6V DC version is useful for low-voltage drive systems. Also, the table below helps users compare ratio, gearbox length, current, speed, and torque.
Therefore, users can choose a low ratio for higher speed. In addition, users can choose a high ratio for stronger low-speed torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 10:1 | 19mm | ≤35mA | 320rpm | ≤0.15A | 208rpm | 0.02Nm | ≤0.5A |
| 30:1 | 21.5mm | ≤35mA | 105rpm | ≤0.15A | 69rpm | 0.07Nm | ≤0.5A |
| 50:1 | 24mm | ≤35mA | 65rpm | ≤0.15A | 42rpm | 0.12Nm | ≤0.5A |
| 90:1 | 24mm | ≤35mA | 35rpm | ≤0.15A | 23rpm | 0.20Nm | ≤0.5A |
| 150:1 | 26.5mm | ≤35mA | 21rpm | ≤0.15A | 14rpm | 0.36Nm | ≤0.5A |
| 260:1 | 26.5mm | ≤35mA | 13rpm | ≤0.15A | 8rpm | 0.60Nm | ≤0.5A |
| 450:1 | 29mm | ≤35mA | 7rpm | ≤0.15A | 5rpm | 1Nm | ≤0.5A |
| 650:1 | 29mm | ≤35mA | 5rpm | ≤0.15A | 3rpm | 1.50Nm | ≤0.5A |
| 810:1 | 29mm | ≤35mA | 4rpm | ≤0.15A | 2.5rpm | 2Nm | ≤0.5A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V version covers speeds from 4rpm to 320rpm. Moreover, the 810:1 ratio gives the strongest rated torque in this table.
Model: NFP-GM37-500-1264, 12V DC
Next, the 12V DC version gives higher speed and stronger torque than the 6V version. Also, it is useful for 12V systems that need more output power.
Therefore, users can choose this version for robots, automation units, and custom drive projects. In addition, higher ratios provide strong torque at very low speed.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 10:1 | 19mm | ≤45mA | 640rpm | ≤0.25A | 415rpm | 0.05Nm | ≤0.8A |
| 30:1 | 21.5mm | ≤45mA | 210rpm | ≤0.25A | 139rpm | 0.15Nm | ≤0.8A |
| 50:1 | 24mm | ≤45mA | 130rpm | ≤0.25A | 83rpm | 0.24Nm | ≤0.8A |
| 90:1 | 24mm | ≤45mA | 70rpm | ≤0.25A | 46rpm | 0.43Nm | ≤0.8A |
| 150:1 | 26.5mm | ≤45mA | 43rpm | ≤0.25A | 28rpm | 0.70Nm | ≤0.8A |
| 260:1 | 26.5mm | ≤45mA | 25rpm | ≤0.25A | 16rpm | 1.20Nm | ≤0.8A |
| 450:1 | 29mm | ≤45mA | 14rpm | ≤0.25A | 9rpm | 2.10Nm | ≤0.8A |
| 650:1 | 29mm | ≤45mA | 10rpm | ≤0.25A | 6rpm | 3Nm | ≤0.8A |
| 810:1 | 29mm | ≤45mA | 8rpm | ≤0.25A | 5rpm | 3.50Nm | ≤0.8A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 12V version covers speeds from 8rpm to 640rpm. Also, the 810:1 ratio gives the strongest rated torque for slow drive tasks.
Miniature DC Gear Motor Outline Drawing
First, the outline drawing helps users check motor size, gearbox length, shaft size, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the 37mm metal gearbox and 500 motor set gives strong output in a compact form. As a result, it can support robots, automation systems, DIY models, and light industrial use.
Outline Drawing and Design Benefits
- First, 37mm metal gearbox: The gearbox helps support strong torque output.
- In addition, 500 motor: The motor gives useful power for compact systems.
- Also, wide ratio range: Users can choose speed or torque based on the load.
- Next, custom voltage: 24V DC can be customized for special projects.
- Finally, compact fit: The outline helps users check space before assembly.

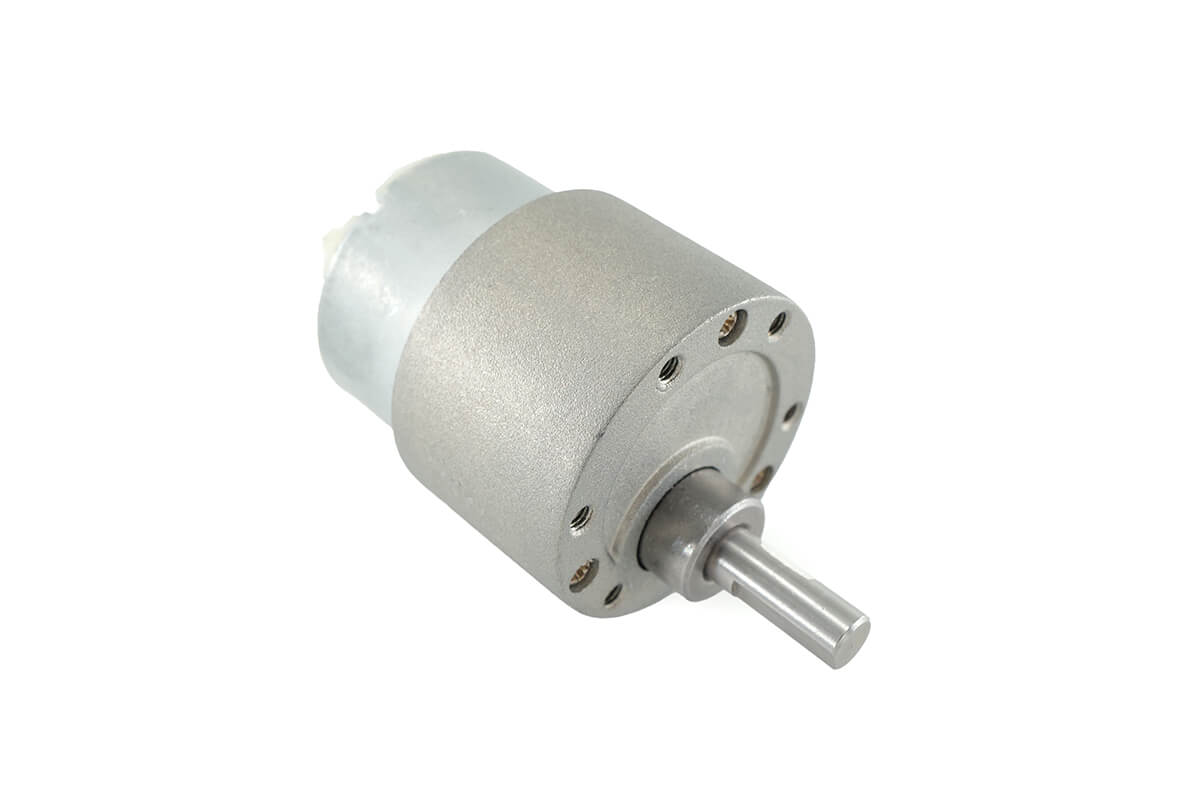

Also, the second image shows the NFP-GM37-500 starting helical gear motor view. Therefore, users can review the gear motor shape before selecting a sample.
Applications
Finally, this powerful DC motor is useful for many compact drive systems. For example, it can work in robots, automation units, DIY models, and light industrial machines.
- First, robotics: It can drive wheels, arms, and other moving parts in robot projects.
- In addition, automation: It is useful for systems that need steady and strong motor output.
- Also, DIY projects: It can support custom RC cars, boats, and other models.
- Finally, light industrial use: It can fit light-duty systems that need low speed and strong torque.
In short, the NFP-GM37-500 powerful DC motor is a good fit for products that need 6V or 12V DC power, 37mm metal gearbox, 500 motor output, wide ratio choices, and strong low-speed torque.
