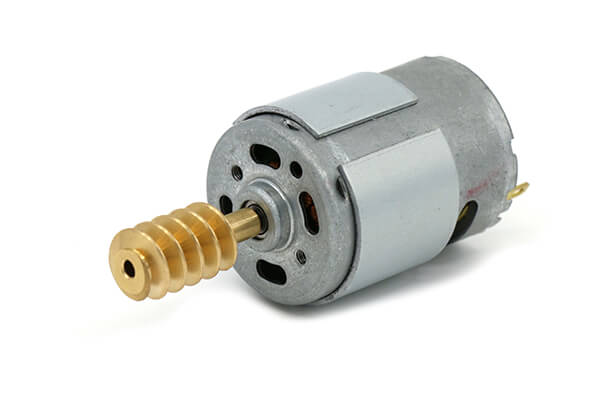

30mm Brushed DC Motor – 37mm Type Model NFP-RC-385SHP-18128-57KV
$18.00
Explore the power of our 30mm Brushed DC Motor, designed for high efficiency and customization to meet your unique needs. Order yours today!
Notice: this motor model need to make new ones that would take extra 2-3 weeks.
| Quantity | Price | Discount |
|---|---|---|
| 10 - 99 | $18.00 | 0% |
| 100 - 999 | $3.50 | 80.56% |
| 1000+ | $2.35 | 86.94% |
24V Miniature Worm Gear Motor Parameters
NFP-Motor is an over 10years worm gear motor manufacturers. We can customize powder metallurgy worm gears according to customer needs, including sizes, torques, hardness requirements.
| Motor model: | NFP-RC-385SHP-18128-57KV |
|---|---|
| Diameter: | Φ27.7mm |
| Rated Voltage: | 24V DC |
| Rated Load: | 160g.cm |
| Rotation: | CCW |
| Voltage Range: | 6V – 30V DC |
| No Load Speed: | 8,700rpm ± 10% |
| No Load Current: | 0.18A max |
| Rated Load Speed: | 7,220rpm ± 10% |
| Rated Load Current: | 0.75A max |
| Starting Voltage: | 1V max |
| Stall Current: | 3A min |
| Stall Torque: | 950g.cm/min |
| Weight: | 95g |
High Torque Worm Gear Motor Outline Drawing
DC Worm Gear Motor Performance Curve
