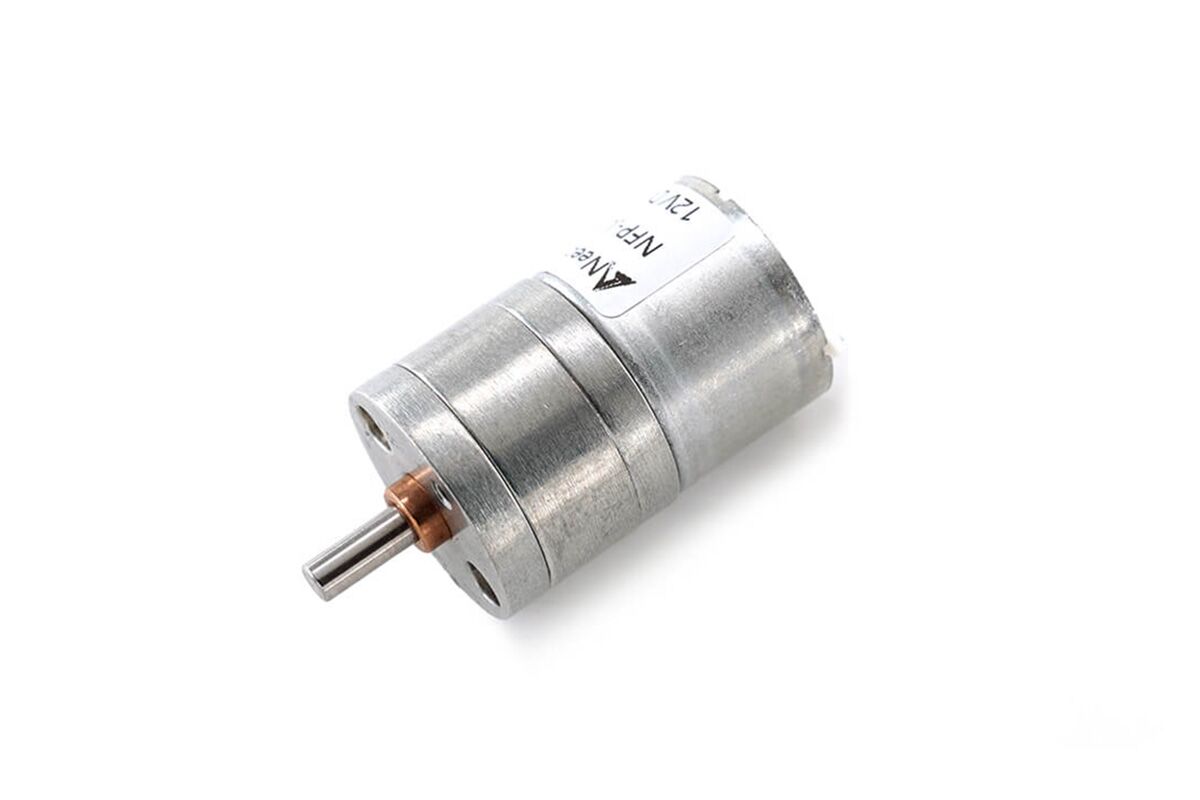

25mm Brushless DC Gear Motor Model NFP-JGA25-310

Brushless DC Planetary Gear Motor Data Sheet

First, the NFP-JGA25-310 brushless DC planetary gear motor is made for compact drive systems. Also, it is useful for products that need low noise, long service life, and steady output.

In addition, this motor supports 6V and 12V DC options. Therefore, users can choose the right voltage for different control boards and power systems.

Moreover, the planetary gearbox helps reduce speed and raise torque. As a result, users can choose fast output or strong low-speed output by selecting the right ratio.

Main Product Features

• First, brushless motor: The motor helps support long life and stable work.
• In addition, planetary gearbox: The gearbox helps raise torque in a compact body.
• Also, voltage options: The motor supports 6V DC and 12V DC.
• Next, wide ratio range: Users can choose high speed or high torque.
• Finally, compact shaft design: The motor can fit small drive systems and tight layouts.

Model: NFP-JGA25-310-0645, 6V DC

First, the 6V DC version is useful for low-voltage drive systems. Also, the table below helps users compare ratio, speed, current, torque, gearbox length, weight, direction, and starting voltage.

Therefore, users can choose a low ratio for faster speed. In addition, users can choose a high ratio for stronger low-speed torque.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 6V version can support both fast output and slow high-torque output. Moreover, the 500:1 ratio gives the lowest no-load speed in this table.

Model: NFP-JGA25-310-1290, 12V DC

Next, the 12V DC version gives higher speed and higher torque than the 6V version. Also, it is useful for 12V products that need stronger output in a compact size.

Therefore, users can choose this version for 12V control boards. In addition, higher ratios provide stronger slow-speed torque.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 12V version is a good fit for compact systems that need higher torque and higher output speed. Also, the motor must not be locked during use.

Brushless Planetary Gear Motor Outline Drawing

First, the outline drawings help users check motor size, gearbox length, shaft length, and mounting space. Therefore, they are useful before sample testing and product design.

In addition, two shaft options are shown below. As a result, users can compare the standard shaft and extended shaft before choosing the right version.

Outline Drawing and Design Benefits

• First, standard shaft option: The 4mm × 10mm shaft is useful for compact layouts.
• In addition, extended shaft option: The 4mm × 23mm shaft gives more shaft length for mounting.
• Also, compact gearbox: The gearbox helps save space in small drive systems.
• Next, planetary gear set: The gear set helps improve torque and smooth output.
• Finally, brushless motor: The motor helps support long life and low noise.

Typical Applications

Finally, this brushless DC planetary gear motor is useful for small systems that need low noise, long life, and steady torque. For example, it can work in robots, smart devices, small tools, locks, and compact machines.

• Robots
• Smart devices
• Small tools
• Electric locks
• Compact machines
• Battery-powered products
• Small drive systems

In short, the NFP-JGA25-310 brushless DC planetary gear motor is a good fit for products that need 6V or 12V DC power, compact gearbox, brushless motor, many ratios, and strong low-speed torque.

Keywords: 25mm spur gear motor, brushless DC gear motor
