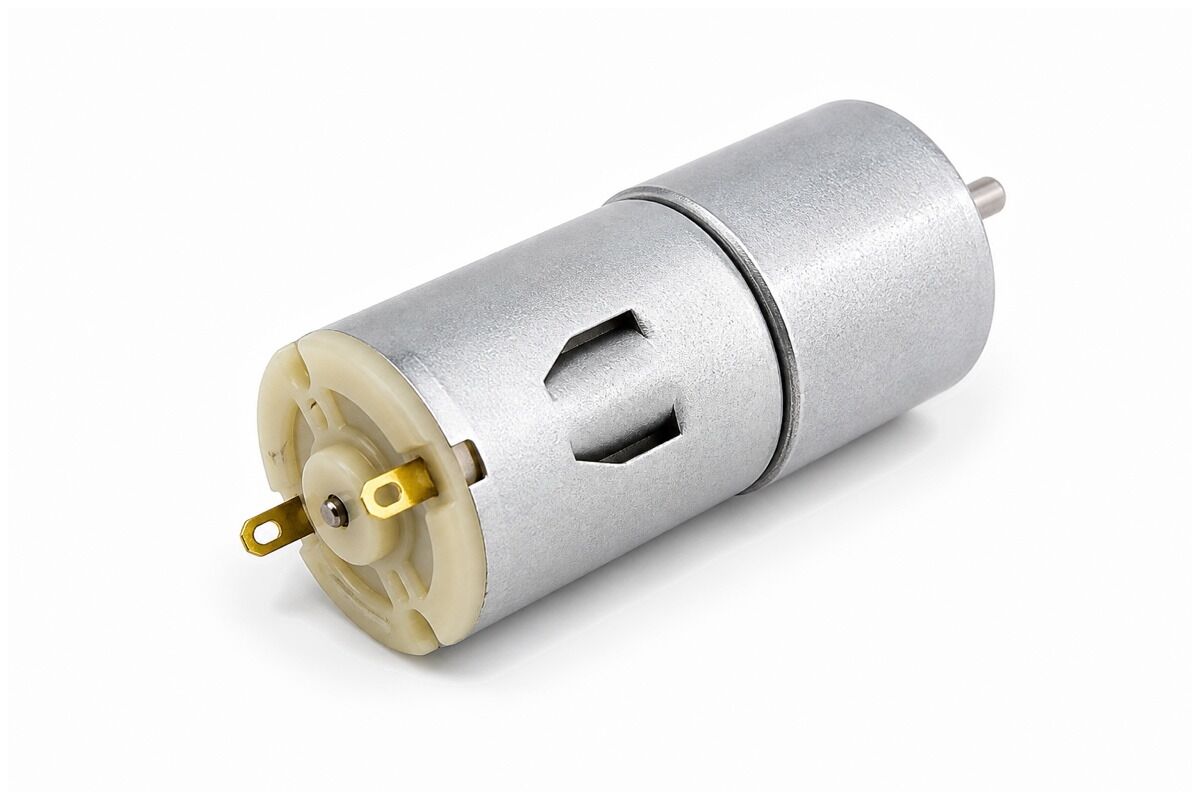

25mm Metal Gear Motor Model NFP-GM25-280
$12.50
Discover high performance with our 25mm metal gearbox motor high torque! Perfect for tools and appliances, it delivers efficiency you can trust.
Direct Current Reduction Motor Data Sheet
First, this direct current reduction motor comes from the factory and is built for stable speed reduction. Also, it is useful for small products that need simple wiring, steady speed, and strong output torque.
In addition, the NFP-GM25-280 uses a compact 25mm metal gearbox. Therefore, it can fit small spaces while still giving useful torque for drive tasks.
Moreover, this motor supports 6V and 12V DC power. As a result, users can choose the right voltage for different speed and power needs.
Main Features
- First, compact gearbox: The 25mm metal gearbox helps save space.
- In addition, voltage options: The motor supports 6V and 12V DC.
- Also, wide speed range: The motor offers 20rpm to 2,250rpm.
- Next, two-way rotation: CW and CCW rotation are supported.
- Finally, strong output: The motor is suitable for tools, toys, and small machines.
6V DC Gear Motor General Specifications
First, the table below shows the main motor data. Also, it helps users check voltage, current, speed, shaft size, rotation, and weight before choosing a ratio.
| Model | NFP-GM25-280 |
|---|---|
| Rated Voltage | 6V / 12V DC |
| No-load Current | ≤0.17A / ≤0.2A |
| No-load Speed | 20rpm – 2,250rpm |
| Output Shaft Diameter | 4mm |
| Output Shaft Length | 12mm |
| Rotation | CW / CCW |
| Weight | appr. 80g |
As a result, this motor gives a wide speed range in one compact gear motor body. Moreover, the 4mm shaft helps connect small drive parts.
25mm Big Torque DC Gearmotor Performance Data
Next, the table below shows the 6V DC gear ratio, speed, current, torque, and stall data. Therefore, it helps users choose the right output speed for their product.
In addition, lower ratios give higher speed. Also, higher ratios give stronger low-speed torque.
Model: NFP-GM25-280, 6V
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 4.4:1 | ≤0.2A | 2,250rpm | ≤0.8A | 1,750rpm | 0.15kg.cm | ≤3.0A | ≥0.6kg.cm |
| 9.3:1 | ≤0.2A | 1,050rpm | ≤0.8A | 830rpm | 0.40kg.cm | ≤3.0A | ≥1.3kg.cm |
| 15:1 | ≤0.2A | 650rpm | ≤0.8A | 520rpm | 0.50kg.cm | ≤3.0A | ≥2kg.cm |
| 20:1 | ≤0.2A | 500rpm | ≤0.8A | 390rpm | 0.80kg.cm | ≤3.0A | ≥3kg.cm |
| 34:1 | ≤0.2A | 290rpm | ≤0.8A | 225rpm | 1.50kg.cm | ≤3.0A | ≥5kg.cm |
| 45:1 | ≤0.2A | 220rpm | ≤0.8A | 170rpm | 2kg.cm | ≤3.0A | ≥6kg.cm |
| 57:1 | ≤0.2A | 170rpm | ≤0.8A | 135rpm | 2.5kg.cm | ≤3.0A | ≥8kg.cm |
| 75:1 | ≤0.2A | 130rpm | ≤0.8A | 100rpm | 3.3kg.cm | ≤3.0A | ≤9kg.cm |
| 125:1 | ≤0.2A | 80rpm | ≤0.8A | 62rpm | 5.5kg.cm | ≤3.0A | ≤9kg.cm |
| 217:1 | ≤0.2A | 45rpm | ≤0.8A | 35rpm | 9.5kg.cm | ≤3.0A | ≤9kg.cm |
| 478:1 | ≤0.2A | 20rpm | ≤0.8A | 16rpm | 21kg.cm | ≤3.0A | ≤9kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, the 6V version covers speeds from 20rpm to 2,250rpm. Therefore, it is useful for both fast drive tasks and slow high-torque output.
Powerful Small Gear Motor Outline Drawing
In addition, the 25mm diameter gear motor is compact but strong. Also, it has a solid metal gearbox for steady work in small drive systems.
Next, the outline drawing below shows the motor size and shaft details. As a result, users can check the space before installation.
Outline Drawing and Design Benefits
- First, compact body: The 25mm gearbox helps fit small spaces.
- In addition, metal gearbox: The metal gear set helps raise torque.
- Also, 4mm shaft: The output shaft helps connect drive parts firmly.
- Next, wide speed range: Users can choose fast or slow output.
- Finally, easy fit: The drawing helps check space before sample testing.
Common Applications
Finally, this direct current reduction motor can be used in many small products. For example, it is suitable for home appliances, tools, toys, office devices, and small machines.
- Household appliances
- Power tools
- Automatic sprayers
- Audio-visual products
- Office equipment
- Massage devices
- Beauty and fitness equipment
- Medical instruments
- Toys and small machines
In conclusion, the NFP-GM25-280 is a practical choice when users need a compact 25mm gear motor with stable speed, simple wiring, and strong output torque.
