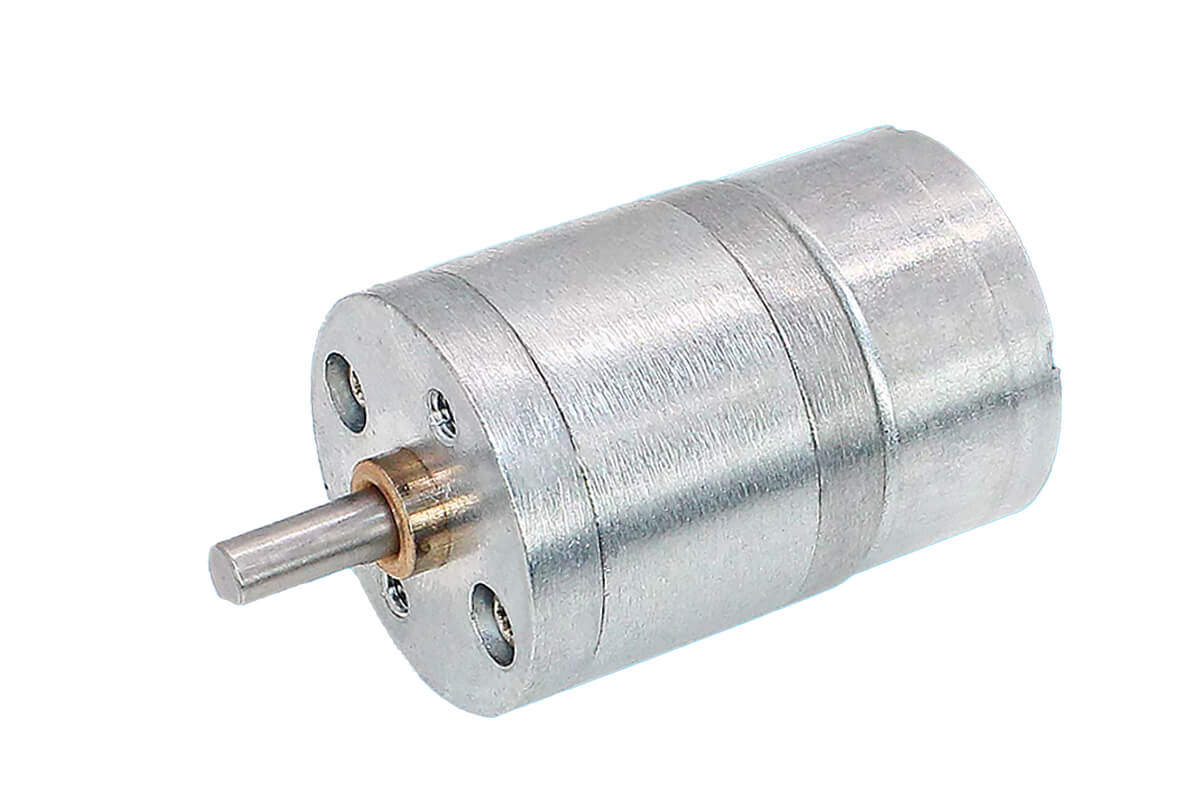

25mm Metal Gear Motor Model NFP-GM25-300
$10.00
The 25mm compact gear motor offers incredible performance in a small package. Take advantage of its power for your next engineering challenge!
6V Brushed DC Motor with Metal Gearbox Datasheet
First, this 6V brushed DC motor with metal gearbox is made for small drive systems. Also, it is useful when a product needs low power, compact size, and strong output torque.
In addition, the motor supports a voltage range from 1.5V to 7.4V DC. Therefore, it can work in many low-voltage battery products and small control systems.
Moreover, the motor uses a 4mm output shaft with 12mm shaft length. As a result, it can connect small wheels, gears, arms, and drive parts.
Main Product Features
- First, low power: The 6V DC drive has a maximum power of 0.6W.
- In addition, wide voltage range: The motor supports 1.5V – 7.4V DC.
- Also, compact size: The small body helps fit tight spaces.
- Next, high torque: Higher ratios provide stronger low-speed output.
- Finally, metal gearbox: The gearbox helps reduce speed and raise torque.
General Motor Data
First, the table below lists the main 6V gear motor data. Also, users can compare ratio, speed, current, torque, and gearbox length before testing.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current | Gearbox Length |
|---|---|---|---|---|---|---|---|---|
| 10:1 | 650 rpm | ≤70 mA | 480 rpm | ≤0.22 A | 0.1 kg.cm | 0.25 kg.cm | ≤0.5 A | 19 mm |
| 20:1 | 320 rpm | ≤70 mA | 240 rpm | ≤0.22 A | 0.2 kg.cm | 0.5 kg.cm | ≤0.5 A | 19 mm |
| 34:1 | 190 rpm | ≤70 mA | 140 rpm | ≤0.22 A | 0.3 kg.cm | 0.8 kg.cm | ≤0.5 A | 21 mm |
| 45:1 | 140 rpm | ≤70 mA | 100 rpm | ≤0.22 A | 0.5 kg.cm | 1.1 kg.cm | ≤0.5 A | 21 mm |
| 100:1 | 65 rpm | ≤70 mA | 48 rpm | ≤0.22 A | 1.0 kg.cm | 2.8 kg.cm | ≤0.5 A | 23 mm |
| 125:1 | 50 rpm | ≤70 mA | 38 rpm | ≤0.22 A | 1.2 kg.cm | 3.0 kg.cm | ≤0.5 A | 25 mm |
| 478:1 | 13 rpm | ≤70 mA | 10 rpm | ≤0.22 A | 5.0 kg.cm | 10.0 kg.cm | ≤0.5 A | 27 mm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, lower ratios give faster output speed. In addition, higher ratios give stronger low-speed torque for slow drive tasks.
25mm Motor Speed Reduction Gearbox Motor Outline Drawing
First, the outline drawing helps users check the motor size before design work. Also, it shows the gearbox body and shaft layout for easier mounting.
In addition, the motor supports CW and CCW rotation by changing polarity. Therefore, it can work in forward and reverse drive systems.
Moreover, the motor weighs about 60g when the reduction ratio is 100:1. As a result, it is useful for compact products that need a light gear motor.
Outline Drawing and Design Benefits
- First, compact body: The 25mm gearbox helps save space.
- In addition, 4mm shaft: The output shaft helps connect small drive parts.
- Also, two-way rotation: CW and CCW rotation support forward and reverse motion.
- Next, low power: The motor is suitable for small low-power products.
- Finally, high torque: The 478:1 ratio gives strong slow-speed output.
Typical Applications
Finally, this 6V brushed DC motor with metal gearbox is useful for small products that need low speed and strong torque. For example, it can work in toys, smart devices, small tools, and compact machines.
- Small toys
- Smart devices
- Small tools
- Compact machines
- Battery-powered products
- Small drive systems
In short, this 6V brushed DC gear motor is a good fit for products that need 1.5V – 7.4V DC input, 4mm output shaft, metal gearbox, low power, and strong low-speed torque.
Keywords: DC geared motor, electric motor gearbox, small DC gear motor, 6 volt high torque gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
