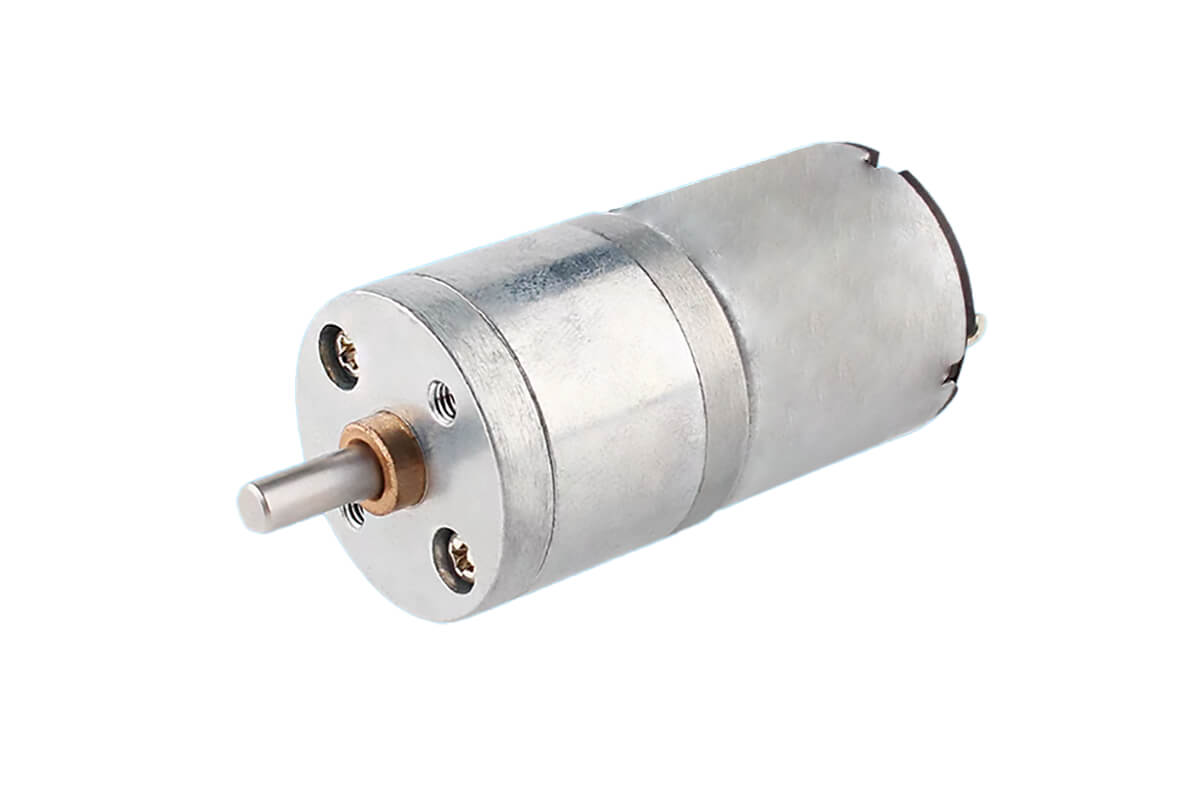

25mm Metal Gear Motor Model NFP-GM25-340
$10.00
Maximize your work efficiency with our 25mm dc gear motor low speed high torque. Combines low speed with high torque for optimal performance!
6V Mini DC Drive Gearbox with Motor Datasheet
First, this 6V mini DC drive gearbox with motor is made for small drive systems. Also, it is useful when a product needs low speed, strong torque, and compact size.
In addition, the motor uses a 4mm D-cut shaft with 12mm shaft length. Therefore, it can connect wheels, gears, arms, and other small drive parts more easily.
Moreover, the motor weight is about 85g. As a result, it can fit compact products that need a small but strong gear motor.
Main Product Features
- First, 6V DC drive: The motor is suitable for low-voltage drive systems.
- In addition, D-cut shaft: The 4mm shaft helps connect drive parts firmly.
- Also, wide ratio range: Users can choose fast speed or strong torque.
- Next, compact gearbox: The gearbox length changes with each ratio.
- Finally, high torque: Higher ratios provide stronger slow-speed output.
6V Mini DC Gear Motor Performance Data
First, the table below shows ratio, no-load data, rated load data, stall data, and gearbox length. Also, it helps users compare speed, current, and torque before sample testing.
Therefore, users can choose a low ratio for higher speed. In addition, users can choose a high ratio for stronger low-speed torque.
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | Gearbox Length |
|---|---|---|---|---|---|---|---|---|
| 4.4:1 | ≤0.13A | 2,045rpm | ≤0.65A | 1,450rpm | 0.07kg.cm | ≤3.5A | 0.3kg.cm | 19.0mm |
| 9.3:1 | ≤0.13A | 960rpm | ≤0.65A | 700rpm | 0.14kg.cm | ≤3.5A | 0.75kg.cm | 19.0mm |
| 20:1 | ≤0.13A | 450rpm | ≤0.65A | 350rpm | 0.25kg.cm | ≤3.5A | 1.5kg.cm | 19.0mm |
| 34:1 | ≤0.13A | 264rpm | ≤0.65A | 190rpm | 0.5kg.cm | ≤3.5A | 3kg.cm | 21.0mm |
| 45:1 | ≤0.13A | 200rpm | ≤0.65A | 140rpm | 0.65kg.cm | ≤3.5A | 4kg.cm | 21.0mm |
| 57:1 | ≤0.13A | 157rpm | ≤0.65A | 110rpm | 0.8kg.cm | ≤3.5A | 5kg.cm | 21.0mm |
| 75:1 | ≤0.13A | 120rpm | ≤0.65A | 72rpm | 1.3kg.cm | ≤3.5A | 7kg.cm | 23.0mm |
| 100:1 | ≤0.13A | 90rpm | ≤0.65A | 65rpm | 1.5kg.cm | ≤3.5A | ≥9kg.cm | 23.0mm |
| 217:1 | ≤0.13A | 41rpm | ≤0.65A | 30rpm | 3.1kg.cm | ≤3.5A | ≥9kg.cm | 25.0mm |
| 478:1 | ≤0.13A | 18rpm | ≤0.65A | 14rpm | 6.5kg.cm | ≤3.5A | ≥9kg.cm | 27.0mm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, lower ratios give faster output speed. Moreover, higher ratios give stronger torque for slow drive tasks.
Slow Speed High Torque DC Motor Carbon Brush Size Chart
First, the carbon brush structure helps the motor run with steady contact. Also, it can support longer motor life under suitable load and use conditions.
In addition, the motor uses a compact gearbox and a strong output shaft. Therefore, it is useful for small products that need slow speed and high torque.
Moreover, samples can be shipped quickly when stock is ready. As a result, users can test prototype projects in a shorter time.
Outline Drawing and Design Benefits
- First, carbon brush build: The brush structure helps support steady motor work.
- In addition, compact body: The small gearbox helps save space.
- Also, high torque: The high-ratio options give strong low-speed output.
- Next, D-cut shaft: The shaft helps connect small drive parts firmly.
- Finally, easy test: Stock samples can help speed up prototype checks.
Typical Applications
Finally, this 6V mini DC drive gearbox with motor is useful for compact products that need low speed and strong torque. For example, it can work in smart devices, toys, tools, locks, and small machines.
- Smart devices
- Small toys
- Electric locks
- Small tools
- Battery-powered products
- Compact drive systems
- Small machines
In short, this 6V mini DC drive gearbox with motor is a good fit for products that need 6V DC power, 4mm D-cut shaft, compact gearbox, wide ratio choices, and strong low-speed torque.
Keywords: DC geared motor original factory, brushed motor turns, precise brush DC gearmotor, low cost gear motor China
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
