25mm Metal Gear Motor Model NFP-GM25-370-RS
$10.00
Optimize your projects with the reliable 25mm metal gear motor durable low noise, supporting various voltage ranges for ultimate flexibility. Order now!
“`html

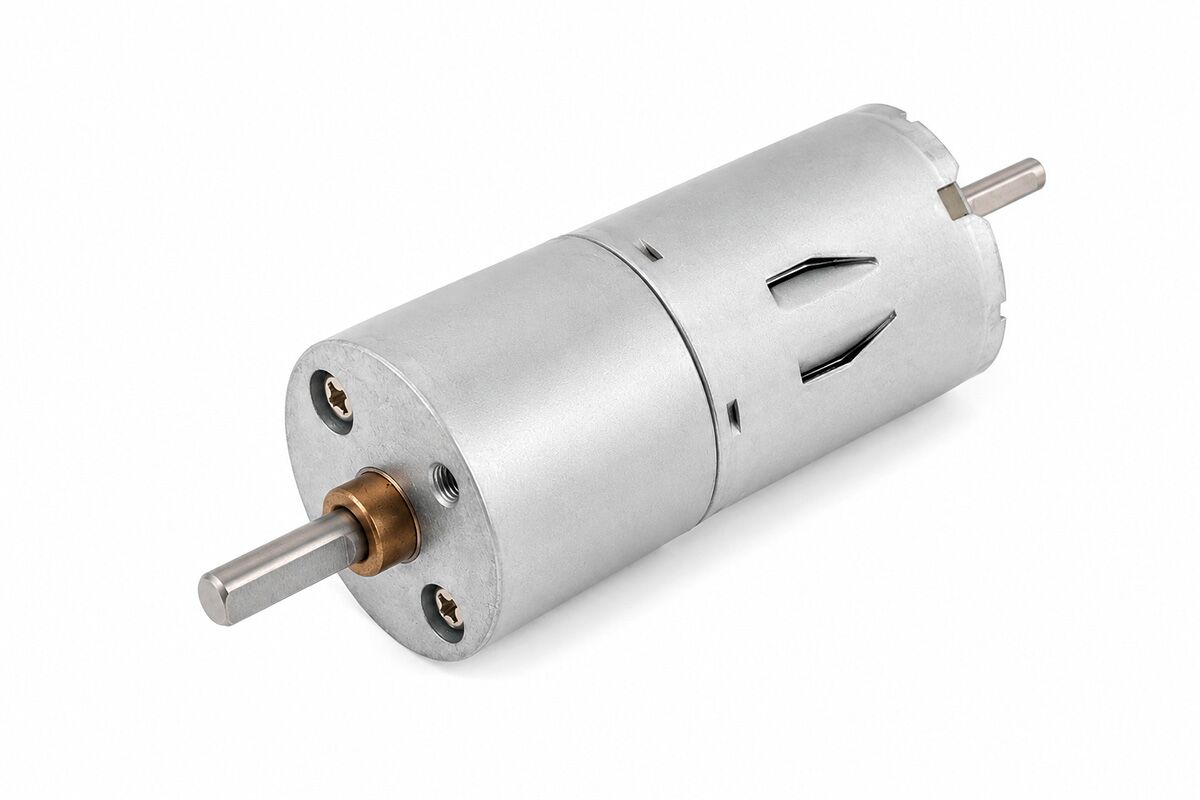

Compact DC Geared Motors with Back Shaft For Machinery
First, this compact DC geared motor is built for low-voltage machinery that needs stable speed and useful torque. Also, please note that the maximum allowable load for some speed ratios, including 125:1, 165:1, 217:1, and 478:1, is 9kg.cm. Therefore, loads above this range may damage the gears.
In addition, the table below gives the main size, voltage, speed, current, power, rotation, and weight data for the NFP-GM25-370-RS motor.
| Motor Model | NFP-GM25-370-RS |
|---|---|
| Motor Diameter | 25mm |
| Shaft Diameter | 4mm |
| Shaft Length | 12mm |
| Voltage Range | 6V / 9V / 12V / 24V DC |
| No Load Speed | 12rpm – 1,280rpm |
| No Load Current | ≤0.15A / ≤0.2A |
| Power | 3.5W / 12W |
| Rotation | CW / CCW |
| Weight | appr. 100g |
As a result, this motor can support many compact drive systems where size, speed, and torque must stay balanced. For example, it can be used in small machines that need CW or CCW rotation.
Model: NFP-GM25-370-RS, 6V DC
First, the 6V DC version offers several ratio choices for different output speeds. Also, the table below keeps the original current, speed, torque, stall, and gearbox length data.
| Item | 9.3:1 | 20:1 | 34:1 | 34:1 | 75:1 |
|---|---|---|---|---|---|
| No-load Current | ≤150 mA | ≤100 mA | ≤130 mA | ≤130 mA | ≤130 mA |
| No-load Speed | 640 rpm | 300 rpm | 210 rpm | 165 rpm | 100 rpm |
| Rated Torque | 0.7 kg.cm | 1.8 kg.cm | 5.2 kg.cm | 2.9 kg.cm | 7.0 kg.cm |
| Rated Torque | 0.0687 N.m | 0.177 N.m | 0.50 N.m | 0.28 N.m | 0.69 N.m |
| Rated Speed | 330 rpm | 160 rpm | 110 rpm | 90 rpm | 55 rpm |
| Rated Current | ≤1.3 A | ≤0.8 A | ≤1.1 A | ≤1.1 A | ≤1.5 A |
| Stall Current | ≤2.7 A | ≤2.7 A | ≤3.5 A | ≤3.0 A | ≤3.5 A |
| Stall Torque | 1.8 kg.cm | 3.6 kg.cm | 10.0 kg.cm | 6.0 kg.cm | 10.0 kg.cm |
| Gearbox Length | 19 mm | 19 mm | 21 mm | 21 mm | 23 mm |
Therefore, the 6V DC motor is useful when the drive system needs lower voltage with a wide speed range. In addition, all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GM25-370-RS, 12V DC
First, the 12V DC version gives higher speed options and several torque levels. Also, it is suitable for compact machines that need more output power than a 6V drive.
| Item | 4.4:1 | 9.3:1 | 20:1 | 34:1 | 20:1 | 45:1 |
|---|---|---|---|---|---|---|
| No-load Current | ≤200 mA | ≤200 mA | ≤200 mA | ≤200 mA | ≤130 mA | ≤150 mA |
| No-load Speed | 2700 rpm | 1280 rpm | 600 rpm | 350 rpm | 220 rpm | 140 rpm |
| Rated Torque | 0.8 kg.cm | 1.4 kg.cm | 3.5 kg.cm | 5.8 kg.cm | 2.9 kg.cm | 4.3 kg.cm |
| Rated Torque | 0.08 N.m | 0.1373 N.m | 0.34 N.m | 0.57 N.m | 0.28 N.m | 0.42 N.m |
| Rated Speed | 1600 rpm | 660 rpm | 350 rpm | 180 rpm | 130 rpm | 70 rpm |
| Rated Current | ≤1.5 A | ≤2.6 A | ≤1.5 A | ≤1.7 A | ≤1.0 A | ≤0.8 A |
| Stall Current | ≤5.6 A | ≤5.5 A | ≤5.6 A | ≤5.6 A | ≤2.5 A | ≤2.5 A |
| Stall Torque | 1.8 kg.cm | 3.5 kg.cm | 7.0 kg.cm | 12.0 kg.cm | 5.0 kg.cm | 8.5 kg.cm |
| Gearbox Length | 19 mm | 19 mm | 19 mm | 21 mm | 19 mm | 21 mm |
As a result, the 12V DC version can fit many medium-speed gear motor projects. In addition, all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GM25-370-RS, 24V DC
First, the 24V DC version is a good choice for control systems that use a higher DC supply. Also, the table below shows each ratio with its matching speed, torque, current, and gearbox length.
| Item | 4.4:1 | 9.3:1 | 20:1 | 34:1 | 45:1 | 34:1 |
|---|---|---|---|---|---|---|
| No-load Current | ≤150 mA | ≤150 mA | ≤150 mA | ≤150 mA | ≤150 mA | ≤100 mA |
| No-load Speed | 2700 rpm | 1280 rpm | 600 rpm | 350 rpm | 265 rpm | 180 rpm |
| Rated Torque | 0.6 kg.cm | 1.4 kg.cm | 2.8 kg.cm | 5.0 kg.cm | 6.5 kg.cm | 3.0 kg.cm |
| Rated Torque | 0.059 N.m | 0.14 N.m | 0.27 N.m | 0.49 N.m | 0.64 N.m | 0.29 N.m |
| Rated Speed | 1200 rpm | 580 rpm | 300 rpm | 170 rpm | 130 rpm | 110 rpm |
| Rated Current | ≤2.4 A | ≤2.4 A | ≤2.4 A | ≤2.4 A | ≤2.4 A | ≤1.3 A |
| Stall Current | ≤5.0 A | ≤5.0 A | ≤5.0 A | ≤5.0 A | ≤5.0 A | ≤2.5 A |
| Stall Torque | 1.0 kg.cm | 2.2 kg.cm | 4.5 kg.cm | 8.0 kg.cm | 10.0 kg.cm | 6.0 kg.cm |
| Gearbox Length | 19 mm | 19 mm | 19 mm | 21 mm | 21 mm | 21 mm |
Therefore, the 24V DC version helps users match higher-voltage systems with compact gear motor output. In addition, all reduced no-load speeds have a tolerance of ±15%.
High Efficiency Electric Motors with Gearbox Dimension
First, this 370 gear motor is designed to work with 6V, 9V, 12V, and 24V DC power supplies. Therefore, it is suitable for many low-voltage applications that need a compact motor and gearbox.
Applications
Also, small gear motors like this are often used in robotics, toys, models, and automated machinery. For example, they can help move small parts, drive wheels, open locks, or control light-duty mechanical motion.
- Robotics
- Toys
- Models
- Automated machinery
- Small low-voltage drive systems
Furthermore, the outline drawing below helps users check the size before design work. As a result, it is easier to confirm the motor fit before ordering samples or bulk units.
