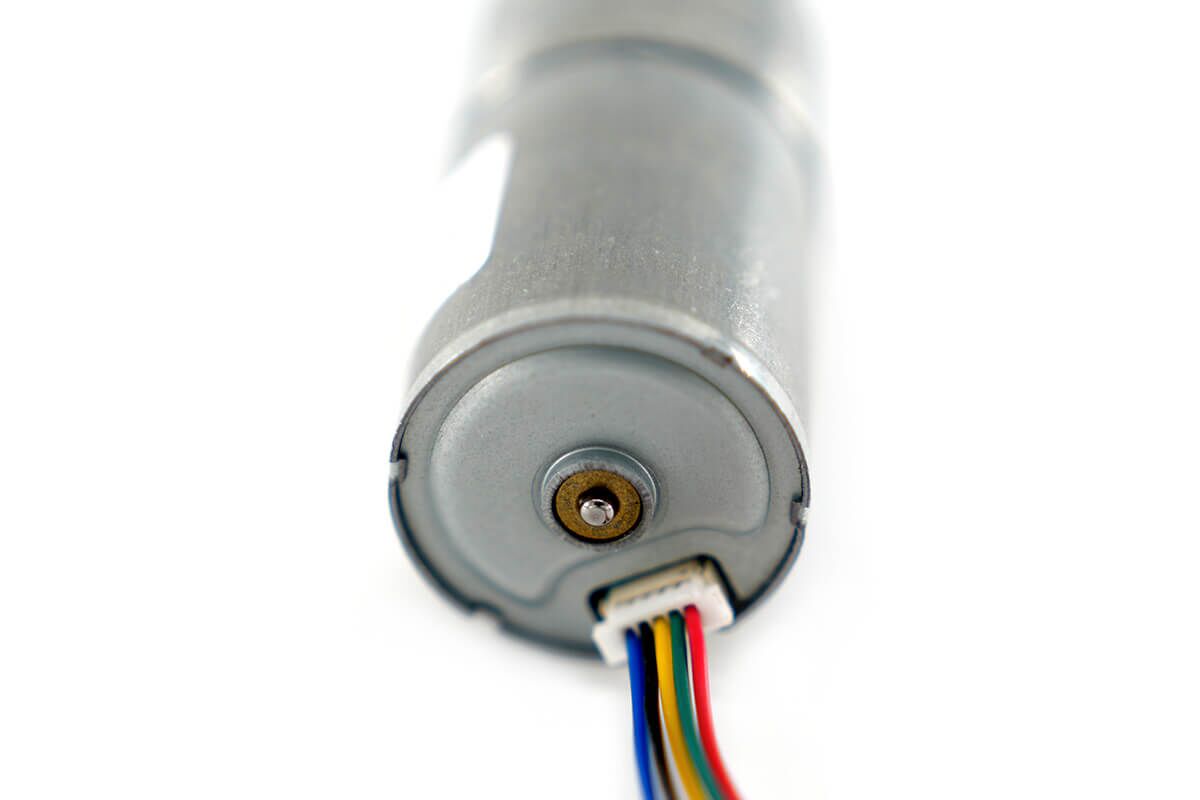

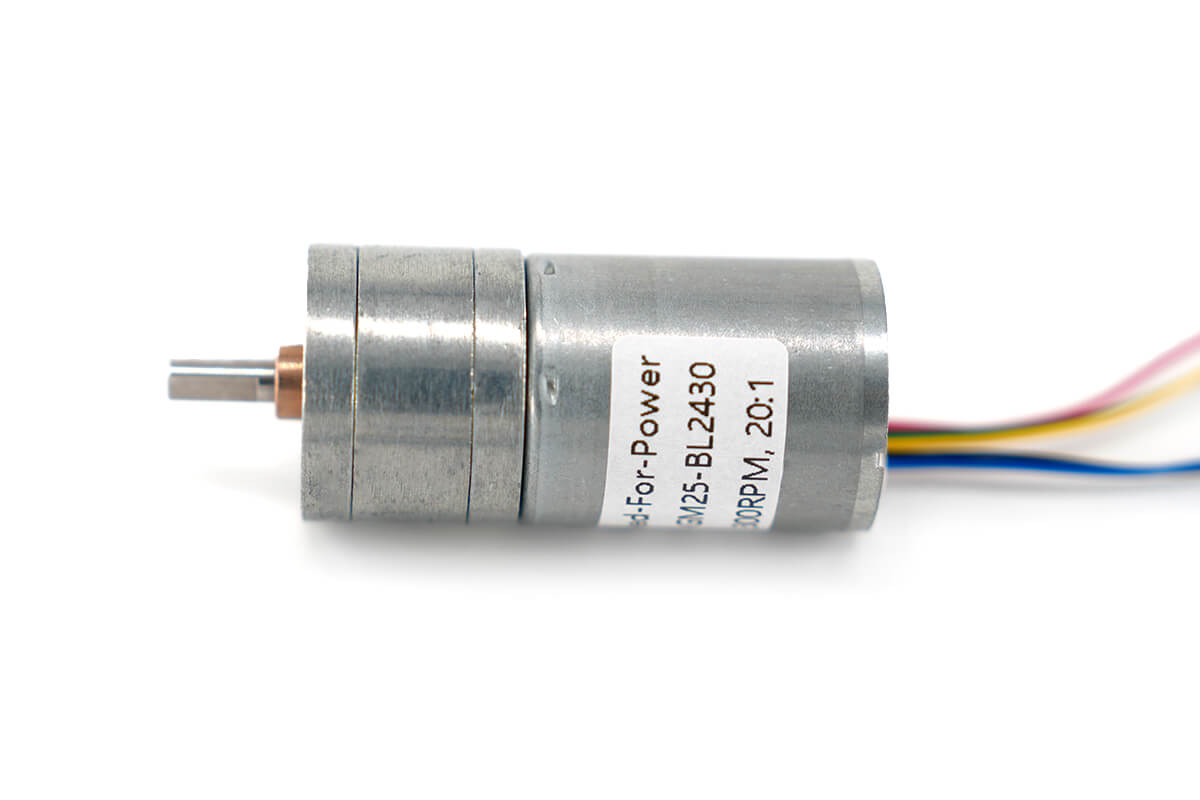

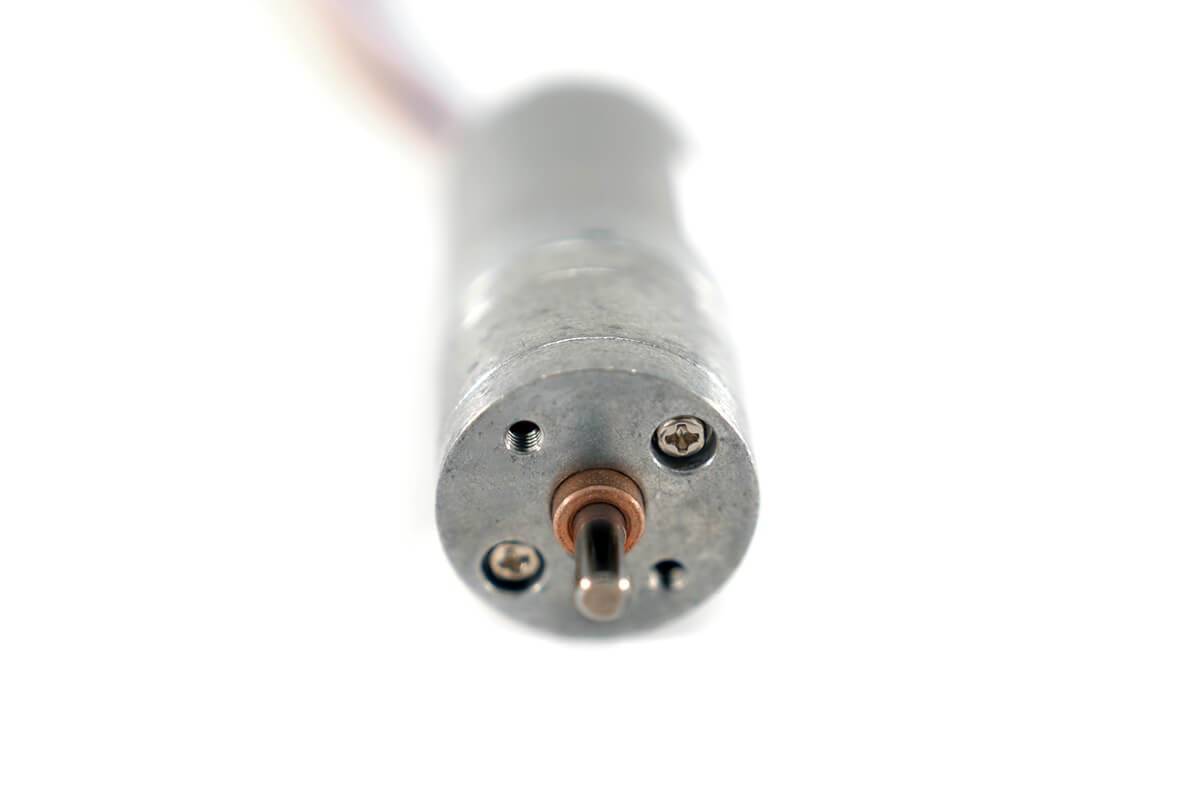

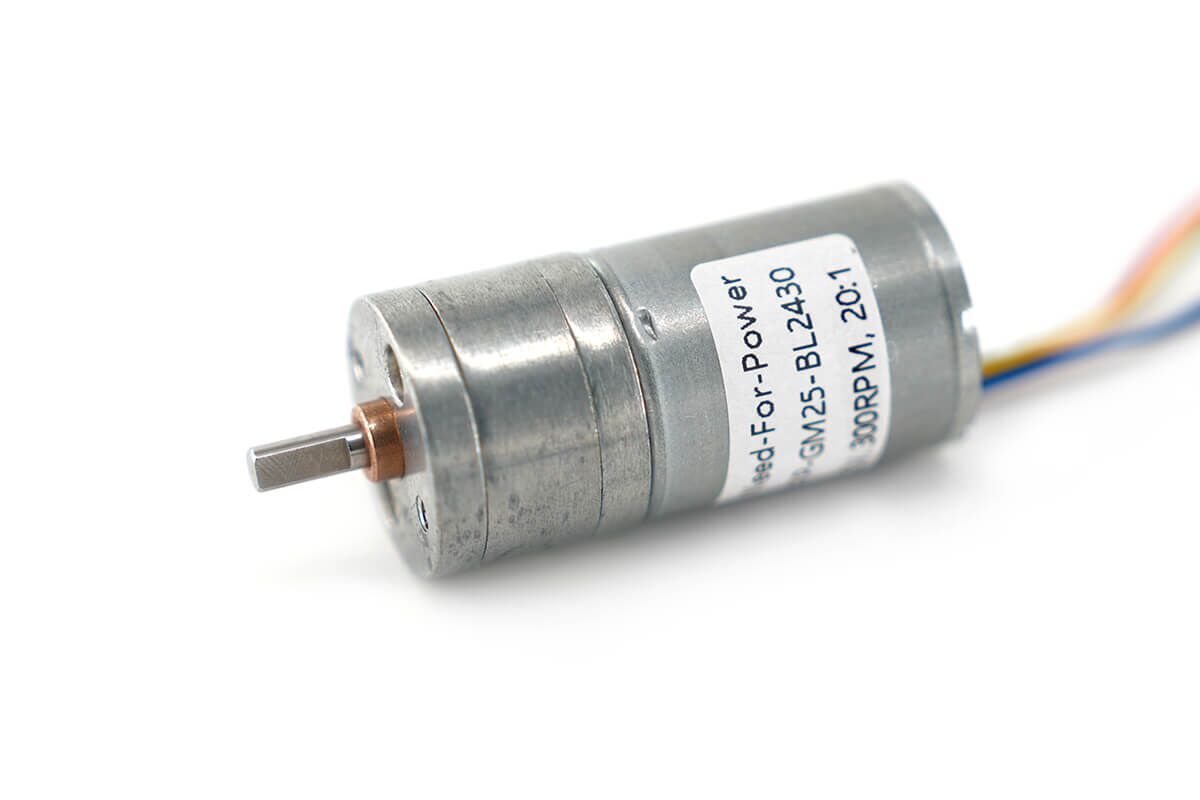

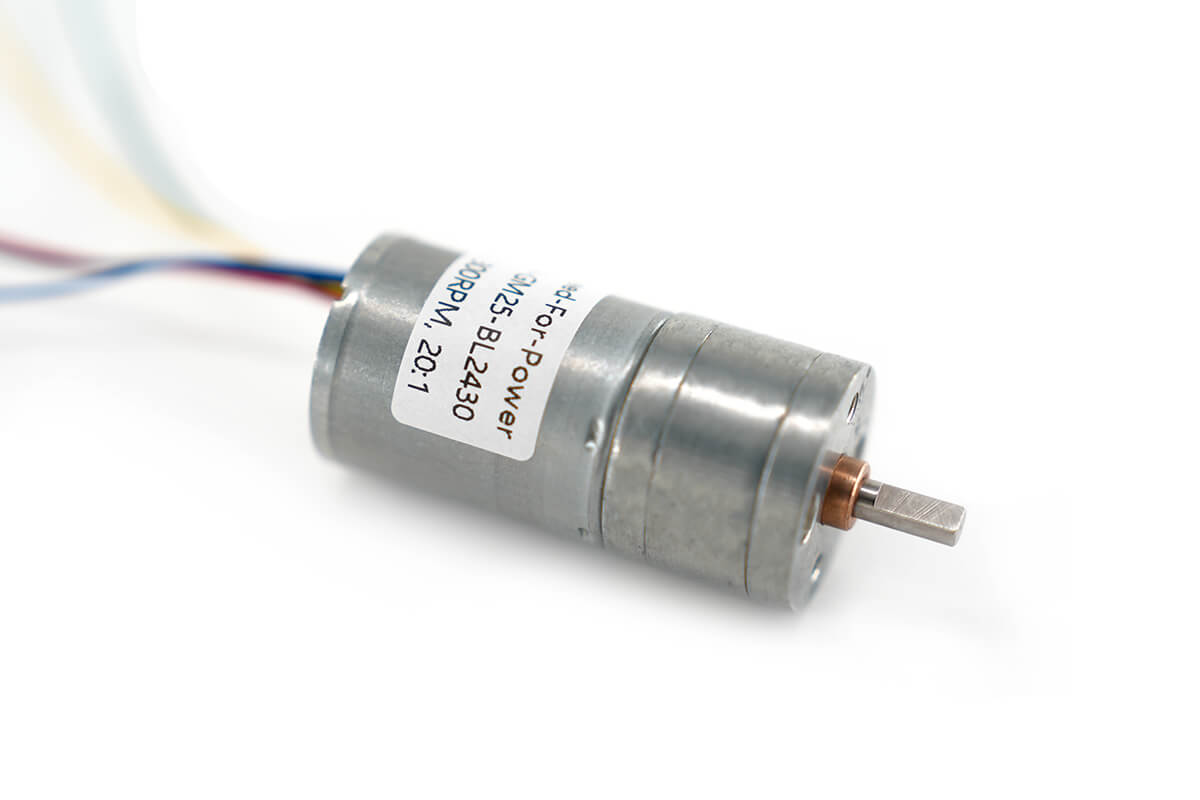

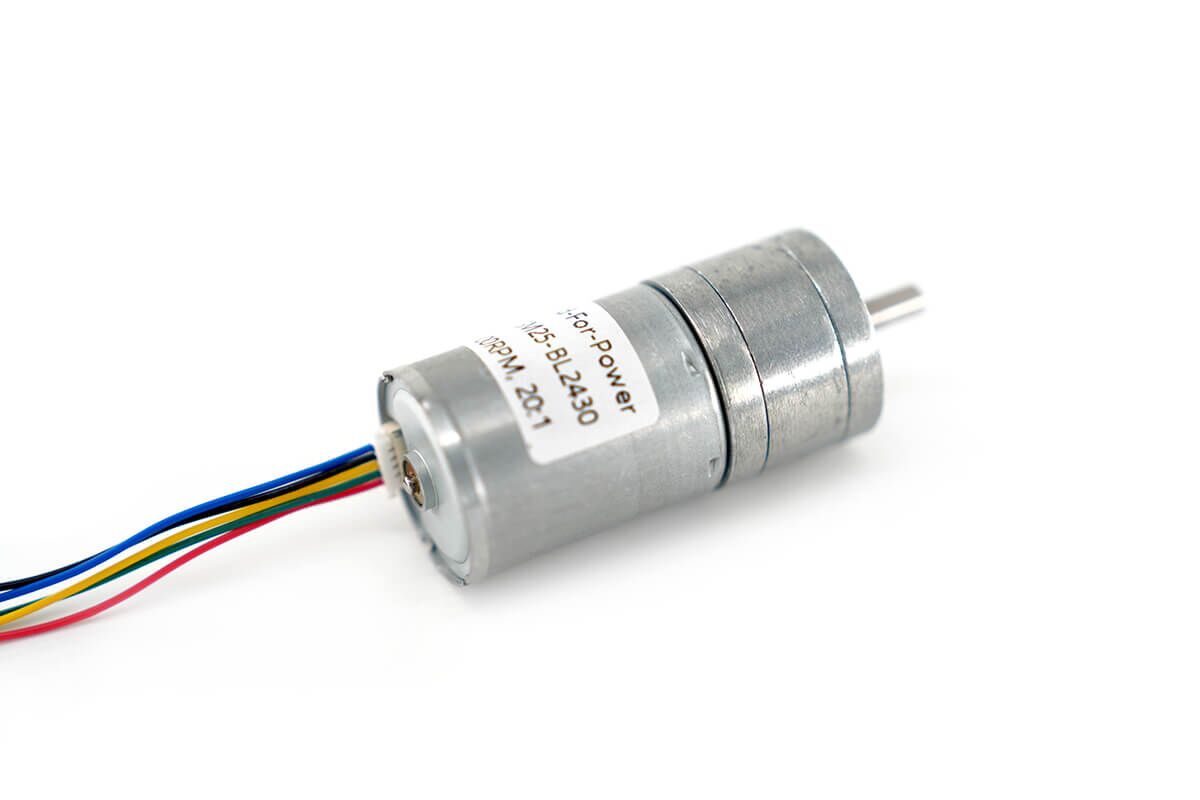

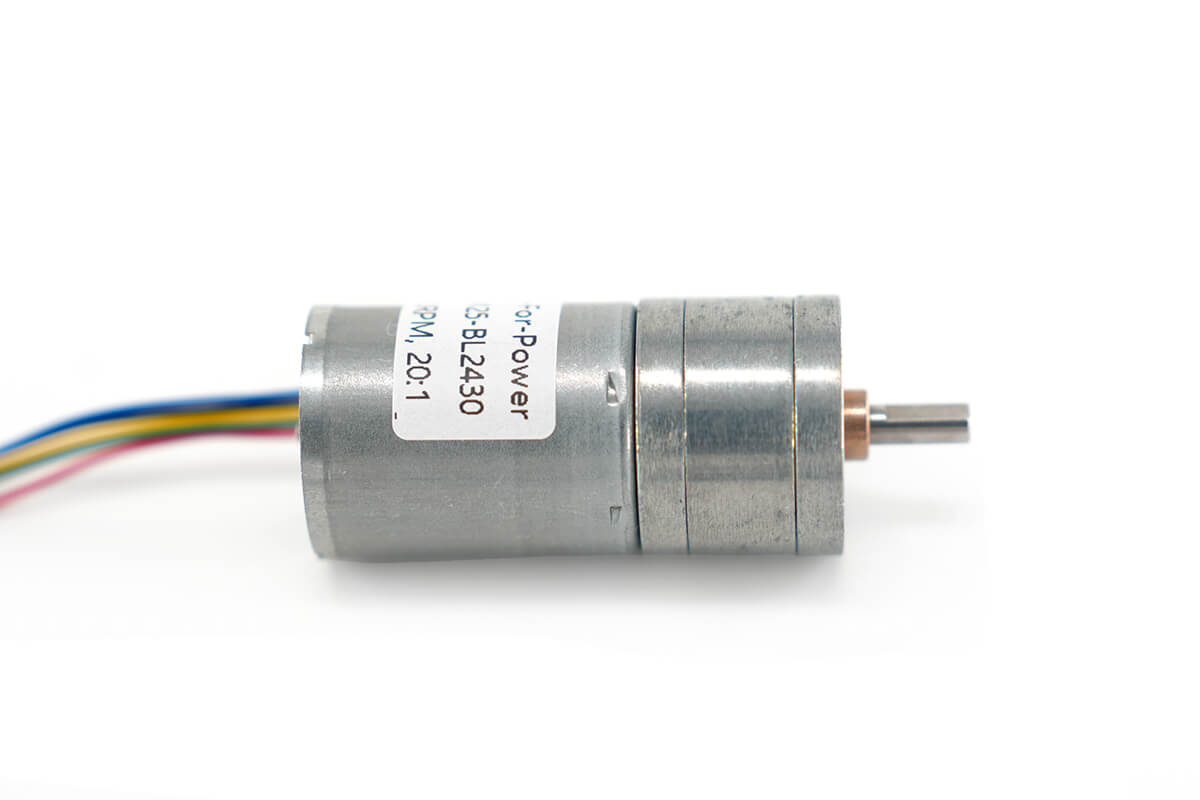

25mm Metal Gear Motor Model NFP-GM25-BL2430
$20.00
Choose the reliable 25mm classic metal gearbox motor for your projects. It offers adjustable speed and reverse functionality for versatility! ⚙️
High Efficiency 12V 24V DC Gear Motor High Torque Data Sheet
Product Overview
The NFP-GM25-BL2430 is a 12V and 24V brushless DC gear motor. Therefore, it is suitable for products that need high torque, speed control, and long service life.
In addition, this BLDC gear motor supports forward and reverse rotation. As a result, users can build two-way drive systems more easily.
Moreover, the gearbox uses all-metal gears. Therefore, it can provide strong torque, low noise, and stable output in compact equipment.
Main Features
First, this 12V 24V DC gear motor high torque model gives users a compact drive choice. Also, it supports speed control and two-way rotation for many small systems.
- High torque: The motor can provide up to 8kg.cm torque. Therefore, it works well in low-speed drive systems.
- Speed control: Users can adjust motor speed. As a result, it can fit many motion control needs.
- Forward and reverse: The motor supports CW and CCW rotation. In addition, this helps users design two-way motion.
- Metal gearbox: The gearbox uses metal gears. Therefore, it can support long service life.
- Low noise: The motor runs smoothly. Moreover, it is suitable for products that need quiet motion.
General Motor Data
The table below shows the main motor data. Therefore, users can check voltage, speed, current, shaft size, rotation, and weight before testing.
In addition, this general data helps users confirm the basic setup before they choose a gear ratio. As a result, it can reduce wrong model selection.
| Motor Model | NFP-GM25-BL2430 |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No Load Current | ≤0.13A / ≤0.18A |
| No Load Speed | 12.5rpm – 2,700rpm |
| Output Shaft Diameter | 4mm |
| Output Shaft Length | 12mm |
| Rotation | CW / CCW |
| Weight | appr. 95g |
Selection Notes
First, choose the rated voltage according to your power supply. Next, compare no-load speed, rated torque, and gearbox length. Finally, test the motor under the real load.
- Choose 12V DC when the system uses a 12V power supply.
- Choose 24V DC when the system needs higher speed.
- Choose a low ratio when the product needs faster output speed.
- Choose a high ratio when the product needs stronger output torque.
- Check the stall current before choosing the power supply.
12V DC Performance Data
The table below shows the 12V DC version. Therefore, users can compare speed, current, torque, and gearbox length before choosing a ratio.
In addition, the 12V DC type is useful for compact products that need controlled speed. For example, users can apply it in robots, pumps, and small machines.
Model: NFP-GM25-BL2430, 12V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 4.4:1 | 19.0mm | ≤0.13A | 1,350rpm | ≤0.5A | 1,100rpm | 0.3kg.cm | ≤1.3A | ≥0.5kg.cm |
| 9.3:1 | 19.0mm | ≤0.13A | 640rpm | ≤0.5A | 500rpm | 0.6kg.cm | ≤1.3A | ≥1.0kg.cm |
| 20:1 | 19.0mm | ≤0.13A | 300rpm | ≤0.5A | 235rpm | 1.2kg.cm | ≤1.3A | ≥2.0kg.cm |
| 34:1 | 21.0mm | ≤0.13A | 185rpm | ≤0.5A | 143rpm | 2.0kg.cm | ≤1.3A | ≥3.0kg.cm |
| 45:1 | 21.0mm | ≤0.13A | 130rpm | ≤0.5A | 110rpm | 2.5kg.cm | ≤1.3A | ≥4.5kg.cm |
| 75:1 | 23.0mm | ≤0.13A | 80rpm | ≤0.5A | 64rpm | 4.5kg.cm | ≤1.3A | ≥7.0kg.cm |
| 100:1 | 23.0mm | ≤0.13A | 60rpm | ≤0.5A | 49rpm | 6.0kg.cm | ≤1.3A | ≤9.0kg.cm |
| 125:1 | 25.0mm | ≤0.13A | 48rpm | ≤0.5A | 39rpm | 7.5kg.cm | ≤1.3A | ≤9.0kg.cm |
| 217:1 | 25.0mm | ≤0.13A | 27rpm | ≤0.5A | 22rpm | 8.0kg.cm | ≤1.3A | ≤9.0kg.cm |
| 362:1 | 27.0mm | ≤0.13A | 16.5rpm | ≤0.5A | 13rpm | 8.0kg.cm | ≤1.3A | ≤9.0kg.cm |
| 478:1 | 27.0mm | ≤0.13A | 12.5rpm | ≤0.5A | 10rpm | 8.0kg.cm | ≤1.3A | ≤9.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Therefore, users should keep enough speed range in the final design. Also, they should avoid long stall time during motor testing.
24V DC Performance Data
The table below shows the 24V DC version. In addition, this version gives higher no-load speed than the 12V version.
Moreover, the 24V option is useful for systems that use a 24V power supply. Therefore, users can select it for higher speed drive needs.
Model: NFP-GM25-BL2430, 24V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 4.4:1 | 19.0mm | ≤0.18A | 2,700rpm | ≤0.8A | 2,200rpm | 0.5kg.cm | ≤1.6A | ≥1.0kg.cm |
| 9.3:1 | 19.0mm | ≤0.18A | 1,280rpm | ≤0.8A | 1,000rpm | 1.0kg.cm | ≤1.6A | ≥2.0kg.cm |
| 20:1 | 19.0mm | ≤0.18A | 600rpm | ≤0.8A | 470rpm | 2.0kg.cm | ≤1.6A | ≥4.0kg.cm |
| 34:1 | 21.0mm | ≤0.18A | 370rpm | ≤0.8A | 285rpm | 4.0kg.cm | ≤1.6A | ≥6.0kg.cm |
| 45:1 | 21.0mm | ≤0.18A | 260rpm | ≤0.8A | 220rpm | 5.0kg.cm | ≤1.6A | ≤9.0kg.cm |
| 75:1 | 23.0mm | ≤0.18A | 160rpm | ≤0.8A | 130rpm | 8.0kg.cm | ≤1.6A | ≤9.0kg.cm |
| 100:1 | 23.0mm | ≤0.18A | 120rpm | ≤0.8A | 100rpm | 8.0kg.cm | ≤1.6A | ≤9.0kg.cm |
| 125:1 | 25.0mm | ≤0.18A | 95rpm | ≤0.8A | 85rpm | 8.0kg.cm | ≤1.6A | ≤9.0kg.cm |
| 217:1 | 25.0mm | ≤0.18A | 54rpm | ≤0.8A | 46rpm | 8.0kg.cm | ≤1.6A | ≤9.0kg.cm |
| 362:1 | 27.0mm | ≤0.18A | 33rpm | ≤0.8A | 28rpm | 8.0kg.cm | ≤1.6A | ≤9.0kg.cm |
| 478:1 | 27.0mm | ≤0.18A | 25rpm | ≤0.5A | 10rpm | 8.0kg.cm | ≤1.6A | ≤9.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, users should test the final speed with the real load. Furthermore, they should leave enough safety range for torque and current.
Miniature BLDC Gearbox Motor Outline Drawing
Motor Outline and Use
The 25mm brushless geared motor has a compact body and metal gearbox. Therefore, it fits small drive systems that need high torque and steady output.
In addition, this motor can work in robots, pumps, packing machines, CNC tools, scooters, bikes, drones, fans, and smart home systems.
Typical Applications
For example, users can choose this miniature brushless gear motor for compact drive products. Also, the metal gearbox helps the motor support stable low-speed motion.
- Robot arms: The motor can provide steady low-speed torque.
- Mobile robots: It can drive wheels or small motion parts.
- Infusion pumps: The gear motor can support slow and stable motion.
- Conveyor belts: It can provide controlled movement for small belts.
- Packaging machines: The motor can support compact drive modules.
- CNC machinery: It can drive small control parts.
- Smart home systems: The motor can support fans, locks, and small moving parts.
High Performance Brushless DC Motor Gear Box Wiring Diagram
Type-1 Wiring Method
For Type-1 wiring, please connect the wires correctly before power-on. Therefore, the motor can run in the correct state.
- Red wire: Connect to the positive terminal.
- Black wire: Connect to the negative terminal.
- Blue wire: Connect to the negative terminal.
Type-2 Wiring Method
For Type-2 wiring, please connect the red wire to the positive terminal. In addition, connect the black, blue, and yellow wires to the negative terminal in parallel if you need to change the original direction.
- Red wire: Connect to the positive terminal of the power supply.
- Black wire + Blue wire + Yellow wire: Connect in parallel to the negative terminal.
- Blue wire: PWM speed control line. Therefore, it connects to a 0-5V PWM controller.
- Green wire: FG signal line. As a result, it provides a basic pulse count of 3 signals.
Important Wiring Note
For brushless gear motors, please do not reverse the positive and negative terminals. Otherwise, wrong polarity may burn out the motor.
Therefore, please confirm the wire order, rated voltage, and power supply polarity before testing.
Testing Notes
First, test the motor without load. Next, add the real load step by step. Finally, stop the test if the current or temperature becomes too high.
- Check the rated voltage before power-on.
- Keep the motor away from long stall conditions.
- Use the correct PWM signal for speed control.
- Confirm the wire order before each test.
