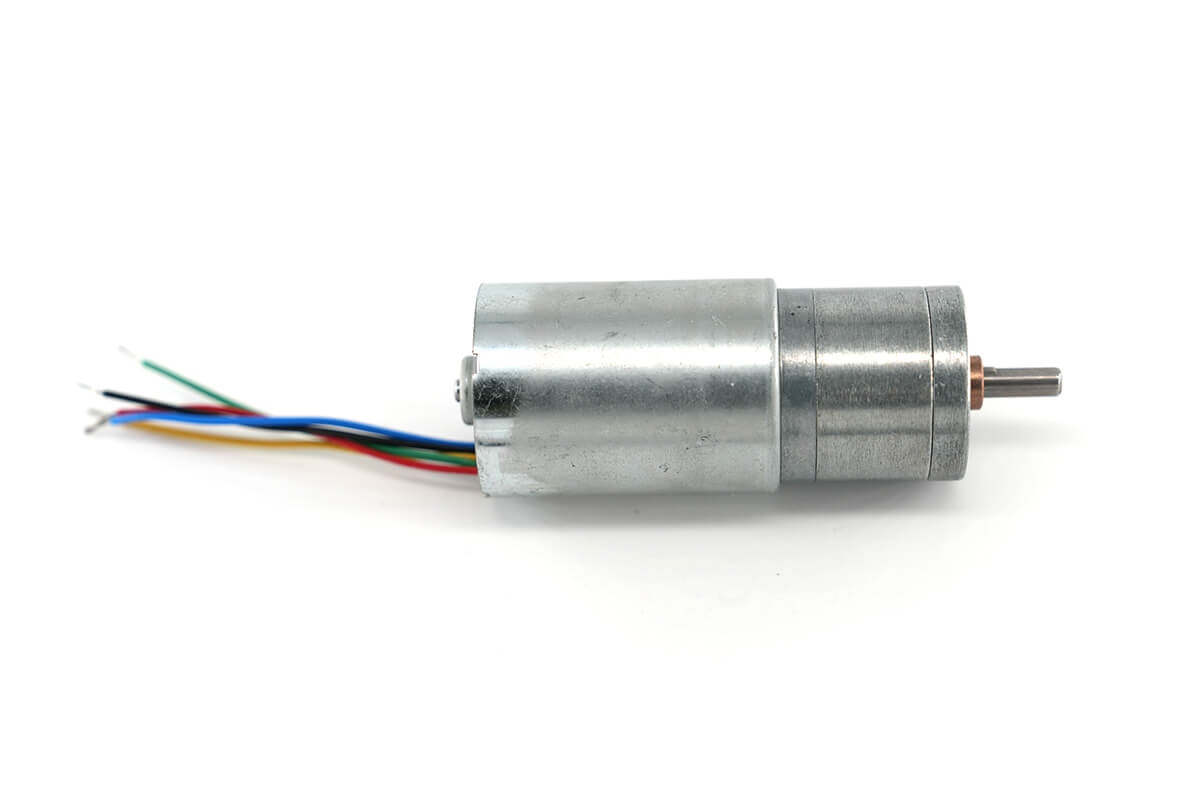

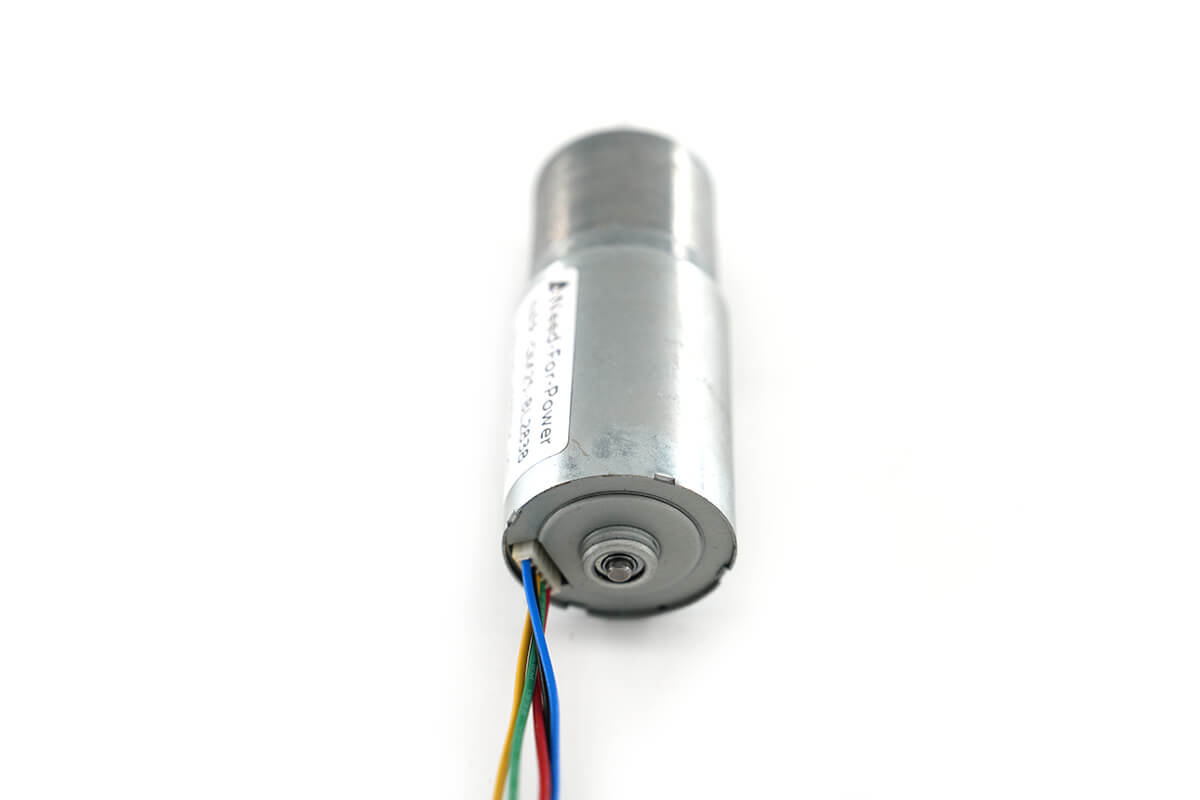

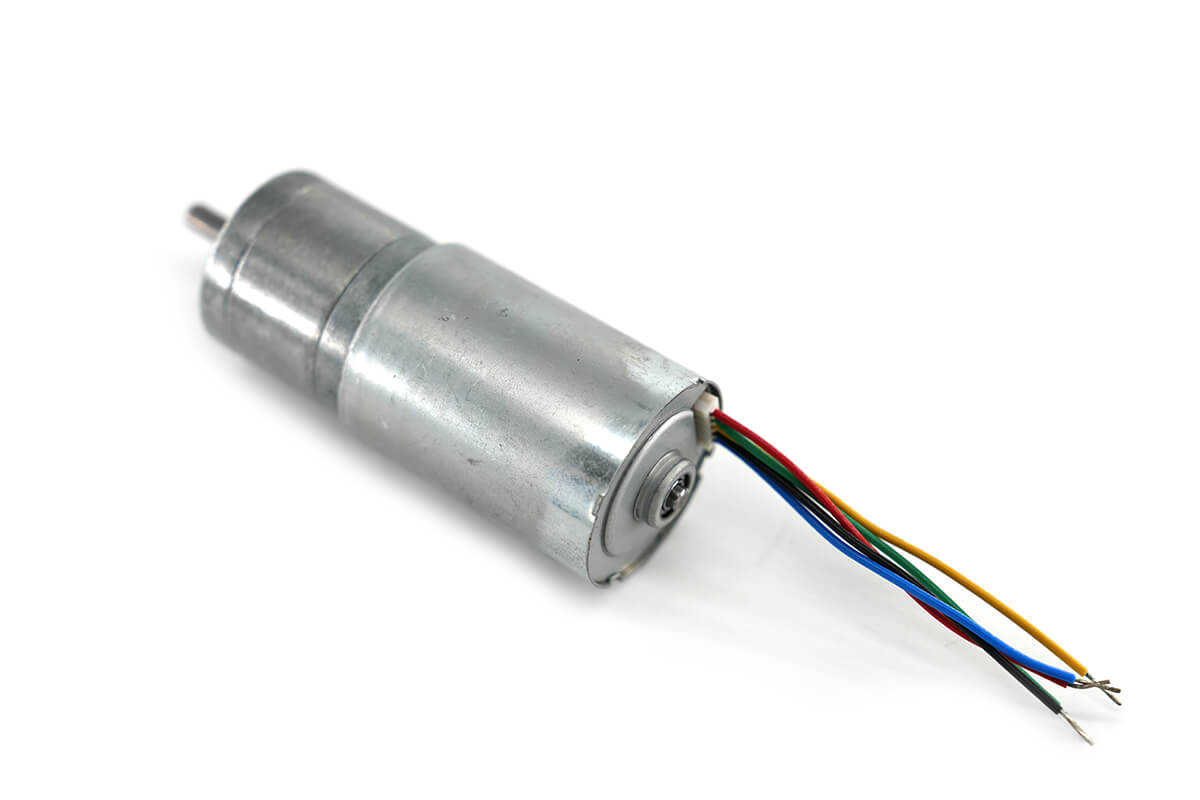

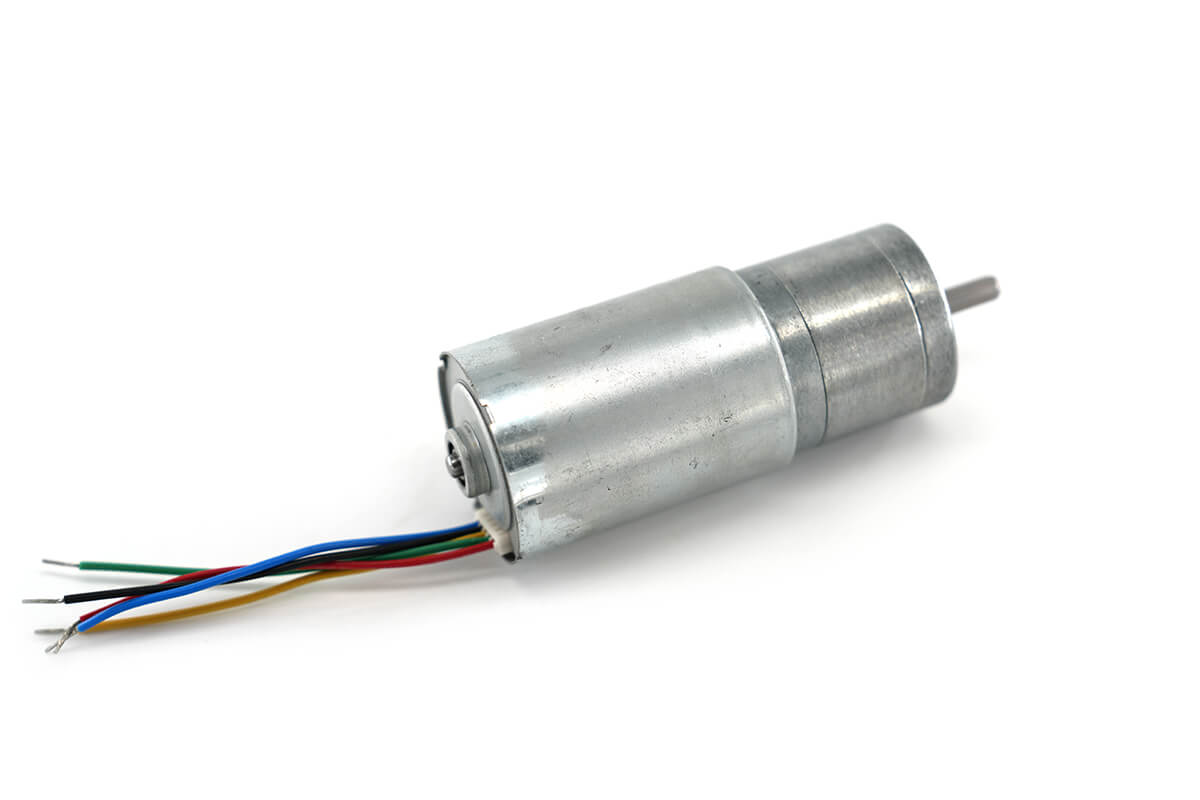

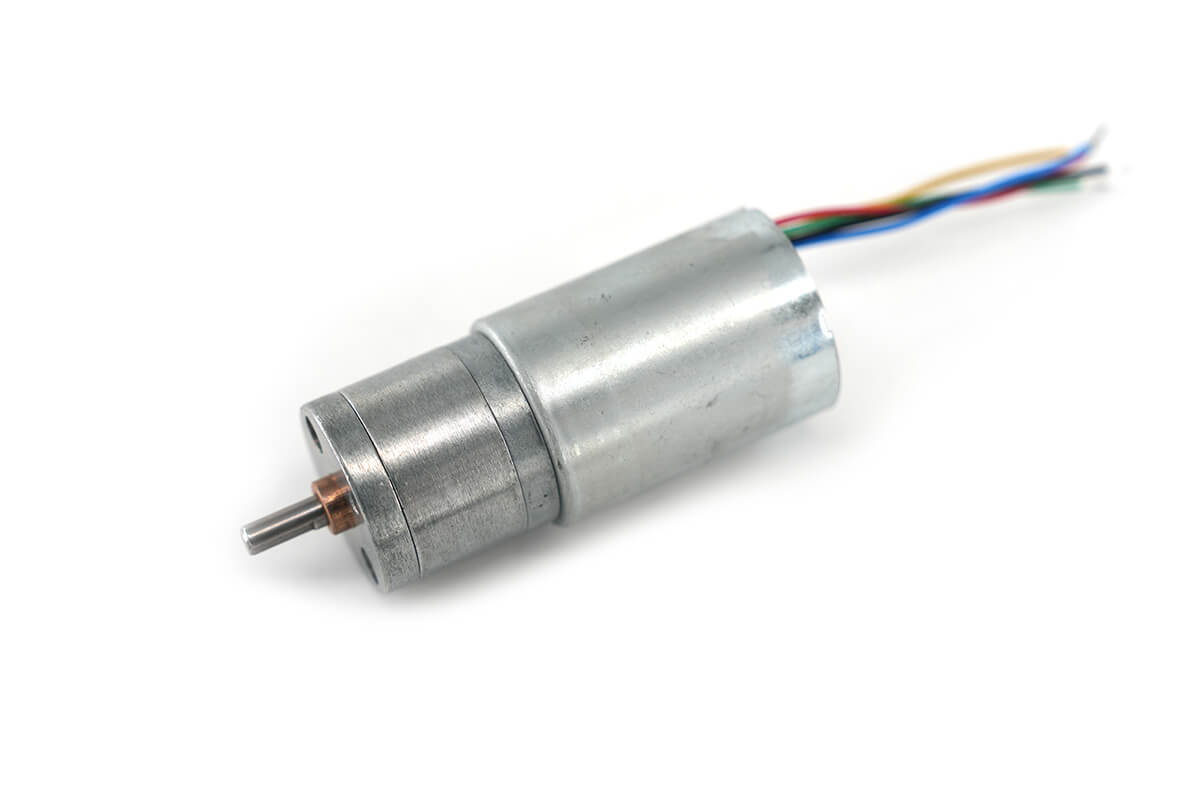

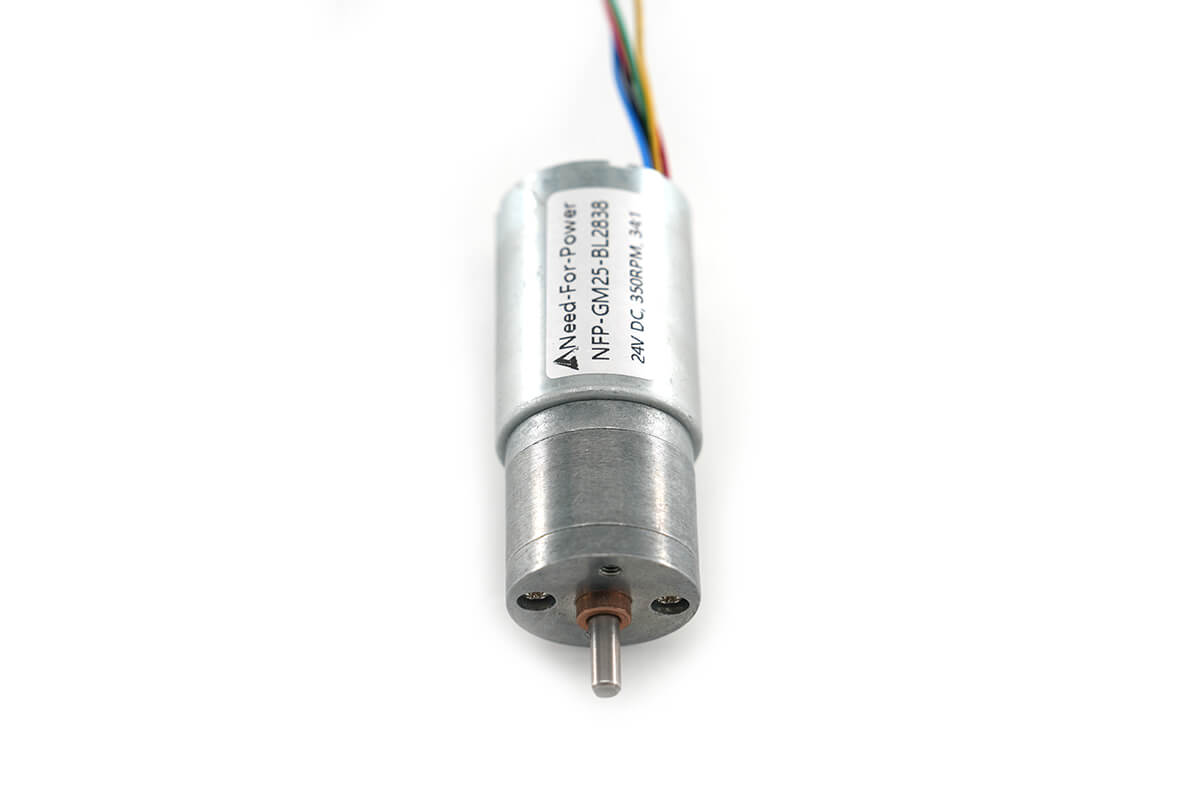

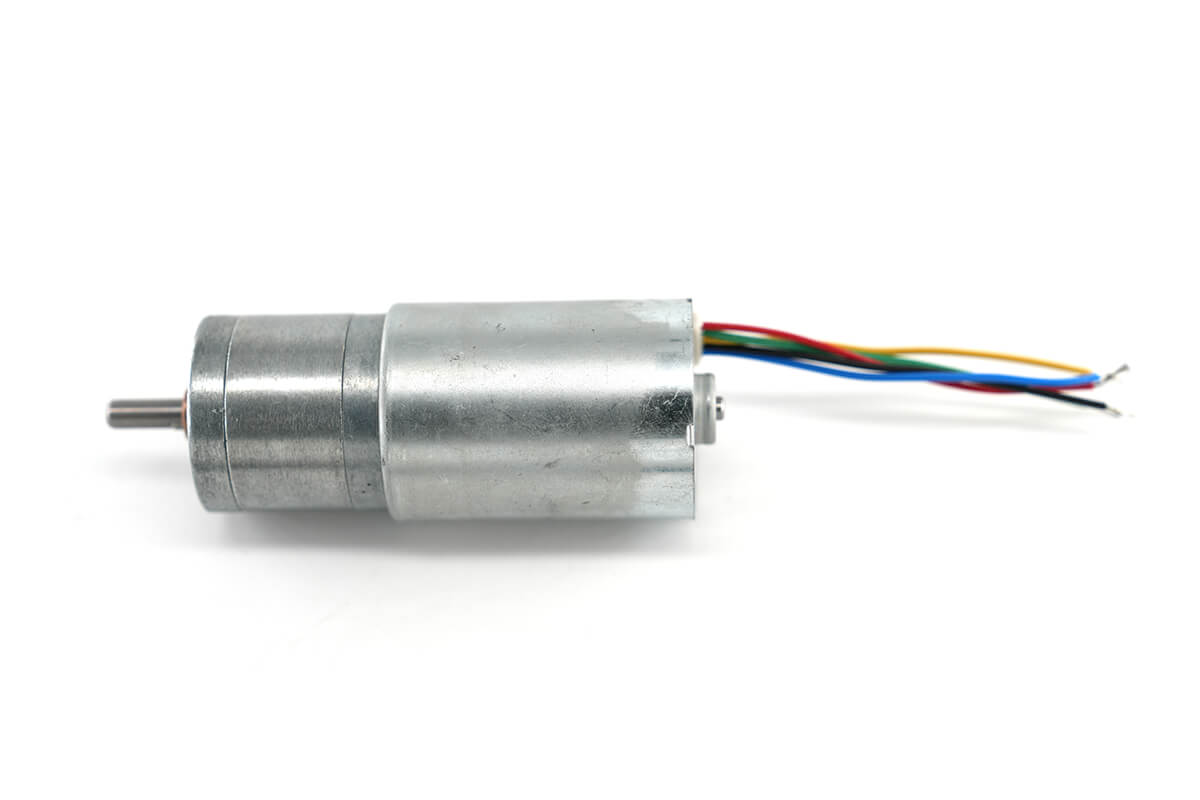

25mm Metal Gear Motor Model NFP-GM25-BL2838
$28.50
Experience longevity and efficiency with the 25mm brushless dc gear motor, designed for over 2,000 hours without maintenance. Optimize your projects now!
High Torque Brushless Motor with Gearbox Datasheet
First, the NFP-GM25-BL2838 is a high torque brushless motor with gearbox. Also, it is useful for compact products that need low noise, long life, and steady output.
In addition, this motor has an integrated Hall effect sensor. Therefore, it can provide speed feedback for control systems.
Moreover, within the rated torque range, the 2838 series BLDC motor lifespan is over 2,000 hours with no maintenance required. However, exceeding the torque rating may greatly reduce service life.
Main Product Features
- First, brushless motor: The BLDC design helps reduce wear and support long life.
- In addition, Hall sensor: The motor outputs 3 Hall signals per revolution.
- Also, voltage options: The motor supports 12V and 24V DC.
- Next, compact gearbox: The 25mm gearbox helps save space.
- Finally, high torque: The gearbox helps raise torque at low speed.
General Motor Data
First, the table below shows the main motor data. Also, it helps users check voltage, current, speed, shaft size, Hall signals, rotation, and weight before choosing a ratio.
| Motor Model | NFP-GM25-BL2838 |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No Load Current | ≤0.3A / ≤0.4A |
| No Load Speed | 12.5rpm – 2,700rpm |
| Output Shaft Diameter | 4mm |
| Output Shaft Length | 12mm |
| Rotation | CW / CCW |
| Hall Signals | Outputs 3 signals per revolution |
| Weight | appr. 120g |
As a result, this motor gives a wide speed range in one compact gear motor body. Moreover, the 4mm shaft helps connect small drive parts.
Model: NFP-GM25-BL2838, 12V DC
First, the 12V DC version is useful for compact 12V drive systems. Also, the table below helps users compare ratio, gearbox length, speed, current, torque, and stall data.
Therefore, users can choose a low ratio for higher speed. In addition, users can choose a high ratio for stronger low-speed torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 4.4:1 | 21.0mm | ≤0.3A | 1,360rpm | ≤0.7A | 1,090rpm | 0.5kg.cm | ≤3.0A | 2.0kg.cm |
| 9.3:1 | 21.0mm | ≤0.3A | 640rpm | ≤0.7A | 515rpm | 1.1kg.cm | ≤3.0A | 3.5kg.cm |
| 20:1 | 21.0mm | ≤0.3A | 300rpm | ≤0.7A | 240rpm | 2.3kg.cm | ≤3.0A | 9.0kg.cm |
| 34:1 | 23.0mm | ≤0.3A | 175rpm | ≤0.7A | 140rpm | 3.5kg.cm | ≤3.0A | 12.0kg.cm |
| 45:1 | 23.0mm | ≤0.3A | 130rpm | ≤0.7A | 105rpm | 4.5kg.cm | ≤3.0A | 12.0kg.cm |
| 57:1 | 25.0mm | ≤0.3A | 105rpm | ≤0.7A | 78rpm | 6.0kg.cm | ≤3.0A | 12.0kg.cm |
| 75:1 | 25.0mm | ≤0.3A | 80rpm | ≤0.7A | 65rpm | 7.0kg.cm | ≤3.0A | 12.0kg.cm |
| 100:1 | 25.0mm | ≤0.3A | 60rpm | ≤0.7A | 48rpm | ≤9.0kg.cm | ≤3.0A | 12.0kg.cm |
| 125:1 | 27.0mm | ≤0.3A | 48rpm | ≤0.7A | 40rpm | ≤9.0kg.cm | ≤3.0A | 12.0kg.cm |
| 217:1 | 27.0mm | ≤0.3A | 27rpm | ≤0.7A | 24rpm | ≤9.0kg.cm | ≤3.0A | 12.0kg.cm |
| 478:1 | 27.0mm | ≤0.3A | 12.5rpm | ≤0.7A | 11rpm | ≤9.0kg.cm | ≤3.0A | 12.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 12V version can support both faster output and slow high-torque output. Moreover, the 478:1 ratio gives the lowest no-load speed in this table.
Model: NFP-GM25-BL2838, 24V DC
Next, the 24V DC version gives a higher no-load speed range than the 12V version. Also, it is useful for 24V systems that need more speed and strong torque.
Therefore, users can choose this version for higher-voltage control boards. In addition, the high-ratio options still support slow drive tasks.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 4.4:1 | 21.0mm | ≤0.4A | 2,700rpm | ≤1.2A | 2,180rpm | 1.0kg.cm | ≤2.5A | 4.0kg.cm |
| 9.3:1 | 21.0mm | ≤0.4A | 1,280rpm | ≤1.2A | 1,030rpm | 2.2kg.cm | ≤2.5A | 7.0kg.cm |
| 20:1 | 21.0mm | ≤0.4A | 600rpm | ≤1.2A | 480rpm | 4.5kg.cm | ≤2.5A | 12.0kg.cm |
| 34:1 | 23.0mm | ≤0.4A | 350rpm | ≤1.2A | 280rpm | 7.0kg.cm | ≤2.5A | 12.0kg.cm |
| 45:1 | 23.0mm | ≤0.4A | 260rpm | ≤1.2A | 210rpm | 9.0kg.cm | ≤2.5A | 12.0kg.cm |
| 57:1 | 25.0mm | ≤0.4A | 210rpm | ≤1.2A | 150rpm | 8.0kg.cm | ≤2.5A | 12.0kg.cm |
| 75:1 | 25.0mm | ≤0.4A | 160rpm | ≤1.2A | 140rpm | 8.0kg.cm | ≤2.5A | 12.0kg.cm |
| 100:1 | 25.0mm | ≤0.4A | 120rpm | ≤1.2A | 105rpm | 8.0kg.cm | ≤2.5A | 12.0kg.cm |
| 125:1 | 27.0mm | ≤0.4A | 96rpm | ≤1.2A | 85rpm | 8.0kg.cm | ≤2.5A | 12.0kg.cm |
| 217:1 | 27.0mm | ≤0.4A | 54rpm | ≤1.2A | 50rpm | 8.0kg.cm | ≤2.5A | 12.0kg.cm |
| 478:1 | 27.0mm | ≤0.4A | 25rpm | ≤1.2A | 11rpm | 8.0kg.cm | ≤3.0A | 12.0kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 24V version can reach up to 2,700rpm at 4.4:1. Also, higher ratios can provide stronger low-speed output in compact systems.
Compact Low RPM Brushless Motor Outline Drawing
First, the outline drawing helps users check motor size, gearbox length, shaft size, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the gear motor uses stainless ball bearings. As a result, it can help reduce friction, noise, and heat under suitable load conditions.
Outline Drawing and Design Benefits
- First, compact body: The 25mm gearbox helps save space in small products.
- In addition, ball bearings: The bearings help reduce friction and noise.
- Also, brushless motor: The BLDC motor helps support long life.
- Next, Hall signals: The motor outputs 3 signals per revolution.
- Finally, high torque: The gearbox helps raise torque for low-speed use.
Brushless Motor for Robotics | Efficient Gear Motor Wiring Diagram
First, the wiring diagram helps users connect the BLDC motor correctly. Also, it shows how to set CW and CCW rotation by changing wire connections.
In addition, the blue wire supports PWM speed control. Therefore, users can connect it to a 0-5V pulse width modulator to adjust motor speed.
Moreover, the green wire transmits the FG signal. As a result, users can monitor motor speed and position with 3 signals per rotation.
Wiring Types
- First, Type 1 CW wiring: Connect the red wire to the positive power terminal. Also, connect both black and blue wires to the negative power terminal.
- Next, Type 2 CCW wiring: Connect the red wire to the positive terminal. In addition, connect the black wire, blue wire, and yellow wire in parallel to the negative terminal.
- Also, blue wire: PWM speed control line. Therefore, it can connect to a 0-5V pulse width modulator.
- Finally, green wire: FG signal output. As a result, it provides 3 signals per rotation to monitor motor speed and position.
Typical Applications
Finally, this high torque brushless motor with gearbox is useful for compact systems that need low noise, long life, and steady torque. For example, it can work in robots, locks, tools, smart devices, and small machines.
- Robotics
- Electric locks
- Power tools
- Smart devices
- Compact machines
- Battery-powered products
- Small drive systems
In short, the NFP-GM25-BL2838 brushless gear motor is a good fit for products that need 12V or 24V DC power, compact gearbox, Hall feedback, PWM speed control, low noise, and strong low-speed torque.
