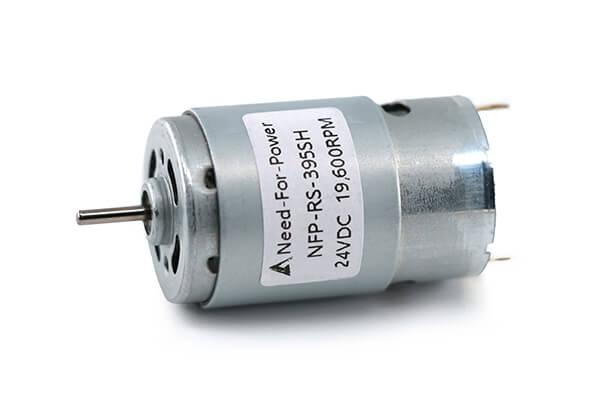

28mm Brushed DC Motor – 46mm Type Model NFP-RC-395SHP/390SHP
$5.00
Achieve remarkable speed with our 28mm brushed dc motor pwm motor, offering flexible voltage options. Take your innovation to the next level!
| Quantity | Price | Discount |
|---|---|---|
| 10 - 49 | $5.00 | 0% |
| 50 - 99 | $3.00 | 40% |
| 100 - 499 | $2.50 | 50% |
| 500+ | $2.00 | 60% |
RS-395 Motor Data Sheets
Product Overview
The RS-395 and RS-390 series are brushed DC motors for high-speed use. Therefore, they are suitable for products that need fast rotation and steady output.
In addition, these motors support a wide voltage range. As a result, users can choose different power options for different projects.
Main Features
- High speed: The motor can reach up to 16,700RPM no-load speed. Therefore, it works well in fast drive systems.
- Wide voltage range: The motor supports 3.7V to 20V. In addition, this gives users more power choices.
- Good efficiency: The motor can reach up to 67.24% efficiency. As a result, it helps reduce power loss.
- Compact 28mm size: The small body fits tight spaces. Therefore, it is useful for robots, DIY tools, and smart home devices.
- Durable brushed motor: The motor uses a strong brushed structure. Moreover, it can support stable use under proper load.
Motor Performance Data
The table below shows the main data of each motor model. Therefore, users can compare voltage, speed, current, torque, and efficiency before testing.
| Motor Model | NFP-RC-395SHP-1890 | NFP-RC-395SHP-2845 | NFP-RC-390SHP-6530 |
|---|---|---|---|
| Voltage Range: | 6V – 18V | 10V – 20V | 3.7V – 10V |
| Rated Voltage: | 12V | 16.2V | 7.4V |
| No-Load Current: | 0.14A | 0.25A | 0.70A |
| No-Load Speed: | 5,100RPM | 11,900RPM | 16,700RPM |
| Max Efficiency: | 60.50% | 67.24% | 65.50% |
| Max Efficiency Current: | 0.513A | 1.318A | 4.506A |
| Max Efficiency Speed: | 4,007RPM | 10,003RPM | 14,450RPM |
| Max Efficiency Torque: | 91.07g.cm | 140.54g.cm | 147.92g.cm |
| Stall Current: | 1.883A | 6.949A | 29A |
| Stall torque: | 425g.cm | 881g.cm | 1100g.cm |
RS 395 Motor Outline Drawing
Motor Size and Structure
The RS-395 and RS-390 brushed DC motors have a 28mm body size. Therefore, they fit many compact drive systems.
In addition, the motors offer a good balance of speed, torque, and size. As a result, users can apply them in small tools and fast moving parts.
Design Advantages
- Compact body: The 28mm diameter helps save space. Therefore, it fits small product layouts.
- Fast output: The motor supports high-speed rotation. As a result, it works well in fast drive tasks.
- Copper winding: The motor uses copper winding for steady output. In addition, it helps improve motor response.
- Balanced rotor: The rotor helps reduce vibration. Therefore, the motor can run more smoothly.
- Wide use: The motor suits RC models, tools, robots, and small electric devices.
Keywords:
390 dc motor, 390 brushed motor specs, 390 size rc motor, 390 electric motor specs
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
