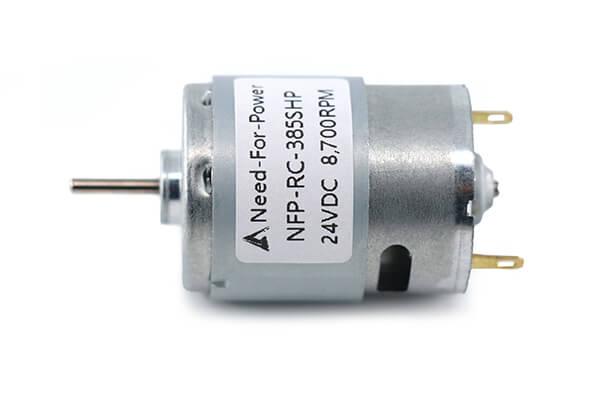

28mm Brushed DC Motor – 37mm Type Model NFP-RC-385SHP/380SHP
$5.00
Notice: this motor model need to make new ones that would take extra 1-2 weeks.
Discover the versatility of the 28mm Brushed DC Motor for applications like cooling fans and automotive use. Upgrade your projects now!
| Quantity | Price | Discount |
|---|---|---|
| 10 - 49 | $5.00 | 0% |
| 50 - 99 | $3.00 | 40% |
| 100 - 499 | $2.50 | 50% |
| 500+ | $2.00 | 60% |
RS-385SD-18100 Brushed DC Motors Data Sheet
The NFP-RC-385SHP series is a brushed DC motor line for products that need stable speed, useful torque, and reliable DC motor output. It includes 24V and 12V options for different power systems.
First, brushed DC motors are widely used in many small and medium drive systems. Also, they can support computer peripherals, hard disk drives, cooling fans, and automotive products.
In addition, this motor series offers different speed, current, torque, and efficiency options. Therefore, users can choose the right model based on voltage, load, and working speed.
Main Product Features
- First, voltage options: The series includes 24V and 12V rated voltage models.
- In addition, stable speed: The no-load speed can reach up to 10,000RPM.
- Also, useful torque: Stall torque can reach up to 1,000g.cm.
- Next, good efficiency: Max efficiency can reach up to 75.85%.
- Finally, wide use: The motor can support fans, drive units, automotive parts, and other DC motor products.
RS-385SHP Brushed DC Motor Performance Data
Next, the table below helps users compare voltage range, rated voltage, speed, current, torque, and efficiency. Therefore, it is easier to choose the right RS-385SHP motor for a product design.
| Motor Model | NFP-RC-385SHP-19112V | NFP-RC-385SHP-18128V | NFP-RC-385SHP-2069V |
|---|---|---|---|
| Voltage Range | 18V – 30V | 18V – 30V | 6V – 18V |
| Rated Voltage | 24V | 24V | 12V |
| No-Load Current | 0.13A | 0.10A | 0.18A |
| No-Load Speed | 10,000RPM | 8,700RPM | 9,000RPM |
| Max Efficiency | 66.88% | 75.85% | 63.9% |
| Max Efficiency Current | 0.57A | 0.60A | 0.85A |
| Max Efficiency Speed | 8,500RPM | 7,460RPM | 7,440RPM |
| Max Efficiency Torque | 102g.cm | 144g.cm | 86g.cm |
| Stall Current | 4.00A | 3.68A | 4.00A |
| Stall Torque | 830g.cm | 1,000g.cm | 500g.cm |
Also, the NFP-RC-385SHP-18128V has the highest max efficiency and highest stall torque. However, the NFP-RC-385SHP-19112V has the highest no-load speed.
As a result, users can choose the 18128V model for stronger torque and efficiency, or choose the 19112V model for higher speed.
RS 385SH DC Motor Outline Drawing
First, the outline drawing helps users review the RS-385SH motor shape and product fit. Therefore, it is useful before sample testing and final design work.
In addition, the RS-385SH brushed DC motor can support products that need reliable rotation and practical torque. As a result, it is suitable for many compact and medium-size drive systems.
Outline Drawing and Design Benefits
- First, practical motor size: The RS-385 type can fit many small drive products.
- In addition, wide voltage range: Some versions support 18V – 30V operation.
- Also, useful torque: The motor can provide strong stall torque for its size.
- Next, stable speed: The motor can support steady output under suitable load.
- Finally, easy selection: The table helps users compare 12V and 24V options.
Typical Applications
Next, this brushed DC motor is suitable for products that need stable speed and useful torque. For example, it can work in cooling fans, automotive parts, and small drive units.
- Computer peripherals
- Hard disk drives
- Cooling fans
- Electric power steering systems
- In-wheel hub motor systems
- Small drive units
- DC motor replacement projects
Finally, the NFP-RC-385SHP brushed DC motor is a good fit for products that need 12V or 24V DC power, stable speed, practical torque, and reliable brushed motor performance.
Keywords: high torque dc motor, dc motor brushes, dc motor parts, rs 385sd 18100, rs 385sh 2465, rs 385ph 2085, rs 385ph 14180, rs 385sh dc motor, rs 385sh motor, rs 385phc2 17100b, rs385ph, rs 385 st motor, rs 385sh 14180, 385 motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
