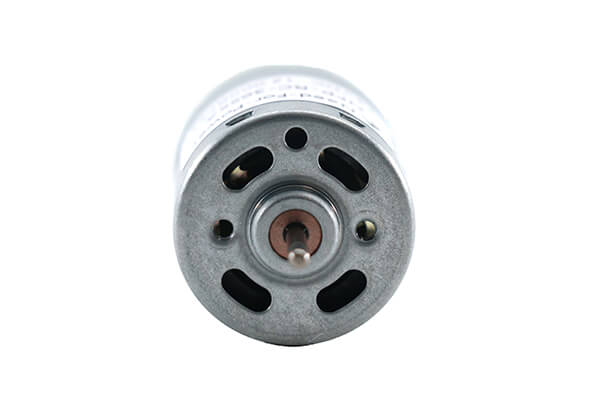

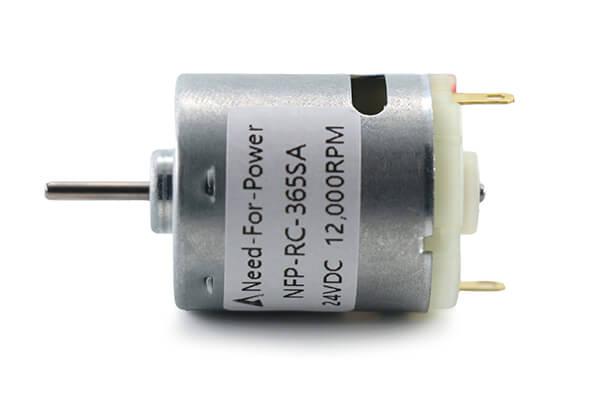

28mm Brushed DC Motor – 32mm Type Model NFP-RC-365SA/360SA

$8.00

(3 customer reviews)

Brushed DC Motor Small Volume Price (USD)

Notice: this motor model need to make new ones that would take extra 1-2weeks.

QTY BREAK UNIT PRICE
1+ $8.00
10+ $5.00
50+ $3.00
100+ $2.50
500+ $2.00

Contact us for a quotation for production quantities, customizations and integration.

Clear

28mm Diameter 6V-30V 365SA 360SA Brushed DC Electric Motor Data Sheet


Shaft and electric performance can be customized as request. Application: household appliances, electric toys, massage equipment

Motor Model: NFP-RC-365SA-1897-47 NFP-RC-365SA-18135V NFP-RC-360SA-11443
Voltage Range: 6V – 18V 18V – 30V 18V – 30V
Rated Voltage: 12V 24V 24V
No-Load Current: 0.18A 0.13A 0.09A
No-Load Speed: 9,500RPM 12,000RPM 7,300RPM
Max Efficiency: 62.45% 67.97% 54.2%
Max Efficiency Current: 0.72A 0.64A 0.3A
Max Efficiency Speed: 7,610RPM 10,000RPM 5,620RPM
Max Efficiency Torque: 69.94g.cm 103g.cm 68g.cm
Stall Current: 2.92A 3.22A 1.01A
Stall torque: 351g.cm 618g.cm 297g.cm



Brushed DC Electric Motor Outline Drawing


24v-dc-motor-datasheet

Keywords:
24v dc motor, dc motor near me, dc motor 12 24v

Payment:
1.Payment methods : Paypal, T/T

Shipping:
1.Delivery: DHL door to door 3-4 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.

FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.

Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.

Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.

Still can’t find ideal motors?


The electrical parameters of the motor can be adjusted. For example, the two main factors determining the vibration force: the size of the pager motor eccentric mass and the speed requirement. , voltage, current can be adjusted according to customer needs. Some encapsulated vibration motors adding terminals connectors, which are our customized products according to different customers. You can also contact us in the bottom contact form to ask for your needs.

If you want a custom lead wire connection of the water resistant vibration motors. Such as alternate lead wire length & strip lengths, with a connector (e.g. Molex, JST). You can contact us from the footer form, tell us your need. Any problems will be taken seriously and will be answered professionally, so pls do not hesitate to contact us by the footer form.
