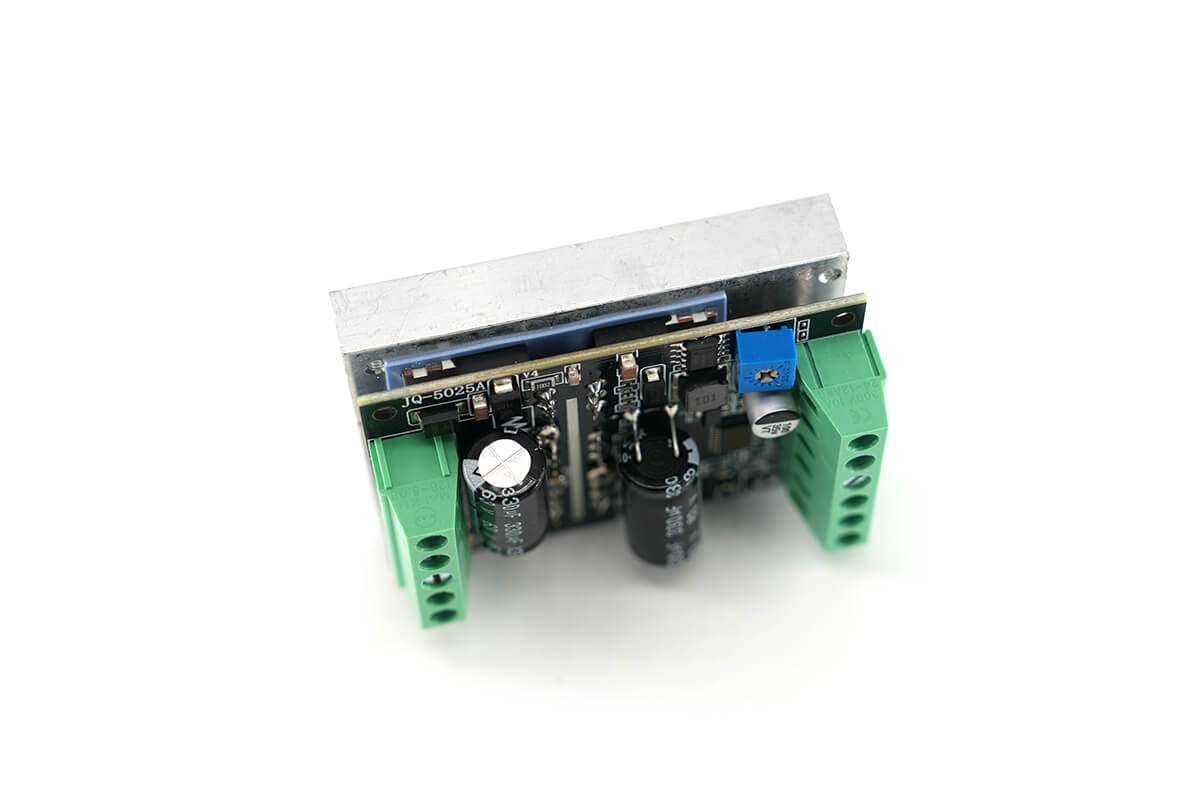

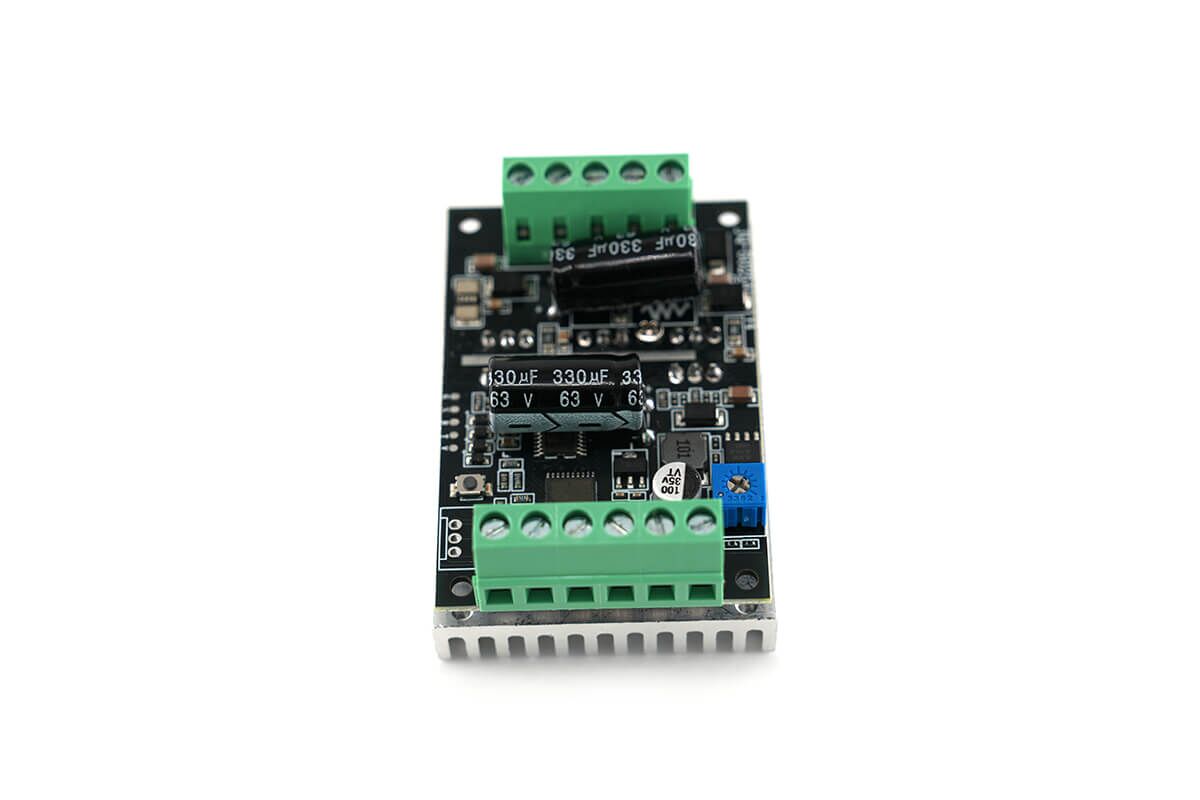

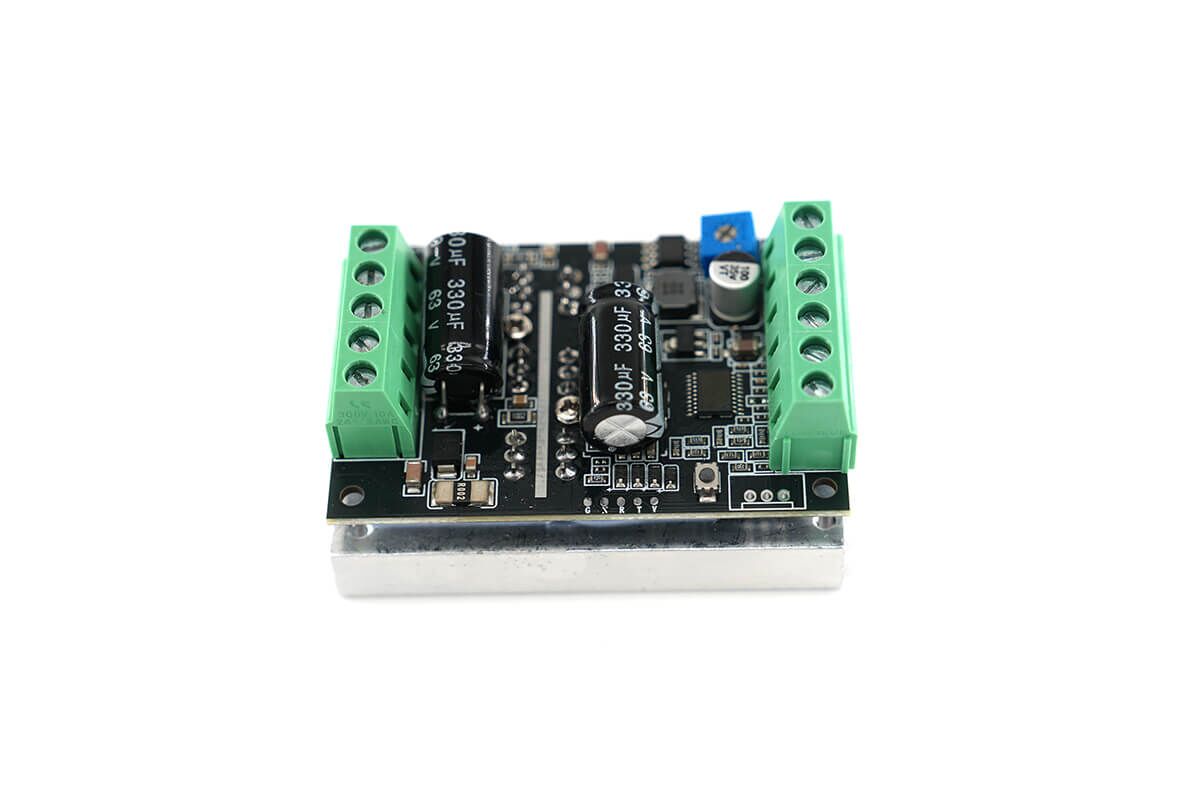

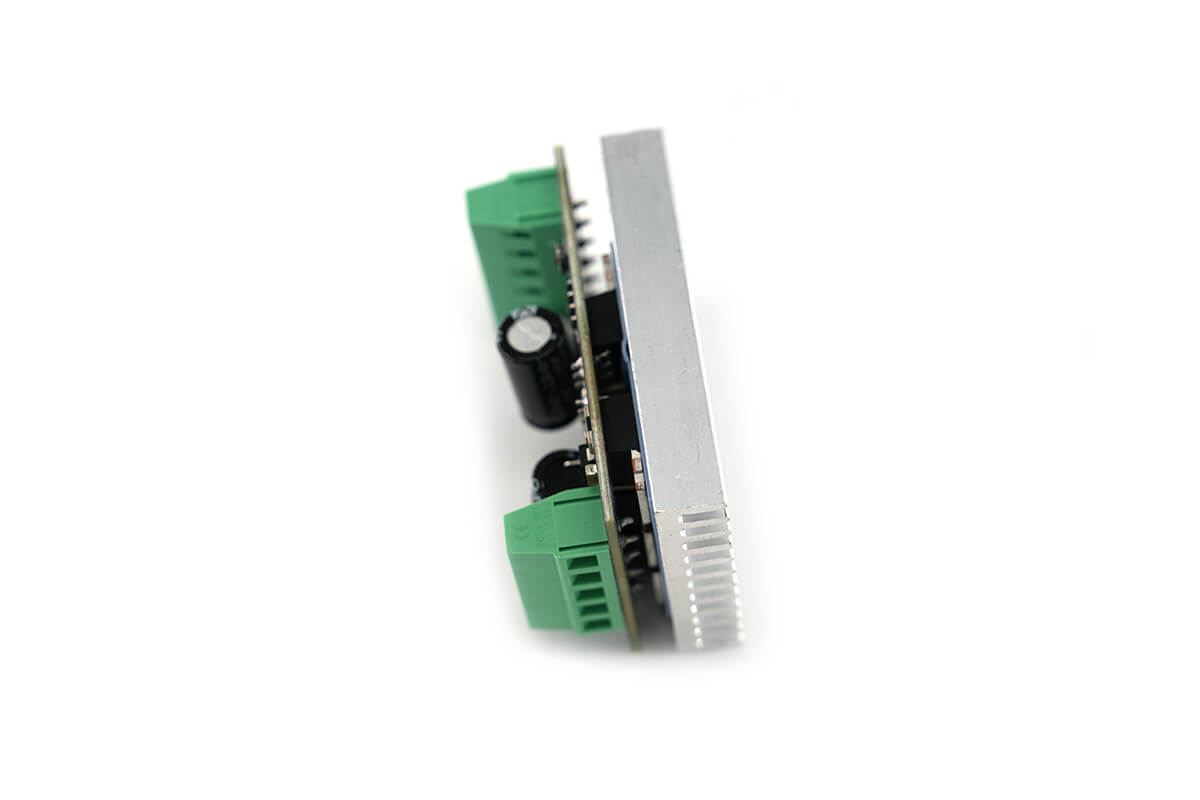

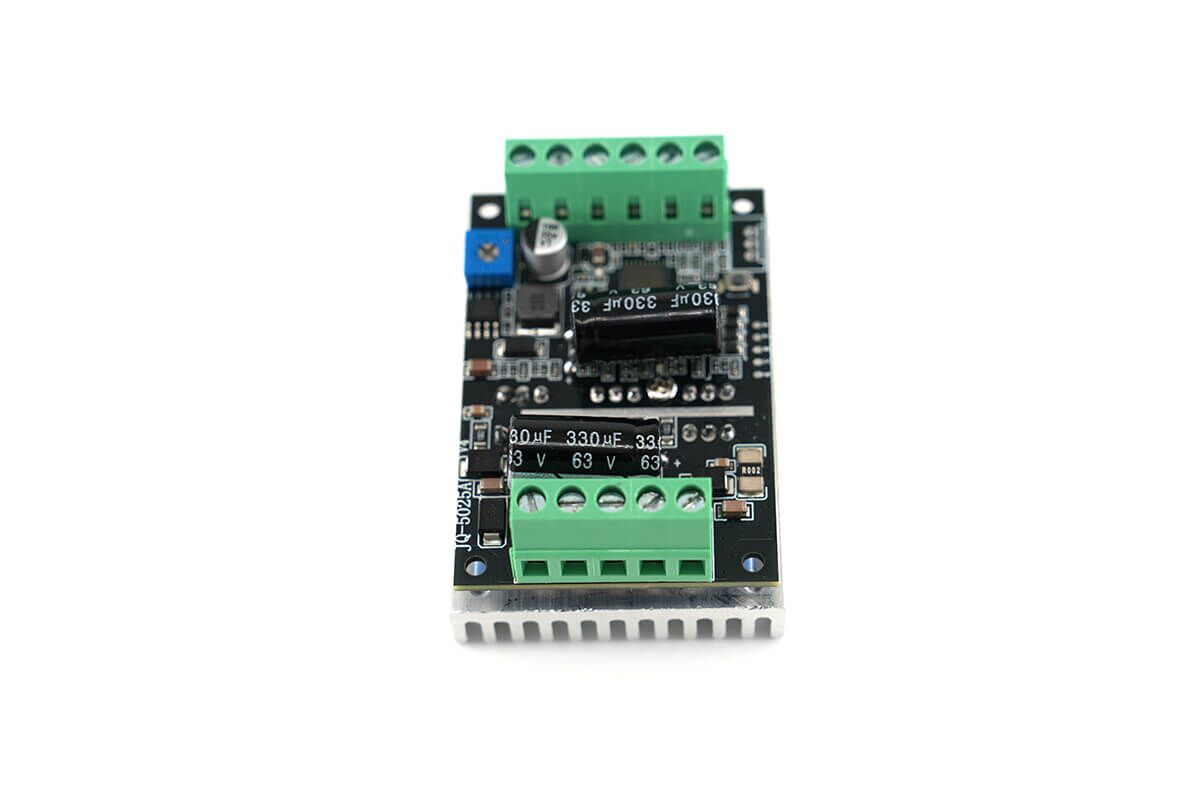

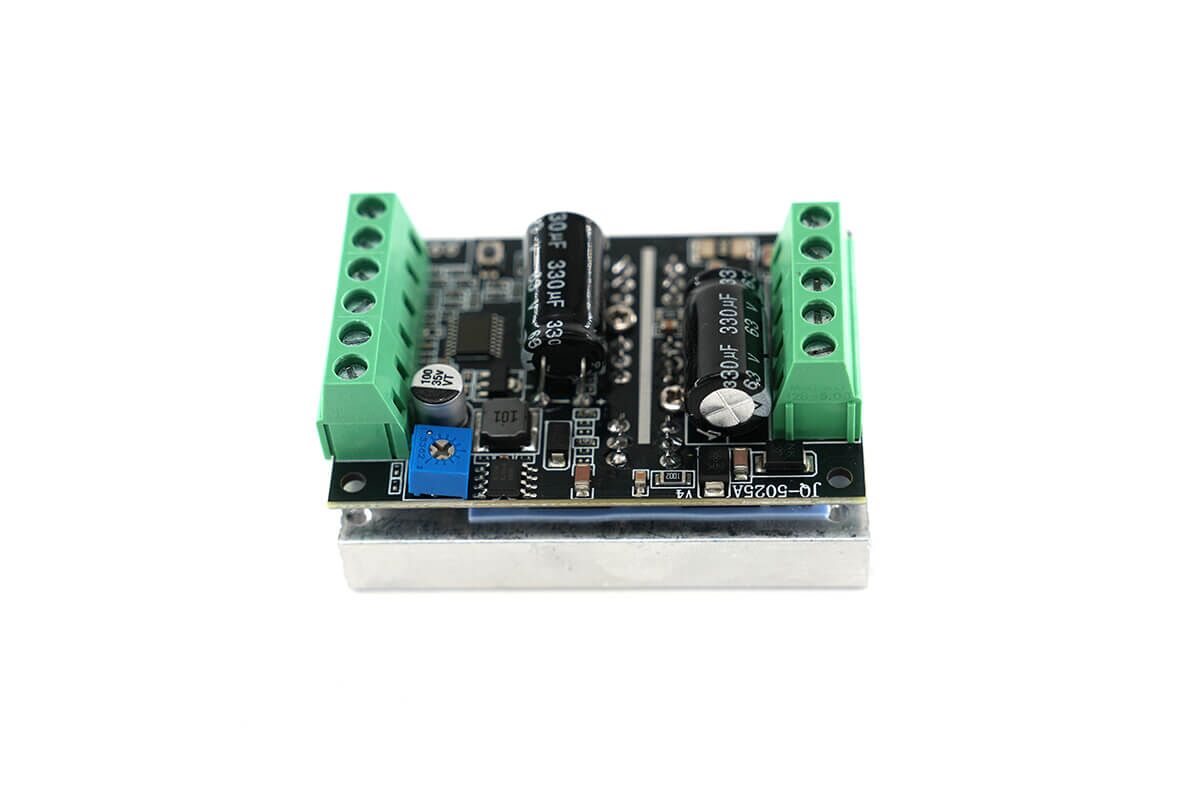

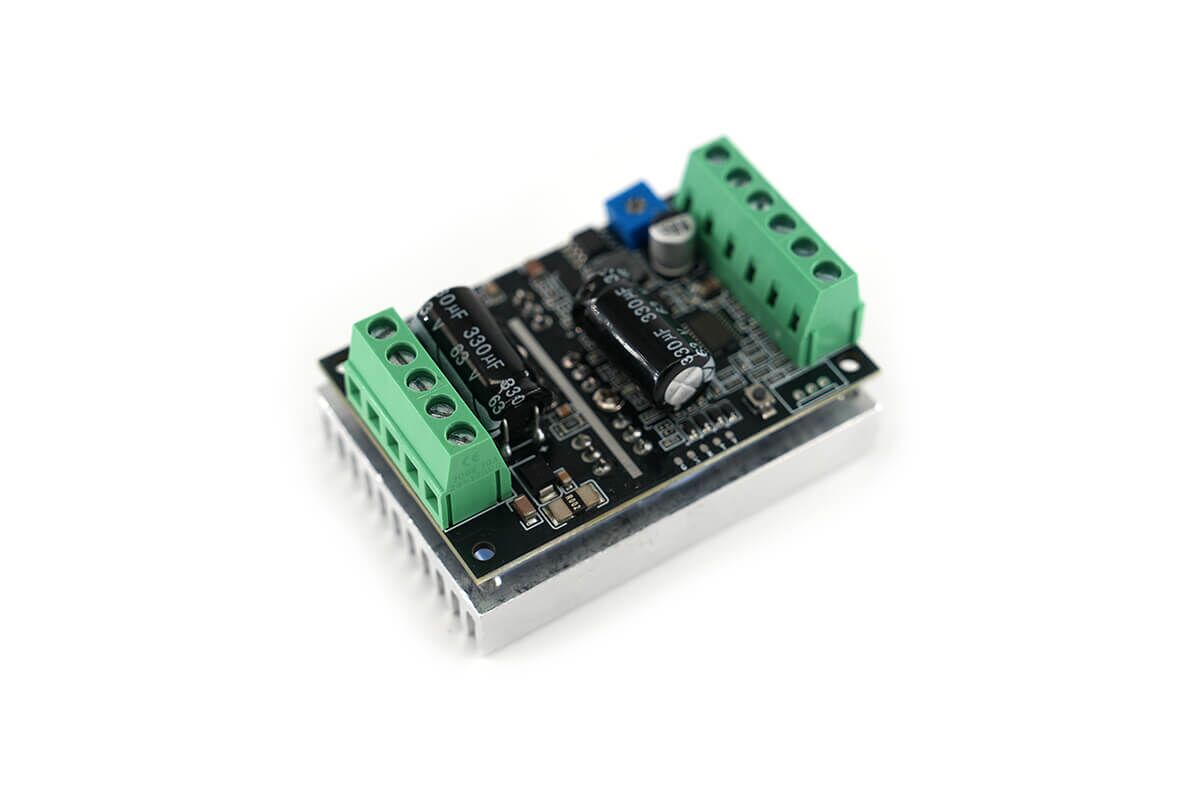

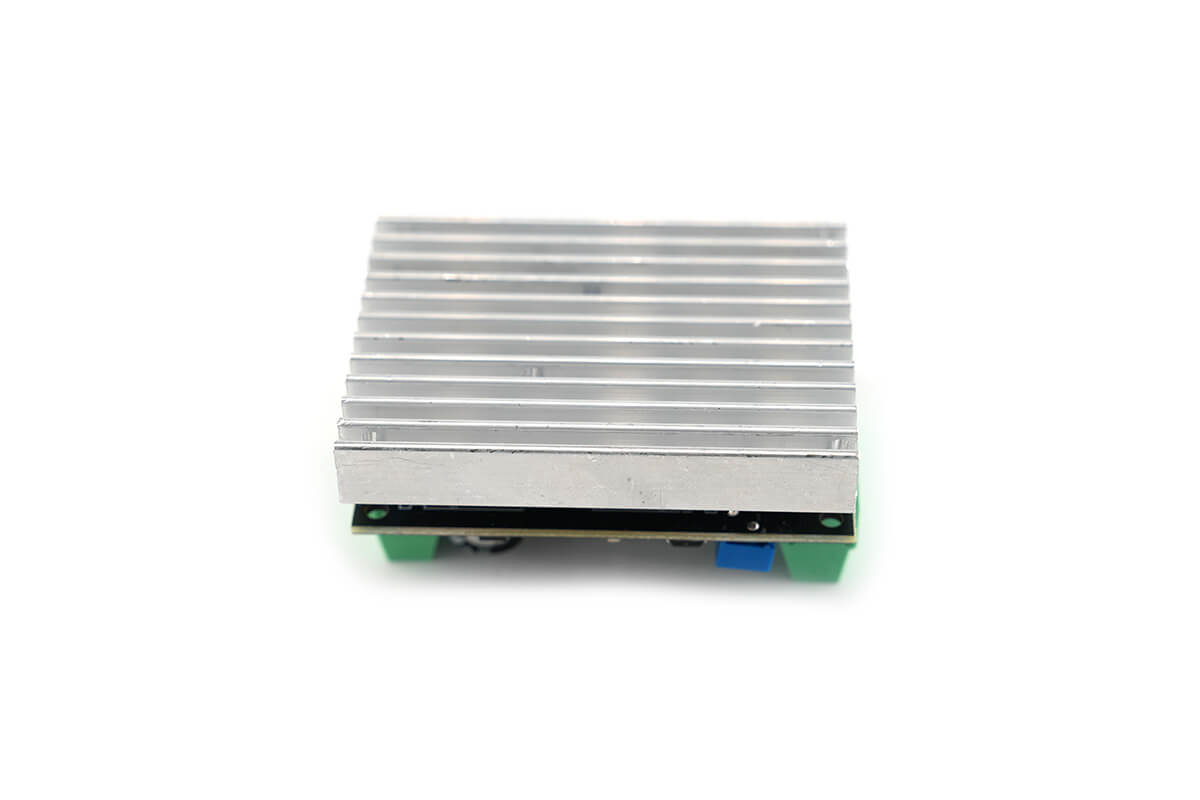

25A 6V-50V 300W Sensorless Brushless DC Motor Driver Speed Controller NFP-BL50V300W
$15.00
Our high-performance driver for Hall-less DC brushless 3-phase motors seamlessly integrates with MCU and acts as a reliable 3 phase motor speed controller.
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $15.00 | 0% |
| 10 - 19 | $12.50 | 16.67% |
| 20 - 49 | $11.90 | 20.67% |
| 50 - 99 | $9.70 | 35.33% |
| 100+ | $7.20 | 52% |
3-phase Brushless DC Motor Controller Technical Sheet
BL50V300 non-inductive brushless motor driver is a high performance driver developed for Hall-free DC brushless three-phase motors with wide voltage and high current, featuring simple peripheral circuits, perfect functions, simple debugging, high driving efficiency, flexible application and wide applicability, etc.
It only needs to be connected to the three-phase motor wires (UVW), and then can be realized as a motor control.
| Driver Model | NFP-BL50V300W |
|---|---|
| Driver Type | 3 phases brushless type |
| Operating Voltage | 6V – 50V DC |
| Control Way | 0-5V / PWM |
| Current | 25A |
| Power | 300W |
| Peak Current | 35A |
| Rated Current (12V DC) | 25A |
| Rated Current (24V DC) | 12A |
| Max Speed | 80,000rpm |
| Rotation | CW / CCW |
| Hall | No |
| Stall Protection | Yes |
| High Temperature Protection | Yes |
| Overcurrent Protection | Yes |
| Stop/Brake Function | Yes |
| MCU control | Yes |
Low Voltage PWM Brushless Controller Outline Drawing
Application areas: drone motors, water pumps, oil pumps, air pumps, power tools, small compressors, vacuum cleaners, storm fans, propellers, etc.
High Power BLDC Motor Driver Functionalities
| Label | Description |
|---|---|
| Stop | Default is high level (5V). Connect to GND to stop. |
| Brake | Default is high level (5V). Connect to GND for an instantaneous stop. |
| Direction | Default is high level. Connect to GND for reverse rotation. |
| 0-5V / PWM | Default is 0-5V speed control. 0V stops the motor; 5V is the maximum speed. Use a button to switch to PWM speed control. PWM frequency should be 1-10 kHz, with an amplitude of 3.3-5V. |
| 5V | Outputs a 5V voltage, with approximately 100mA current, for powering external devices. |
Sensorless Motor Driver External Potentiometer for Speed Adjustment
Sensorless BLDC motor using an external potentiometer for finer control.
Sensorless Electric Motor External PWM Speed Control
Sensorless BLDC Motor Onboard Potentiometer Speed Control
Button Operation Instructions:
The button is used to switch between speed control modes. The default mode is 0-5V speed control (via potentiometer).
Switch to PWM Mode:
- Press the button once briefly.
- The indicator light on the board will blink three times.
- This switches to PWM speed control mode, which takes effect immediately and saves the setting.
- The setting will persist even after power cycling.
Switch Back to 0-5V Mode:
- Press the button once again briefly.
- The indicator light will blink once.
- This switches back to 0-5V speed control mode, which also takes effect immediately and saves the setting.
Sensorless Brushless Motor Control Board Wiring Diagram
⚠️NOTE:
- Before using, confirm the motor’s voltage and power specifications to ensure they are within the module’s specified range.
- Connect the wires first, then power on.
- The module does not have reverse polarity protection. Reversing the power connection will cause permanent damage (be cautious).
- The power supply’s wattage must exceed the motor’s power requirements. For example, for a motor with a rated power of 100W, choose a power supply greater than 100W.
- Power calculation method:
Power = Voltage × Current. For example, if the motor’s rated power is 100W and the rated operating voltage is 12V:
Calculated rated current = 100 ÷ 12 = 8.3A. Therefore, the power supply’s current cannot be less than 8.3A.
Keywords:
dc brushless motor speed controller, brushless dc motor driver, brushless controller, bldc motor without sensors driver, sensorless motor driver
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
