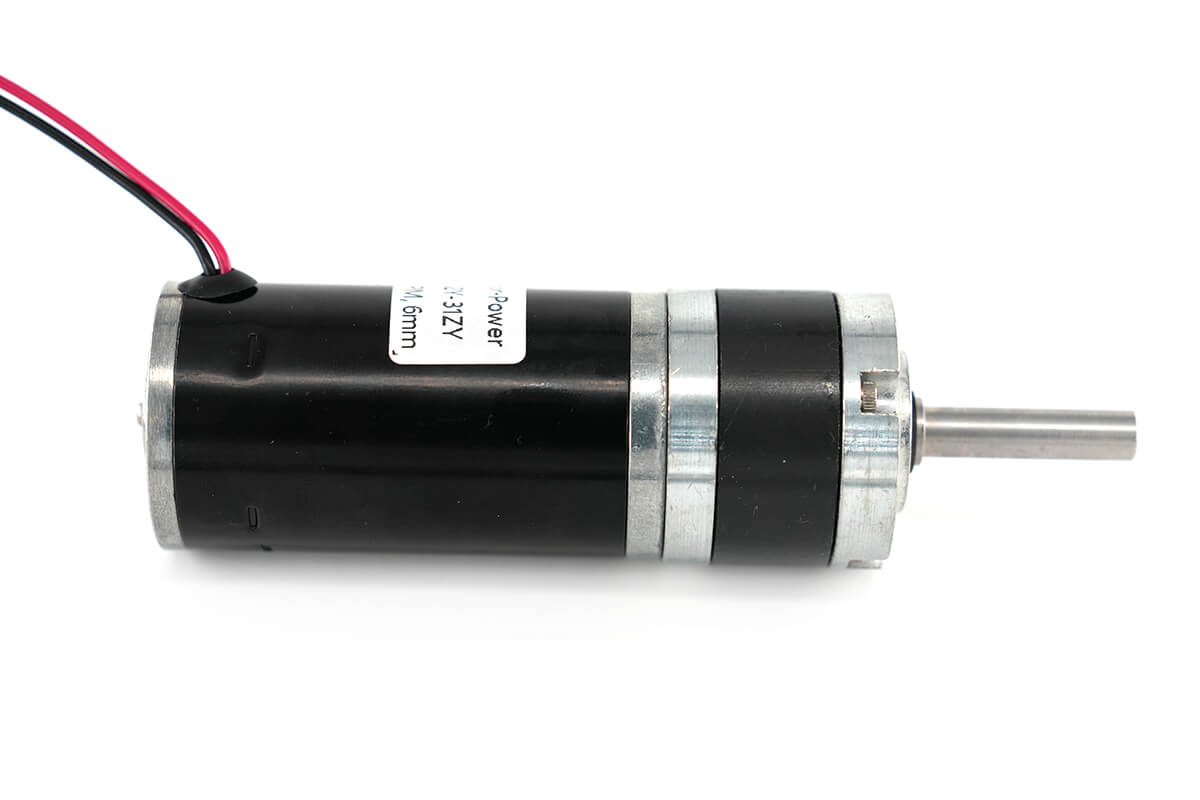

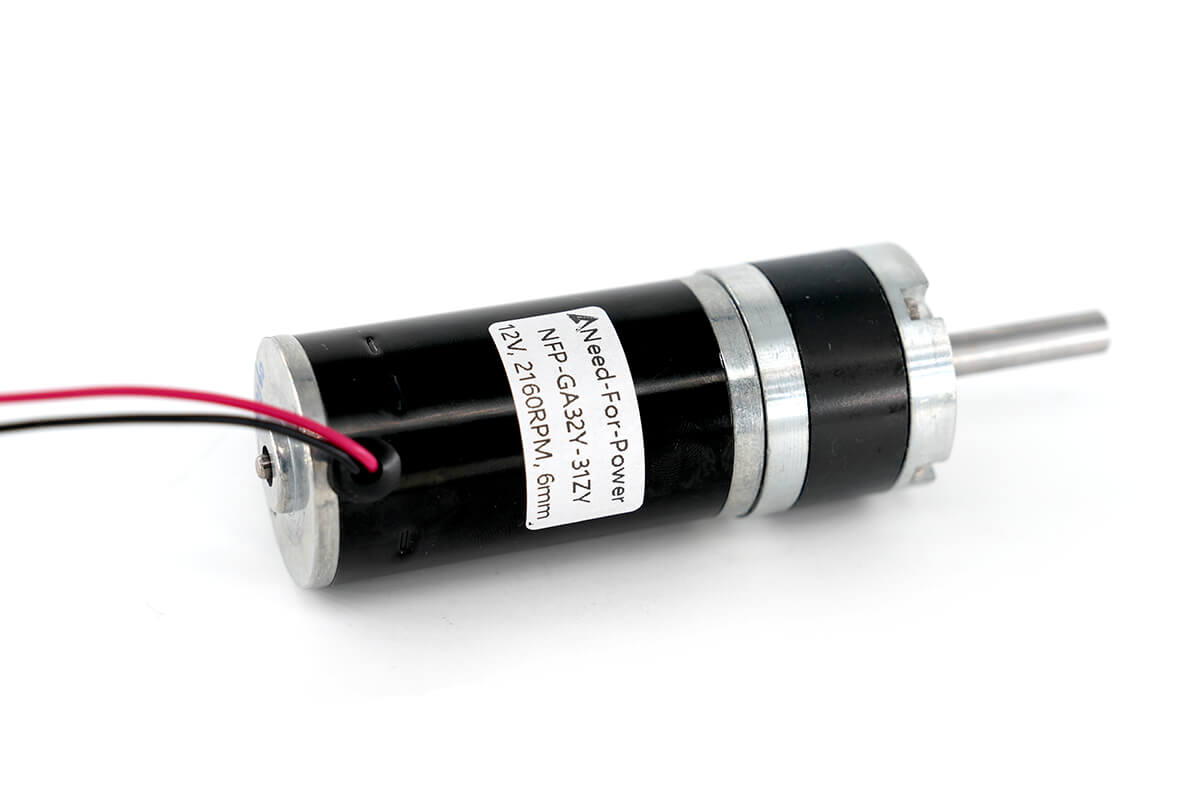

32mm Planetary Gear Motor Model NFP-GA32Y-31ZY

32mm DC Planetary Motor Parameters

First, the NFP-GA32Y-31ZY is a 32mm DC planetary motor for high-torque drive systems. Also, it combines metal planetary gearbox stages with a DC motor for stable output in compact products.

In addition, this miniature gear motor supports 12V and 24V DC power. Therefore, users can choose the right voltage for robots, actuators, automation devices, and industrial equipment.

Moreover, the motor can provide up to 100kg.cm max torque. As a result, it is useful for products that need high torque, smooth speed control, and a compact form factor.

Main Product Features

• First, 32mm compact body: The small motor size helps save installation space.
• In addition, planetary gearbox: The gear system helps provide high torque output.
• Also, voltage options: The motor supports 12V and 24V DC systems.
• Next, shaft options: Users can choose 6mm or 8mm output shaft versions.
• Finally, high torque: The max torque reaches 100kg.cm.

Basic Motor Specifications

First, the table below shows the main motor data. Also, it helps users check voltage, speed, current, torque, power, rotation, shaft size, and weight before choosing a ratio.

As a result, this model gives a strong planetary gear motor solution in a compact shell. Moreover, the 6mm and 8mm shaft options help match different couplers, wheels, gears, and drive parts.

Model: NFP-GA32Y-31ZY-1280, 12V DC, 8,000rpm

First, the 12V DC version is useful for compact 12V drive systems that need high torque. Also, the table below helps users compare ratio, speed, current, torque, stall torque, and stall current before sample testing.

In addition, lower ratios provide higher output speed. However, higher ratios provide lower speed and stronger torque for heavy slow-drive tasks.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V version covers speeds from 11rpm to 2,160rpm. Moreover, the 721:1 ratio gives the strongest rated torque in this table.

Model: NFP-GA32Y-31ZY-2480, 24V DC, 8,000rpm

Next, the 24V DC version is useful for 24V systems that need lower current and high torque. Also, it keeps the same speed range as the 12V version.

Therefore, users can choose this version for higher-voltage control boards. In addition, the high-ratio options support slow motion and very strong torque output.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 24V version covers speeds from 11rpm to 2,160rpm. Also, the 721:1 ratio gives the highest rated torque in this table.

∅6mm ∅8mm Planetary Gearbox Motors Outline Drawing

First, the outline drawings help users check motor size, gearbox layout, output shaft type, and mounting space. Therefore, they are useful before sample testing and final mechanical design.

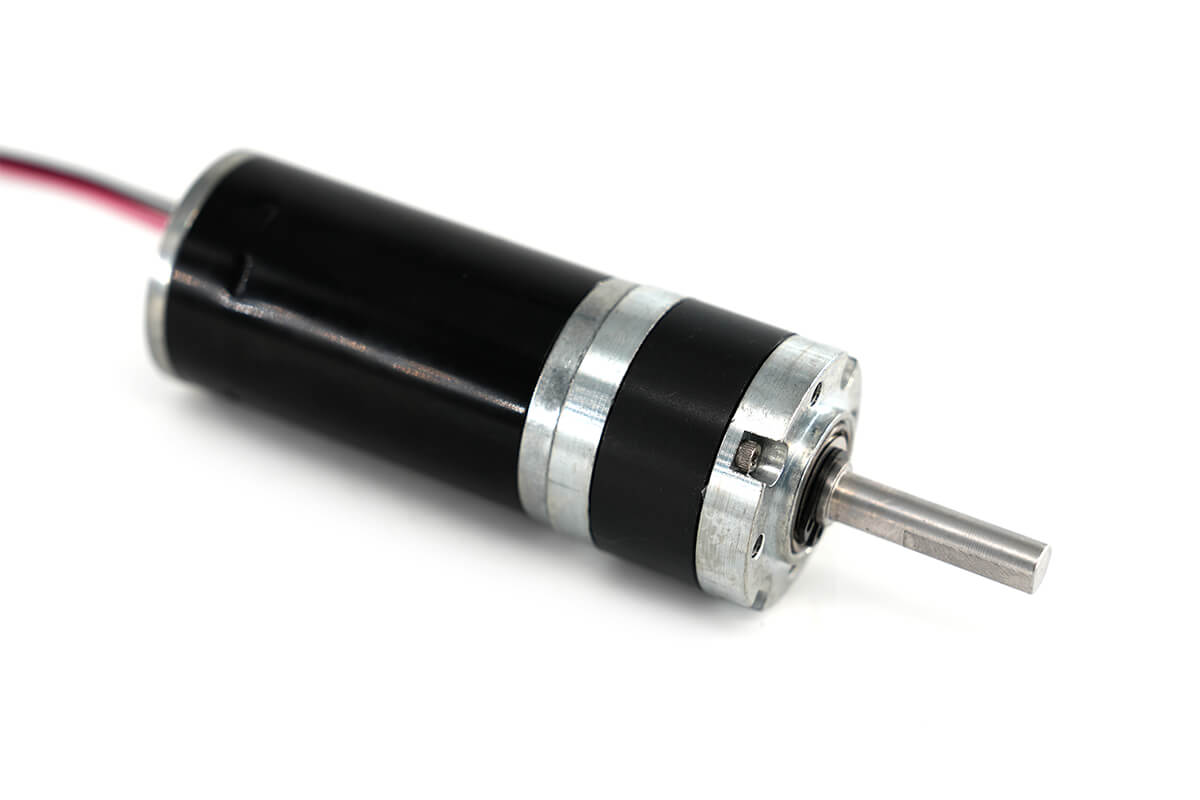

In addition, this 31mm planetary gear motor is often used in robotics, automation systems, and industrial equipment. As a result, it can support compact products that need high torque and steady output.

Moreover, the durable design makes it suitable for outdoor and rough environments. Therefore, it can fit agricultural equipment, construction equipment, and other demanding drive systems.

6mm Shaft Motor Dimension

8mm Shaft Motor Dimension

Also, the image below shows a related compact motor structure. Therefore, users can review the body layout before selecting a drive motor for similar compact systems.

Outline Drawing and Design Benefits

• First, 6mm and 8mm shaft options: The two shaft sizes help match different drive parts.
• In addition, planetary gearbox: The gear system helps provide high torque output.
• Also, compact body: The motor can fit tight equipment spaces.
• Next, rugged design: The motor can support outdoor and rough use under suitable load.
• Finally, high torque output: The gearbox helps drive heavy loads at low speed.

Micro Brushless Planetary Gearmotors Wiring Methods

First, this micro gearbox motor features hardened metal gears in multiple planetary stages. Therefore, it can support long life, wear resistance, and stable torque under continuous load.

In addition, the design helps maintain efficiency and torque consistency. As a result, it is useful for high-duty-cycle applications and heavy drive tasks.

Moreover, the precision-engineered bearings and gear alignment help reduce vibration and noise. Therefore, this small planetary gear motor is suitable for indoor robotics, camera systems, and other noise-sensitive equipment.

Wiring and Control Images

Typical Applications

Finally, this 32mm DC planetary motor is useful for compact systems that need high torque, stable speed, and durable gearbox output. For example, it can work in robots, actuators, automation equipment, agricultural equipment, and construction equipment.

• Robots
• Actuators
• Automation equipment
• Industrial equipment
• Agricultural equipment
• Construction equipment
• Camera systems
• High-duty-cycle drive systems

Selection Notes

First, users should choose voltage, shaft size, and ratio based on speed, torque, current, product space, and load. Also, users should confirm whether the 6mm or 8mm shaft is better for the mechanical design.

• First, for higher speed: Choose a lower ratio such as 3.7:1, 5.18:1, or 19:1.
• In addition, for higher torque: Choose a higher ratio such as 516:1, 596:1, or 721:1.
• Also, for 12V systems: Choose the 12V DC version when the product uses a 12V control board.
• Next, for 24V systems: Choose the 24V DC version when the product uses a 24V power system.
• Moreover, for high load: Keep the motor within rated load and avoid locked-rotor operation.
• Finally, for harsh use: Confirm sealing, mounting, and duty cycle before final design.

In short, the NFP-GA32Y-31ZY 32mm DC planetary motor is a good fit for products that need 12V or 24V DC power, 6mm or 8mm shaft options, compact planetary gearbox, high torque, smooth speed control, and rugged drive output.
