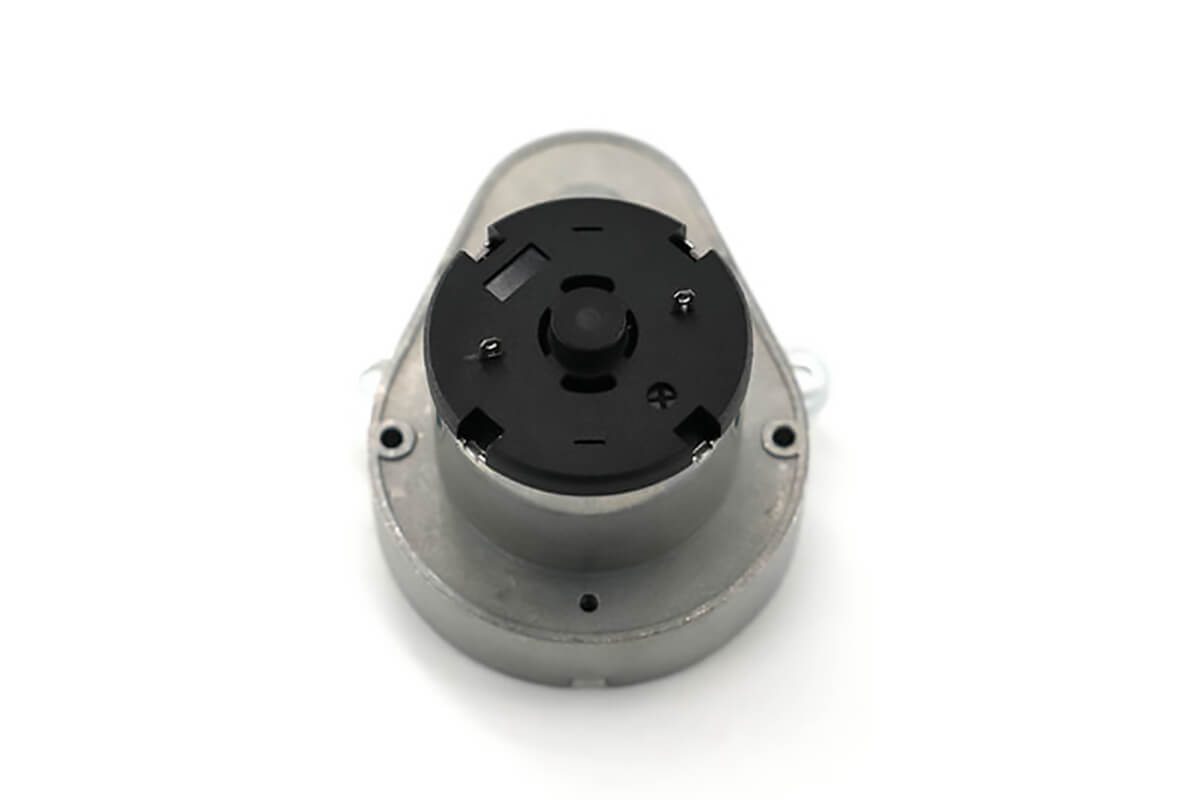

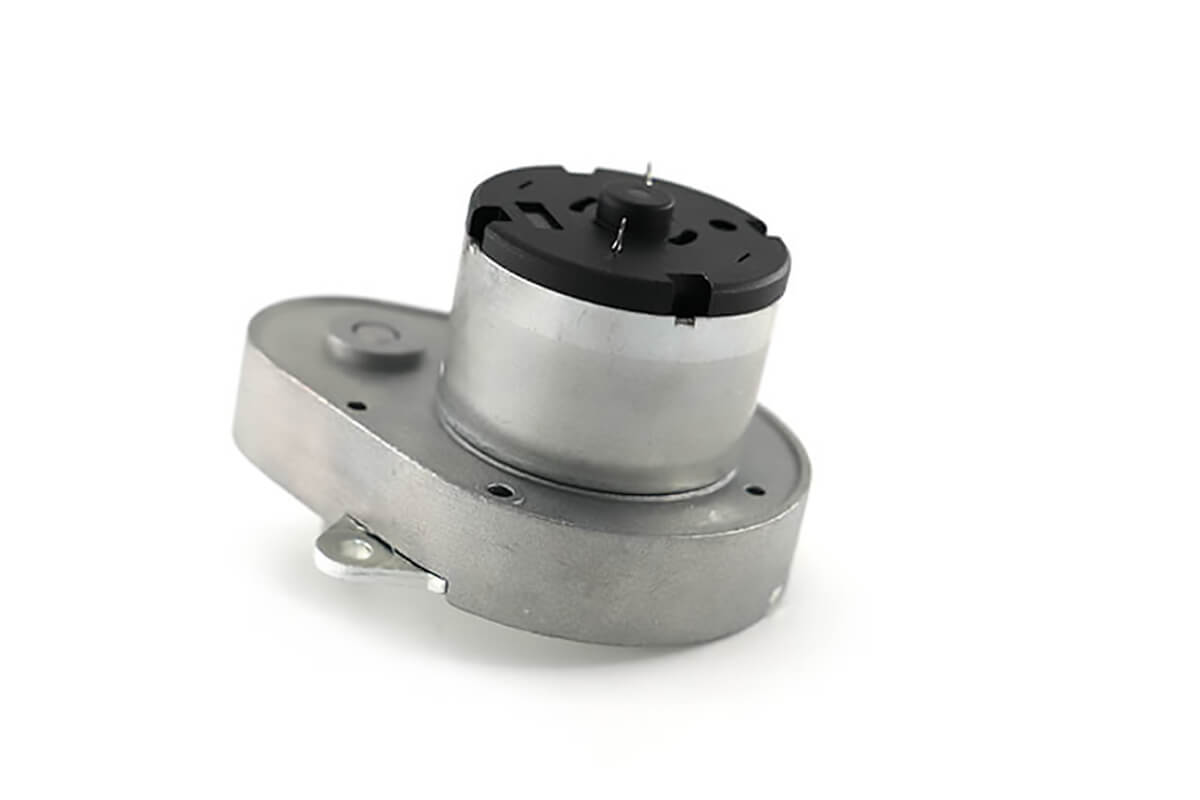

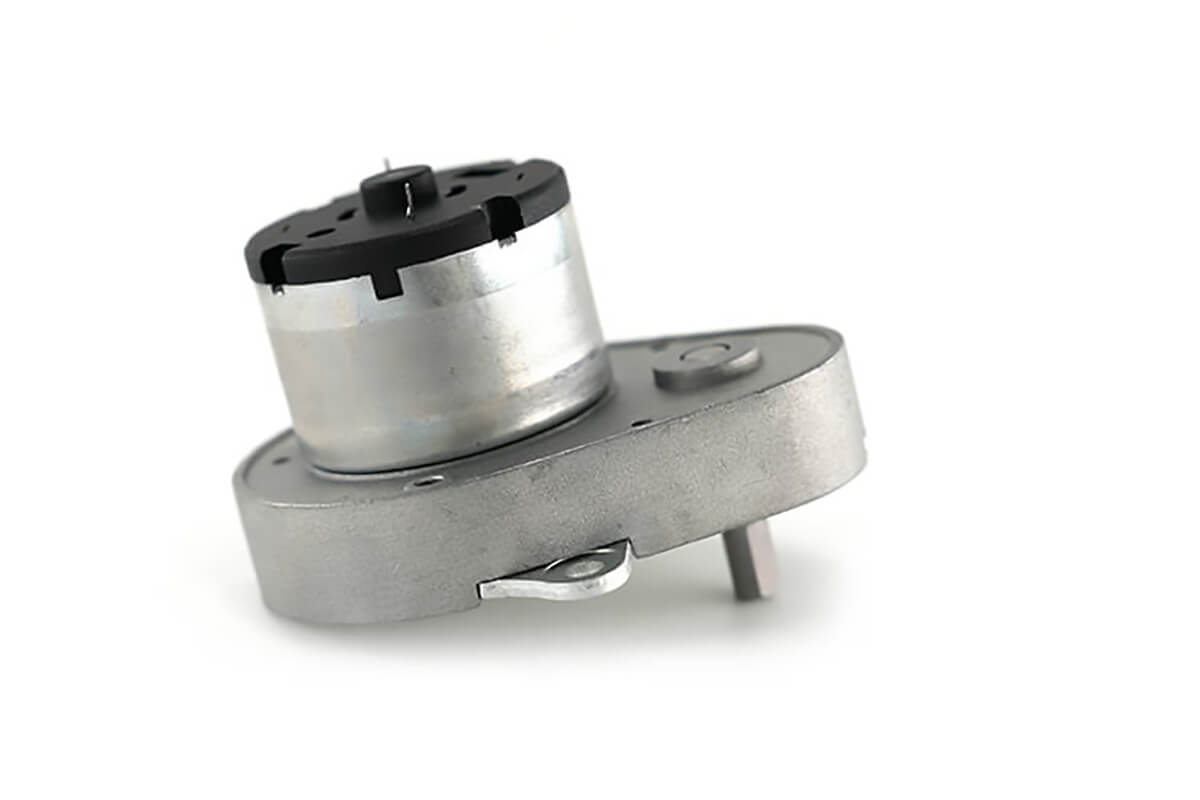

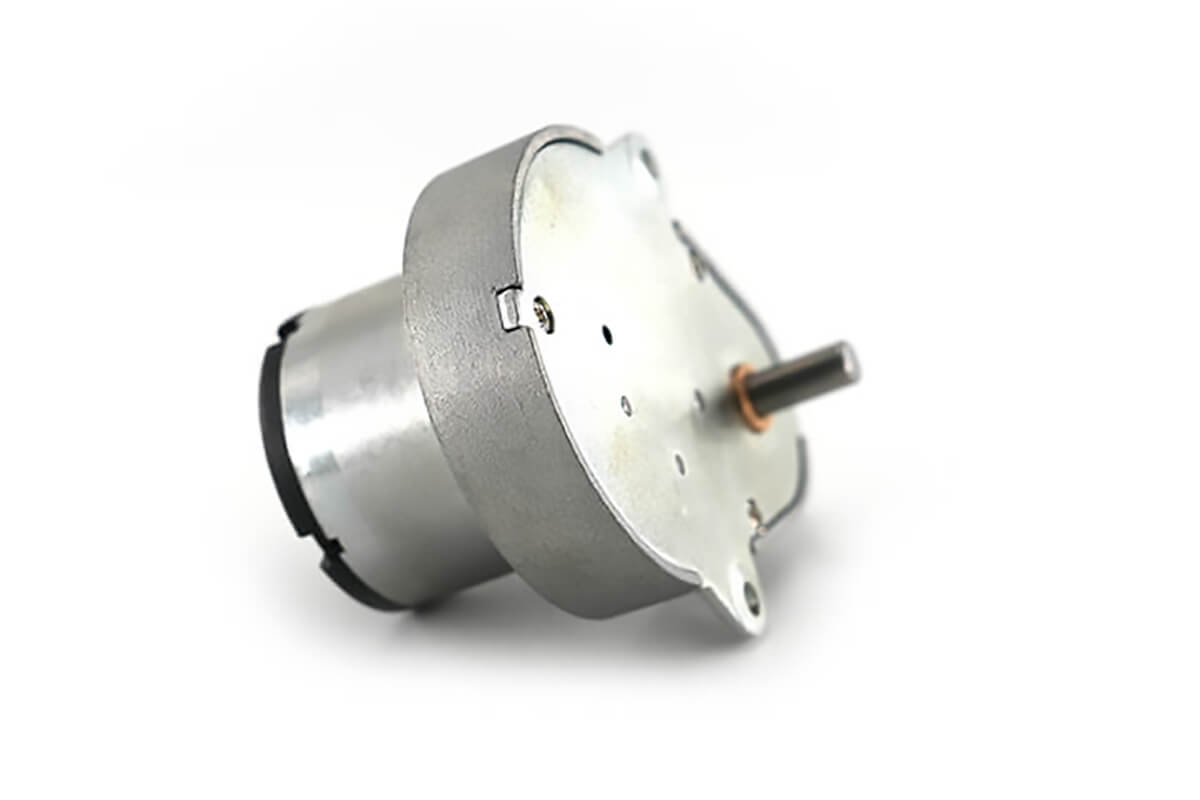

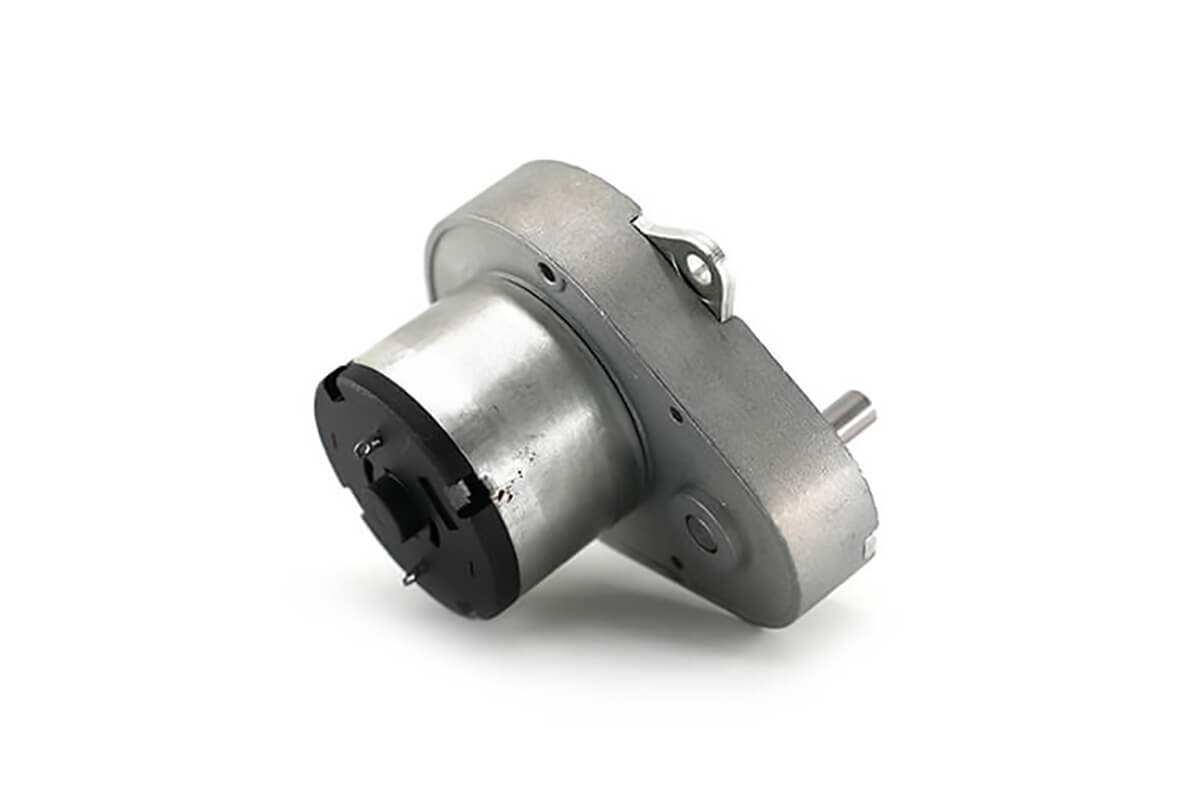

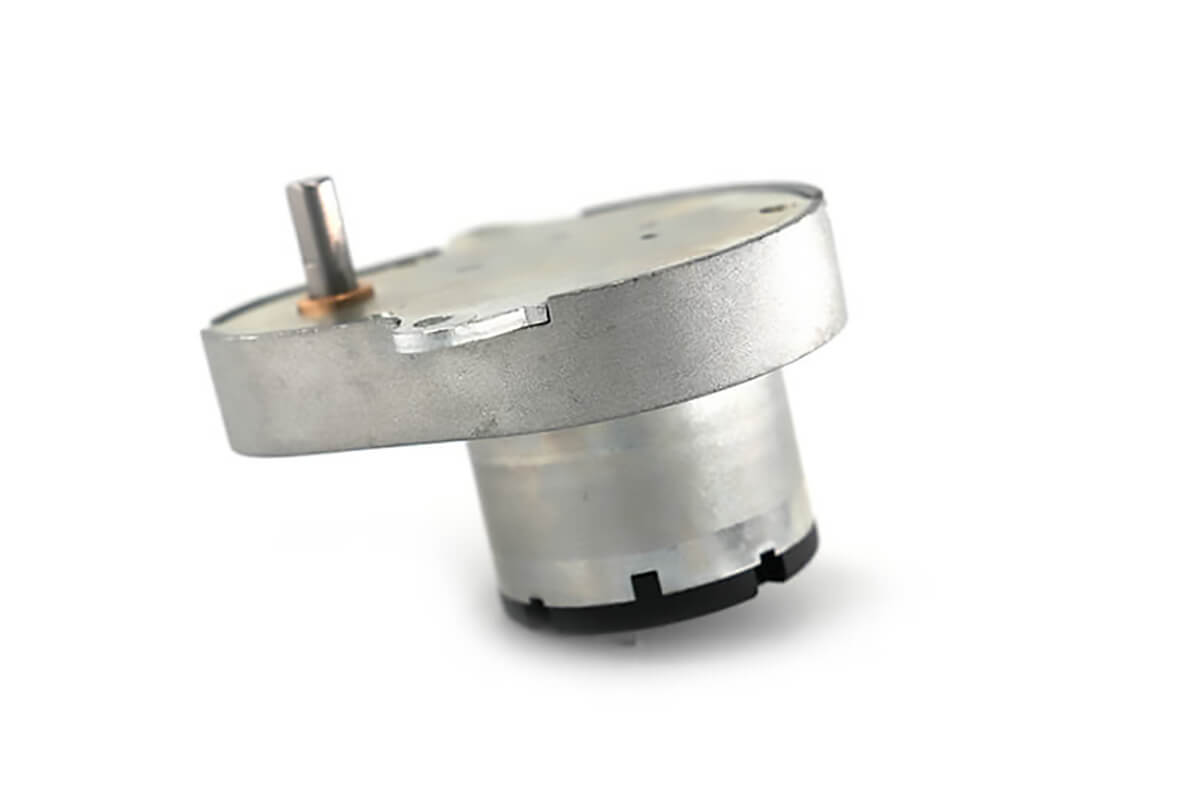

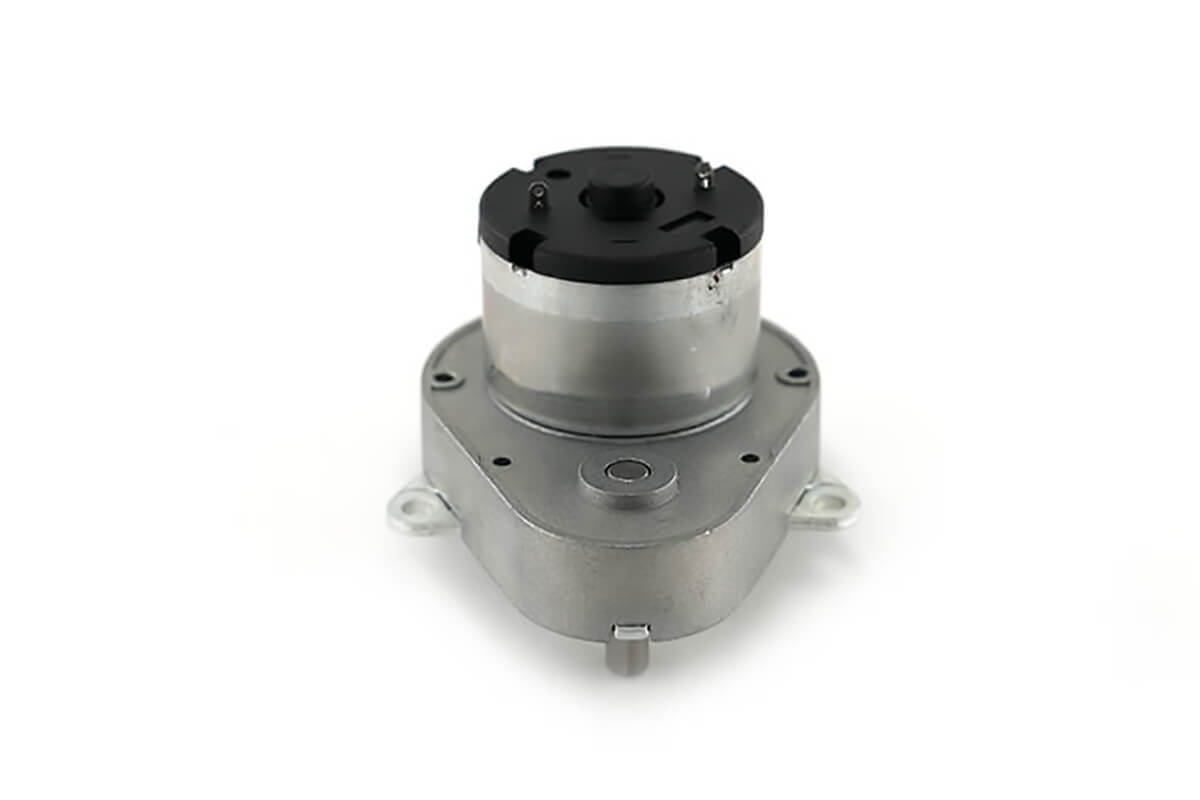

64mm Metal Gear Motor Model NFP-48GE-520
$12.00
– High Torque Output: Delivers outstanding torque with a metal gearbox, ensuring powerful performance for high-demand applications.
– D-Shaped Output Shaft: Designed for easy installation and secure fit, preventing slippage and saving installation time.
– Pure Copper Wire Winding: The motor’s rotor uses pure copper winding, offering low resistance and strong electrical conductivity, which enhances motor power and efficiency.
– Carbon Brush Structure: Features a carbon brush design for stable operation and long life, with an added resistance strip for balanced elasticity.
– Durable Build: Constructed with high-quality materials to withstand rigorous use, ensuring longevity and stability in demanding environments.
Experience unmatched power and durability with our 64mm Metal Gear Motor, perfect for smart devices and robotics. Elevate your projects today!
10pcs Mini Micro 520 Gear Motor Specifications
First, the NFP-48GE-520 is a 33mm 6V and 12V DC metal gearbox motor. Also, it is designed for smart products that need low speed, high torque, and compact size.
In addition, this motor uses a permanent magnet pear-shaped design. Therefore, it can provide reliable power and stable output in smart toilets, smart trash cans, smart robots, and small automation devices.
Moreover, the durable gearbox structure helps support long-term use under suitable load. As a result, this motor is a practical choice for compact mechanisms that need strong and controlled movement.
Main Product Features
- First, compact 33mm motor: The small body helps fit limited internal space.
- In addition, voltage options: The motor supports 6V DC and 12V DC versions.
- Also, metal gearbox: The gearbox helps provide low speed and high torque.
- Next, high reduction ratios: The 225:1 and 453:1 ratios support slow and strong output.
- Moreover, carbon brush motor: The structure supports simple control and easy setup.
- Finally, smart product use: The motor is suitable for smart toilets, smart trash cans, and smart robots.
Mini Micro 520 Gear Motor Performance Data
Model: NFP-48GE-520, 6V DC, 0.6W
First, the 6V DC version is useful for low-voltage smart devices. Also, the table below helps users compare ratio, speed, current, torque, and stall data before testing.
In addition, the 225:1 ratio provides faster output speed. However, the 453:1 ratio provides slower output and higher rated torque for stronger low-speed motion.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 225:1 | 14rpm | ≤0.45A | 10rpm | ≤0.35A | 5kg.cm | ≥15kg.cm | ≤0.85A |
| 453:1 | 7rpm | ≤0.45A | 5rpm | ≤0.35A | 10kg.cm | ≥30kg.cm | ≤0.85A |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 6V version covers no-load speeds from 7rpm to 14rpm. Moreover, the 453:1 ratio gives the stronger rated torque in this table.
6V DC Selection Notes
- First, for faster output: Choose the 225:1 ratio.
- In addition, for higher torque: Choose the 453:1 ratio.
- Also, for low-voltage devices: Use this version when the product uses a 6V DC supply.
- Finally, for stable use: Test current and temperature under the real load before production.
Model: NFP-48GE-520, 12V DC, 2.3W
Next, the 12V DC version provides higher output speed than the 6V version. Therefore, it is useful for smart products that use a 12V DC control system.
Also, the 225:1 ratio gives higher listed rated torque than the 453:1 row in this table. As a result, users should choose the ratio based on real speed and torque needs.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 225:1 | 28rpm | ≤0.65A | 20rpm | ≤0.5A | 9.5kg.cm | ≥30kg.cm | ≤0.85A |
| 453:1 | 14rpm | ≤0.65A | 9rpm | ≤0.5A | 0.55kg.cm | ≥30kg.cm | ≤0.85A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 12V version covers no-load speeds from 14rpm to 28rpm. Also, the 225:1 ratio provides the faster output speed in this table.
12V DC Selection Notes
- First, for faster output: Choose the 225:1 ratio.
- In addition, for slower output: Choose the 453:1 ratio.
- Also, for 12V systems: Use this version when the product uses a 12V DC supply.
- Finally, for safe use: Confirm real torque, current, and temperature before mass production.
DC Gear Motor with Low Speed and Big Torque Dimension
Motor Outline and Mounting Reference
First, the outline drawing helps users check the 520 gear motor size, gearbox shape, motor body, output shaft, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the low-speed high-torque design helps support compact motion systems. As a result, it can fit smart devices that need strong and controlled movement.
Outline Drawing and Design Benefits
- First, compact gearbox: The motor can fit small smart devices.
- In addition, low-speed output: The high reduction ratio supports slow movement.
- Also, big torque design: The gearbox helps increase usable output torque.
- Next, simple wiring: The DC motor is easy to test with a suitable power supply.
- Finally, clear drawing: The outline helps users design brackets, housings, and fixtures.
Applications and Selection Tips
Typical Applications
Finally, this mini micro 520 gear motor is useful for smart products that need compact size, low speed, and high torque. For example, it can work in smart toilets, smart trash cans, smart robots, and small automation mechanisms.
- First, smart toilets: The motor can provide precise and reliable motion control for advanced toilet systems.
- In addition, smart trash cans: It is useful for automated opening and closing mechanisms.
- Finally, smart robots: The motor can drive wheels, actuating arms, and small robotic mechanisms.
How to Choose the Right Version
First, choose the voltage based on the power supply and controller. Also, choose the ratio based on the required output speed and load torque.
In addition, the 6V version is useful for lower-voltage devices. Therefore, it can fit small battery-powered or low-power smart products.
Moreover, the 12V version gives higher output speed. As a result, it is better for products that need faster movement with a 12V supply.
Final Selection Notes
- First, check voltage: Choose 6V or 12V based on the power supply.
- In addition, check ratio: Choose 225:1 for faster output or 453:1 for slower output.
- Also, check current: Make sure the driver can support the listed current.
- Next, check mounting space: Review the outline drawing before product design.
- Finally, test real load: Confirm current, speed, torque, noise, and temperature before production.
In short, the NFP-48GE-520 mini micro 520 gear motor is a compact option for smart products that need 6V or 12V DC power, low-speed output, high torque, simple control, and reliable gearbox performance.
