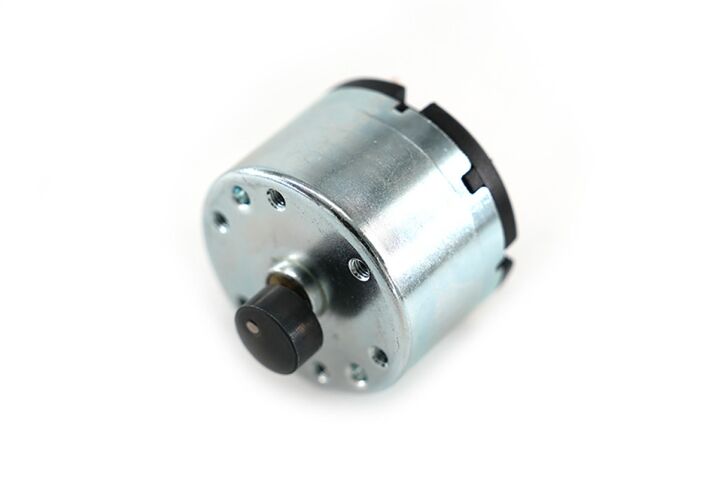

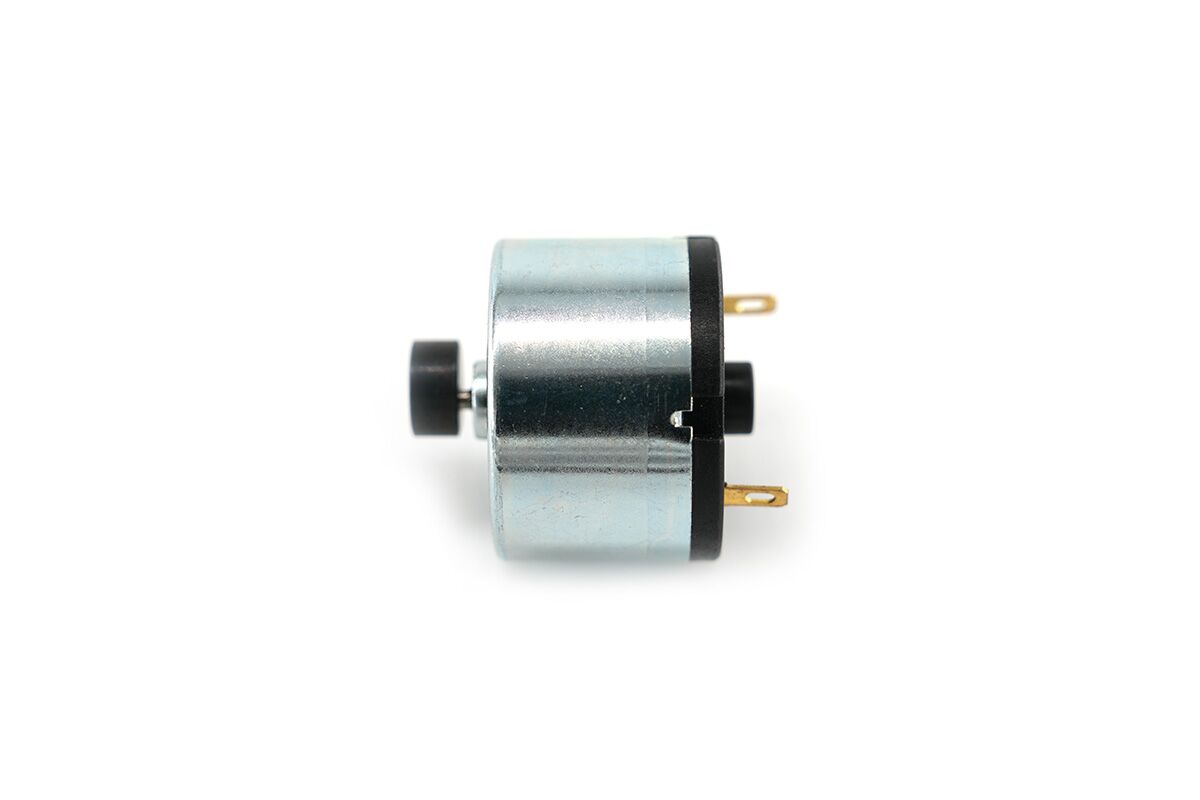

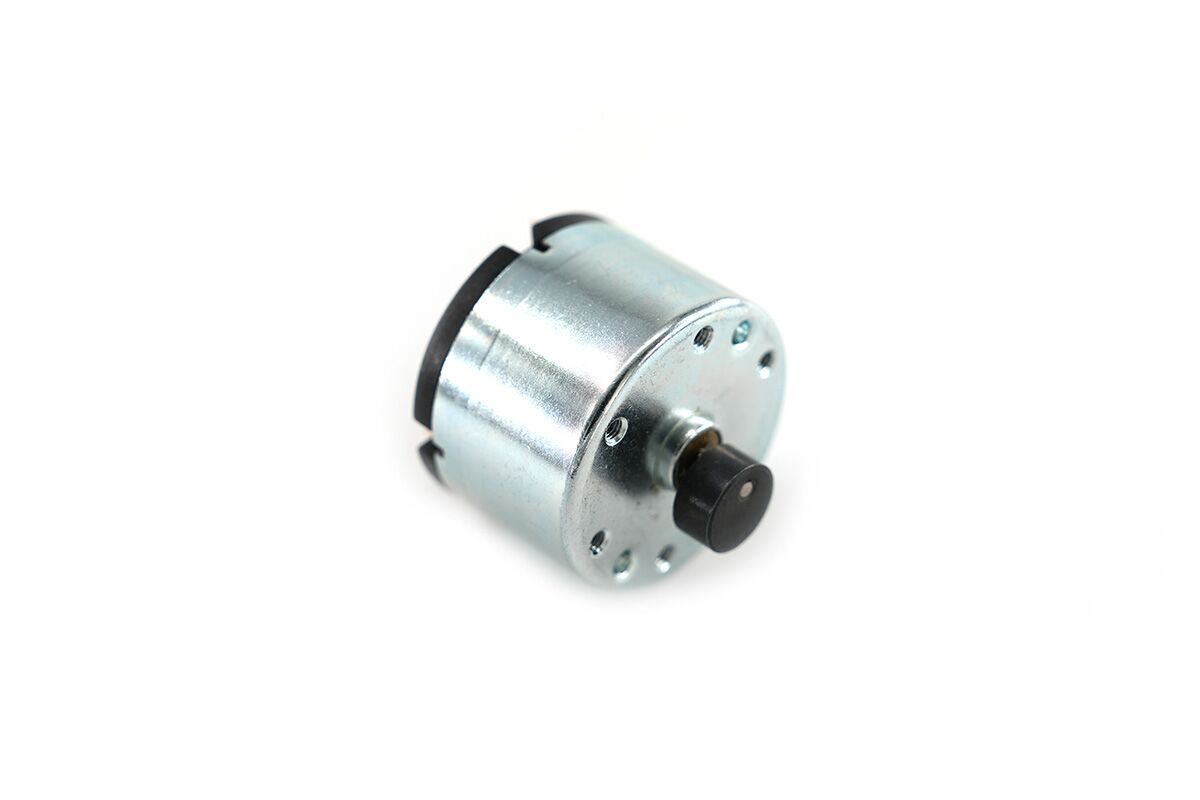

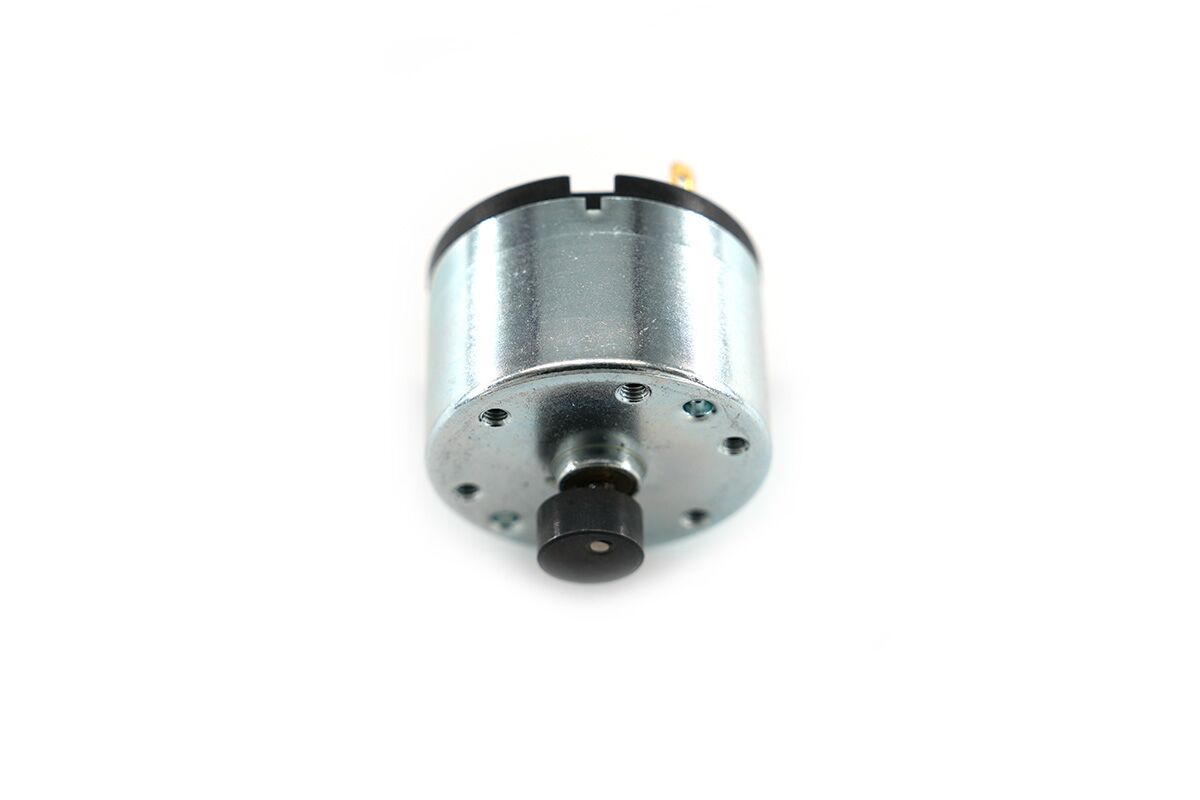

32mm Metal DC Vibration Motor Model NFP-RK520-SR
$7.00
Revolutionize your devices with the 520 compact durable powerful vibration motor. Experience reliability and efficiency with each use. Order now!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $7.00 | 0% |
| 10 - 49 | $5.00 | 28.57% |
| 50 - 99 | $4.70 | 32.86% |
| 100+ | $3.60 | 48.57% |
Powerful Metal DC Vibration Motor Parameters
First, the NFP-RK520-SR is a powerful metal DC vibration motor designed for applications that require high vibration force and reliable performance. Also, it is available in 6V, 12V, and 24V DC versions to satisfy different system requirements.
In addition, the motor uses a powder metallurgy eccentric hammer and a high-density armature rotor. Therefore, it delivers stable vibration, high efficiency, and long service life.
Main Product Features
- Multiple voltage options: Available in 6V, 12V, and 24V DC.
- High vibration output: The metal eccentric hammer produces strong and consistent vibration.
- Compact structure: The Φ32.8mm motor body is suitable for many industrial applications.
- Pure copper winding: Improves conductivity, efficiency, and operating reliability.
- High-speed operation: Multiple speed options are available for different vibration requirements.
- Durable construction: Designed for continuous industrial and commercial operation.
Motor Specifications
Next, the table below lists the general specifications of the NFP-RK520-SR vibration motor.
| Motor Model | NFP-RK520-SR |
|---|---|
| Motor Diameter | Φ32.8mm |
| Motor Length | 23mm |
| Rated Voltage | 6V / 12V / 24V DC |
| No-load Speed | 3,700rpm / 6,400rpm / 7,400rpm |
| Weight | 55g |
Moreover, the different voltage versions allow users to select the most suitable speed and vibration level. As a result, the motor can support a wide range of industrial and automation equipment.
6V Performance Specifications
Furthermore, the following table shows the detailed performance data for the 6V version.
| Motor Model | NFP-RK520-SR-6V |
|---|---|
| Voltage | DC 6V |
| No-load Speed | 6,400rpm |
| No-load Current | 0.1A Max |
| Rated Load | Φ10.1×5.1 Eccentric Wheel |
| Rated Speed | 5,300rpm |
| Rated Current | 0.5A Max |
| Rated Power | 0.8W (1.95W Max) |
| Stall Torque | ≥150g·cm |
| Stall Current | ≤3.4A |
Therefore, the 6V model provides an excellent balance between vibration strength, current consumption, and operating efficiency.
Φ33mm ERM Vibrating Motor Outline Drawing
First, the outline drawing provides the complete mechanical dimensions for product integration. Also, it shows the shaft, mounting dimensions, and eccentric hammer position for easy mechanical design.
In addition, the eccentric hammer has a diameter of 10.1mm, a thickness of 5.1mm, and an eccentricity of 2.1mm. As a result, it generates strong centrifugal force for stable vibration.
Outline Drawing Benefits
- Compact dimensions: Easy to integrate into industrial equipment.
- Accurate shaft dimensions: Simplifies coupling and mechanical design.
- Metal eccentric hammer: Produces stable and repeatable vibration.
- Easy installation: Supports rapid prototype development and production.
- Reliable mechanical design: Suitable for continuous vibration applications.
Motor Construction Advantages
Moreover, the rotor uses pure copper windings with weight balancing correction. Therefore, conductivity is improved while vibration remains stable during high-speed operation.
In addition, the motor uses a seven-slot high-density armature rotor and a powder metallurgy die-cast eccentric hammer. As a result, it delivers high torque, excellent efficiency, and reliable service life.
- Pure copper winding: Lower resistance and higher electrical efficiency.
- Balanced rotor: Reduces unwanted vibration and improves stability.
- Powder metallurgy hammer: Strong and durable eccentric mass.
- High-speed operation: Suitable for continuous-duty applications.
- Compact design: Combines high torque with a relatively small motor size.
Applications and Selection Tips
Typical Applications
Finally, the NFP-RK520-SR vibration motor is suitable for equipment requiring strong vibration output and reliable continuous operation.
- Gear reducer motors
- Intelligent robots
- Vending machines
- Industrial automation equipment
- Mechanical vibration systems
- Custom industrial devices
How to Choose This ERM Vibration Motor
First, select the appropriate voltage according to the available power supply and required vibration strength. Also, compare the available speed versions before choosing a model.
Next, verify that the installation space can accommodate the Φ32.8mm motor body and eccentric hammer. In addition, ensure the driver circuit can safely support the required operating and stall current.
Moreover, use a rigid mounting structure to maximize vibration transmission. As a result, the equipment can achieve better vibration efficiency and longer service life.
Final Selection Notes
- Check operating voltage: Select 6V, 12V, or 24V DC according to the application.
- Check installation space: Confirm the Φ32.8mm motor size fits the design.
- Check vibration requirement: Choose the appropriate speed and eccentric hammer.
- Check current capacity: Ensure the driver safely supports up to 3.4A stall current.
- Check mounting rigidity: A secure installation improves vibration efficiency.
- Verify complete product performance: Test vibration force, temperature, current, and service life before mass production.
In short, the NFP-RK520-SR is a high-performance ERM vibration motor that combines strong vibration output, pure copper windings, high-speed operation, and durable construction. It is an excellent choice for robots, vending machines, industrial automation equipment, and other applications requiring reliable vibration performance.
Keywords: motor for vibratory machinery, micro vibrator motor, small vibrating motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
