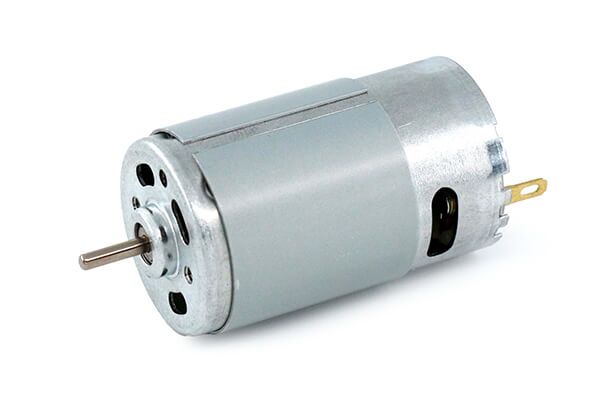

37mm Brushed DC Motor – 57mm Type Model NFP-RC-555SHP/550SHP
$20.00
Notice: this motor model need to make new ones that would take extra 2 weeks.
Unlock powerful performance with our RS-550 brushed dc motor. With max efficiency and high speeds, it is your ultimate choice for precision! ⚡

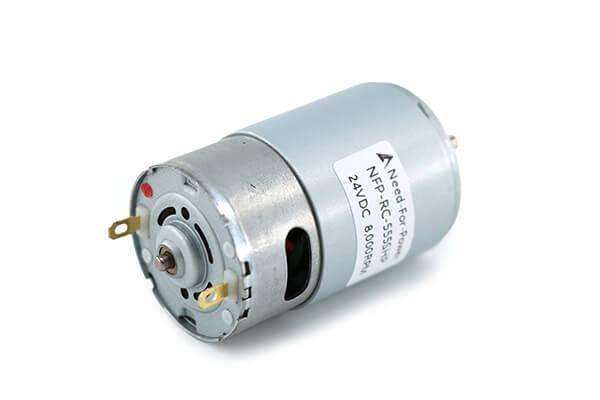

NFP-RC-555SHP/550SHP With Ball Bearing Parameters
The NFP-RC-550SHP and NFP-RC-555SHP series are ball bearing brushed DC motors for products that need high speed, strong torque, and stable output. These models include 12V, 15V, and 24V rated voltage options.
First, the ball bearing structure helps reduce friction during rotation. Also, it can support smoother running under suitable load conditions. Therefore, this motor series is useful for high-power drive products and compact equipment.
In addition, the series offers different speed, current, torque, and efficiency options. As a result, users can choose a model based on voltage, load, and final working speed.
Main Product Features
- First, voltage options: The series includes 12V, 15V, and 24V rated voltage models.
- In addition, high speed: The no-load speed can reach up to 29,500RPM.
- Also, strong torque: Stall torque can reach up to 8428g.cm.
- Next, high efficiency: Max efficiency can reach up to 83.89%.
- Finally, ball bearing design: The bearing structure helps reduce friction and support stable rotation.
RS-550SHP and RS-555SHP Ball Bearing Motor Performance Data
Next, the table below helps users compare voltage range, rated voltage, speed, current, torque, and efficiency. Therefore, it is easier to choose the right RC-550SHP or RC-555SHP motor for a product design.
| Motor Model | RC-550SHP-8019 | RC-550SHP-6032 | RC-555SHP-2772 |
|---|---|---|---|
| Voltage Range | 10V – 18V | 8V – 16V | 18V – 28V |
| Rated Voltage | 15V | 12V | 24V |
| No-Load Current | 2.1A | 0.9A | 0.2A |
| No-Load Speed | 29,500RPM | 14,300RPM | 7,300RPM |
| Max Efficiency | 76.96% | 74.19% | 83.89% |
| Max Efficiency Current | 19.39A | 5.44A | 1.14A |
| Max Efficiency Speed | 26,618RPM | 12,271RPM | 6,212RPM |
| Max Efficiency Torque | 823.5g.cm | 386.54g.cm | 362.5g.cm |
| Stall Current | 179.1A | 32.9A | 6.52A |
| Stall Torque | 8428g.cm | 2723g.cm | 2433g.cm |
Also, the RC-550SHP-8019 gives the highest no-load speed, max efficiency torque, stall current, and stall torque. However, the RC-555SHP-2772 gives the highest max efficiency and the lowest no-load current.
As a result, users can choose the RC-550SHP-8019 for higher speed and stronger torque, or choose the RC-555SHP-2772 for 24V lower-current and higher-efficiency operation.
Mabuchi RS 550 Motor Outline Drawing & Performance Curve
First, the outline drawing and performance curve help users review motor size and working behavior. Therefore, they are useful before sample testing and final product design.
In addition, the curve can help users compare speed, current, torque, and efficiency under different load points. As a result, engineers can choose a better working range for the motor.
Outline Drawing and Performance Curve Benefits
- First, size review: The drawing helps users check the motor fit.
- In addition, speed review: The curve helps show how speed changes with load.
- Also, torque review: Users can compare torque output under different load points.
- Next, current review: The curve helps estimate current draw in the final product.
- Finally, efficiency review: Engineers can choose a better operating range.
Typical Applications
Next, this ball bearing brushed DC motor series is suitable for products that need high speed, strong torque, and stable rotation. For example, it can work in power tools, robots, vehicle models, and high-power drive systems.
- Power tools
- Robotics
- Vehicle models
- High-power drive systems
- DIY motor projects
- Compact equipment
- Electric model products
Finally, the NFP-RC-550SHP and NFP-RC-555SHP motors are good choices for products that need 12V, 15V, or 24V DC power, ball bearing support, high torque, and reliable brushed motor performance.
