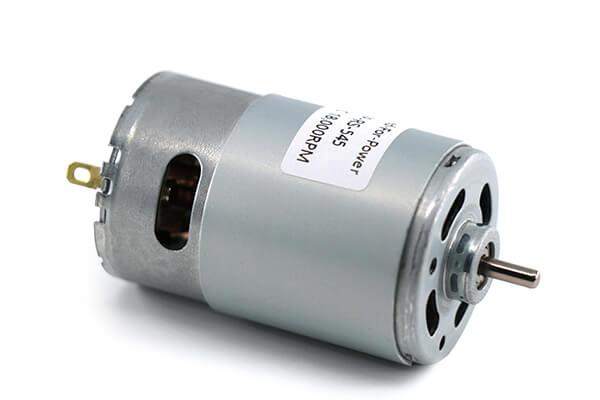

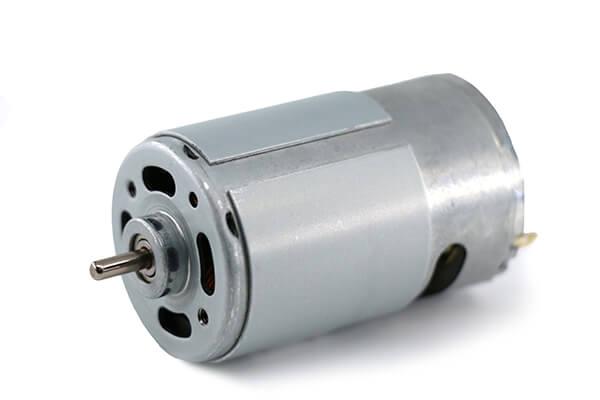

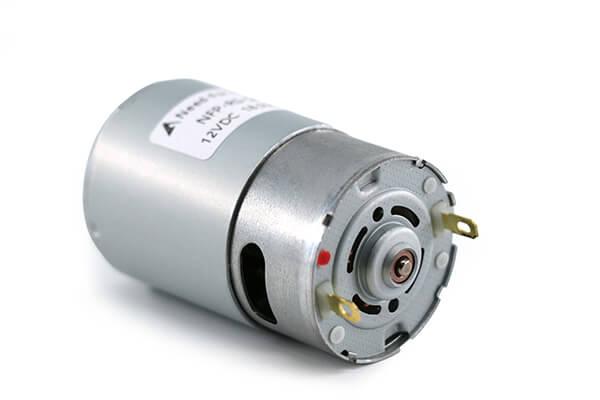

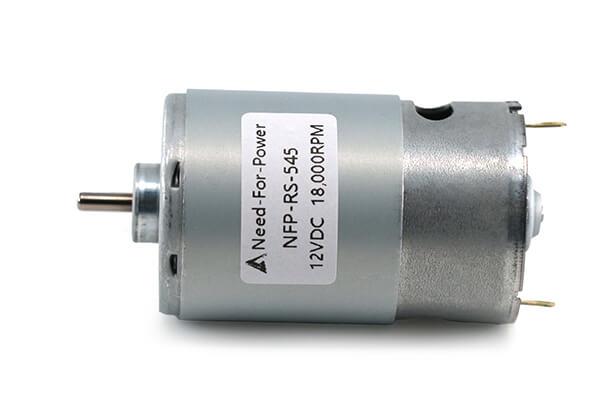

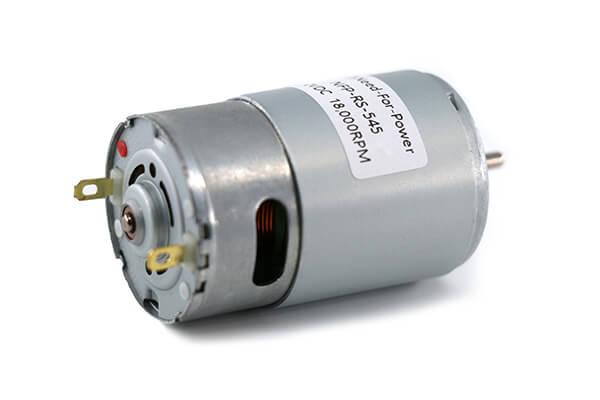

36mm Brushed DC Motor – 50mm Type Model NFP-RC-545SH/540SHP
$20.00
Looking for reliability? The 36mm brushed dc motors 5 series deliver top-notch performance with wear-resistant ball bearings. Start building yours!
| Quantity | Price | Discount |
|---|---|---|
| 20 - 49 | $20.00 | 0% |
| 50 - 99 | $15.00 | 25% |
| 100+ | $9.90 | 50.50% |
Long Lifetime RS-545 DC Motor Key Feature
The NFP-RC-540SHP and NFP-RC-545SH series are permanent magnet brushed DC motors for products that need high speed, strong torque, and stable output. These models include 6V, 18V, and 24V rated voltage options.
First, these motors use wet pressure magnets, high-quality carbon brushes, built-in fans, and ball bearings. Also, the fan structure helps support heat control during operation. Therefore, the motors are useful for products that need long lifetime and strong performance.
In addition, the ball bearing design helps improve wear resistance. As a result, the motor can support demanding applications under suitable load conditions.
Main Product Features
- First, voltage options: The series includes 6V, 18V, and 24V rated voltage models.
- In addition, high speed: The no-load speed can reach up to 29,500RPM.
- Also, strong torque: Stall torque can reach up to 2,681g.cm.
- Next, good efficiency: Max efficiency can reach up to 77.77%.
- Finally, durable structure: Carbon brushes, built-in fans, and ball bearings support long service life.
RS-540 and RS-545 DC Motor Performance Data
Next, the table below helps users compare voltage range, rated voltage, speed, current, torque, and efficiency. Therefore, it is easier to select the right motor for a high-speed or high-torque product.
| Model | NFP-RC-540SHP-6411V | NFP-RC-545SH-12330V | NFP-RC-545SH-3153 |
|---|---|---|---|
| Voltage Range | 3V – 9V | 18V – 28V | 12V – 24V |
| Rated Voltage | 6V | 24V | 18V |
| No-Load Current | 4.5A | 0.03A | 0.35A |
| No-Load Speed | 29,500RPM | 2,300RPM | 11,000RPM |
| Max Efficiency | 74.68% | 64.90% | 77.77% |
| Max Efficiency Current | 23.98A | 0.119A | 1.919A |
| Max Efficiency Speed | 24,840RPM | 1,836RPM | 9,303RPM |
| Max Efficiency Torque | 423.64g.cm | 98.66g.cm | 282.76g.cm |
| Stall Current | 127.8A | 0.47A | 10.52A |
| Stall Torque | 2,681g.cm | 489g.cm | 1,833g.cm |
Also, the NFP-RC-540SHP-6411V gives the highest no-load speed and the highest stall torque. However, the NFP-RC-545SH-3153 gives the highest max efficiency.
As a result, users can choose the 540SHP model for higher speed and stronger stall torque, or choose the 545SH-3153 model for better efficiency.
Performance Curve Tool
In addition, users can generate a motor performance curve with the simulator below. Therefore, it is easier to review speed, current, torque, and output power before product testing.
Generate a motor performance curve
Permanent Magnet DC Motor Dimension
First, the dimension image shows the NFP-RC-540SHP and NFP-RC-545SH brushed DC motor structure. Therefore, users can check the motor size and layout before final design.
In addition, the permanent magnet DC motor design supports practical output in compact power tools and household devices. As a result, it is suitable for products that need high speed, torque, and reliable rotation.
Dimension and Design Benefits
- First, strong magnet design: Wet pressure magnets help support torque output.
- In addition, carbon brush structure: High-quality carbon brushes support stable motor operation.
- Also, built-in fan: The fan helps with heat control during running.
- Next, ball bearings: Ball bearings help improve wear resistance.
- Finally, wide use: The motor can support tools, toys, smart home products, and small appliances.
Typical Applications
Next, these brushed DC motors are suitable for products that need strong torque and stable speed. For example, they can work in car vacuum cleaners, electric screwdrivers, and electric toys.
- Car vacuum cleaners
- Electric screwdrivers
- Juice cups
- Smart home products
- Electric toys
- Massage bed vibration motors
- High-speed brushed motor projects
Finally, the NFP-RC-540SHP and NFP-RC-545SH motors are good choices for products that need high speed, high torque, durable carbon brushes, built-in cooling, and reliable brushed DC motor performance.
Keywords: rc 540 motor, rs 540 motor, 540 brushed motor specs, high torque dc motor, 24v electric motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
