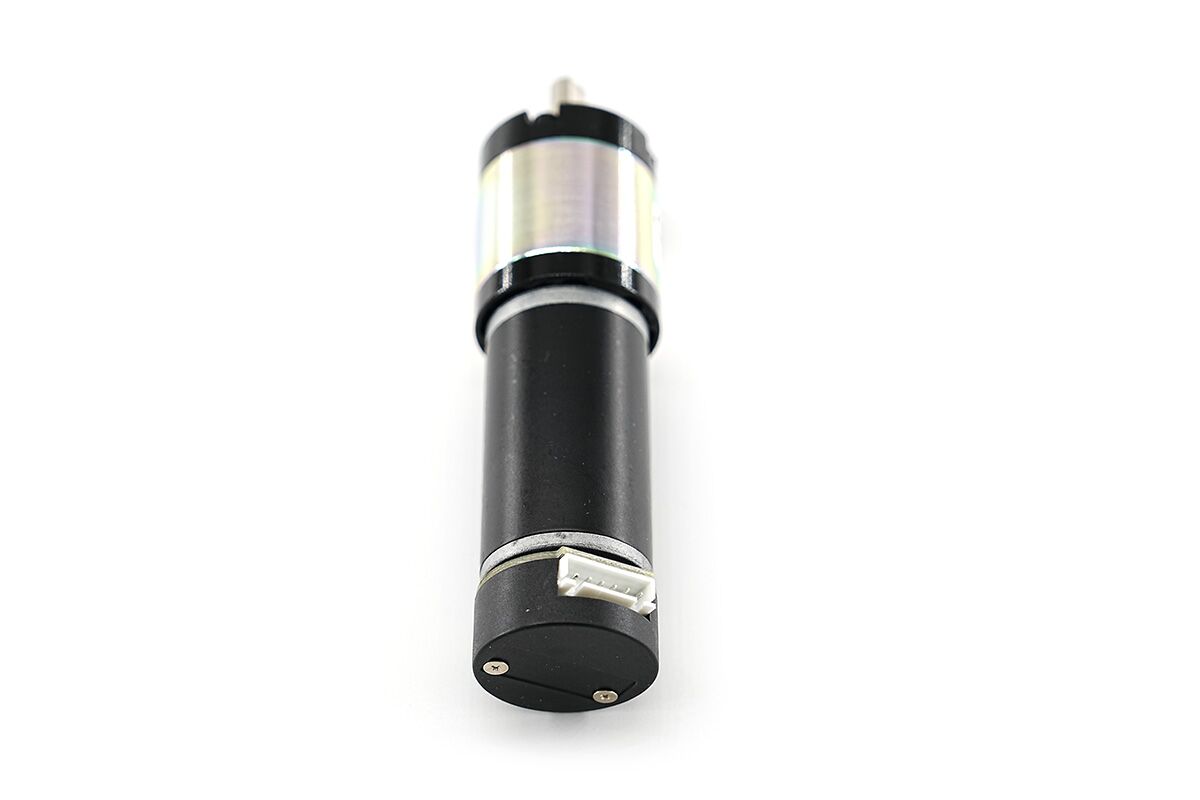

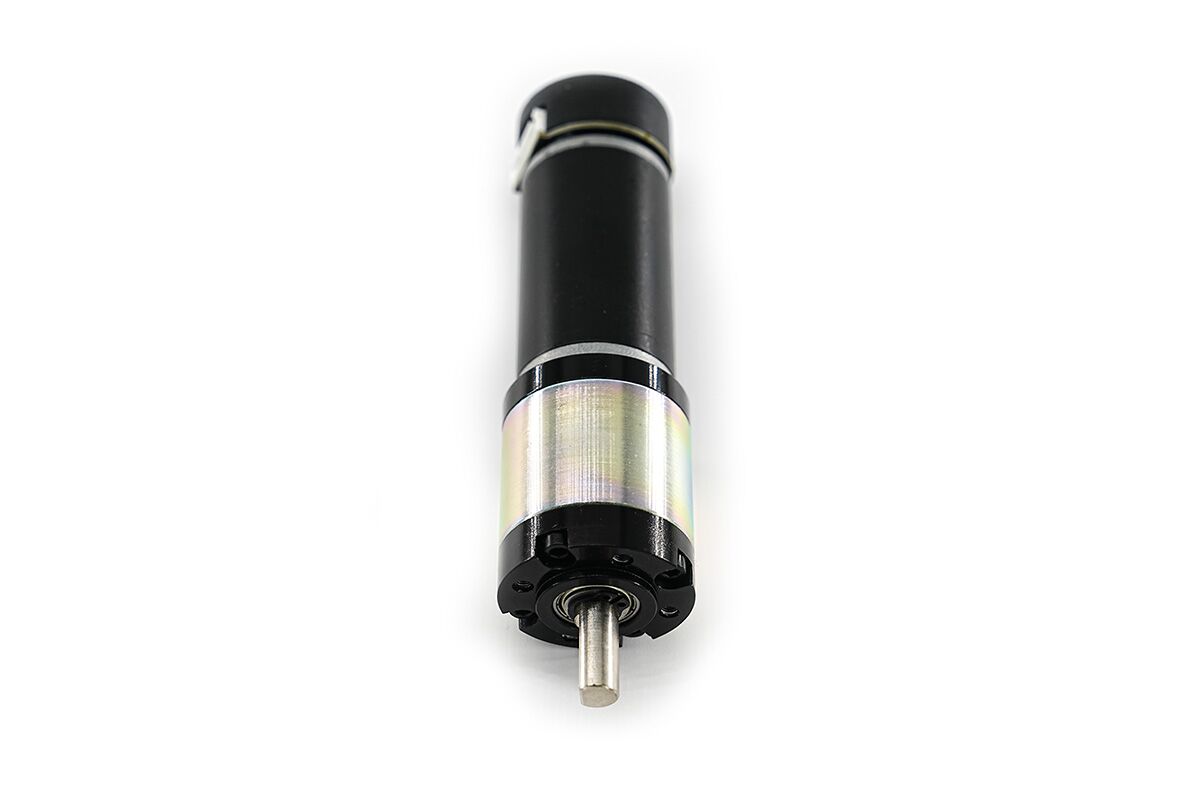

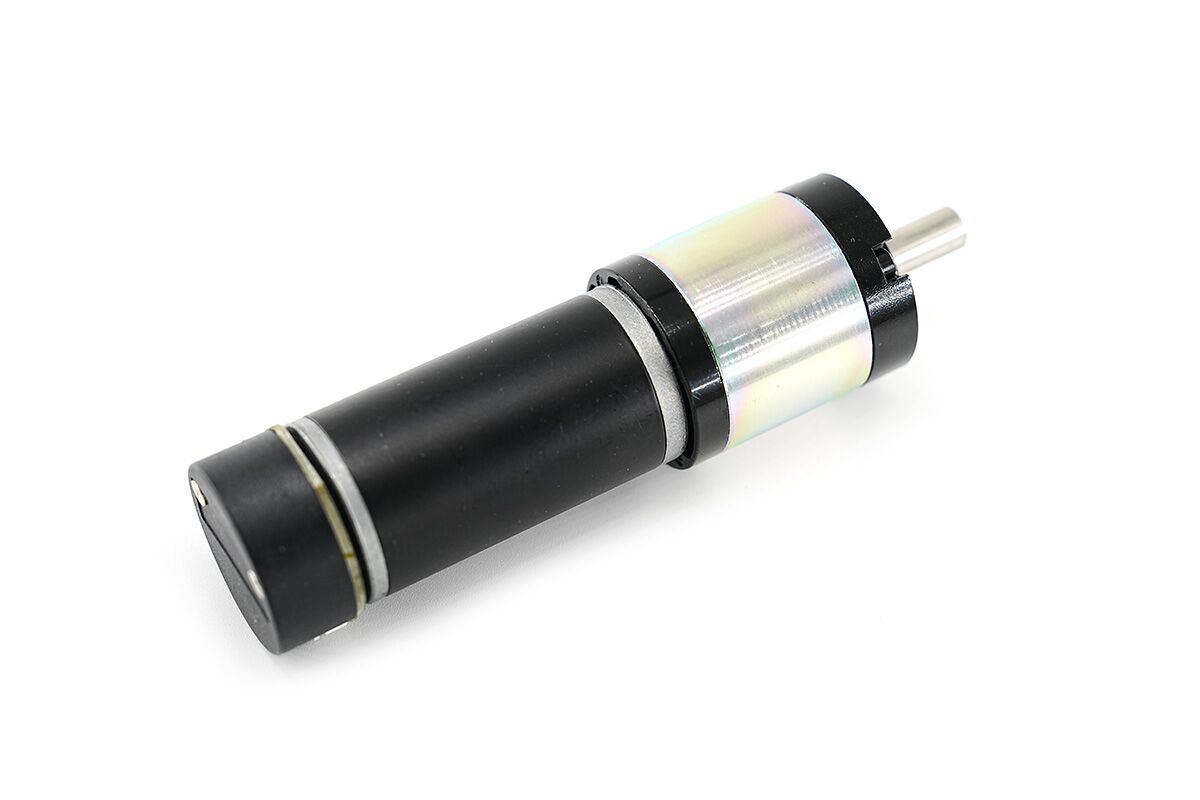

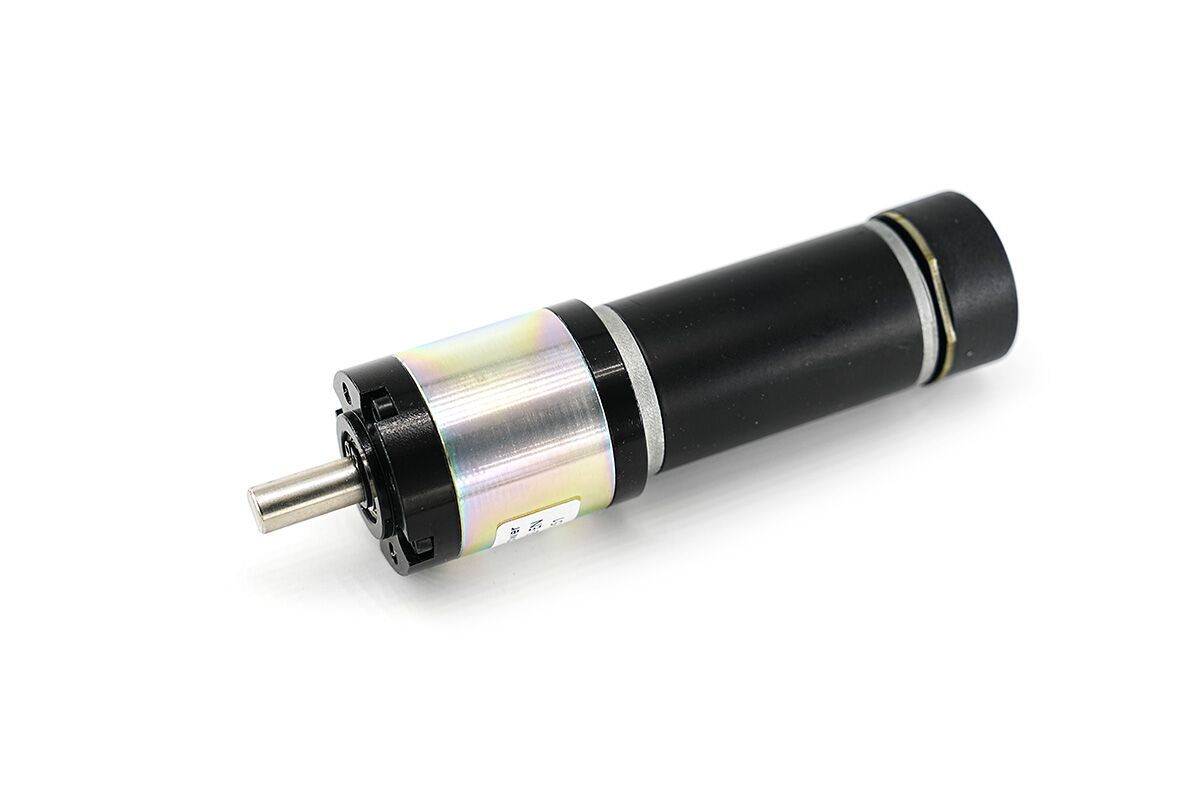

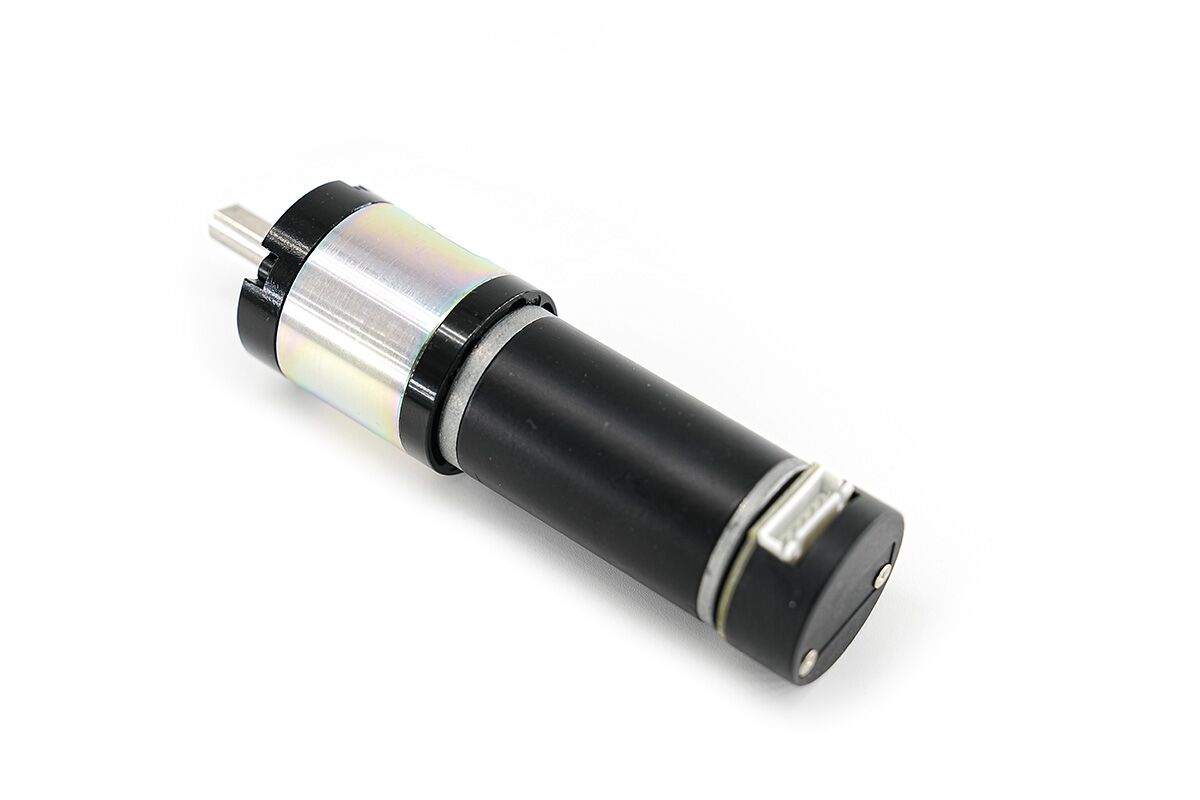

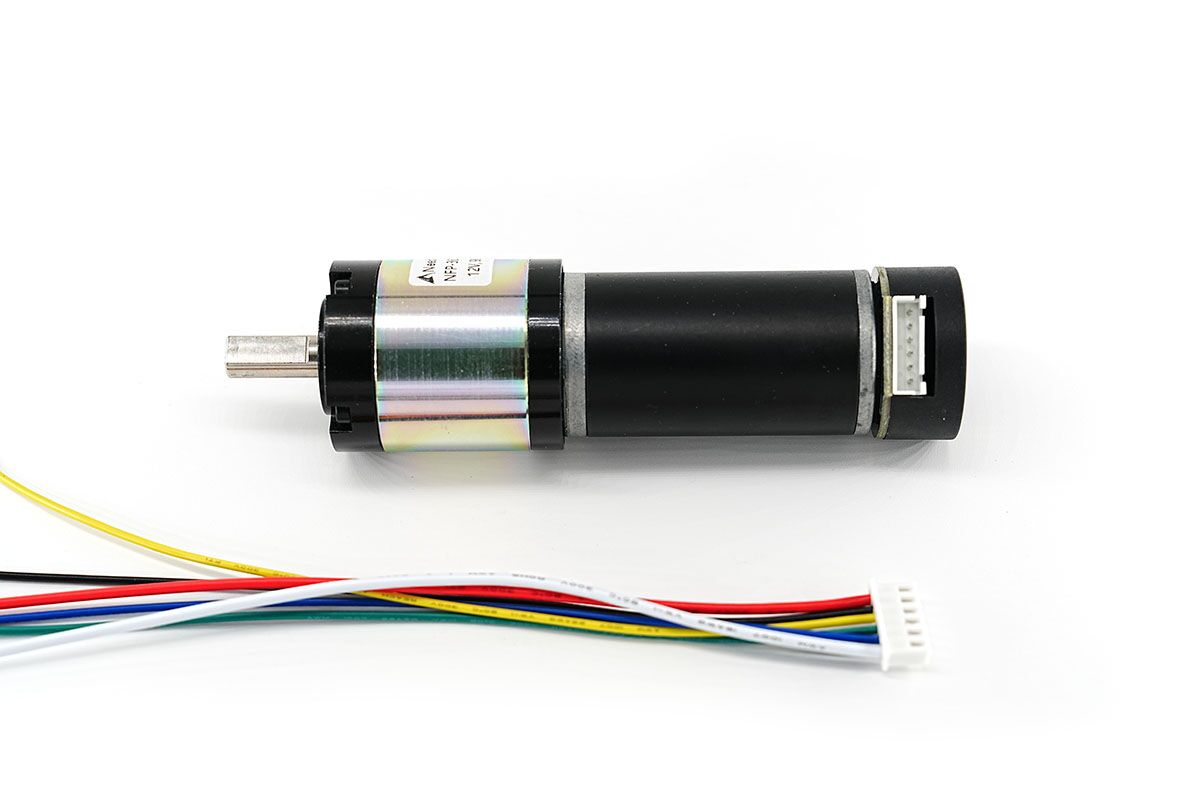

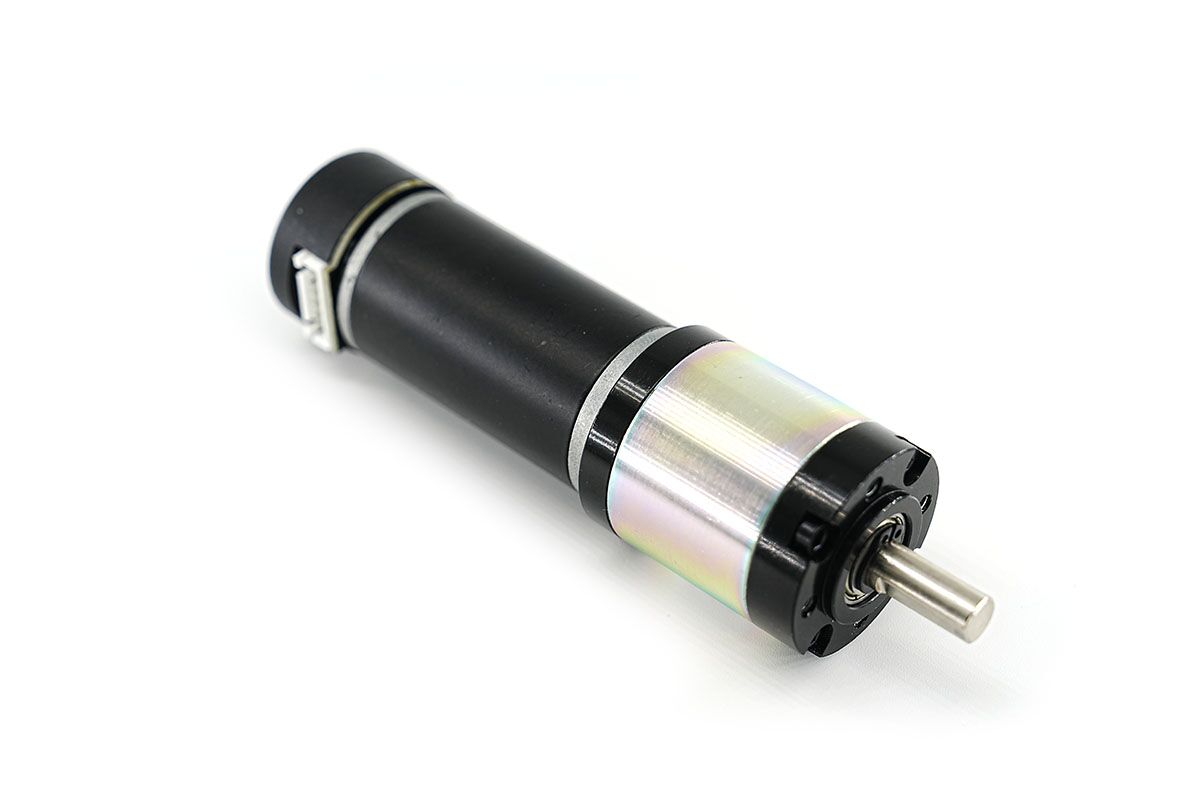

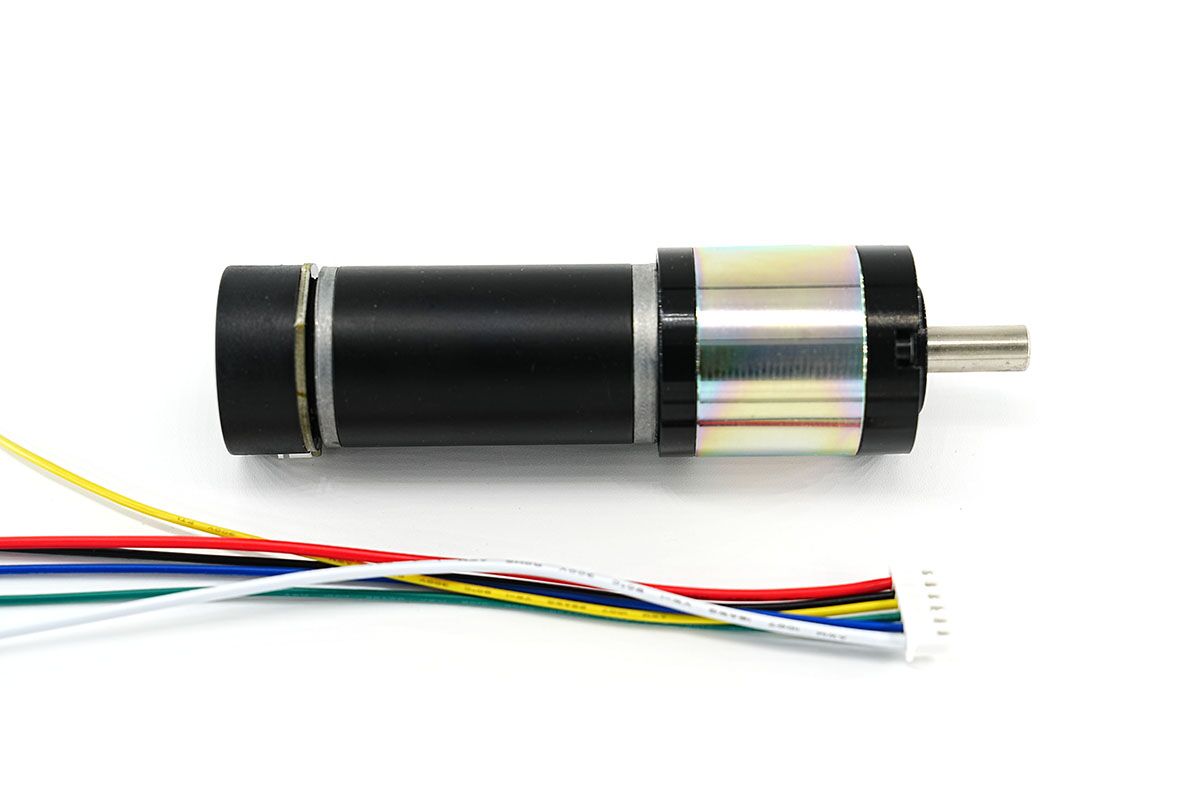

36mm DC Planetary Geared Motor Model NFP-36GP-3162
$35.00
Experience precision and control with the 36mm DC Planetary Geared Motor featuring ball bearings for efficiency. Upgrade your projects today!
Carbon Brushed Motor with Planetary Gearbox Datasheet
The NFP-36GP-3162 is a carbon brushed motor with a planetary gearbox. It supports 6V, 12V, and 24V DC power options. Also, it provides CW and CCW rotation for flexible drive control.
First, the ball bearing structure helps improve motion control. In addition, it reduces friction, lowers energy loss, and helps the motor run more smoothly.
Next, the all-metal gears provide higher torque and better heat transfer than plastic gears. As a result, the gearbox can handle higher loads and more frequent use.
Main Product Benefits
- First, ball bearing support: It helps improve positioning, reduce friction, and lower noise.
- In addition, all-metal gears: They provide strong torque and better heat transfer.
- Also, bidirectional rotation: The motor supports CW and CCW rotation.
- Finally, multiple voltage options: The motor can use 6V, 12V, or 24V DC power.
Main Specifications
| Model | NFP-36GP-3162 |
|---|---|
| Shaft Diameter | 8mm |
| Shaft Length | 20mm |
| Rated Voltage | 6V / 12V / 24V DC |
| No-load Speed | 8rpm – 1,620rpm |
| No-load Current | ≤0.2A / ≤0.25A |
| Rotation | CW / CCW |
| Weight | appr. 410g |
Next, the main data above helps users check shaft size, voltage, speed range, current, rotation, and weight. Therefore, it gives a quick view before users compare each motor version.
Model: NFP-36GP-3162, 12V DC, 40type
First, the 12V DC 40type version is useful for compact drive systems that need steady torque. Also, its ratio options allow users to choose between speed and force.
In addition, the lower ratios provide faster output speed. However, the higher ratios provide stronger torque and slower output speed.
12V High Speed Ratios
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | Stages |
|---|---|---|---|---|---|---|---|---|---|
| 5.2:1 | 26.5mm | ≤0.2A | 790rpm | ≤0.9A | 570rpm | 1kg.cm | ≤2.4A | ≥5kg.cm | 1 stage |
| 27:1 | 34.5mm | ≤0.2A | 150rpm | ≤0.9A | 110rpm | 2.5kg.cm | ≤2.4A | ≥22kg.cm | 2 stages |
| 51:1 | 42.5mm | ≤0.2A | 80rpm | ≤0.9A | 58rpm | 5kg.cm | ≤2.4A | ≥45kg.cm | 3 stages |
Next, these 12V high speed ratios are better for faster movement. Therefore, they can support applications that need more speed and moderate torque.
12V Low Speed Ratios
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | Stages |
|---|---|---|---|---|---|---|---|---|---|
| 100:1 | 42.5mm | ≤0.2A | 41rpm | ≤0.9A | 30rpm | 10kg.cm | ≤2.4A | ≤60kg.cm | 3 stages |
| 139:1 | 42.5mm | ≤0.2A | 29rpm | ≤0.9A | 21rpm | 15kg.cm | ≤2.4A | ≤60kg.cm | 3 stages |
| 264:1 | 50.5mm | ≤0.2A | 15.5rpm | ≤0.9A | 11rpm | 25kg.cm | ≤2.4A | ≤60kg.cm | 4 stages |
| 515:1 | 50.5mm | ≤0.2A | 8rpm | ≤0.9A | 6rpm | 50kg.cm | ≤2.4A | ≤60kg.cm | 4 stages |
Note: All reduced no-load speeds have a tolerance of ±15%.
Finally, these 12V low speed ratios are better for slow movement and stronger force. In short, they fit compact systems with higher load needs.
Model: NFP-36GP-3162, 24V DC, 80type
First, the 24V DC 80type version gives a higher speed range than the 12V version. Also, it can provide stronger rated torque in many ratios.
In addition, the 24V version is useful when the system already uses 24V power. As a result, it can fit many industrial and smart device projects.
24V High Speed Ratios
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | Stages |
|---|---|---|---|---|---|---|---|---|---|
| 5.2:1 | 26.5mm | ≤0.25A | 1,620rpm | ≤2.5A | 1,150rpm | 2kg.cm | ≤4.8A | 5kg.cm | 1 stage |
| 27:1 | 34.5mm | ≤0.25A | 314rpm | ≤2.5A | 220rpm | 5kg.cm | ≤4.8A | 22kg.cm | 2 stages |
| 51:1 | 42.5mm | ≤0.25A | 165rpm | ≤2.5A | 120rpm | 10kg.cm | ≤4.8A | 45kg.cm | 3 stages |
Next, these 24V high speed ratios are useful for fast output. Therefore, they are a good fit when the machine needs more speed before load.
24V Low Speed Ratios
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque | Stages |
|---|---|---|---|---|---|---|---|---|---|
| 100:1 | 42.5mm | ≤0.25A | 85rpm | ≤2.5A | 60rpm | 20kg.cm | ≤4.8A | ≤60kg.cm | 3 stages |
| 139:1 | 42.5mm | ≤0.25A | 60rpm | ≤2.5A | 43rpm | 30kg.cm | ≤4.8A | ≤60kg.cm | 3 stages |
| 264:1 | 50.5mm | ≤0.25A | 30rpm | ≤2.0A | 22rpm | 50kg.cm | ≤2.4A | ≤60kg.cm | 4 stages |
| 515:1 | 50.5mm | ≤0.25A | 16.5rpm | ≤0.8A | 13rpm | 50kg.cm | ≤2.4A | ≤60kg.cm | 4 stages |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, these 24V low speed ratios give stronger output torque. As a result, they are useful for slow drive tasks and higher load systems.
Mega Torque Planetary Gear Motor Dimension
The NFP-36GP-3162 is a permanent magnet planetary DC gear motor. Also, different ratios may have different gearbox lengths and different weights.
First, the 7-slot armature rotor can improve the winding layout. Therefore, it may help reduce copper loss and improve motor efficiency.
In addition, the 7-slot rotor can support a compact design with higher power density. However, this rotor design can be more complex than a rotor with fewer slots.
Dimension and Rotor Features
- First, planetary gearbox: It provides speed reduction and torque increase.
- In addition, 7-slot rotor: It helps improve winding layout and power density.
- Also, compact body: It fits small machines with limited mounting space.
- Finally, metal gear design: It supports higher load and longer service life.
Typical Applications
- Automation equipment
- Small robots
- Electric valve systems
- Smart home devices
- Industrial drive systems
- Custom planetary DC motor projects
Finally, this carbon brushed motor with planetary gearbox is suitable for small products that need high torque, metal gears, ball bearing support, and stable speed output.
Keywords: planetary dc motor for sale, small planetary dc motor manufacturers, brush planetary gear motor, 12v planetary geared motor wholesale, dc motor planetary gearbox
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Marcia Aaron –
The 36mm size is perfect for the application, providing enough torque without being too bulky. It’s a bit slower than expected, but for my needs , it’s spot on. Very reliable!🎺🎺
