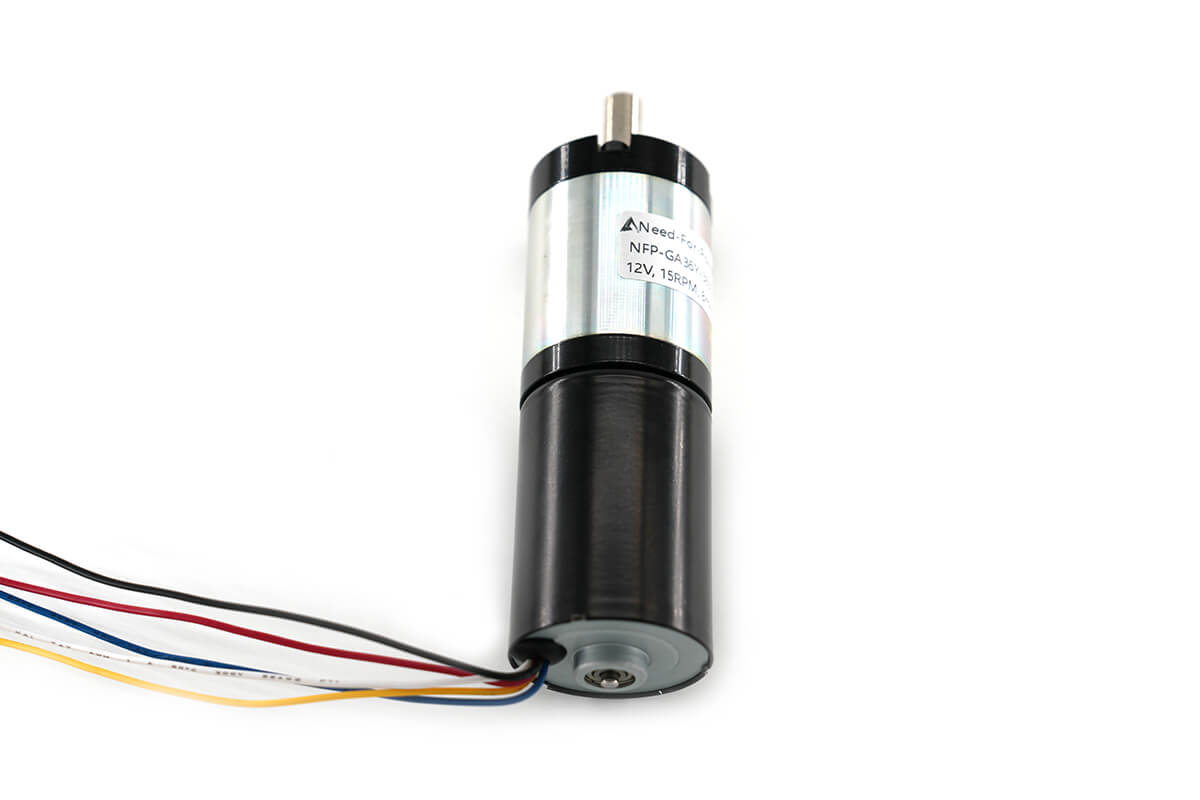

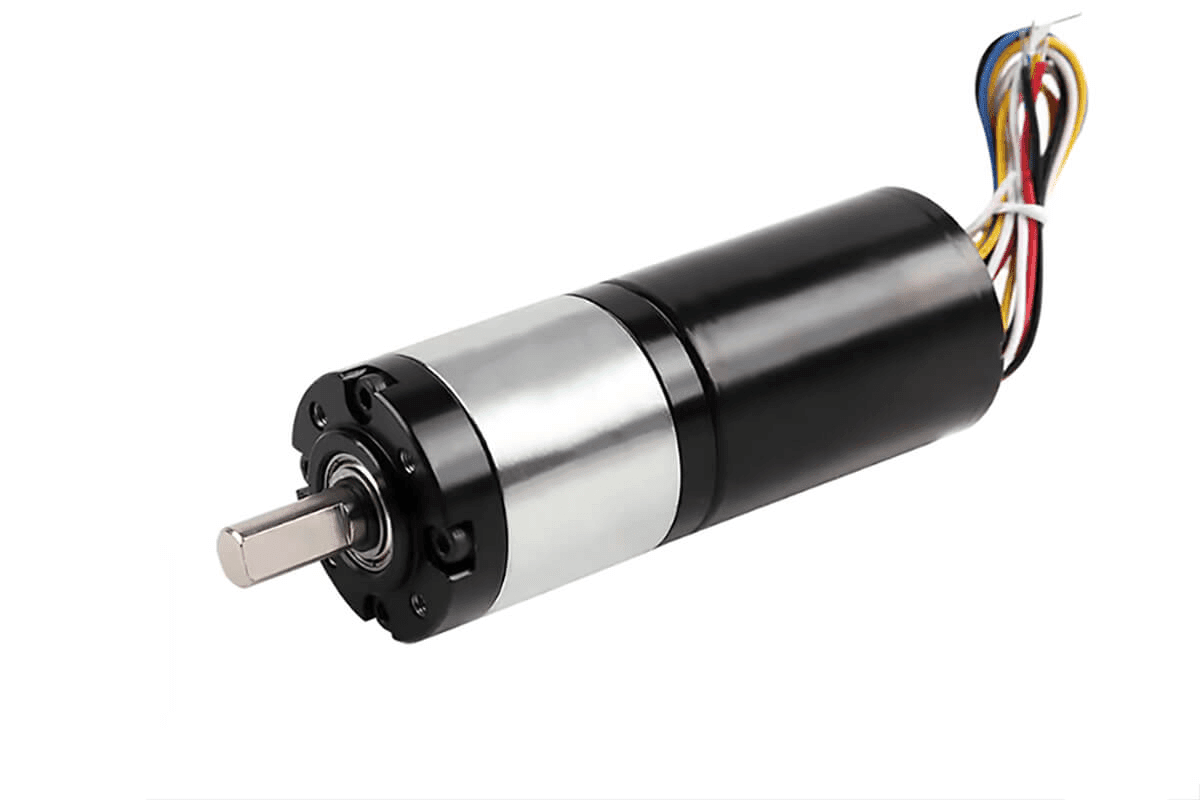

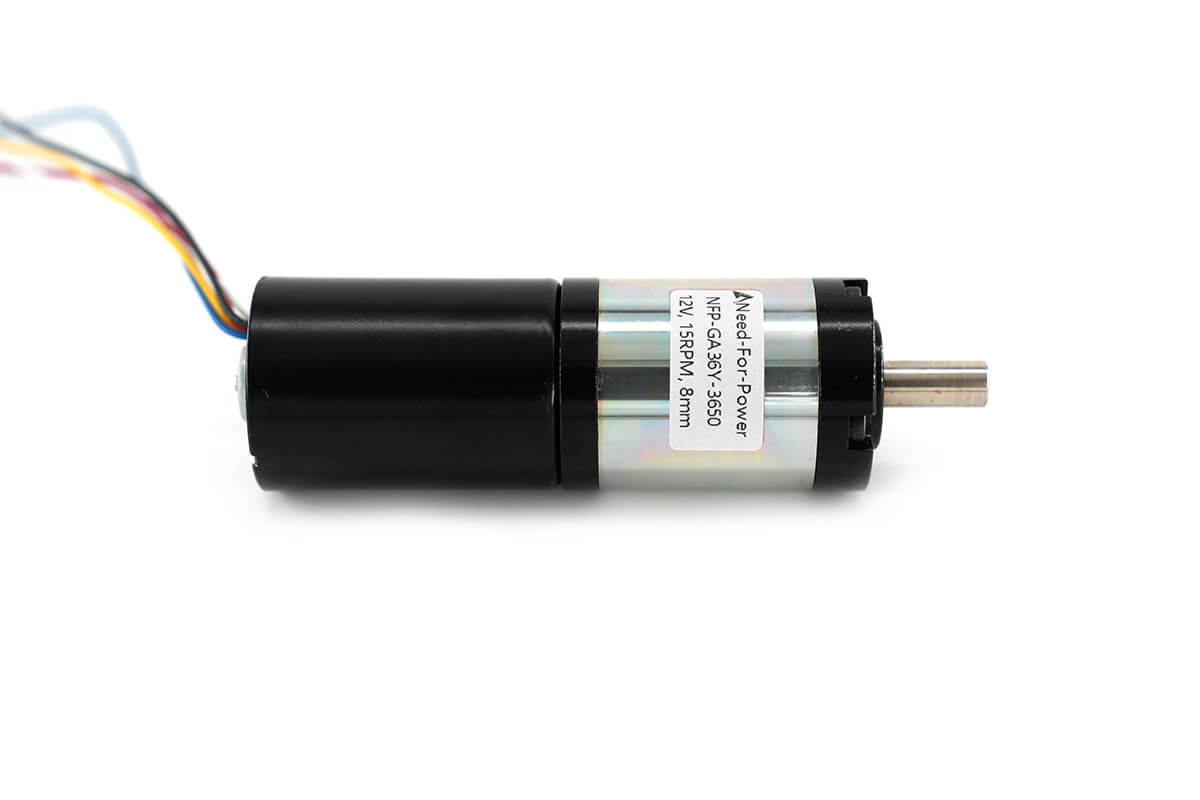

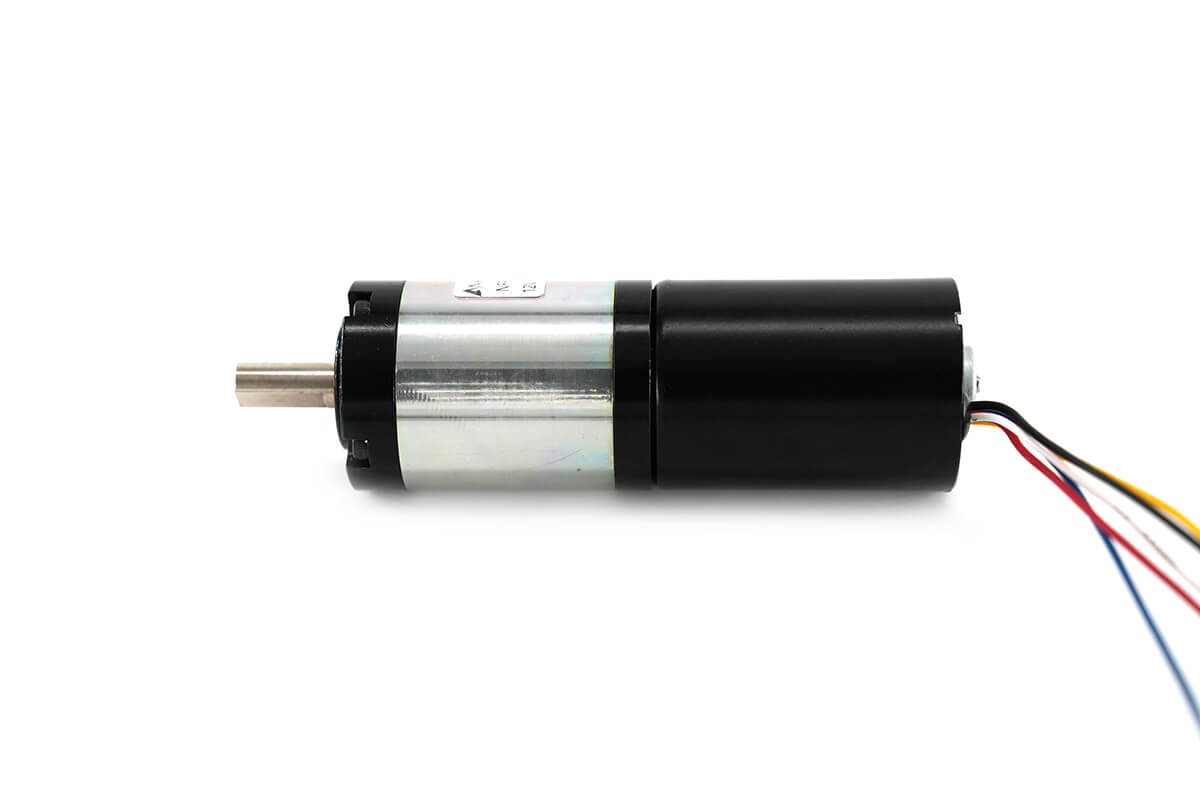

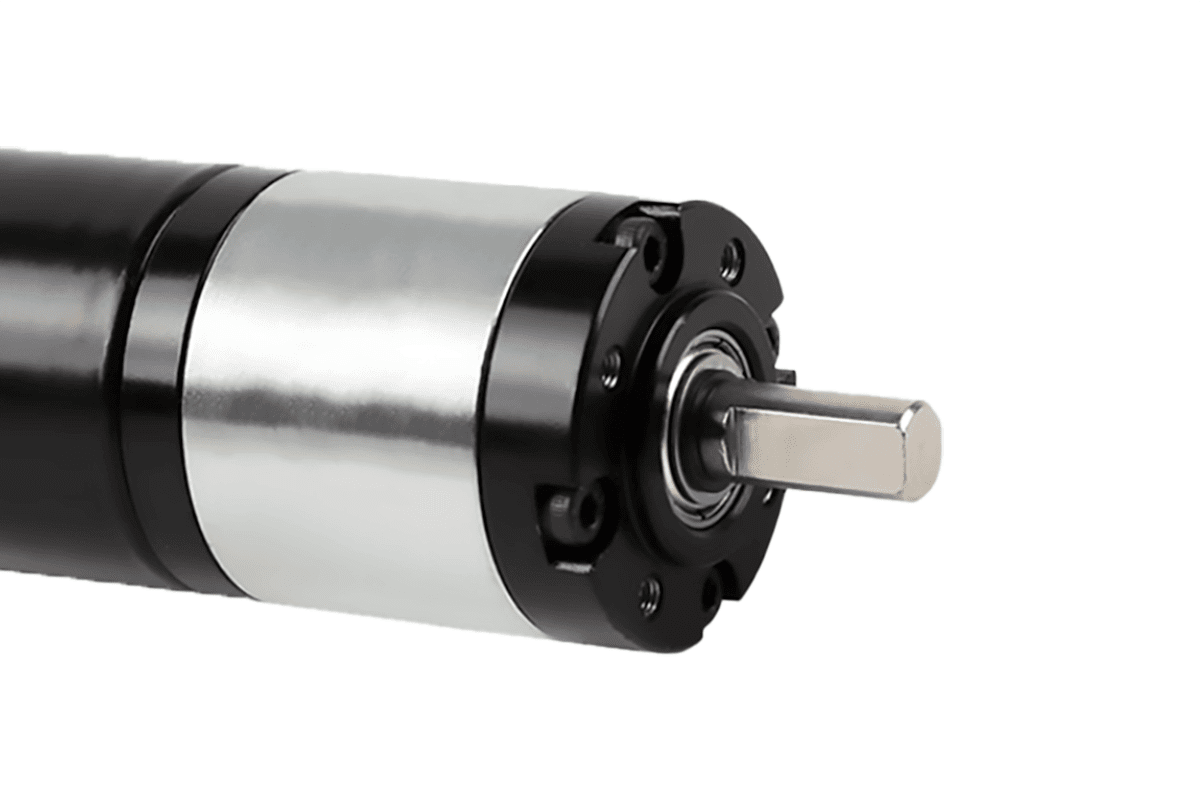

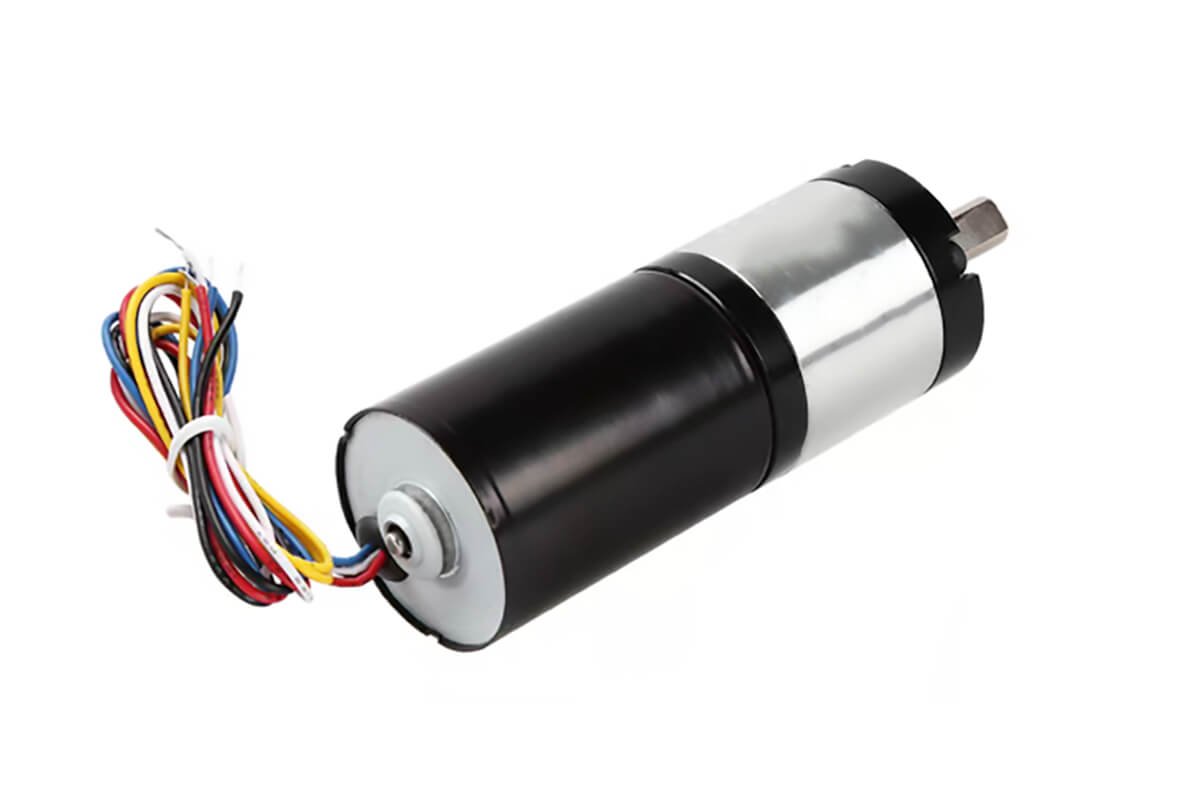

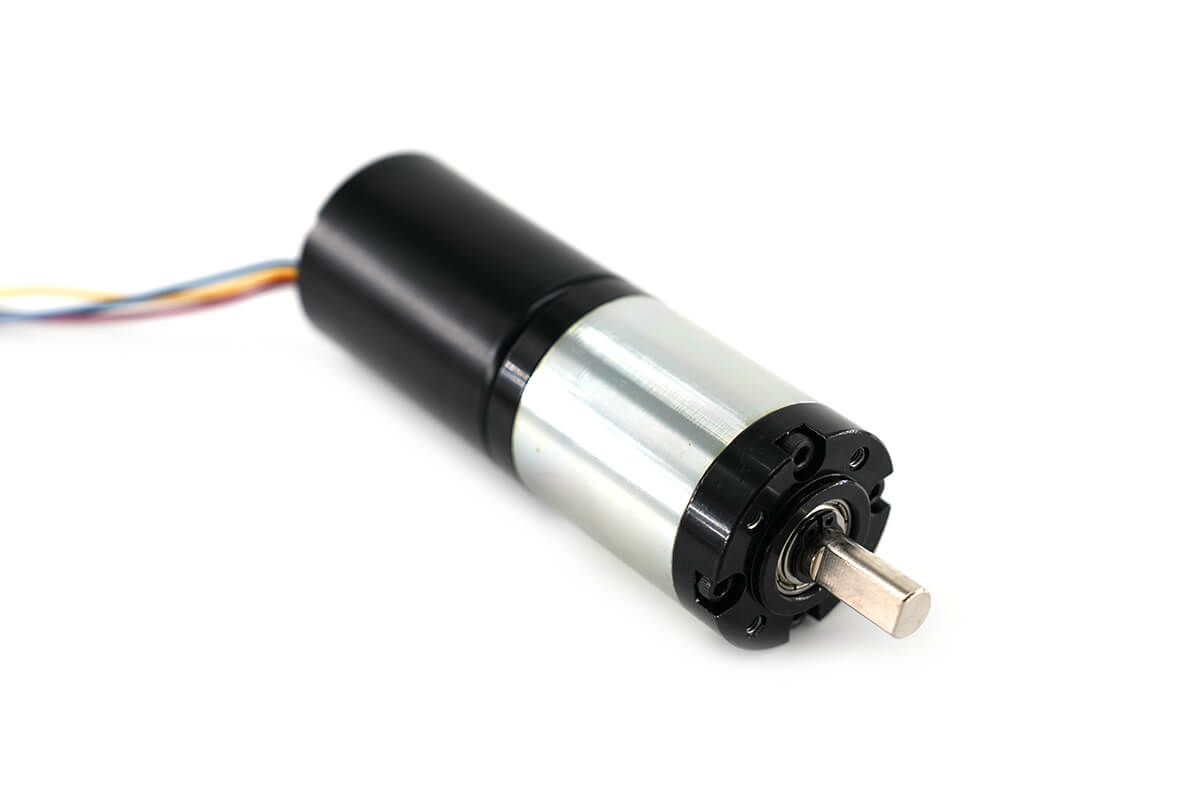

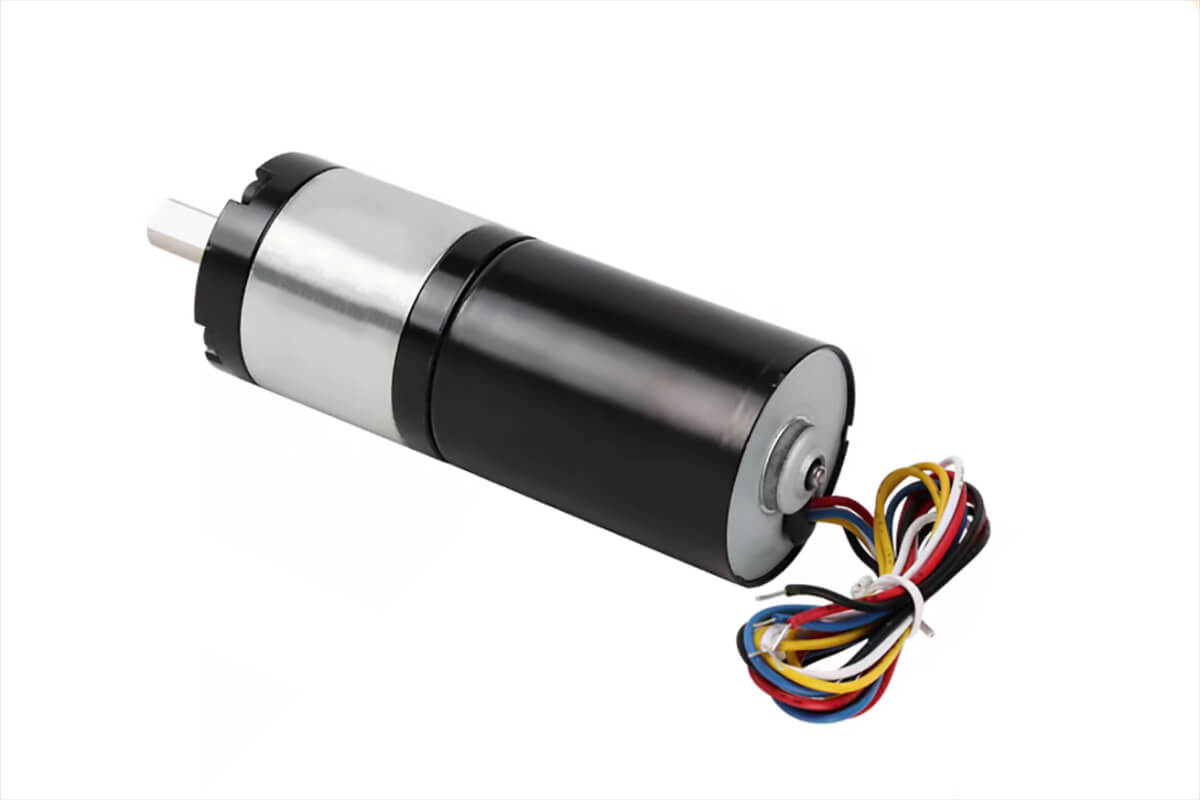

36mm Planetary Gear Motor Model NFP-36GP-BL3650

36mm Brushless Planetary Gear Motor Key Features

First, the NFP-36GP-BL3650 brushless planetary gear motor is made for long-life drive systems. Because it uses a 3650 BLDC motor, its service life can be about 5 to 10 times longer than a brushed motor.

In addition, the built-in Hall driver gives stable signal output. Also, the planetary gearbox helps the motor provide smooth speed reduction and strong torque in a compact body.

Main Product Benefits

• First, long service life: The brushless motor lasts longer than a brushed motor.
• In addition, Hall signal output: The motor gives 6 signals per motor rotation.
• Also, ball bearing support: The bearing structure helps reduce friction.
• Finally, stable motion: The motor supports CW and CCW rotation.

Next, the main data table gives a quick view of the shaft size, voltage, speed range, current, rotation, and weight. Therefore, users can check the basic motor fit before reviewing the detailed performance data.

Main Specifications

12V DC Motor Performance

First, the 12V DC version is useful for low-speed and high-torque drive work. Therefore, you can choose a higher ratio when the load needs more force.

Also, the 12V table helps users compare gearbox length, no-load speed, rated speed, torque, and reduction stages. As a result, it is easier to select the right ratio for the device.

12V Ratio and Torque Table

Note: In addition, all reduced no-load speeds have a tolerance of ±15%.

In short, the 12V version is a good option for compact devices that need stable torque and slower output speed.

24V DC Motor Performance

Furthermore, the 24V DC version gives a wider speed range. As a result, it is a good choice when the system uses 24V power.

Also, the 24V version can provide higher no-load speed at the same ratio. Therefore, it is useful when the device needs more speed before load.

24V Ratio and Torque Table

Note: Therefore, all reduced no-load speeds should allow a tolerance of ±15%.

Finally, the 24V version is useful for systems that need stable speed, smooth drive control, and strong torque in a small body.

12V Gear Motor BLDC Geared Motor Outline Drawing

Next, this outline drawing shows the motor body and gearbox size. Because the motor has a wide speed range, it can support many drive needs.

In addition, the brushless gear motor has low noise, large torque, and stable output. Finally, the motor can reverse direction and can also support brake function.

Miniature Brushless DC Motor Planetary Gearbox Connection Instruction

First, the motor can use a 3-wire mode or a 5-wire mode. If speed control is needed, choose the 5-wire version.

However, if speed control is not needed, the 3-wire version is easier to use. In addition, the wire list below helps users check each signal before wiring.

Wire Function List

• Red wire: Connect it to the positive pole of the power supply.
• Black wire: Connect it to the negative pole of the power supply.
• White wire: Use it for forward and reverse control.
• Blue wire: Connect it to the 0 – 5V PWM speed control signal.
• Yellow wire: Use it as the FG signal output wire.

In addition, the positive and negative poles must not be connected in reverse. For example, the white wire can change motor direction when it is connected with the black wire.

Also, the yellow FG wire outputs a square wave pulse. As a result, the motor speed can be checked by reading the pulse frequency.

Control Signal Specifications

Next, the following table shows PWM control, ground, direction control, FG signal output, and motor power input. Therefore, it is useful for driver wiring and speed feedback design.

Brushless Motor with DC Planetary Gearbox Mount Drawing

Finally, the mount drawing helps users check the motor size before product design. Therefore, it is useful for layout, shaft space, and mount planning.

Also, the motor can support many small drive systems. For example, it can work in robotics, electric windows, pan/tilt systems, CNC tools, and parking equipment.

Typical Applications

• For example, robotics: It can be used for drive and motion control.
• In addition, electric windows: It can support smooth movement.
• Also, pan/tilt systems: It can provide low-speed control.
• Moreover, CNC tools: It can support compact drive work.
• Finally, parking equipment: It can be used in stable motion systems.

In short, the NFP-36GP-BL3650 brushless planetary gear motor is suitable for compact products that need long life, high torque, low noise, and stable speed feedback.
