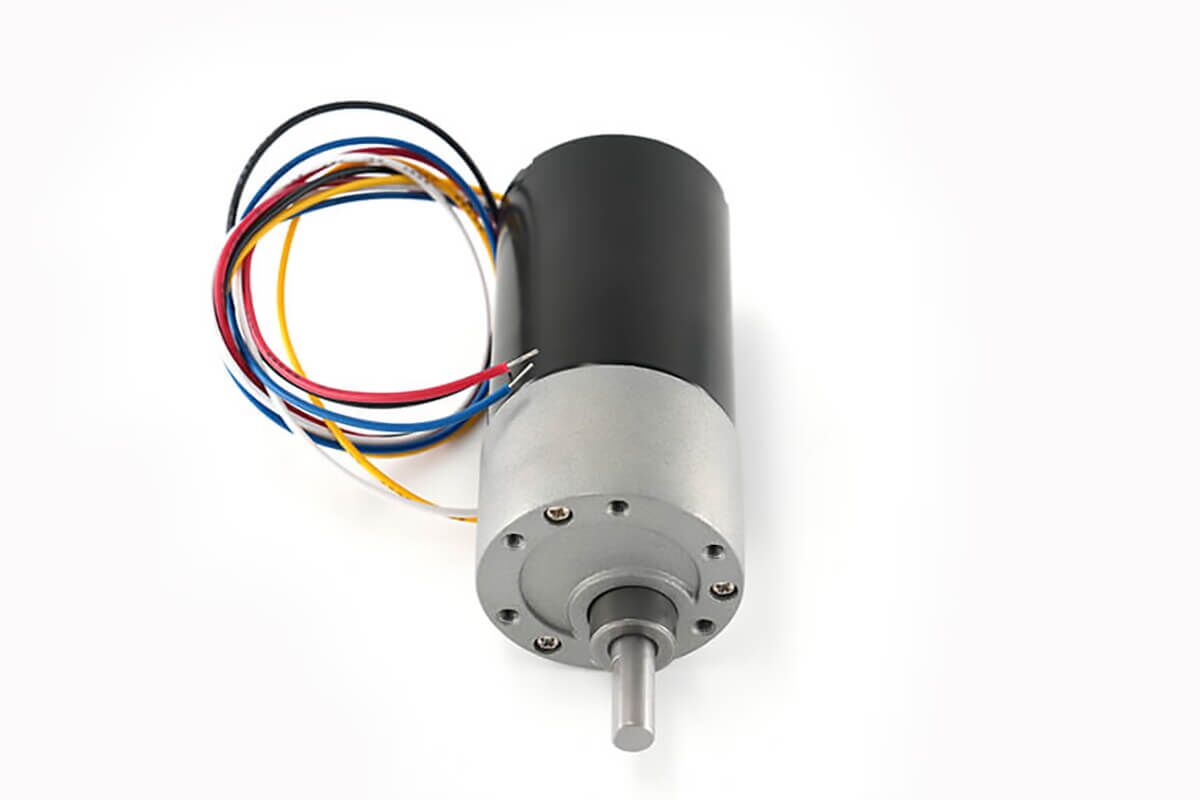

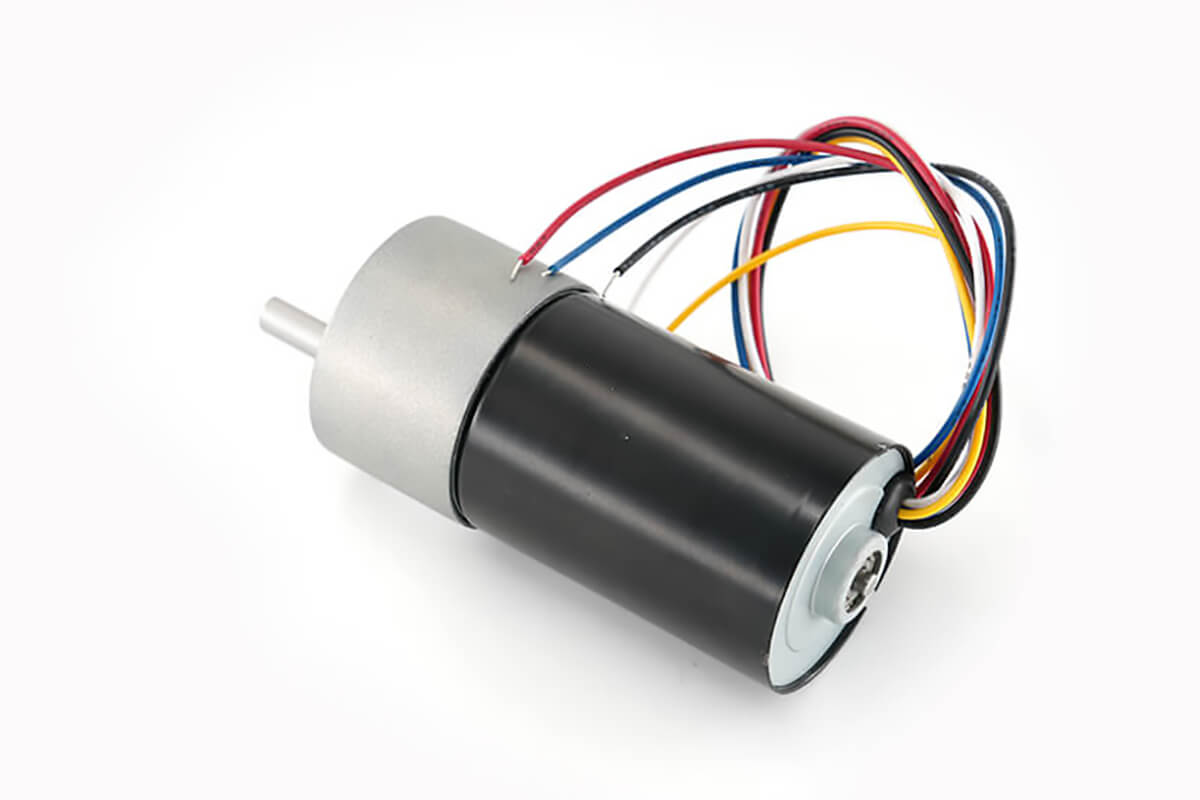

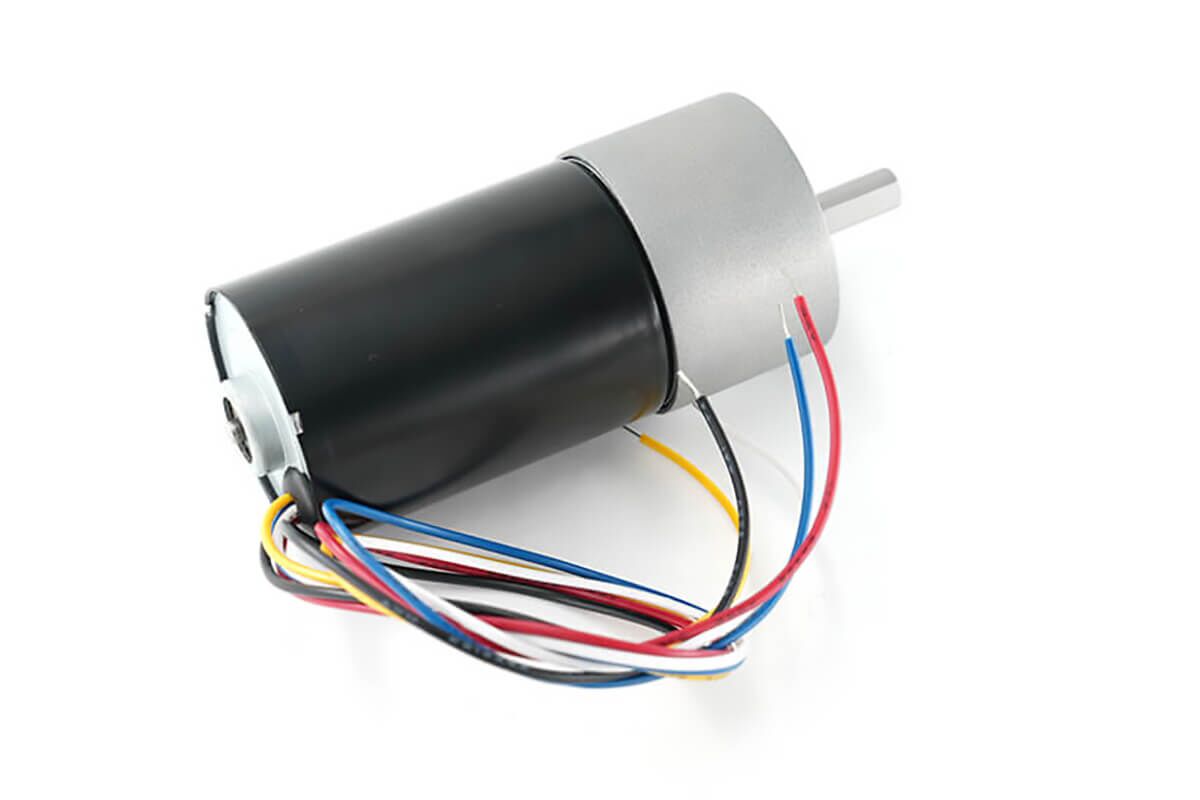

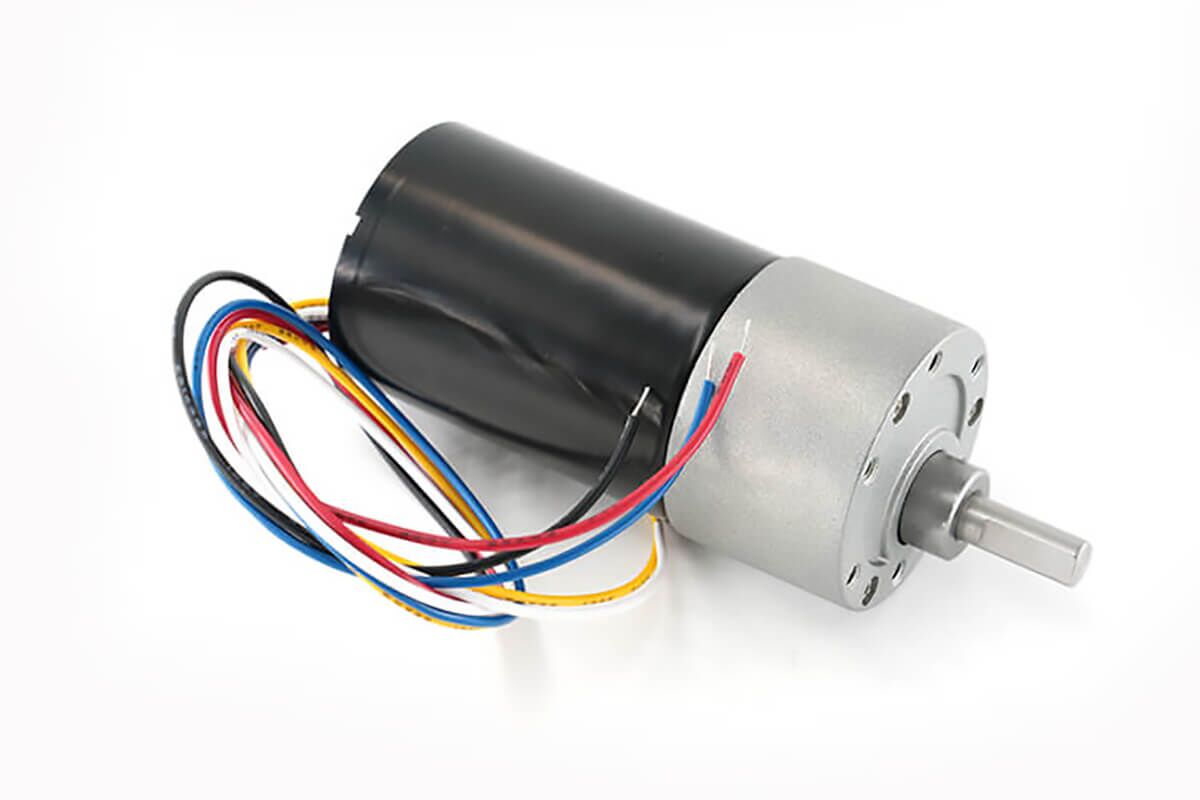

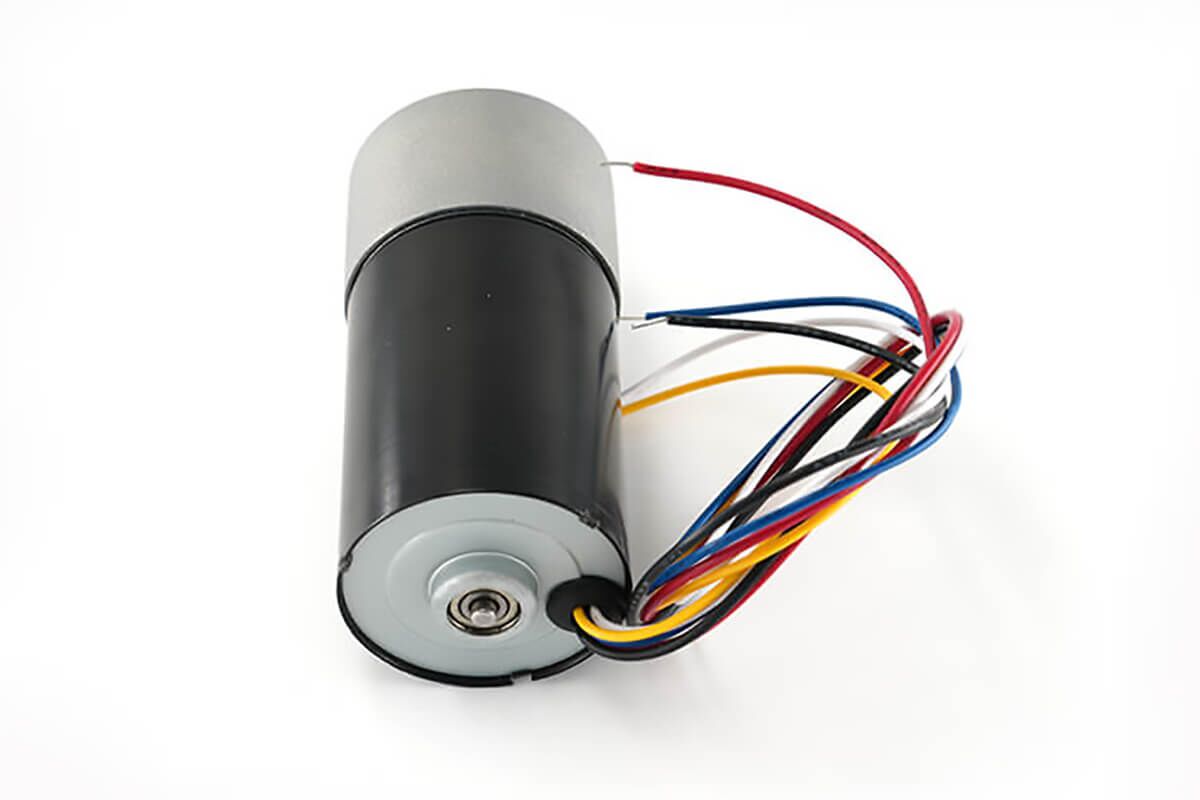

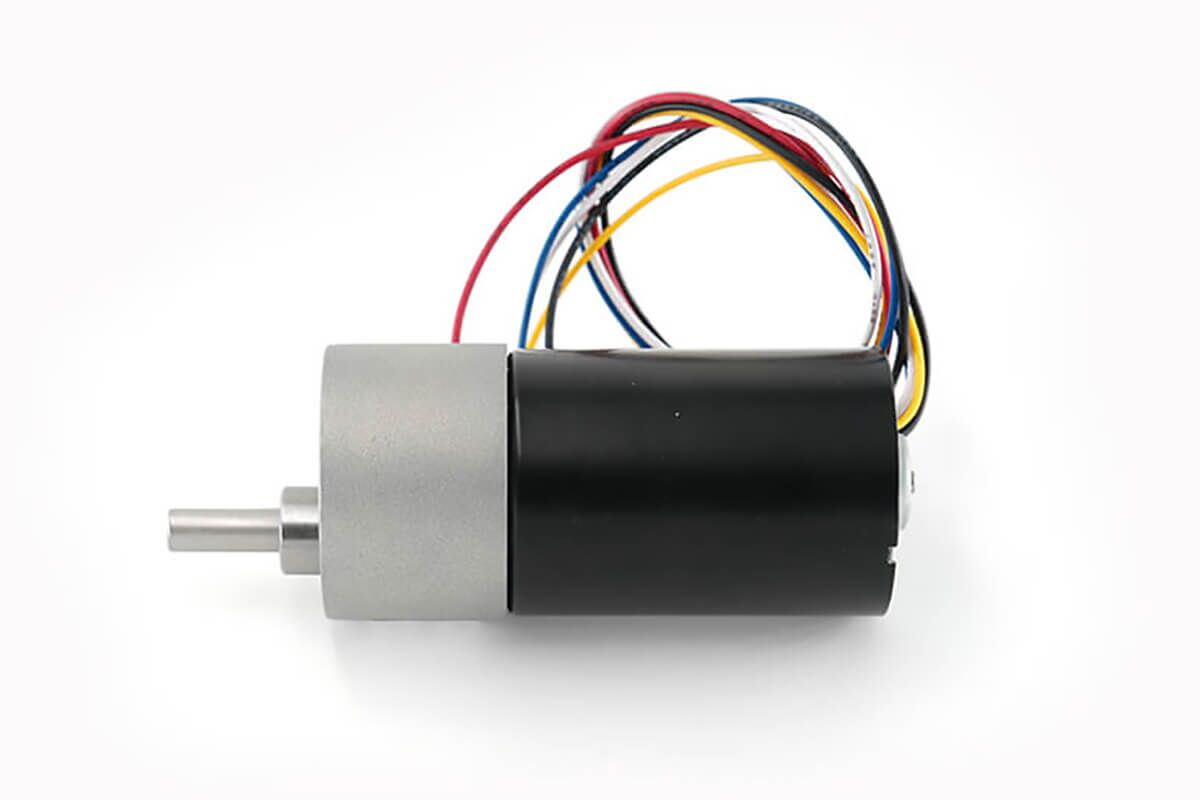

37mm Metal Gear Motor Model NFP-GM37-BL3650
$31.00
Experience the power of the 36mm brushless gear motor with full ball bearings for enhanced durability and precision. Elevate your projects today!
BLDC Brushless Motor with Gearbox Key Features
Product Overview
First, the NFP-GM37-BL3650 is a 37mm brushless DC gear motor with PWM speed control. Therefore, it is suitable for compact drive systems that need high torque, low noise, and long service life.
In addition, the motor uses full ball bearing support and full metal gears. As a result, it can run more smoothly and handle higher loads.
Moreover, the built-in driver makes wiring easier. Therefore, users can control speed, direction, and FG signal with a simple wire setup.
Main Features
- First, ball bearing support: Ball bearings help reduce friction. Therefore, the motor can run more smoothly.
- In addition, full metal gears: Metal gears help handle higher loads. As a result, the gearbox can support longer use.
- Also, PWM speed control: Users can adjust motor speed with a 0-5V PWM signal. Therefore, the motor fits many speed control needs.
- Next, forward and reverse control: The white wire controls direction. In addition, users can connect it to negative for reverse rotation.
- Finally, FG speed signal: The yellow wire outputs speed pulses. As a result, users can check motor speed through the FG signal.
Ball Bearing and Metal Gear Benefits
First, the ball bearing structure helps reduce friction and noise. Also, it helps improve service life during stable operation.
In addition, the metal gear set helps support higher load capacity. Therefore, the gearbox is useful for high-torque and low-speed drive tasks.
- First, ball bearing benefits: Better life, better accuracy, lower noise, and less service work.
- In addition, metal gear benefits: Higher load capacity, longer life, stronger gear body, and better heat stability.
Basic Motor Specifications
First, the table below shows the main motor data. Therefore, users can check size, shaft data, voltage, weight, and speed control method before testing.
| Item | Specification |
|---|---|
| Outer Diameter | Φ37mm |
| Length | Different parameters have different lengths |
| Shaft Length | 21mm |
| Shaft Diameter | 6mm D-shaped shaft |
| Voltage | 12-24V |
| Weight | Approx. 290g, different reduction ratios and parameters have different weights |
| Speed Control | Built-in sealed PWM stepless speed control potentiometer, duty cycle from 10% |
| External Speed Controller | Supports 0-50K speed controller |
| FG Speed Signal Output | Not included |
As a result, this BLDC gear motor is easy to match with compact 12V and 24V drive systems. Moreover, the 6mm D-shaped shaft helps connect gears, wheels, arms, and other drive parts.
NFP 37mm PWM Speed Control DC Gear Motor Wiring Method
Wire Function Guide
First, the table below shows the wire function for this brushless gear motor. Therefore, users should check every wire before connecting power.
In addition, correct wiring helps protect the built-in driver board. As a result, users should not reverse the positive and negative power wires.
| Wire | Function |
|---|---|
| Red Wire | Power positive; positive and negative poles must not be reversed |
| Black Wire 1 | Power negative; positive and negative poles must not be reversed |
| White Wire | Forward/reverse control wire; when disconnected, the motor rotates in one direction; connect together with the black wire to negative for reverse direction |
| Blue Wire | PWM speed control wire; connect to 0-5V PWM speed controller |
| Yellow Wire | Motor drive output DC5+ VCC |
| Black Wire 2 | PWM ground wire FG GND DC- |
Therefore, this wiring method supports power input, direction change, PWM speed control, and driver output. Also, it helps users build a simple control system with fewer external parts.
NFP 37mm PWM Speed Control DC Gear Motor Performance Curve
12V DC Performance Data
First, the table below shows the 12V DC version. Therefore, users can compare speed, current, torque, protection current, and gearbox length before choosing a ratio.
In addition, low ratios provide higher speed. However, high ratios provide stronger slow-speed output for higher load tasks.
Model: NFP-GM37-BL3650, 12V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Protection Current | Gearbox Length |
|---|---|---|---|---|---|---|---|
| 6.3:1 | 650rpm | ≤0.2A | 530rpm | ≤0.85A | 0.8kg.cm | 3A | 19mm |
| 10:1 | 415rpm | ≤0.2A | 335rpm | ≤0.85A | 1.2kg.cm | 3A | 19mm |
| 18.8:1 | 215rpm | ≤0.2A | 178rpm | ≤0.85A | 2.2kg.cm | 3A | 21.5mm |
| 30:1 | 135rpm | ≤0.2A | 112rpm | ≤0.85A | 3.5kg.cm | 3A | 21.5mm |
| 50:1 | 82rpm | ≤0.2A | 67.5rpm | ≤0.85A | 6kg.cm | 3A | 24mm |
| 90:1 | 45rpm | ≤0.2A | 37rpm | ≤0.85A | 11kg.cm | 3A | 24mm |
| 150:1 | 27rpm | ≤0.2A | 23rpm | ≤0.85A | 18kg.cm | 3A | 26.5mm |
| 270:1 | 15rpm | ≤0.2A | 13rpm | ≤0.85A | 32kg.cm | 3A | 26.5mm |
| 450:1 | 9rpm | ≤0.2A | 7.5rpm | ≤0.85A | ≤35kg.cm | 3A | 29mm |
| 650:1 | 6.3rpm | ≤0.2A | 5.5rpm | ≤0.85A | ≤35kg.cm | 3A | 29mm |
| 810:1 | 5.2rpm | ≤0.2A | 4.5rpm | ≤0.85A | ≤35kg.cm | 3A | 29mm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 12V version covers speeds from 5.2rpm to 650rpm. Moreover, the high-ratio options can provide up to ≤35kg.cm rated torque.
24V DC Performance Data
Next, the table below shows the 24V DC version. In addition, this version gives higher output speed than the 12V version.
Moreover, users can choose this option for 24V power systems. Therefore, it is useful for stronger drive needs and faster output.
Model: NFP-GM37-BL3650, 24V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Protection Current | Gearbox Length |
|---|---|---|---|---|---|---|---|
| 6.3:1 | 1,300rpm | ≤0.32A | 1,070rpm | ≤1.1A | 1.5kg.cm | 3A | 19mm |
| 10:1 | 830rpm | ≤0.32A | 670rpm | ≤1.1A | 2.5kg.cm | 3A | 19mm |
| 18.8:1 | 425rpm | ≤0.32A | 355rpm | ≤1.1A | 4.5kg.cm | 3A | 21.5mm |
| 30:1 | 270rpm | ≤0.32A | 225rpm | ≤1.1A | 7kg.cm | 3A | 21.5mm |
| 50:1 | 165rpm | ≤0.32A | 135rpm | ≤1.1A | 12kg.cm | 3A | 24mm |
| 90:1 | 90rpm | ≤0.32A | 75rpm | ≤1.1A | 22kg.cm | 3A | 24mm |
| 150:1 | 55rpm | ≤0.32A | 45rpm | ≤1.1A | ≤35kg.cm | 3A | 26.5mm |
| 270:1 | 30rpm | ≤0.32A | 27.5rpm | ≤0.6A | ≤35kg.cm | 3A | 26.5mm |
| 450:1 | 18rpm | ≤0.32A | 17rpm | ≤0.5A | ≤35kg.cm | 3A | 29mm |
| 650:1 | 12.5rpm | ≤0.32A | 12rpm | ≤0.4A | ≤35kg.cm | 3A | 29mm |
| 810:1 | 10.2rpm | ≤0.32A | 9.8rpm | ≤0.4A | ≤35kg.cm | 3A | 29mm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 24V version covers speeds from 10.2rpm to 1,300rpm. Also, the 150:1 to 810:1 ratios can provide up to ≤35kg.cm rated torque.
Miniature Geared Electric Motors Outline Drawing
First, the outline drawing helps users check motor size, gearbox length, shaft size, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, the brushless internal Hall driver board helps improve efficiency and service life. Therefore, the motor can run at higher speed without brush wear.
Brushless Driver Board Benefits
- First, high efficiency: The brushless design helps reduce power loss. As a result, it can improve motor output.
- In addition, long life: The motor has no carbon brush. Therefore, it can reduce wear during use.
- Also, low EMI: The driver board helps reduce electrical noise. In addition, this supports stable control.
- Finally, high speed: The motor can run at higher speed. Moreover, users do not need to worry about brush damage.
High Power Brushless Gear Motor Wiring Instruction
Wire Function Guide
First, the wiring guide below explains the wire function. Therefore, users should check each wire before power-on.
In addition, correct polarity can help protect the built-in driver board. As a result, users should never reverse the red and black power wires.
- First, red wire: Connect to the positive pole of the motor power supply. Therefore, do not reverse the polarity.
- In addition, black wire: Connect to the negative pole of the motor power supply. In addition, keep the polarity correct.
- Also, white wire: Use it as the direction control wire. When disconnected, the motor rotates in one direction.
- Next, white wire reverse mode: Connect it to the negative pole with the black wire for reverse rotation.
- Moreover, blue wire: Use it as the PWM speed control wire. Therefore, connect it to a 0-5V pulse width modulator.
- Finally, yellow wire: Use it as the FG signal wire. As a result, it outputs 6 square wave pulses for speed feedback.
PWM Speed Control Mode
First, the blue wire works as the analog or PWM speed control input. However, speed control works only when the PWM frequency stays within 15 – 35kHz.
Therefore, if the frequency does not match this range, the motor may not regulate speed correctly. In addition, users should check the wiring or use a PWM signal with the correct frequency range.
- First, PWM frequency range: 15 – 35kHz.
- In addition, 0 – 1V input: About 0% – 20% speed.
- Finally, 3.3 – 5V input: About 75% – 100% speed.
Motor Terminations
First, the table below shows the motor termination data. In addition, it helps users confirm voltage, FG signal, speed input, and direction control.
Therefore, users can use this data to check GND, Vcc, FG, speed input, and CW/CCW logic before testing the motor.
| Terminations | Item | I/O | Conditions | Remark |
|---|---|---|---|---|
| GND | Ground | IN | Ground | (black wire) Ground |
| Vcc | Power Supply | IN | DC 12V ±10% | (red wire) Power supply |
| FG | VOH | OUT | Min4V at 5V10KΩ pullup | (yellow wire) Open collector output for speed feedback through FG signal |
| FG | VOL | OUT | Min0V Max0.6V | (yellow wire) Open collector output for speed feedback through FG signal |
| FG | FG Current | OUT | Max 5mA | (yellow wire) Open collector output for speed feedback through FG signal |
| FG | FG Pulse Quantity | OUT | 6 pulse /round | (yellow wire) Open collector output for speed feedback through FG signal |
| SPEED | Input Voltage | IN | 0～5V | (blue wire) |
| SPEED | Speed Regulation | IN | 1.2-3.3V analog voltage | Motor speed is proportional to input analog voltage |
| CW/CCW | Input Voltage | IN | 0～5V | (white wire) |
| CW/CCW | VIH | IN | Min 2V | CCW |
| CW/CCW | VIL | IN | Max 0.2V | CW |
Typical Applications
Finally, this BLDC brushless motor with gearbox is useful for products that need low noise, high torque, speed control, and long life. For example, it can work in robots, smart machines, electric doors, electric windows, and compact automation systems.
- Robots
- Smart machines
- Electric doors
- Electric windows
- Compact automation systems
- Smart home devices
- High-torque low-speed drive units
In short, the NFP-GM37-BL3650 brushless DC gear motor is a good fit for products that need 12V or 24V DC power, PWM speed control, full ball bearing support, full metal gears, high torque, and stable low-speed output.
