36mm Planetary Gear Motor Model NFP-GA36Y-3525

Micro DC Brushless Planetary Gear Motors Datasheet

The NFP-GA36Y-3525-CE is a micro DC brushless planetary gear motor with 12V DC and 24V DC options. It supports CW and CCW rotation, a wide speed range, and high torque output for compact drive systems.

First, this brushless planetary gear motor is suitable for applications that need stable speed, long service life, and reliable torque. In addition, the 6mm or 8mm output shaft options make it easier to match different mechanical structures.

Main Specifications

Product Highlights

• Brushless motor structure: Supports stable output, lower wear, and longer service life.
• Planetary gearbox: Provides compact size, high torque, and smooth transmission.
• Wide ratio range: Offers no-load speed options from 8rpm to 1,621rpm.
• High torque output: Maximum torque reaches 30Kg.cm for compact power transmission.
• Flexible shaft options: Available with 6mm or 8mm output shaft diameter.

Model: NFP-GA36Y-3525-1260, 12V DC, 6,000RPM

The 12V DC version uses a high-precision rotor and pure copper coil. Therefore, it provides stable output, high conductivity, and long wear life for different gear DC motor and controller solutions.

Note: All reduced no-load speeds have a tolerance of ±15%.

Model: NFP-GA36Y-3525-2460, 24V DC, 6,000RPM

The 24V DC version is designed for low speed and high torque output. Also, it offers high conductivity, stable speed, wear resistance, effective dust isolation, and long service life.

In addition, this geared DC motor can work in high temperature environments. As a result, it is suitable for applications that require durable performance and stable torque transmission.

Note: All reduced no-load speeds have a tolerance of ±15%.

Mini Brushless DC Worm Gearmotor Outline Drawing

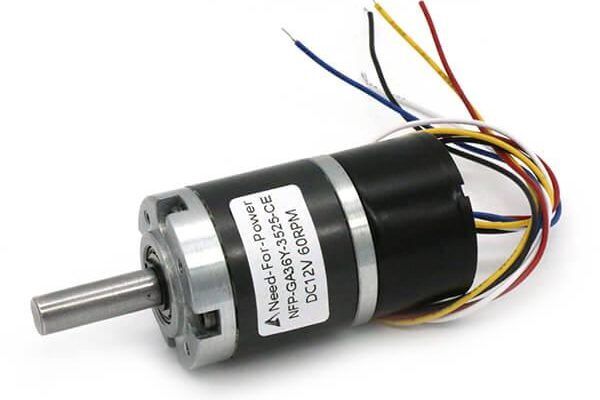

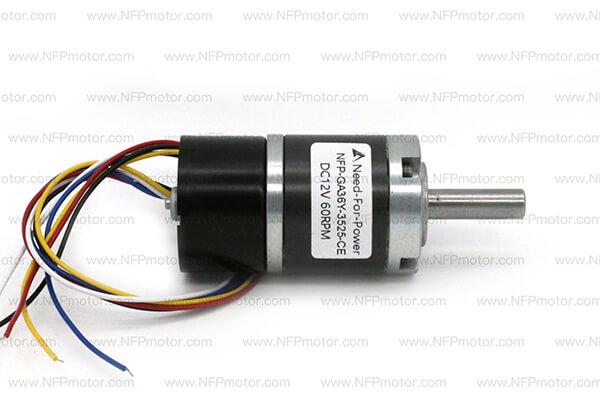

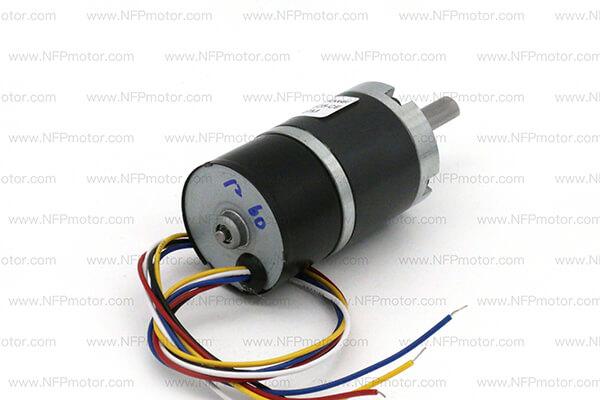

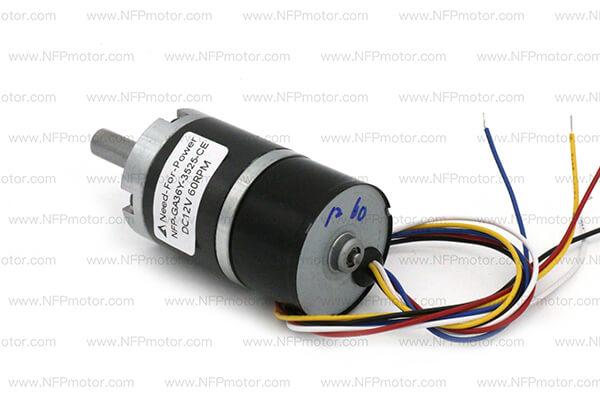

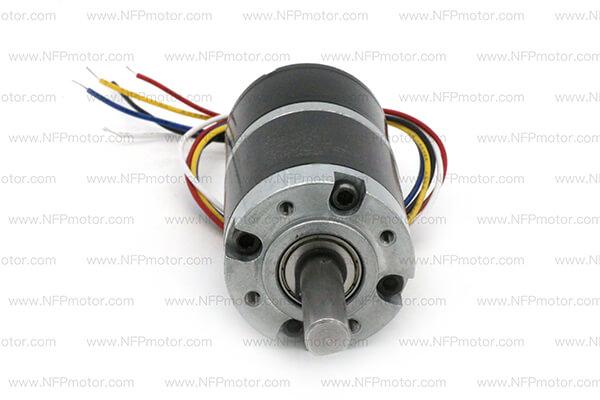

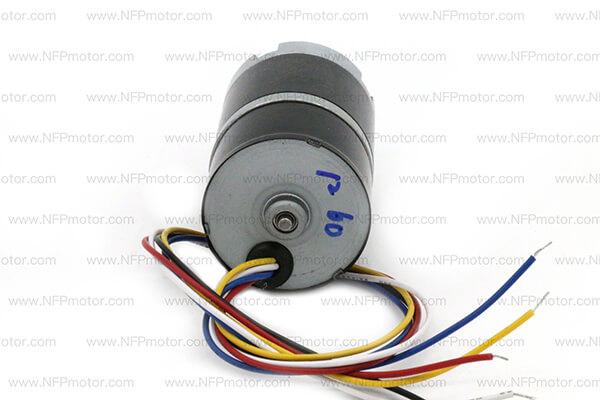

The following images show the structure and appearance of the NFP-GA36Y-3525 brushless planetary gear motor. Therefore, they can help engineers review the motor body, gearbox structure, and installation details.

DC Brushless Gear Motors Wiring Tips

Before wiring the motor, please confirm each wire function carefully. In particular, the red and black wires must connect to the correct power polarity to avoid damage.

Wire Function Description

• Red Wire: Motor / power supply positive pole (+), DC12V-24V. It cannot be connected wrongly.
• Black Wire: Motor / power supply negative pole (-), DC12V-24V. It cannot be connected wrongly.
• Yellow Wire: FG signal output for external equipment to detect motor rotation. With the 3-pole magnetic ring, it outputs nine square wave pulses when the motor turns one circle.
• White Wire: Forward / reverse rotation control. The rotation direction is CCW when the port is not connected, and it is CW when the port is connected to low level ≤0.6V.
• Blue Wire: Speed regulation control by analog voltage input from 0-5V. The speed is proportional to the voltage.

Next, the wiring diagrams below provide more connection details. Also, they help users understand the relationship between power input, FG signal output, rotation control, and speed regulation.

Important Wiring Note

Note: The motor’s white, blue, and yellow wires can be connected to a 3.3V-5V power supply. However, they cannot be connected to a 12-24V power supply. Otherwise, the motor will be burned.

Typical Applications

• Automation equipment
• Smart home devices
• Robotics and mobile platforms
• Electric valve control systems
• Industrial drive mechanisms
• Custom brushless DC gearmotor projects
