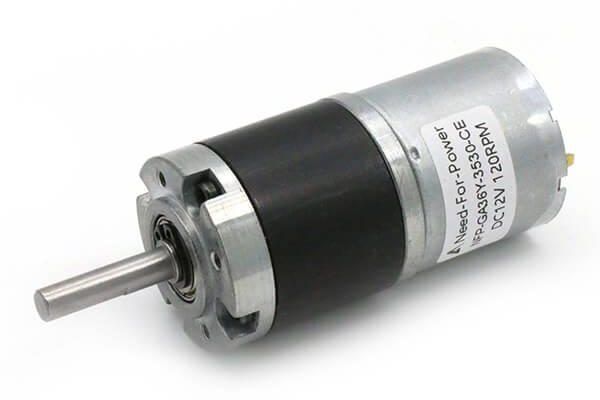

36mm Planetary Gear Motor Model NFP-GA36Y-3530
$19.00
Experience efficiency like never before with our 36mm planetary gear motor. Perfect for precise operations, it is ready to go for your needs!
DC Brushed Motor NFP-GA36Y-3530-CE Data Sheet
The NFP-GA36Y-3530-CE is a compact DC brushed planetary gear motor with 12V DC and 24V DC options. It supports CW and CCW rotation, multiple reduction ratios, and high torque output for compact drive applications.
First, this motor offers a wide no-load speed range from 8rpm to 1,621rpm. In addition, the 6mm and 8mm output shaft options make it easier to match different mechanical structures.
Main Specifications
| Model | NFP-GA36Y-3530-CE |
|---|---|
| Rotation | CW & CCW |
| Voltage | 12V DC / 24V DC |
| No-load Speed | 8rpm – 1,621rpm |
| Output Power | 7.5W – 9W |
| Max Torque | 50Kg.cm |
| No-load Current | 0.09A – 0.17A |
| Stall Torque | 189Kg.cm (Max) |
| Output Shaft Diameter | 6mm / 8mm |
| Weight | 254g – 359g |
Product Highlights
- Compact planetary gearbox: Suitable for small equipment with limited installation space.
- High torque output: Maximum torque reaches 50Kg.cm for demanding drive systems.
- Wide voltage options: Available in 12V DC and 24V DC versions.
- Flexible shaft options: Supports 6mm and 8mm output shaft diameters.
- Bidirectional rotation: Supports CW and CCW rotation for flexible motor control.
Model: NFP-GA36Y-3530-1260, 12V DC, 6,000rpm
The 12V DC version uses a high-precision rotor and pure copper coil. Therefore, it provides stable output, compact size, long life time, and cost-effective performance for different gear DC motor applications.
Also, this model offers high temperature resistance, stable speed, effective dust isolation, and wear resistance. As a result, it can support reliable operation in demanding compact drive systems.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 3.7:1 | 1621rpm | 0.17A | 1324rpm | 0.6A | 0.36kg.cm | 0.9kg.cm | 2A |
| 5.18:1 | 1158rpm | 0.17A | 945rpm | 0.6A | 0.51kg.cm | 1.2kg.cm | 2A |
| 19:1 | 315rpm | 0.17A | 257rpm | 0.6A | 1.69kg.cm | 4.6kg.cm | 2A |
| 27:1 | 222rpm | 0.17A | 181rpm | 0.6A | 2.4kg.cm | 6.6kg.cm | 2A |
| 50:1 | 120rpm | 0.17A | 98rpm | 0.6A | 4kg.cm | 12kg.cm | 2A |
| 71:1 | 84rpm | 0.17A | 69rpm | 0.6A | 5.7kg.cm | 17.5kg.cm | 2A |
| 100:1 | 60rpm | 0.17A | 49rpm | 0.6A | 8kg.cm | 24kg.cm | 2A |
| 139:1 | 43rpm | 0.17A | 35rpm | 0.6A | 11kg.cm | 34kg.cm | 2A |
| 189:1 | 31rpm | 0.17A | 25rpm | 0.6A | 13.5kg.cm | 46kg.cm | 2A |
| 262:1 | 22rpm | 0.17A | 18rpm | 0.6A | 18.7kg.cm | 64kg.cm | 2A |
| 369:1 | 16rpm | 0.17A | 13rpm | 0.6A | 26kg.cm | 90kg.cm | 2A |
| 427:1 | 14rpm | 0.17A | 11rpm | 0.6A | 30kg.cm | 105kg.cm | 2A |
| 516:1 | 11rpm | 0.17A | 9rpm | 0.6A | 36kg.cm | 127kg.cm | 2A |
| 596:1 | 10rpm | 0.17A | 8rpm | 0.6A | 42kg.cm | 146kg.cm | 2A |
| 721:1 | 8rpm | 0.17A | 6rpm | 0.6A | 50kg.cm | 177kg.cm | 2A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Model: NFP-GA36Y-3530-2460, 24V DC, 6,000rpm
The 24V DC version is designed as an OEM gearbox for DC motor applications. In addition, it uses high-quality materials, a one-time forming rotor, and a stable gear transmission structure.
Moreover, this model offers high conductivity, low noise, high efficiency, wear resistance, and long service life. Therefore, it is suitable for OEM projects that require stable speed and durable torque output.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 3.7:1 | 1621rpm | 0.09A | 1324rpm | 0.4A | 0.38kg.cm | 0.9kg.cm | 1A |
| 5.18:1 | 1158rpm | 0.09A | 945rpm | 0.4A | 0.53kg.cm | 1.3kg.cm | 1A |
| 19:1 | 315rpm | 0.09A | 257rpm | 0.4A | 1.76kg.cm | 5kg.cm | 1A |
| 27:1 | 222rpm | 0.09A | 181rpm | 0.4A | 2.5kg.cm | 7kg.cm | 1A |
| 50:1 | 120rpm | 0.09A | 98rpm | 0.4A | 4.1kg.cm | 13kg.cm | 1A |
| 71:1 | 84rpm | 0.09A | 69rpm | 0.4A | 5.9kg.cm | 18kg.cm | 1A |
| 100:1 | 60rpm | 0.09A | 49rpm | 0.4A | 8.3kg.cm | 26kg.cm | 1A |
| 139:1 | 43rpm | 0.09A | 35rpm | 0.4A | 11.6kg.cm | 36kg.cm | 1A |
| 189:1 | 31rpm | 0.09A | 25rpm | 0.4A | 14kg.cm | 49kg.cm | 1A |
| 262:1 | 22rpm | 0.09A | 18rpm | 0.4A | 19kg.cm | 69kg.cm | 1A |
| 369:1 | 16rpm | 0.09A | 13rpm | 0.4A | 27kg.cm | 97kg.cm | 1A |
| 427:1 | 14rpm | 0.09A | 11rpm | 0.4A | 31kg.cm | 112kg.cm | 1A |
| 516:1 | 11rpm | 0.09A | 9rpm | 0.4A | 38kg.cm | 135kg.cm | 1A |
| 596:1 | 10rpm | 0.09A | 8rpm | 0.4A | 44kg.cm | 157kg.cm | 1A |
| 721:1 | 8rpm | 0.09A | 6rpm | 0.4A | 50kg.cm | 189kg.cm | 1A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Small DC Gear Motor Outline Drawing

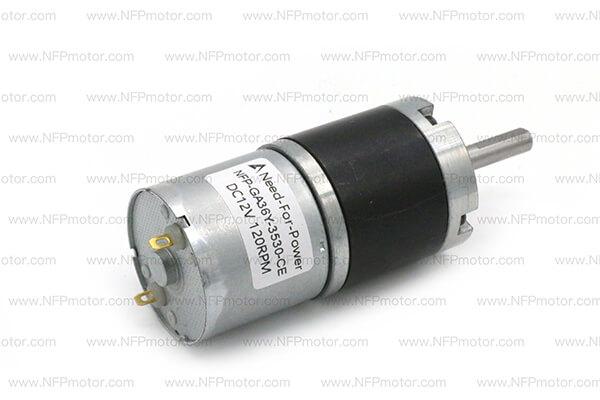

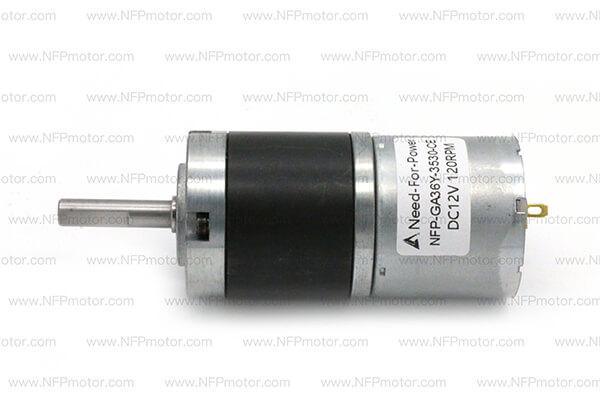

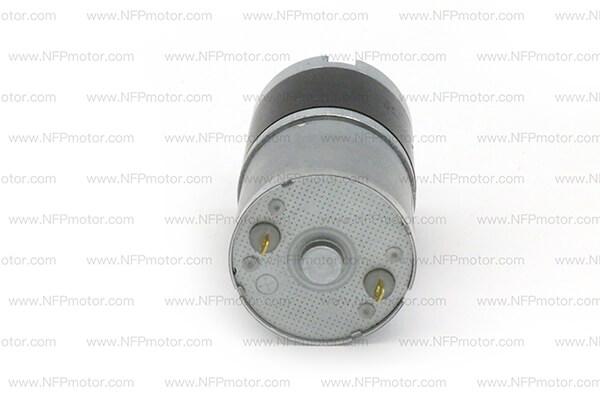

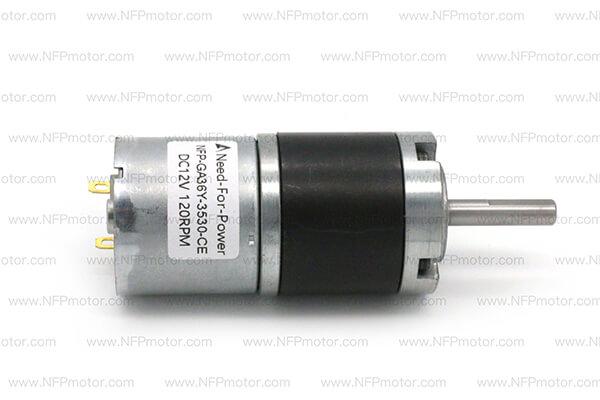

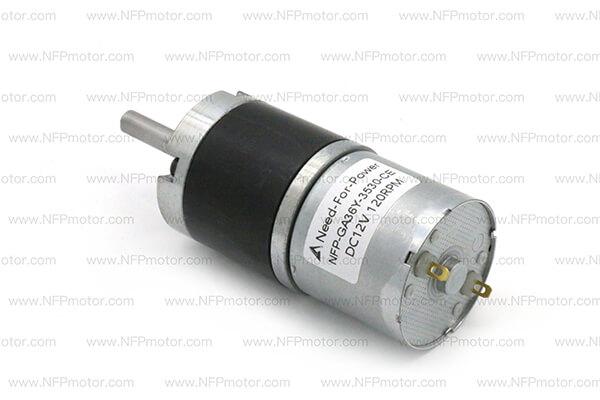

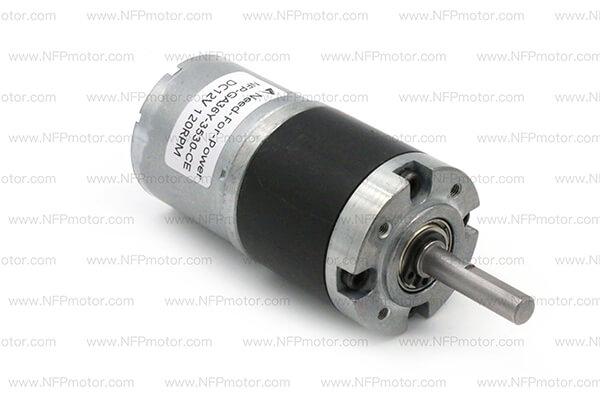

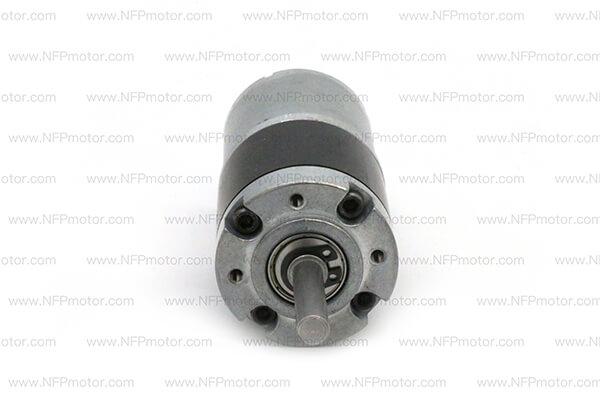

The following images show the NFP-GA36Y-3530-CE DC gear motor structure and outline dimensions. As a result, engineers can review the motor body, gearbox, and output shaft options before installation.
Typical Applications
- Automation equipment
- Smart home devices
- Robotics and mobile platforms
- Electric valve control systems
- Industrial drive mechanisms
- OEM planetary DC gear motor projects
Keywords: planetary dc gear motor, 35mm planetary gearmotor, dc gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
