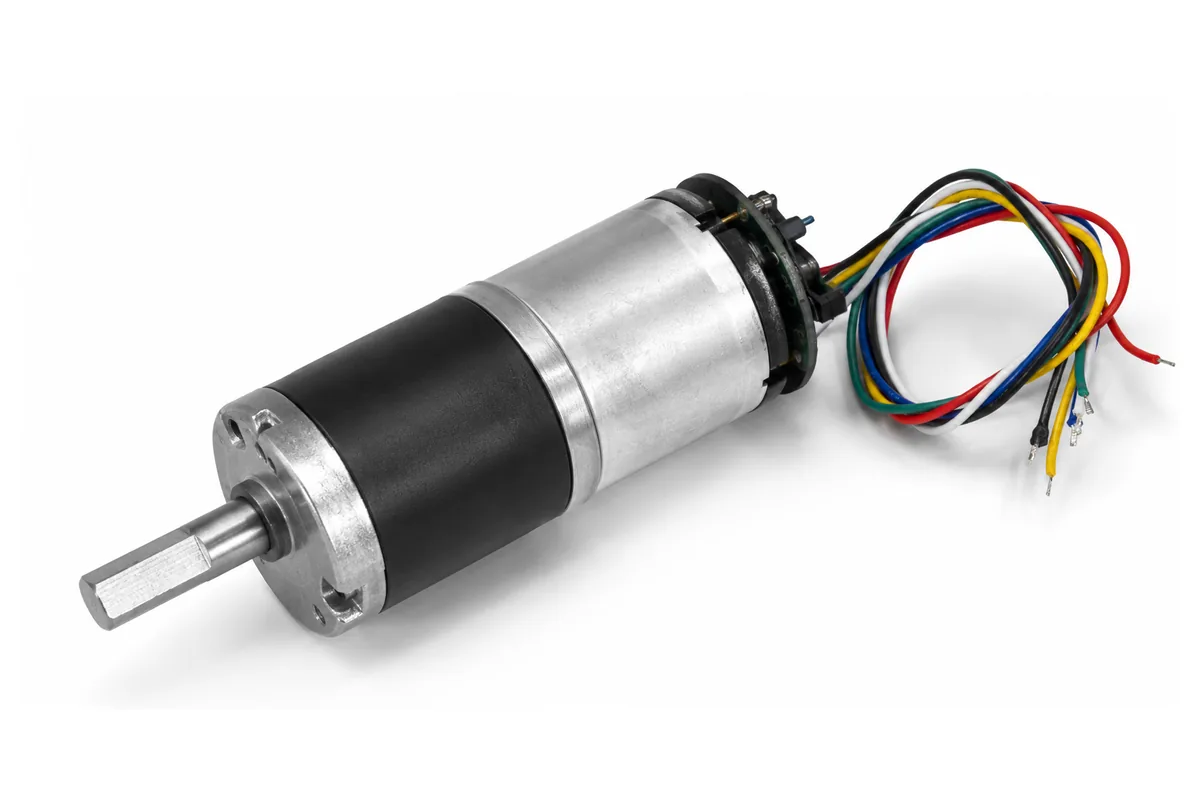

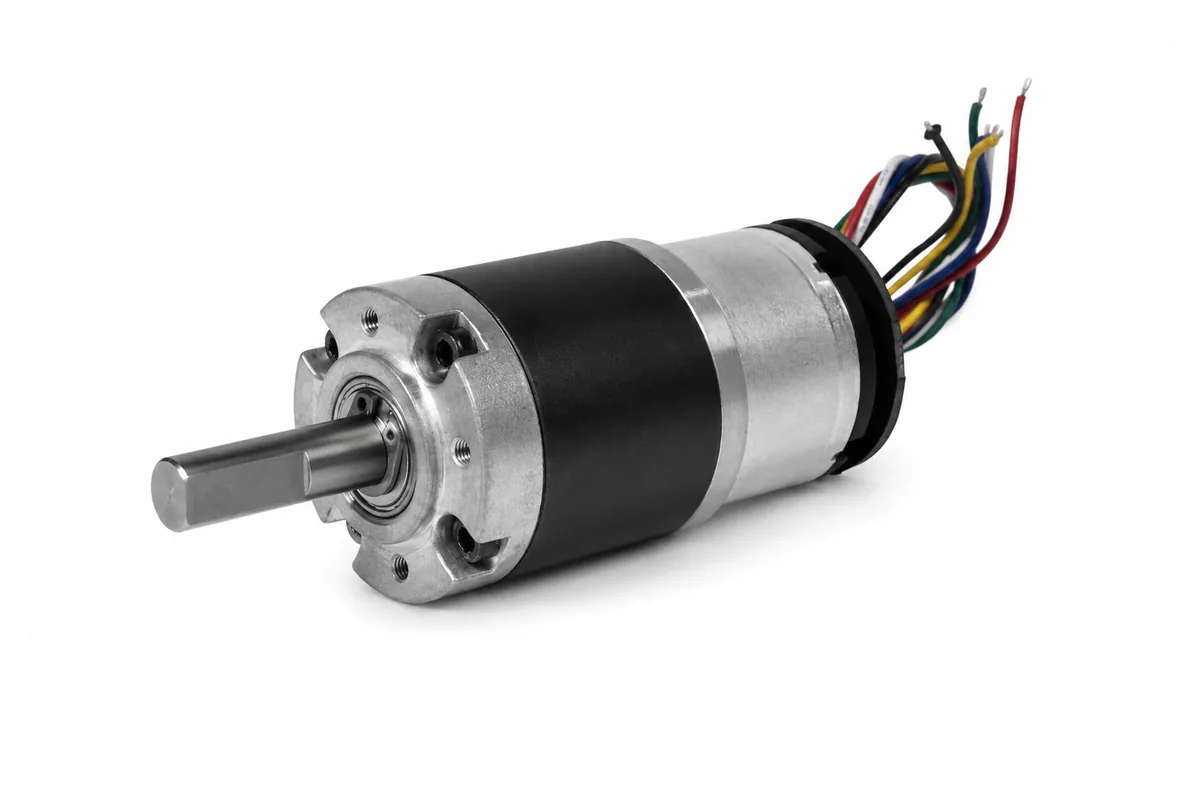

36mm Planetary Gear Motor Model NFP-GA36Y-520-EN
$20.50
Experience unparalleled efficiency with our 36mm Planetary Gear Motor with encoder. Perfect for various applications—get started now!
Mini DC Gear Motor NFP-GA36Y-520-EN Performance
The NFP-GA36Y-520-EN is a mini DC gear motor with 12V DC and 24V DC options. It supports CW and CCW rotation, multiple reduction ratios, and compact gearbox output for small drive systems.
First, this DC gearmotor offers a wide no-load speed range from 1.6RPM to 2,702RPM. In addition, the 6mm and 8mm output shaft options with 25mm shaft length make it easier to match different installation structures.
Main Specifications
| Model | NFP-GA36Y-520-EN |
|---|---|
| Rotation | CW & CCW |
| Voltage | 12V DC / 24V DC |
| No-load Speed | 1.6RPM – 2,702RPM |
| Out Power | 3.6W / 8.4W |
| Max Torque | 0.1kg.cm – 45kg.cm |
| Output Shaft Diameter | 6mm / 8mm L 25mm |
| No-load Current | 0.06A – 0.15A |
| Weight | 215g – 326g |
Product Highlights
- Compact gearbox design: Suitable for small equipment and limited installation space.
- Wide speed range: Supports low-speed and high-speed output from 1.6RPM to 2,702RPM.
- Multiple voltage options: Available in 12V DC and 24V DC versions.
- Flexible shaft options: Supports 6mm and 8mm output shaft diameters with 25mm shaft length.
- Bidirectional rotation: Supports CW and CCW rotation for flexible motor control.
Performance Specifications (12V DC, NFP-GA36Y-520-1260-EN)
First, the NFP-GA36Y-520-1260-EN version provides 12V operation with 1.9W rated power. Therefore, it is suitable for compact applications that need stable speed reduction and controlled current.
| Ratio | Voltage | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Rated Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| 3.7:1 | 12V | 1621rpm | 0.11A | 1324rpm | 0.6A | 0.1kg.cm | 1.9W | 0.42kg.cm | 1.3A |
| 5.18:1 | 12V | 1158rpm | 0.11A | 945rpm | 0.6A | 0.2kg.cm | 1.9W | 0.59kg.cm | 1.3A |
| 19:1 | 12V | 315rpm | 0.11A | 257rpm | 0.6A | 0.7kg.cm | 1.9W | 2.1kg.cm | 1.3A |
| 27:1 | 12V | 222rpm | 0.11A | 181rpm | 0.6A | 1kg.cm | 1.9W | 3kg.cm | 1.3A |
| 50:1 | 12V | 120rpm | 0.11A | 98rpm | 0.6A | 1.8kg.cm | 1.9W | 5.7kg.cm | 1.3A |
| 71:1 | 12V | 84rpm | 0.11A | 69rpm | 0.6A | 2.5kg.cm | 1.9W | 8.1kg.cm | 1.3A |
| 100:1 | 12V | 60rpm | 0.11A | 49rpm | 0.6A | 3.6kg.cm | 1.9W | 11.4kg.cm | 1.3A |
| 139:1 | 12V | 43rpm | 0.11A | 35rpm | 0.6A | 5kg.cm | 1.9W | 15.9kg.cm | 1.3A |
| 189:1 | 12V | 31rpm | 0.11A | 25rpm | 0.6A | 6.6kg.cm | 1.9W | 21.6kg.cm | 1.3A |
| 262:1 | 12V | 22rpm | 0.11A | 18rpm | 0.6A | 9kg.cm | 1.9W | 30kg.cm | 1.3A |
| 369:1 | 12V | 16rpm | 0.11A | 13rpm | 0.6A | 12.9kg.cm | 1.9W | 42kg.cm | 1.3A |
| 427:1 | 12V | 14rpm | 0.11A | 11rpm | 0.6A | 14.9kg.cm | 1.9W | 48.9kg.cm | 1.3A |
| 516:1 | 12V | 11rpm | 0.11A | 9rpm | 0.6A | 18kg.cm | 1.9W | 59.2kg.cm | 1.3A |
| 596:1 | 12V | 10rpm | 0.11A | 8rpm | 0.6A | 20kg.cm | 1.9W | 68.3kg.cm | 1.3A |
| 721:1 | 12V | 8rpm | 0.11A | 6.7rpm | 0.6A | 25kg.cm | 1.9W | 82kg.cm | 1.3A |
| 806:1 | 12V | 7.4rpm | 0.11A | 6rpm | 0.6A | 25kg.cm | 1.9W | 95kg.cm | 1.3A |
| 969:1 | 12V | 6.1rpm | 0.11A | 5rpm | 0.6A | 28kg.cm | 1.9W | 115kg.cm | 1.3A |
| 1574:1 | 12V | 3.8rpm | 0.11A | 3rpm | 0.6A | 30kg.cm | 1.9W | 160kg.cm | 1.3A |
| 1902:1 | 12V | 3.1rpm | 0.11A | 2.5rpm | 0.6A | 35kg.cm | 1.9W | 160kg.cm | 1.3A |
| 2200:1 | 12V | 2.7rpm | 0.11A | 2.2rpm | 0.6A | 40kg.cm | 1.9W | 160kg.cm | 1.3A |
| 2664:1 | 12V | 2.2rpm | 0.11A | 1.8rpm | 0.6A | 40kg.cm | 1.9W | 160kg.cm | 1.3A |
| 3080:1 | 12V | 1.9rpm | 0.11A | 1.5rpm | 0.6A | 40kg.cm | 1.9W | 160kg.cm | 1.3A |
| 3730:1 | 12V | 1.6rpm | 0.11A | 1.3rpm | 0.6A | 40kg.cm | 1.9W | 160kg.cm | 1.3A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Performance Specifications (24V DC, NFP-GA36Y-520-2460-EN)
Next, the NFP-GA36Y-520-2460-EN version provides 24V operation with 1.9W rated power. In addition, it offers lower current operation for compact systems that use a 24V DC power supply.
| Ratio | Voltage | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Rated Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| 3.7:1 | 24V | 1621rpm | 0.06A | 1324rpm | 0.3A | 0.1kg.cm | 1.9W | 0.44kg.cm | 0.6A |
| 5.18:1 | 24V | 1158rpm | 0.06A | 945rpm | 0.3A | 0.2kg.cm | 1.9W | 0.61kg.cm | 0.6A |
| 19:1 | 24V | 315rpm | 0.06A | 257rpm | 0.3A | 0.7kg.cm | 1.9W | 2.2kg.cm | 0.6A |
| 27:1 | 24V | 222rpm | 0.06A | 181rpm | 0.3A | 1kg.cm | 1.9W | 3.2kg.cm | 0.6A |
| 50:1 | 24V | 120rpm | 0.06A | 98rpm | 0.3A | 1.8kg.cm | 1.9W | 5.9kg.cm | 0.6A |
| 71:1 | 24V | 84rpm | 0.06A | 69rpm | 0.3A | 2.5kg.cm | 1.9W | 8.4kg.cm | 0.6A |
| 100:1 | 24V | 60rpm | 0.06A | 49rpm | 0.3A | 3.6kg.cm | 1.9W | 11.9kg.cm | 0.6A |
| 139:1 | 24V | 43rpm | 0.06A | 35rpm | 0.3A | 5kg.cm | 1.9W | 16.5kg.cm | 0.6A |
| 189:1 | 24V | 31rpm | 0.06A | 25rpm | 0.3A | 6.6kg.cm | 1.9W | 22.4kg.cm | 0.6A |
| 262:1 | 24V | 22rpm | 0.06A | 18rpm | 0.3A | 9kg.cm | 1.9W | 31.1kg.cm | 0.6A |
| 369:1 | 24V | 16rpm | 0.06A | 13rpm | 0.3A | 12.9kg.cm | 1.9W | 43.9kg.cm | 0.6A |
| 427:1 | 24V | 14rpm | 0.06A | 11rpm | 0.3A | 14.9kg.cm | 1.9W | 50.8kg.cm | 0.6A |
| 516:1 | 24V | 11rpm | 0.06A | 9rpm | 0.3A | 18kg.cm | 1.9W | 61.4kg.cm | 0.6A |
| 596:1 | 24V | 10rpm | 0.06A | 8rpm | 0.3A | 20kg.cm | 1.9W | 70.9kg.cm | 0.6A |
| 721:1 | 24V | 8rpm | 0.06A | 6.7rpm | 0.3A | 25kg.cm | 1.9W | 85kg.cm | 0.6A |
| 806:1 | 24V | 7.4rpm | 0.06A | 6rpm | 0.3A | 25kg.cm | 1.9W | 95kg.cm | 0.6A |
| 969:1 | 24V | 6.1rpm | 0.06A | 5rpm | 0.3A | 28kg.cm | 1.9W | 115kg.cm | 0.6A |
| 1574:1 | 24V | 3.8rpm | 0.06A | 3rpm | 0.3A | 30kg.cm | 1.9W | 160kg.cm | 0.6A |
| 1902:1 | 24V | 3.1rpm | 0.06A | 2.5rpm | 0.3A | 35kg.cm | 1.9W | 160kg.cm | 0.6A |
| 2200:1 | 24V | 2.7rpm | 0.06A | 2.2rpm | 0.3A | 40kg.cm | 1.9W | 160kg.cm | 0.6A |
| 2664:1 | 24V | 2.2rpm | 0.06A | 1.8rpm | 0.3A | 40kg.cm | 1.9W | 160kg.cm | 0.6A |
| 3080:1 | 24V | 1.9rpm | 0.06A | 1.5rpm | 0.3A | 40kg.cm | 1.9W | 160kg.cm | 0.6A |
| 3730:1 | 24V | 1.6rpm | 0.06A | 1.3rpm | 0.3A | 40kg.cm | 1.9W | 160kg.cm | 0.6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Performance Specifications (12V DC, NFP-GA36Y-520-12100-EN)
Moreover, the NFP-GA36Y-520-12100-EN version provides 12V operation with 3.7W rated power. As a result, it is useful when a compact DC motor with gearbox needs higher speed before reduction.
| Ratio | Voltage | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Rated Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| 3.7:1 | 12V | 2702rpm | 0.15A | 2243rpm | 0.7A | 0.19kg.cm | 3.7W | 0.76kg.cm | 3.3A |
| 5.18:1 | 12V | 1930rpm | 0.15A | 1602rpm | 0.7A | 0.27kg.cm | 3.7W | 1.08kg.cm | 3.3A |
| 19:1 | 12V | 526rpm | 0.15A | 436rpm | 0.7A | 0.9kg.cm | 3.7W | 3.6kg.cm | 3.3A |
| 27:1 | 12V | 370rpm | 0.15A | 307rpm | 0.7A | 1.3kg.cm | 3.7W | 5.2kg.cm | 3.3A |
| 50:1 | 12V | 200rpm | 0.15A | 166rpm | 0.7A | 2kg.cm | 3.7W | 8kg.cm | 3.3A |
| 71:1 | 12V | 140rpm | 0.15A | 116rpm | 0.7A | 3kg.cm | 3.7W | 12kg.cm | 3.3A |
| 100:1 | 12V | 100rpm | 0.15A | 83rpm | 0.7A | 4kg.cm | 3.7W | 16kg.cm | 3.3A |
| 139:1 | 12V | 71rpm | 0.15A | 59rpm | 0.7A | 6kg.cm | 3.7W | 24kg.cm | 3.3A |
| 189:1 | 12V | 52rpm | 0.15A | 43rpm | 0.7A | 7.9kg.cm | 3.7W | 31.6kg.cm | 3.3A |
| 262:1 | 12V | 38rpm | 0.15A | 31rpm | 0.7A | 11kg.cm | 3.7W | 44kg.cm | 3.3A |
| 369:1 | 12V | 27rpm | 0.15A | 22rpm | 0.7A | 15kg.cm | 3.7W | 60kg.cm | 3.3A |
| 427:1 | 12V | 23rpm | 0.15A | 19rpm | 0.7A | 17kg.cm | 3.7W | 68kg.cm | 3.3A |
| 516:1 | 12V | 19rpm | 0.15A | 16rpm | 0.7A | 21kg.cm | 3.7W | 84kg.cm | 3.3A |
| 596:1 | 12V | 16rpm | 0.15A | 13rpm | 0.7A | 25kg.cm | 3.7W | 100kg.cm | 3.3A |
| 721:1 | 12V | 13rpm | 0.15A | 11rpm | 0.7A | 30kg.cm | 3.7W | 120kg.cm | 3.3A |
| 806:1 | 12V | 12.4rpm | 0.15A | 10.2rpm | 0.7A | 30kg.cm | 3.7W | 120kg.cm | 3.3A |
| 969:1 | 12V | 10.3rpm | 0.15A | 8.5rpm | 0.7A | 34kg.cm | 3.7W | 136kg.cm | 3.3A |
| 1574:1 | 12V | 6.3rpm | 0.15A | 5.2rpm | 0.7A | 40kg.cm | 3.7W | 160kg.cm | 3.3A |
| 1902:1 | 12V | 5.2rpm | 0.15A | 4.3rpm | 0.7A | 45kg.cm | 3.7W | 160kg.cm | 3.3A |
| 2200:1 | 12V | 4.5rpm | 0.15A | 3.7rpm | 0.7A | 45kg.cm | 3.7W | 160kg.cm | 3.3A |
| 2664:1 | 12V | 3.7rpm | 0.15A | 3.1rpm | 0.7A | 45kg.cm | 3.7W | 160kg.cm | 3.3A |
| 3080:1 | 12V | 3.2rpm | 0.15A | 2.6rpm | 0.7A | 45kg.cm | 3.7W | 160kg.cm | 3.3A |
| 3730:1 | 12V | 2.6rpm | 0.15A | 2.2rpm | 0.7A | 45kg.cm | 3.7W | 160kg.cm | 3.3A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Performance Specifications (24V DC, NFP-GA36Y-520-24100-EN)
Finally, the NFP-GA36Y-520-24100-EN version provides 24V operation with 3.7W rated power. In short, it is a higher-speed 24V option for compact planetary DC gear motor applications.
| Ratio | Voltage | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Rated Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| 3.7:1 | 24V | 2702rpm | 0.08A | 2243rpm | 0.35A | 0.19kg.cm | 3.7W | 0.76kg.cm | 1.7A |
| 5.18:1 | 24V | 1930rpm | 0.08A | 1602rpm | 0.35A | 0.27kg.cm | 3.7W | 1.08kg.cm | 1.7A |
| 19:1 | 24V | 526rpm | 0.08A | 436rpm | 0.35A | 0.9kg.cm | 3.7W | 3.6kg.cm | 1.7A |
| 27:1 | 24V | 370rpm | 0.08A | 307rpm | 0.35A | 1.3kg.cm | 3.7W | 5.2kg.cm | 1.7A |
| 50:1 | 24V | 200rpm | 0.08A | 166rpm | 0.35A | 2kg.cm | 3.7W | 8kg.cm | 1.7A |
| 71:1 | 24V | 140rpm | 0.08A | 116rpm | 0.35A | 3kg.cm | 3.7W | 12kg.cm | 1.7A |
| 100:1 | 24V | 100rpm | 0.08A | 83rpm | 0.35A | 4kg.cm | 3.7W | 16kg.cm | 1.7A |
| 139:1 | 24V | 71rpm | 0.08A | 59rpm | 0.35A | 6kg.cm | 3.7W | 24kg.cm | 1.7A |
| 189:1 | 24V | 52rpm | 0.08A | 43rpm | 0.35A | 7.9kg.cm | 3.7W | 31.6kg.cm | 1.7A |
| 262:1 | 24V | 38rpm | 0.08A | 31rpm | 0.35A | 11kg.cm | 3.7W | 44kg.cm | 1.7A |
| 369:1 | 24V | 27rpm | 0.08A | 22rpm | 0.35A | 15kg.cm | 3.7W | 60kg.cm | 1.7A |
| 427:1 | 24V | 23rpm | 0.08A | 19rpm | 0.35A | 17kg.cm | 3.7W | 68kg.cm | 1.7A |
| 516:1 | 24V | 19rpm | 0.08A | 16rpm | 0.35A | 21kg.cm | 3.7W | 84kg.cm | 1.7A |
| 596:1 | 24V | 16rpm | 0.08A | 13rpm | 0.35A | 25kg.cm | 3.7W | 100kg.cm | 1.7A |
| 721:1 | 24V | 13rpm | 0.08A | 11rpm | 0.35A | 30kg.cm | 3.7W | 120kg.cm | 1.7A |
| 806:1 | 24V | 12.4rpm | 0.08A | 10.2rpm | 0.35A | 30kg.cm | 3.7W | 120kg.cm | 1.7A |
| 969:1 | 24V | 10.3rpm | 0.08A | 8.5rpm | 0.35A | 34kg.cm | 3.7W | 136kg.cm | 1.7A |
| 1574:1 | 24V | 6.3rpm | 0.08A | 5.2rpm | 0.35A | 40kg.cm | 3.7W | 160kg.cm | 1.7A |
| 1902:1 | 24V | 5.2rpm | 0.08A | 4.3rpm | 0.35A | 45kg.cm | 3.7W | 160kg.cm | 1.7A |
| 2200:1 | 24V | 4.5rpm | 0.08A | 3.7rpm | 0.35A | 45kg.cm | 3.7W | 160kg.cm | 1.7A |
| 2664:1 | 24V | 3.7rpm | 0.08A | 3.1rpm | 0.35A | 45kg.cm | 3.7W | 160kg.cm | 1.7A |
| 3080:1 | 24V | 3.2rpm | 0.08A | 2.6rpm | 0.35A | 45kg.cm | 3.7W | 160kg.cm | 1.7A |
| 3730:1 | 24V | 2.6rpm | 0.08A | 2.2rpm | 0.35A | 45kg.cm | 3.7W | 160kg.cm | 1.7A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Planetary DC Gear Motors With Gearbox Outline Drawing
The following images show the NFP-GA36Y-520-EN planetary DC gear motor and encoder-related specifications. Therefore, engineers can review the motor structure, gearbox dimensions, and wiring parameters before selection.
Typical Applications
- Smart home devices
- Automation equipment
- Robotics and mobile platforms
- Electric valve control systems
- Small mechanical drive systems
- Custom DC motor with gearbox projects
