36mm Planetary Gear Motor Model NFP-GA36Y-555

12V DC Micro Gearmotors Parameters

First, the NFP-GA36Y-555-CE is a 12V and 24V DC micro gearmotor with high torque output and multiple reduction ratio options. Also, it supports CW and CCW rotation for flexible motor control.

In addition, this DC gear motor provides no-load speed options from 11rpm to 2,160rpm. Therefore, users can choose a low ratio for higher speed or a high ratio for stronger low-speed torque.

Moreover, the maximum torque reaches 100Kg.cm. As a result, this model is suitable for compact applications that need strong torque, stable speed control, and planetary gearbox transmission.

Main Product Features

• First, high torque output: The max torque reaches 100Kg.cm for demanding compact drive systems.
• In addition, voltage options: The motor supports 12V DC and 24V DC versions.
• Also, wide speed range: Users can choose no-load speed options from 11rpm to 2,160rpm.
• Next, shaft options: The motor supports 6mm and 8mm output shaft diameters.
• Finally, bidirectional rotation: CW and CCW rotation help support flexible control design.

Main Specifications

First, the table below shows the main motor data. Also, it helps users check rotation, voltage, speed, power, torque, current, shaft size, and weight before selecting a detailed model.

As a result, this model gives a strong DC planetary gear motor solution for compact drive products. Moreover, the 6mm and 8mm shaft options help match different couplers, wheels, gears, and drive parts.

Model: NFP-GA36Y-555-1280, 12V DC, 8,000rpm, 479g

First, the NFP-GA36Y-555-1280 version uses a high-precision rotor and pure copper coil. Therefore, it provides stable output, high conductivity, long wear life, and high temperature resistance.

In addition, this OEM gearbox for DC motor applications can support different DC gear motor and controller solutions. As a result, it is suitable for projects that need strong torque and reliable mechanical setup.

Moreover, lower ratios provide higher output speed. However, higher ratios provide lower speed and stronger torque for slow drive tasks.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V 8,000rpm version covers speeds from 11rpm to 2160rpm. Moreover, the 721:1 ratio gives the strongest rated torque and stall torque in this table.

Model: NFP-GA36Y-555-2480, 24V DC, 8,000rpm, 479g

Next, the NFP-GA36Y-555-2480 version provides low-speed and high-torque performance with 24V DC input. Also, it offers stable output, high conductivity, long wear life, and high temperature resistance.

Moreover, this version supports effective dust isolation and wear resistance. Therefore, it is suitable for applications that require long service life and stable speed in a compact gear motor structure.

In addition, this 24V version gives lower current than the 12V 8,000rpm version in many rows. As a result, it can fit higher-voltage systems and industrial power supplies.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 24V 8,000rpm version covers speeds from 11rpm to 2160rpm. Also, the 596:1 and 721:1 ratios both reach 100kg.cm rated torque in this table.

Model: NFP-GA36Y-555-1260, 12V DC, 6,000rpm, 479g

Furthermore, the NFP-GA36Y-555-1260 version uses a high-precision rotor and pure copper coil. As a result, it provides stable output, compact structure, strong power, and efficient performance for precision uses.

In addition, this model offers high temperature resistance, effective dust isolation, wear resistance, and long life. Therefore, it can support stable operation in demanding DC geared motor uses.

Also, this 6,000rpm version gives lower output speed than the 8,000rpm version at the same ratio. Therefore, it is useful when the system needs slower output with the same gearbox ratio range.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V 6,000rpm version covers speeds from 8rpm to 1621rpm. Moreover, the 721:1 ratio gives the strongest rated torque and stall torque in this table.

Model: NFP-GA36Y-555-2460, 24V DC, 6,000rpm, 479g

Finally, the NFP-GA36Y-555-2460 version provides stable performance, strong power, and long service time. Also, it offers low noise, high efficiency, and high-quality gear transmission for compact DC motor systems.

In short, this 24V DC gear motor is suitable for uses that require low speed, high torque, stable speed, high temperature resistance, and reliable long-term operation.

However, users should review all torque values before final test setup. For example, the 189:1 rated torque value should be checked if it looks higher than nearby ratios.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 24V 6,000rpm version covers speeds from 8rpm to 1621rpm. Also, the 596:1 and 721:1 ratios both reach 100kg.cm rated torque in this table.

Miniature DC Geared Motors Outline Drawing

First, the following images show the NFP-GA36Y-555-CE DC geared motor and its outline drawings. Therefore, engineers can compare the motor structure, 6mm shaft option, and 8mm shaft option before final selection.

In addition, the outline drawings help users check motor size, gearbox layout, output shaft size, and mounting space. As a result, they are useful before sample testing and final mechanical design.

Motor Product View

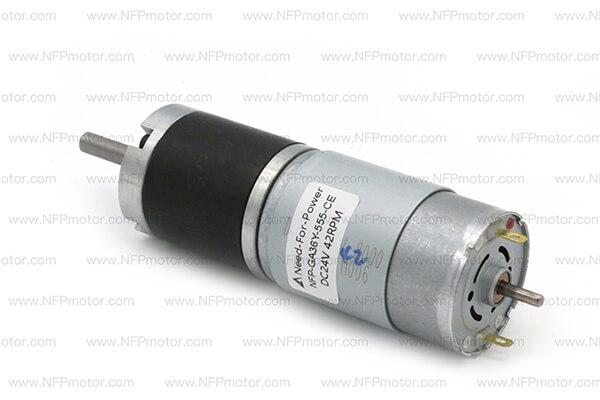

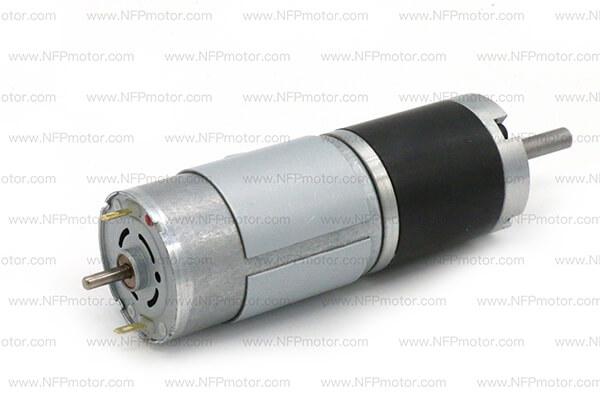

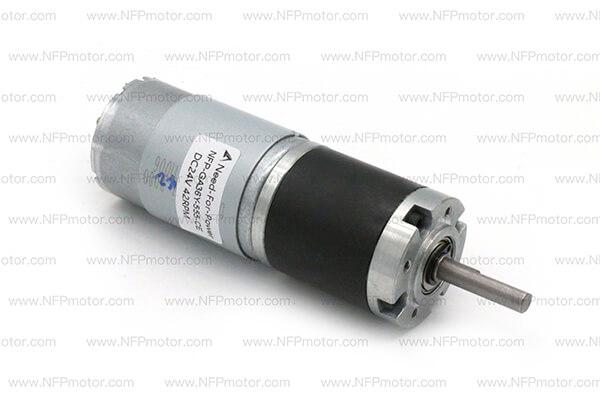

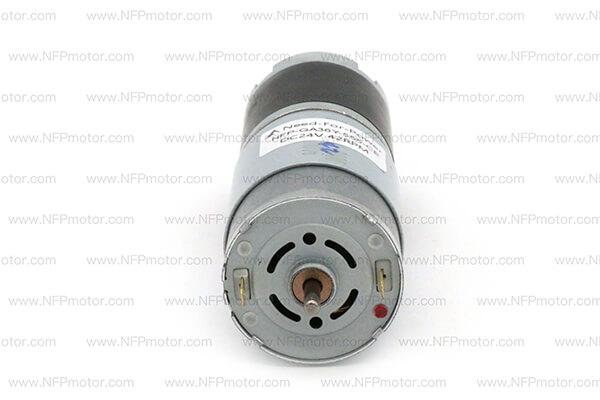

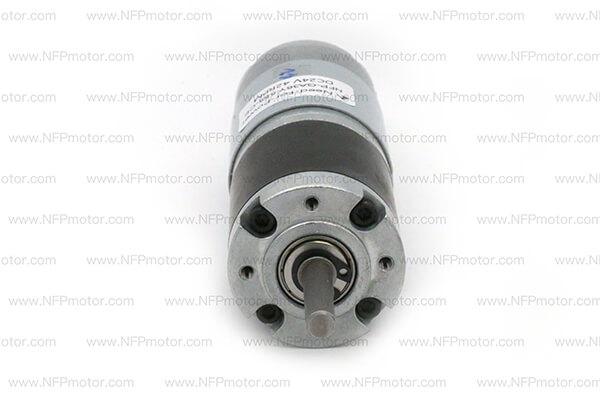

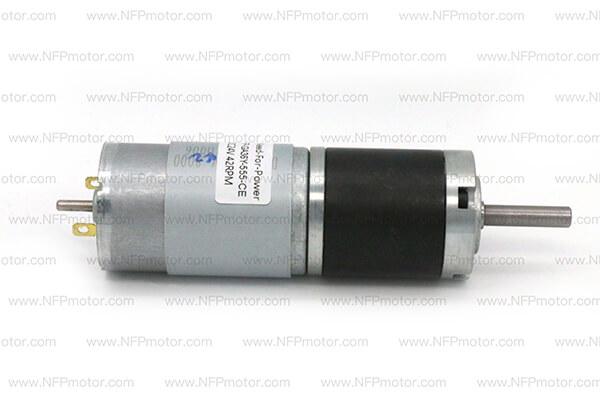

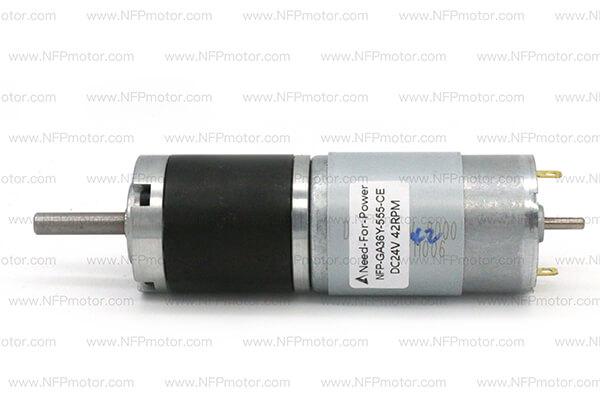

First, the product image helps users check the general motor structure. Also, it gives a visual reference for the gearbox and motor body layout.

6mm Shaft Outline Drawing

Next, the 6mm shaft outline drawing helps users check shaft size and motor length. Therefore, it is useful for compact products that use a 6mm coupling or gear.

8mm Shaft Outline Drawing

Moreover, the 8mm shaft outline drawing helps users check the larger shaft option. As a result, it is useful for designs that need a stronger shaft connection.

Outline Drawing and Design Benefits

• First, 6mm and 8mm shaft options: The two shaft sizes help match different drive parts.
• In addition, compact gearbox: The planetary gearbox helps provide high torque in limited space.
• Also, clear dimensions: The drawings help reduce design changes before production.
• Next, high torque body: The motor supports low-speed heavy-load output.
• Finally, wide ratio range: Users can choose speed or torque based on the load.

Typical Applications

Finally, this 12V DC micro gearmotor is useful for compact products that need high torque, stable output, and multiple ratio choices. For example, it can work in automation equipment, robotics, electric valves, smart home devices, industrial drive mechanisms, and custom DC geared motor projects.

• Automation equipment
• Robotics and mobile platforms
• Electric valve control systems
• Smart home devices
• Industrial drive mechanisms
• Custom DC geared motor projects
• Low-speed high-torque drive systems

Selection Notes

First, users should choose voltage, motor speed, shaft diameter, and ratio based on speed, torque, current, product space, and load. Also, users should confirm the 6mm or 8mm shaft type before mechanical design.

• First, for higher speed: Choose a lower ratio such as 3.7:1, 5.18:1, or 19:1.
• In addition, for higher torque: Choose a higher ratio such as 516:1, 596:1, or 721:1.
• Also, for 12V systems: Choose a 12V DC version when the product uses a 12V control board.
• Next, for 24V systems: Choose a 24V DC version when the product uses a 24V power system.
• Moreover, for slower output: Choose a 6,000rpm motor version at the same ratio.
• Finally, for long life: Keep the motor within rated load and avoid long stall conditions.

In short, the NFP-GA36Y-555-CE DC micro gearmotor is a good fit for products that need 12V or 24V DC power, 6mm or 8mm shaft options, compact planetary gearbox, wide ratio range, and high-torque low-speed output.
