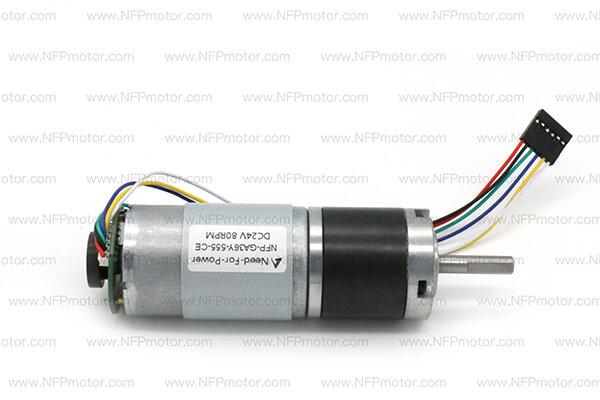

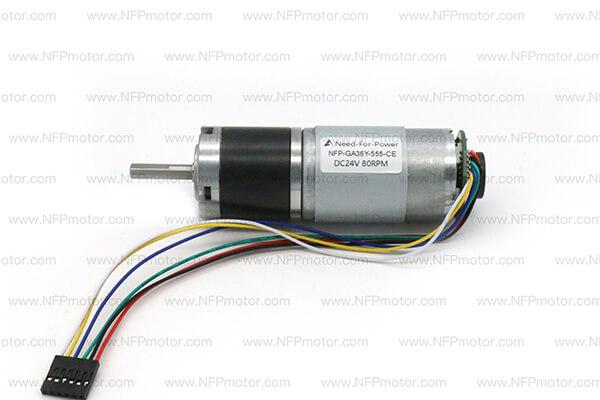

36mm Planetary Gear Motor Model NFP-GA36Y-555-EN
$30.00
Enhance your projects with the 36mm Planetary Gear Motor! With a range of speeds and robust torque, this motor is built for performance. ⚙️
Contact us for a quotation for production quantities, customizations and integration.
Micro Brushless Planetary Gearmotors Parameters
The NFP-GA36Y-555-EN is a micro brushless planetary gearmotor for 12V DC and 24V DC use. It supports CW and CCW rotation, high torque output, and a small gearbox body.
First, this brushless DC gear motor offers no-load speed options from 11rpm to 2,160rpm. Also, its maximum torque reaches 100kg.cm. Therefore, it is a good choice for small machines that need strong power and steady speed.
In addition, the motor supports 6mm and 8mm output shafts. As a result, engineers can match it with different drive parts more easily.
Main Specifications
| Model | NFP-GA36Y-555-EN |
|---|---|
| Rotation | CW & CCW |
| Voltage | 12V DC / 24V DC |
| No-load Speed | 11rpm – 2,160rpm |
| Output Power | 12W – 24W |
| Max Torque | 100kg.cm |
| No-load Current | 0.2A – 0.53A |
| Output Shaft Diameter | 6mm / 8mm |
| Weight | 374g – 479g |
Next, the main data above gives a quick view of the motor range. Also, it helps users compare voltage, speed, torque, shaft size, and weight before checking each model table.
Product Highlights
- Brushless motor design: Gives steady output, low noise, and long service life.
- High torque output: Reaches up to 100kg.cm for small power drive systems.
- 12V and 24V options: Fits common low-voltage DC power systems.
- 6mm and 8mm shafts: Offers more choice for different mounting needs.
- Encoder wire support: Includes signal A and signal B output for speed feedback.
Also, these features make the motor easy to use in OEM projects. For example, it can work in small machines, smart devices, valve control units, and mobile robot systems.
Model: NFP-GA36Y-555-1280, 12V DC, 8,000rpm, 479g
First, the NFP-GA36Y-555-1280 version uses a high-precision rotor and pure copper coil. Therefore, it gives steady output, strong power, and high efficiency.
Also, this 12V brushless planetary gear motor has a compact body and low-noise operation. As a result, it works well in products that need strong torque in a small space.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 3.7:1 | 2,160rpm | 0.52A | 1,850rpm | 1.3A | 0.74kg.cm | 4.75kg.cm | 6A |
| 5.18:1 | 1,544rpm | 0.53A | 1,270rpm | 1.325A | 1kg.cm | 8kg.cm | 6A |
| 19:1 | 421rpm | 0.45A | 370rpm | 1.125A | 3.4kg.cm | 16.5kg.cm | 6A |
| 27:1 | 296rpm | 0.49A | 260rpm | 1.225A | 4.9kg.cm | 28.5kg.cm | 6A |
| 50:1 | 160rpm | 0.43A | 130rpm | 1.075A | 8.2kg.cm | 50kg.cm | 6A |
| 71:1 | 112rpm | 0.39A | 90rpm | 0.975A | 11.6kg.cm | 70kg.cm | 6A |
| 100:1 | 80rpm | 0.39A | 61rpm | 0.975A | 16.4kg.cm | 93kg.cm | 6A |
| 139:1 | 57rpm | 0.43A | 40rpm | 1.075A | 22.8kg.cm | 107kg.cm | 6A |
| 189:1 | 42rpm | 0.51A | 33rpm | 1.275A | 27.6kg.cm | 128kg.cm | 6A |
| 262:1 | 30rpm | 0.55A | 25rpm | 1.375A | 38.3kg.cm | 160kg.cm | 6A |
| 369:1 | 21rpm | 0.5A | 17rpm | 1.275A | 53.9kg.cm | 180kg.cm | 6A |
| 427:1 | 18rpm | 0.46A | 15rpm | 1.15A | 62.4kg.cm | 200kg.cm | 6A |
| 516:1 | 15rpm | 0.48A | 12rpm | 1.2A | 75.4kg.cm | 225kg.cm | 6A |
| 596:1 | 13rpm | 0.46A | 10rpm | 1.15A | 87kg.cm | 250kg.cm | 6A |
| 721:1 | 11rpm | 0.42A | 9rpm | 1.05A | 100kg.cm | 300kg.cm | 6A |
Note: All reduced no-load speeds have a tolerance of ±15%.
In short, the 12V 8,000rpm version offers a wide speed range and strong torque. Therefore, users can choose a ratio based on the needed output speed and load.
Model: NFP-GA36Y-555-2480, 24V DC, 8,000rpm, 479g
Next, the NFP-GA36Y-555-2480 version uses 24V DC input. Also, it gives high power, high efficiency, steady speed, and long service life.
In addition, this model supports low-speed and high-torque output. Therefore, it is useful for small systems that need strong drive force and lower current than a 12V version.
| Ratio | No-load Speed | No-load Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 3.7:1 | 2,160rpm | 0.2A | 1,845rpm | 0.7A | 0.86kg.cm | 4.3kg.cm | 7A |
| 5.18:1 | 1,544rpm | 0.25A | 1,290rpm | 0.75A | 1.2kg.cm | 7.6kg.cm | 7A |
| 19:1 | 421rpm | 0.21A | 378rpm | 0.7A | 4kg.cm | 18.5kg.cm | 7A |
| 27:1 | 296rpm | 0.25A | 266rpm | 0.75A | 5.6kg.cm | 28.7kg.cm | 7A |
| 50:1 | 160rpm | 0.32A | 140rpm | 0.82A | 9.4kg.cm | 53kg.cm | 7A |
| 71:1 | 112rpm | 0.33A | 91rpm | 0.82A | 13.4kg.cm | 72.5kg.cm | 7A |
| 100:1 | 80rpm | 0.21A | 70rpm | 0.7A | 18.9kg.cm | 90kg.cm | 7A |
| 139:1 | 57rpm | 0.3A | 50rpm | 0.75A | 26.3kg.cm | 102kg.cm | 7A |
| 189:1 | 42rpm | 0.31A | 37rpm | 0.75A | 319kg.cm | 150kg.cm | 7A |
| 262:1 | 30rpm | 0.25A | 26rpm | 0.75A | 44.2kg.cm | 175kg.cm | 7A |
| 369:1 | 21rpm | 0.26A | 18rpm | 0.75A | 62.3kg.cm | 200kg.cm | 7A |
| 427:1 | 18rpm | 0.28A | 15rpm | 0.75A | 72kg.cm | 225kg.cm | 7A |
| 516:1 | 15rpm | 0.24A | 12rpm | 0.75A | 87.2kg.cm | 250kg.cm | 7A |
| 596:1 | 13rpm | 0.21A | 11rpm | 0.75A | 100kg.cm | 275kg.cm | 7A |
| 721:1 | 11rpm | 0.29A | 8rpm | 0.75A | 100kg.cm | 300kg.cm | 7A |
Note: All reduced no-load speeds have a tolerance of ±15%.
Also, the 24V 8,000rpm version can help reduce working current in many 24V systems. As a result, it is often easier to match with 24V control boards.
Miniature Brushless DC Worm Gear Motor Outline Drawing

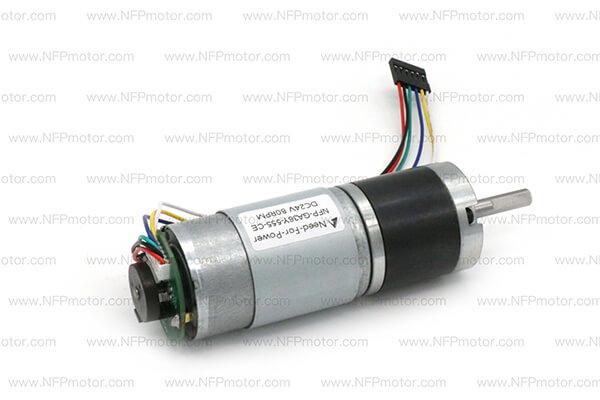

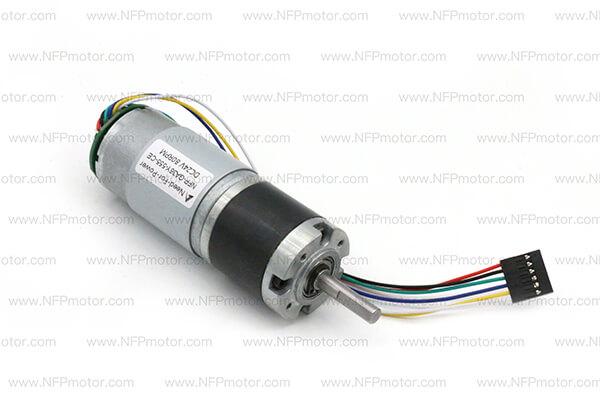

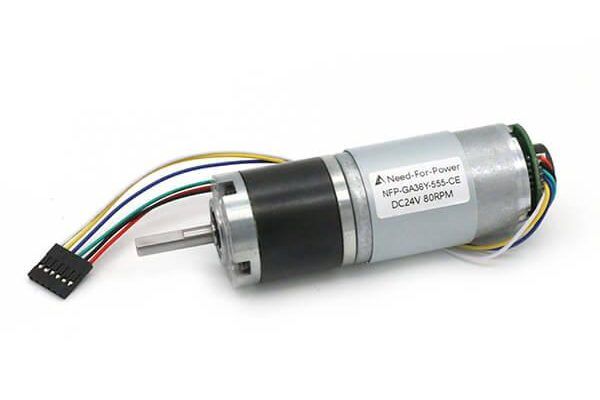

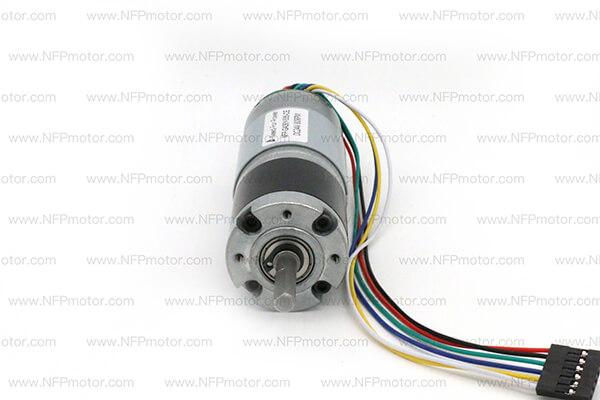

The following images show the NFP-GA36Y-555-EN geared brushless motor and its outline drawings. First, users can check the motor body. Next, they can compare the 6mm shaft and 8mm shaft versions.

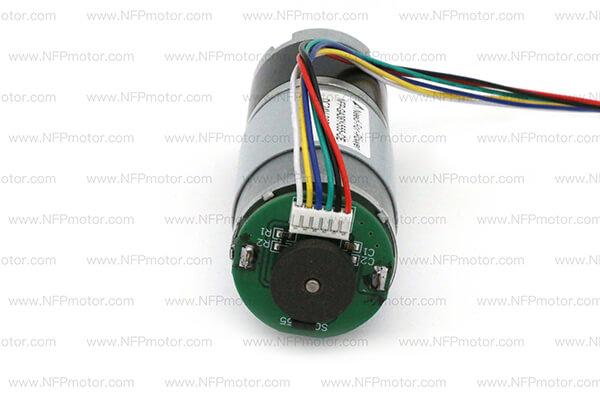

Also, the encoder wire guide helps users connect power, sensor power, ground, and signal wires. Therefore, please check each wire before testing the motor.
Encoder Wire Function
In addition, the encoder wires support motor power, sensor power, sensor ground, and signal output. For example, the yellow wire gives signal A, while the white wire gives signal B.
- Red Wire: Motor power supply positive pole (+).
- Black Wire: Motor power supply negative pole (-).
- Green Wire: Sensor ground wire.
- Blue Wire: Sensor power supply.
- Yellow Wire: Signal A output point.
- White Wire: Signal B output point.
Finally, correct wiring can help the motor run safely and give stable speed feedback. However, wrong wiring may damage the motor or the sensor circuit.
Typical Applications
- Automation equipment
- Robotics and mobile platforms
- Electric valve control systems
- Smart home devices
- Industrial drive systems
- Custom brushless planetary gear motor projects
In short, this micro brushless planetary gearmotor is a good fit for small products that need high torque, low noise, speed feedback, and long service life.
Keywords: brushless dc gear motor, brushless dc planetary gear motor, micro brushless wormgearmotors, brushless gear motor, brushless planetary gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
