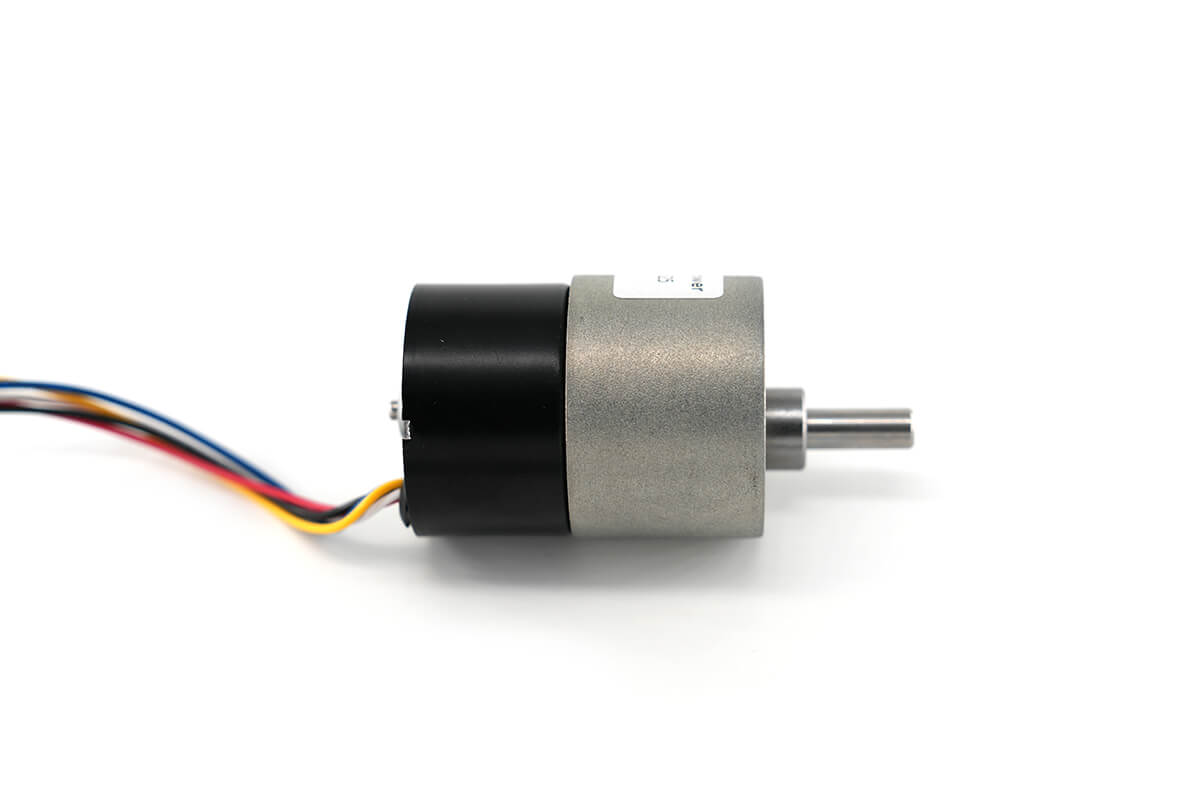

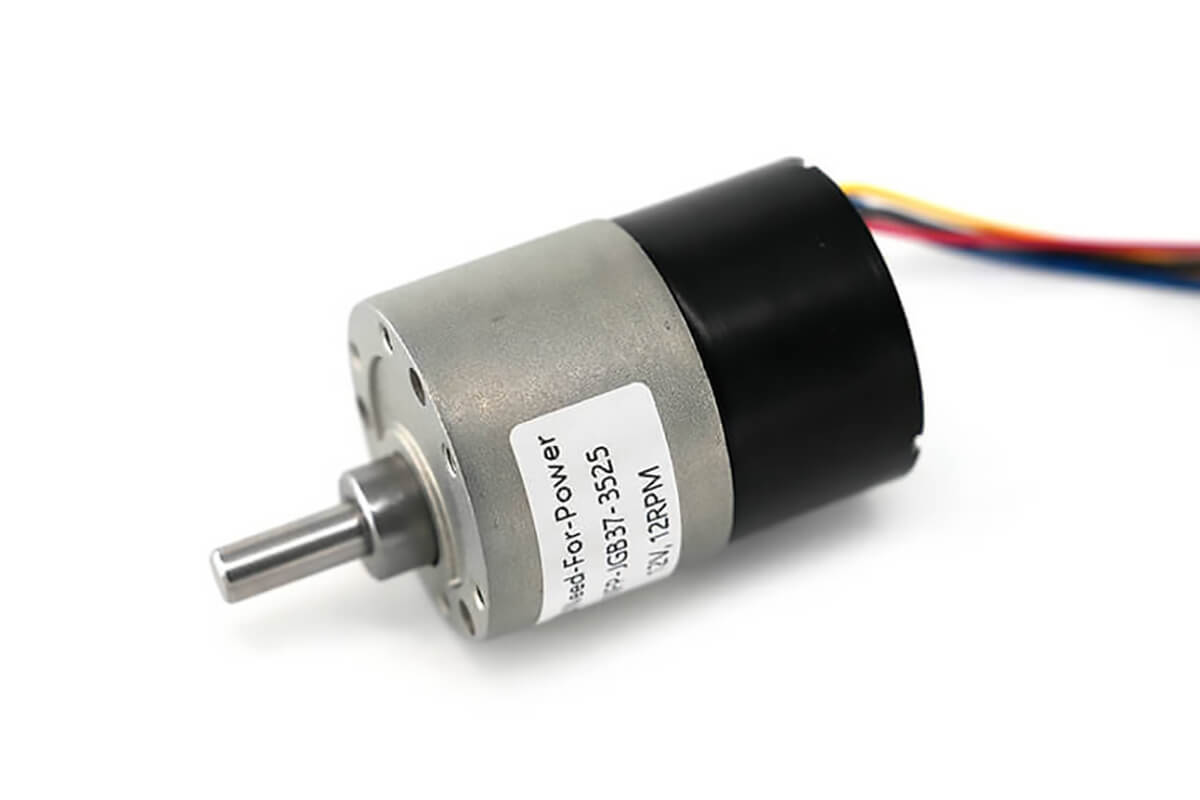

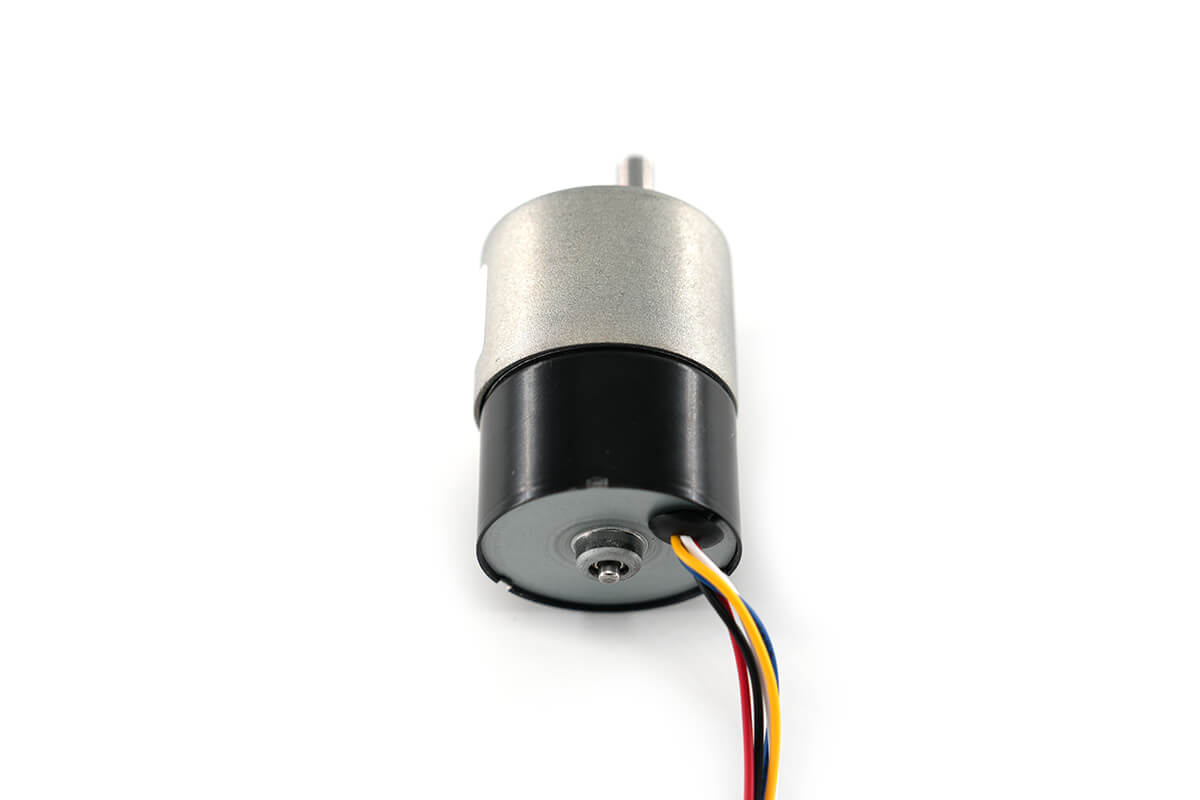

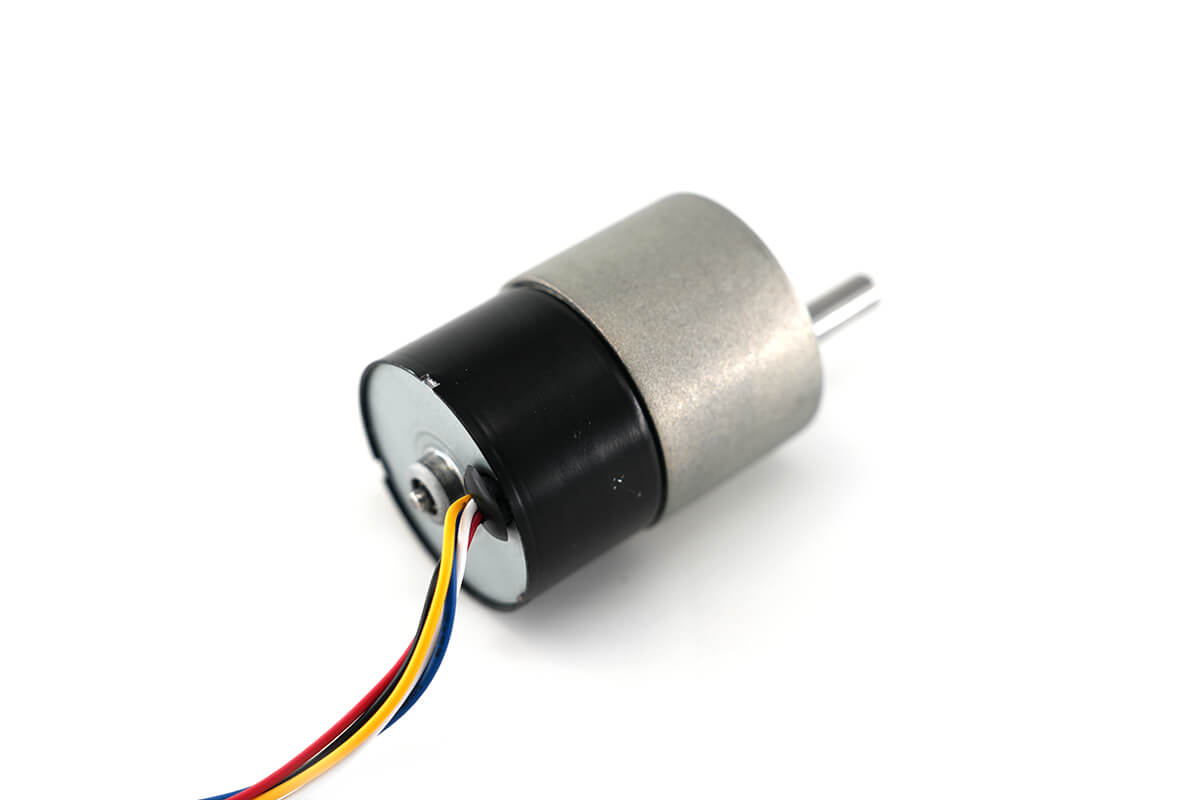

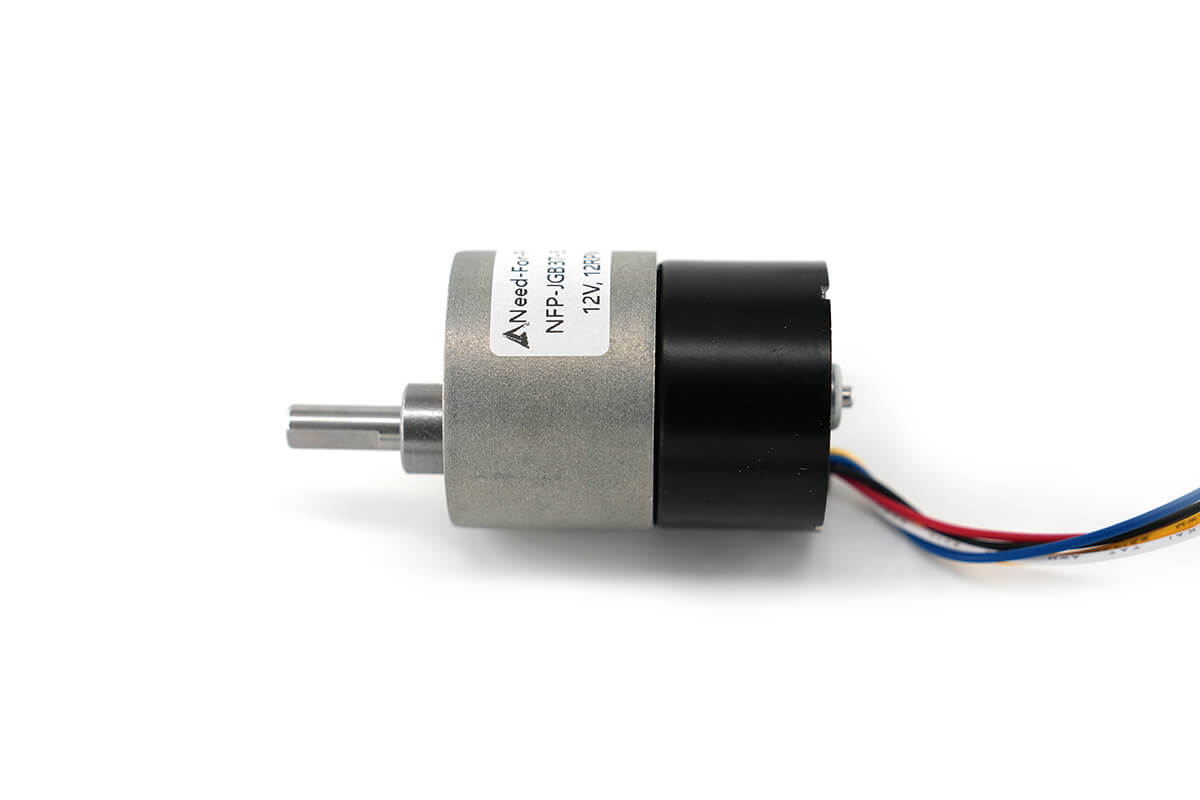

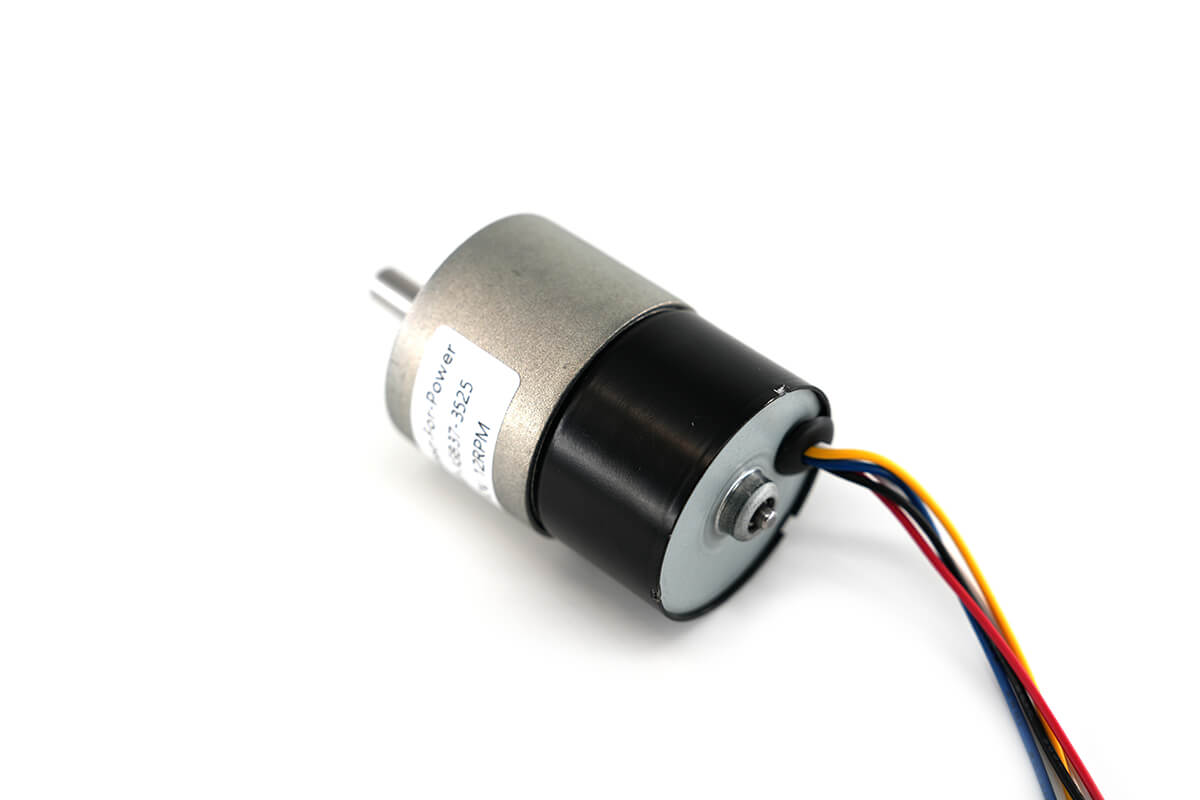

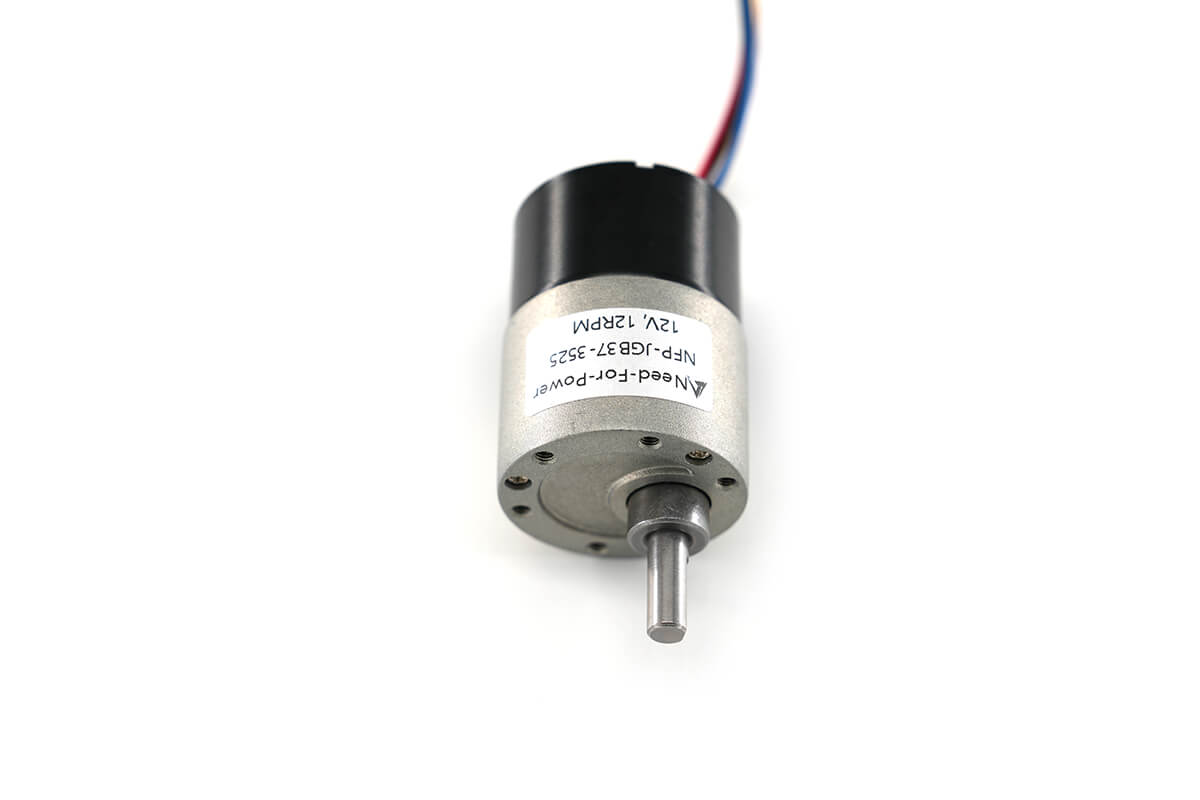

37mm Brushless Gear Motor Model NFP-GM37-BL3525

Reversible Brushless Motors with Gearbox Performance

First, the NFP-GM37-BL3525 is a reversible brushless motor with gearbox for compact drive systems. Also, it is useful for products that need low noise, stable speed, and long service life.

In addition, the brushless motor lifespan is about 3 to 5 times that of brushed motors under suitable use. Therefore, it is a good choice for products that need long working time.

Moreover, this motor supports wide voltage input, speed control, speed signal output, and forward or reverse rotation. As a result, users can use it in smart devices, robots, doors, windows, and small machines.

Main Product Features

• First, brushless design: The BLDC motor helps reduce wear and support long life.
• In addition, wide voltage choice: The motor supports 12V and 24V DC.
• Also, low noise: The brushless structure helps the motor run more quietly.
• Next, speed control: The PWM wire helps adjust motor speed.
• Finally, FG signal: The yellow wire outputs speed pulses for speed check.

General Motor Data

First, the table below shows the main motor data. Also, it helps users check voltage, speed, current, torque, output power, shaft size, rotation, and weight before choosing a ratio.

As a result, this model gives many speed and torque choices in one compact gear motor body. Moreover, the 6mm shaft helps connect wheels, gears, arms, and other drive parts.

Model: NFP-GM37-BL3525-1260, 12V DC

First, the 12V DC version is useful for compact 12V drive systems. Also, the table below helps users compare ratio, speed, current, torque, and stall data.

Therefore, users can choose a low ratio for higher speed. In addition, users can choose a high ratio for stronger slow-speed output.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 12V version covers speeds from 4.5rpm to 465rpm. Moreover, the 630:1 ratio gives the strongest rated torque in this table.

Model: NFP-GM37-BL3525-2460, 24V DC

Next, the 24V DC version gives higher speed than the 12V version. Also, it is useful for 24V systems that need faster output and stable torque.

Therefore, users can choose this version for higher-voltage control boards. In addition, the high-ratio options still support slow drive tasks with strong torque.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 24V version covers speeds from 9rpm to 930rpm. Also, the high-ratio options provide up to 3N.m rated torque.

Micro Geared Brushless DC Motors Outline Drawing

First, the outline drawing helps users check motor size, gearbox length, shaft size, and mounting space. Therefore, it is useful before sample testing and product design.

In addition, this brushless geared motor has a built-in Hall driver board. As a result, it can operate directly when powered on without an external driver circuit.

Outline Drawing and Design Benefits

• First, built-in driver: The Hall driver board helps simplify motor setup.
• In addition, brushless motor: The BLDC design helps support long life and low noise.
• Also, 37mm gearbox: The gearbox helps raise torque in a compact body.
• Next, 6mm shaft: The output shaft helps connect drive parts firmly.
• Finally, reversible rotation: The motor supports forward and reverse motion.

All Metal Brushless Gear Motor Bracket Diagram

First, the bracket diagram helps users check bracket size, motor fit, and mounting space. Also, it is useful when adding the motor to a compact product.

In addition, this DC brushless gear motor can be used in smart home appliances, robots, smart machines, electric windows, electric doors, PTZ systems, food packaging machines, manipulators, and office automation devices.

Micro DC Brushless High Torque Reducer Wiring Diagram

First, the wiring diagram helps users connect power, direction control, PWM speed control, and FG signal wires correctly. Therefore, users should check each wire before power-on.

In addition, the motor power polarity must not be reversed. As a result, correct wiring can help protect the motor and control board.

Wiring Sequence

• First, red wire: Positive pole of motor power supply +. The polarity must not be reversed.
• In addition, black wire: Negative pole of motor power supply −. The polarity must not be reversed.
• Also, white wire: Direction control wire. When disconnected, the motor rotates in one direction.
• Next, white wire reverse mode: Connect it to the negative terminal with the black wire for reverse rotation.
• Moreover, blue wire: PWM speed control wire. Connect it to a 0-5V pulse width modulator.
• Finally, yellow wire: FG signal wire. It outputs 9 square wave pulses for speed check.

Mounting Bracket Outline Drawing

First, the mounting bracket outline drawing helps users check bracket size and screw space. Also, it is useful before final assembly.

In addition, the bracket can help mount the gear motor more firmly. Therefore, it is useful for products that need stable motor support.

Typical Applications

Finally, this reversible brushless motor with gearbox is useful for many compact systems. For example, it can work in robots, smart home devices, electric doors, PTZ units, food packaging machines, and medical equipment.

• Smart home appliances
• Robots
• Smart machines
• Electric windows
• Electric doors
• Automatic rotating equipment
• PTZ systems
• Food packaging machines
• Manipulators
• Communication equipment
• Printing equipment
• Vehicle industry
• Medical equipment
• Security equipment
• Office automation
• Model aircraft
• Automotive electronics

In short, the NFP-GM37-BL3525 reversible brushless motor with gearbox is a good fit for products that need 12V or 24V DC power, low noise, long life, PWM speed control, FG speed output, and strong low-speed torque.
