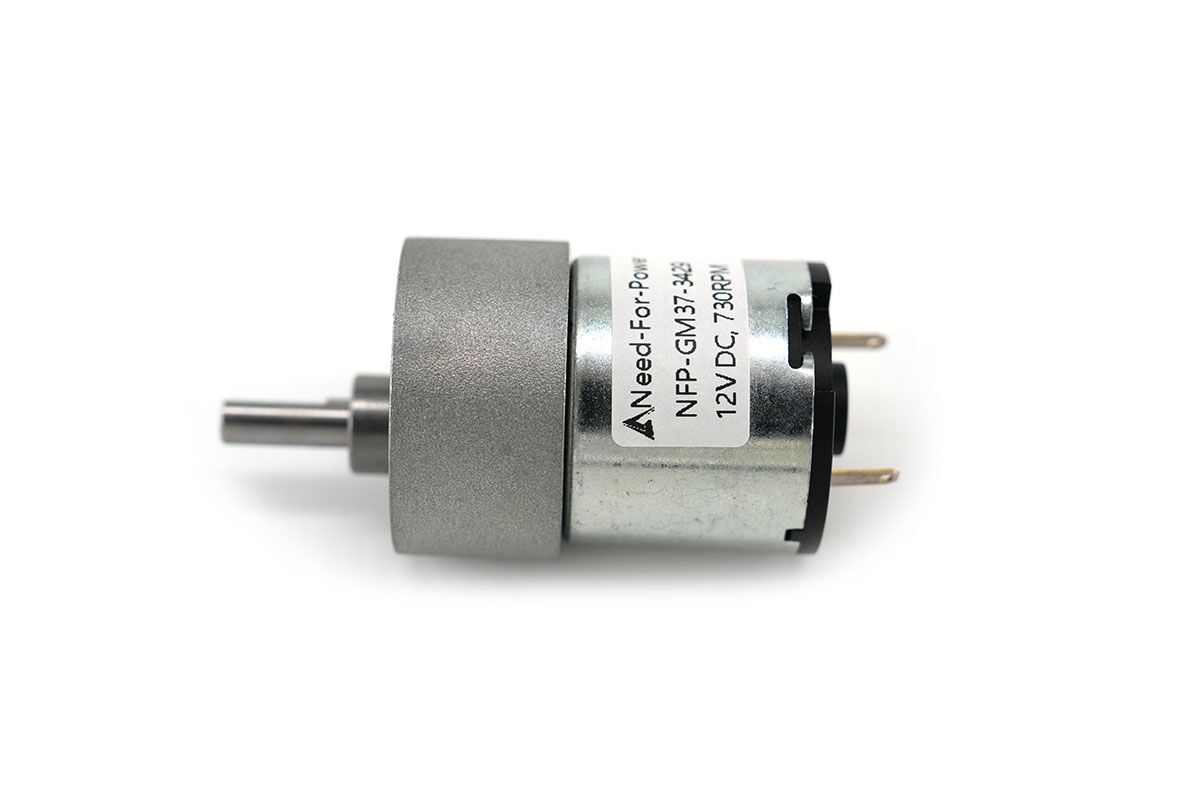

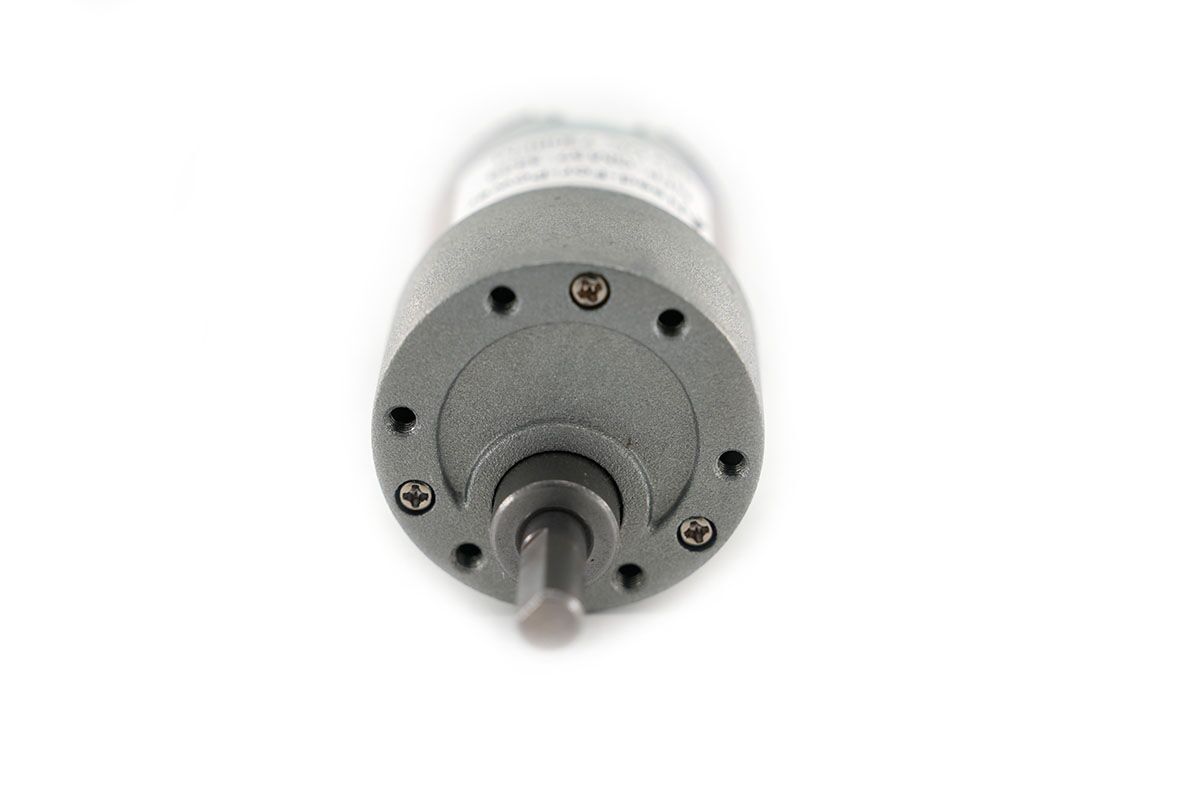

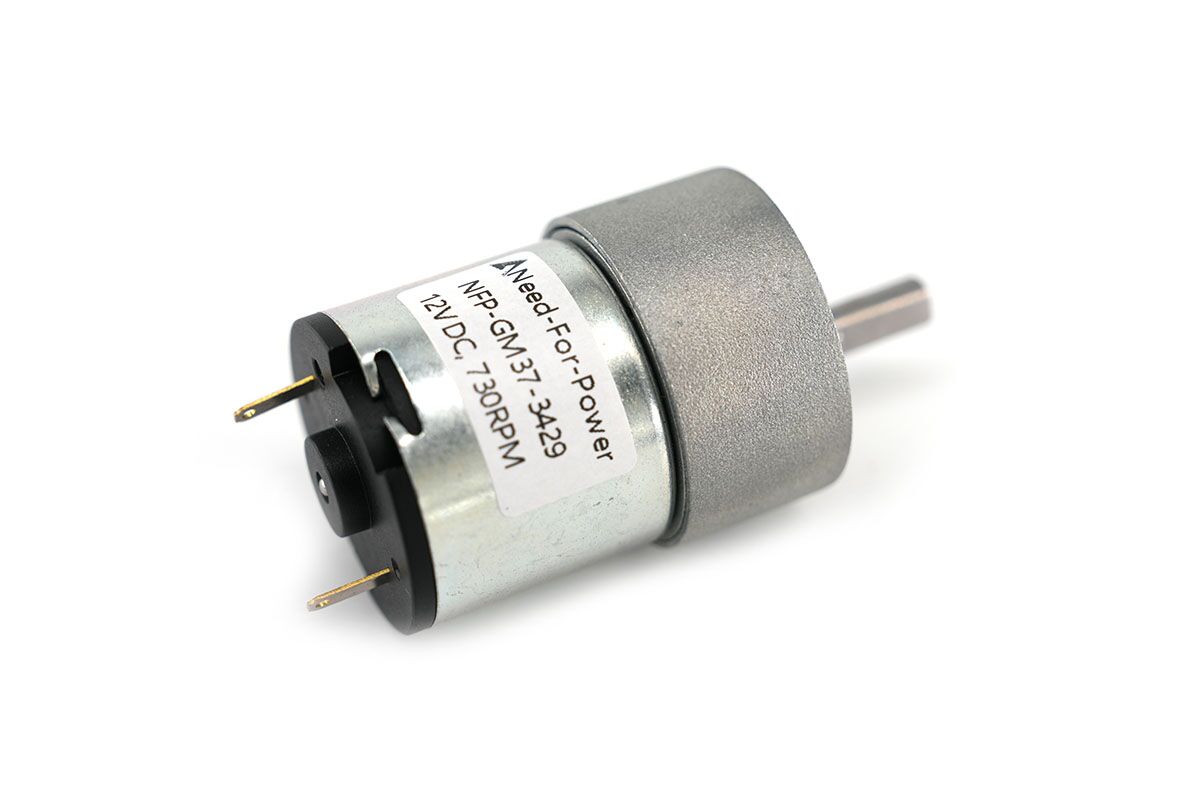

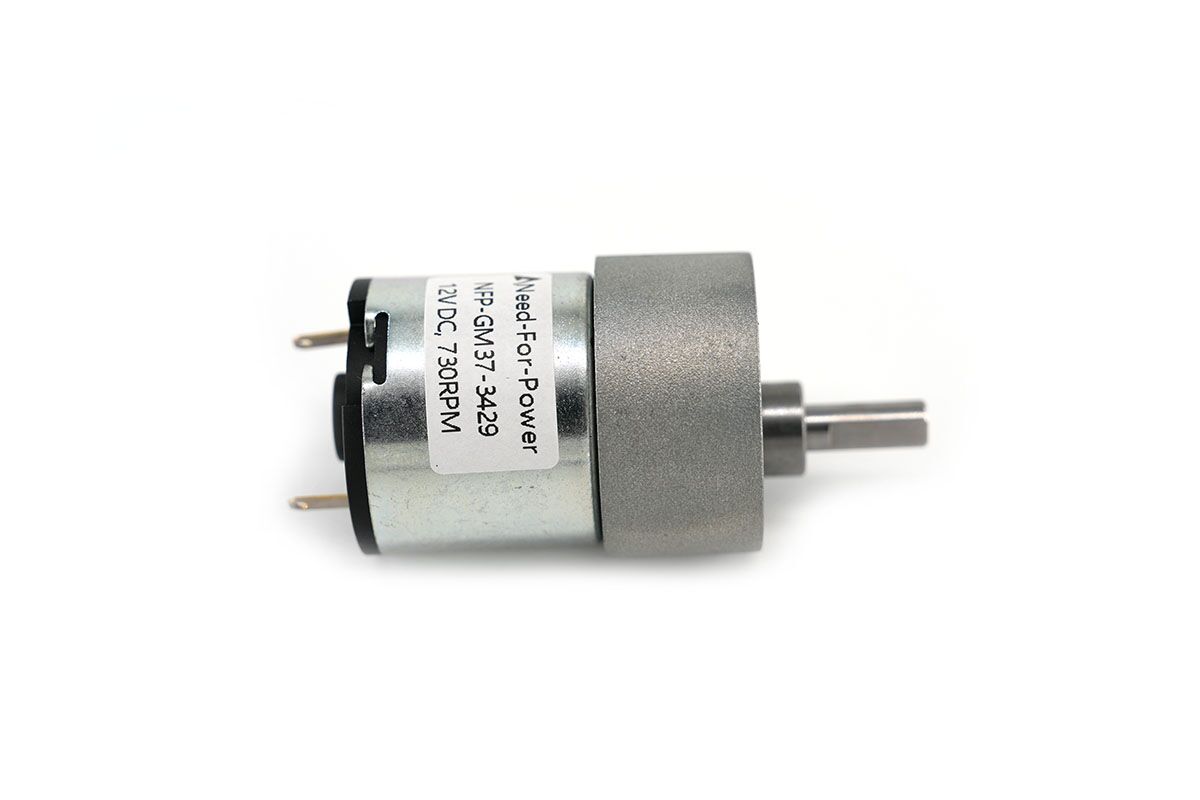

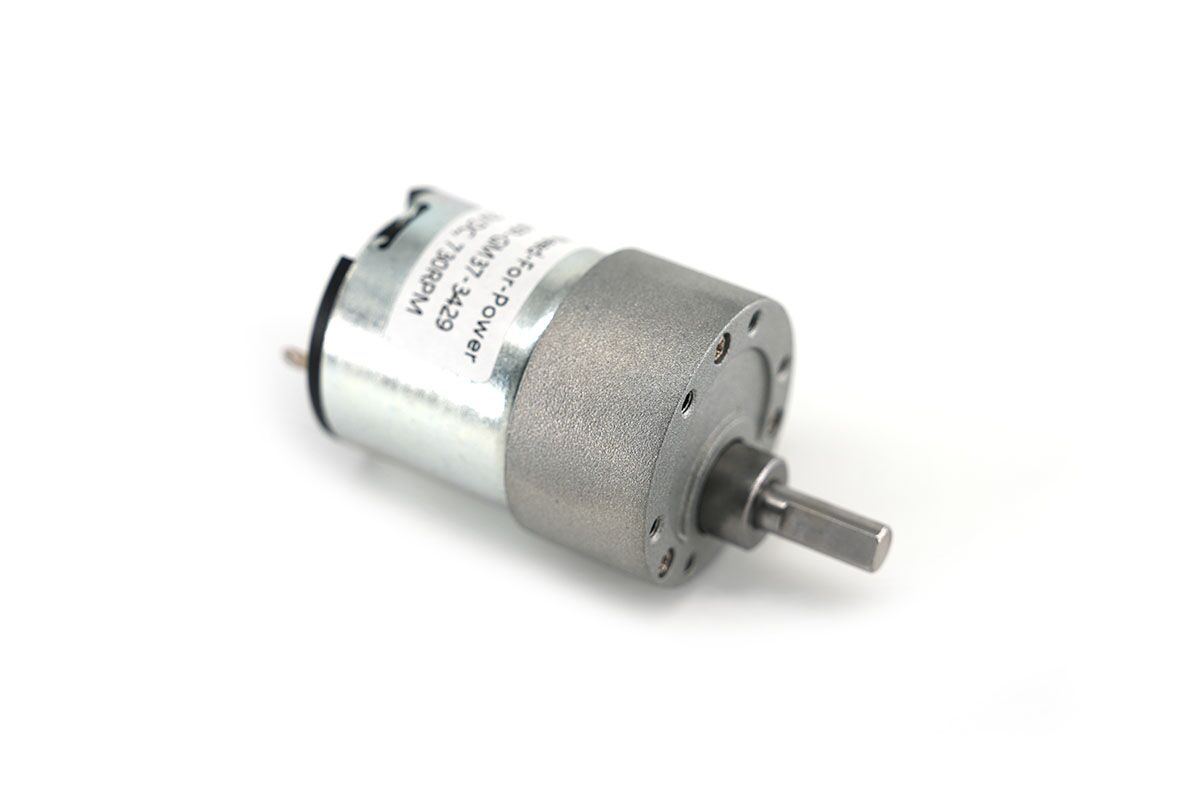

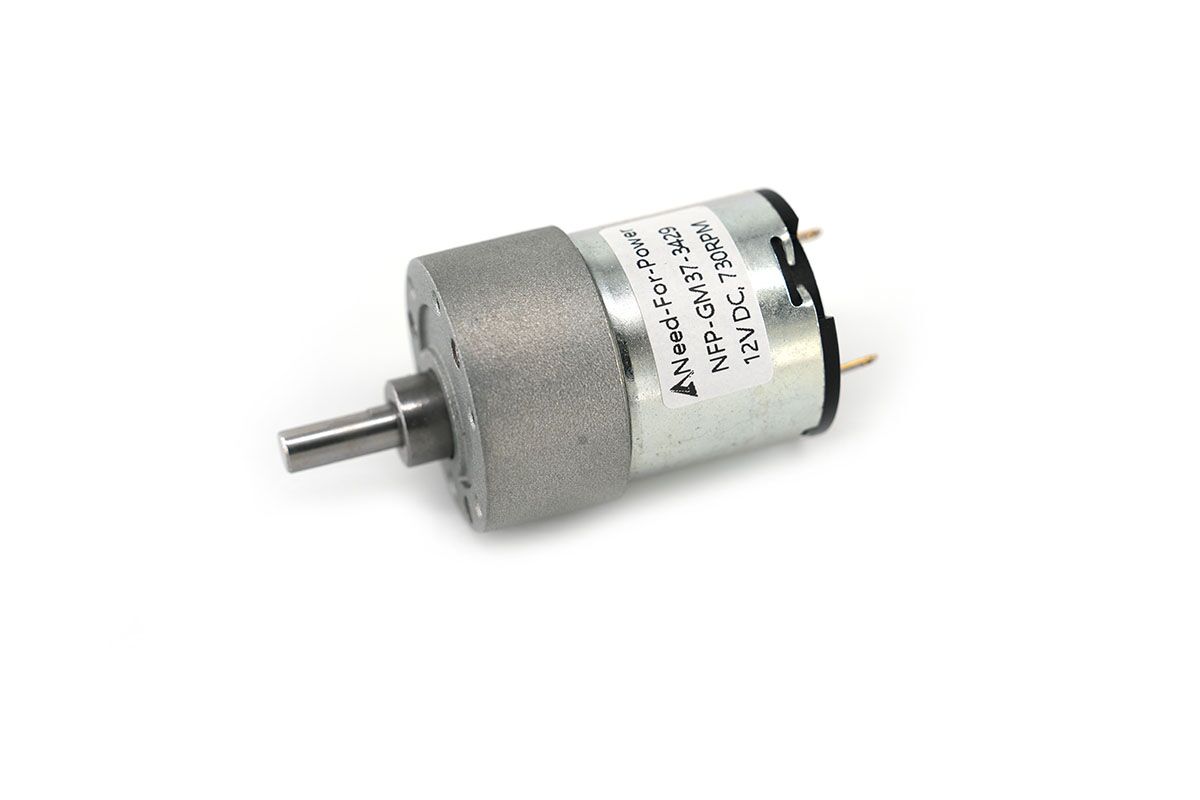

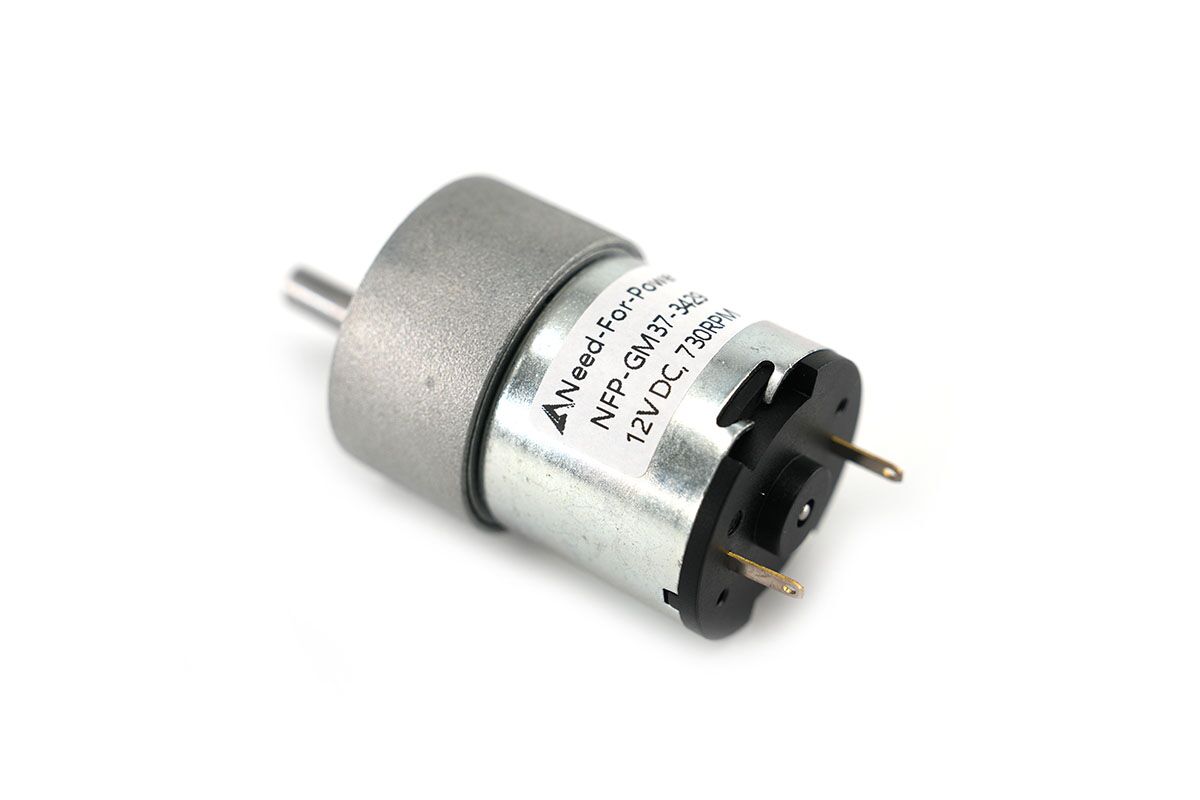

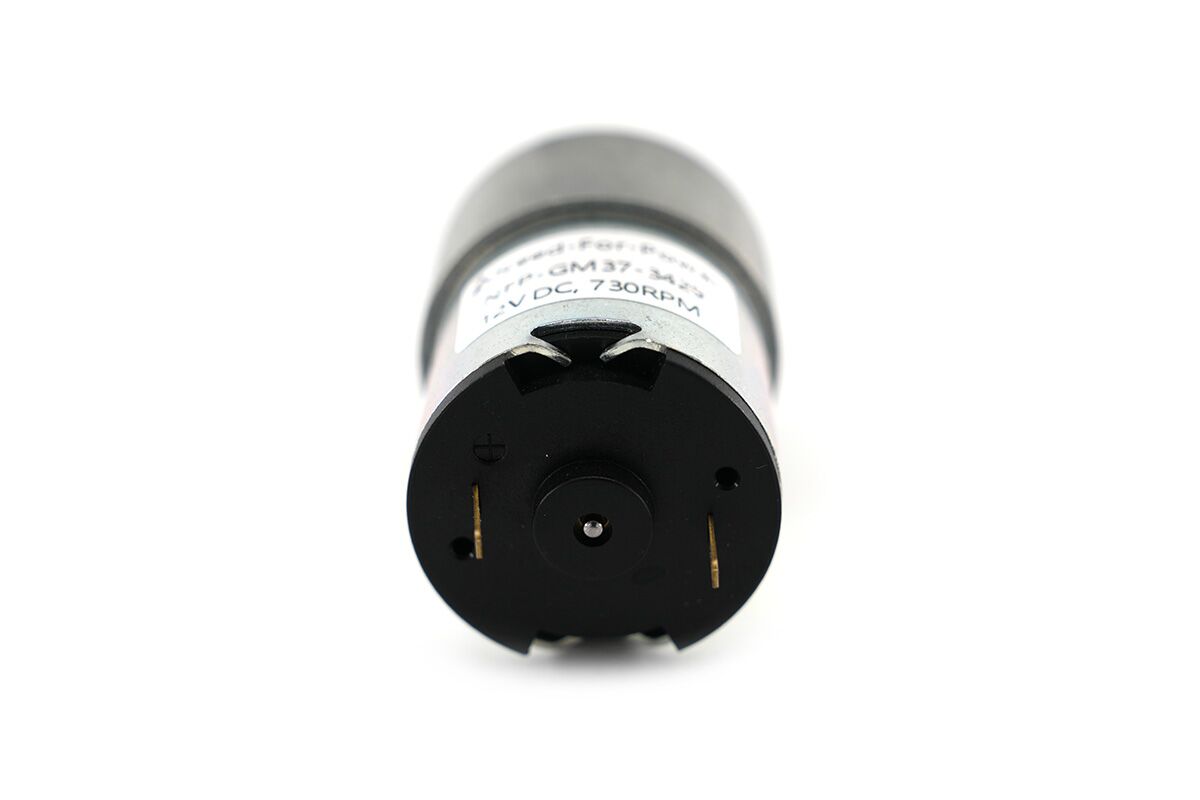

37mm Metal Gear Motor Model NFP-GM37-3429
$20.00
Experience high performance with the efficient 37mm long lifetime brush gear motor. Achieve your project goals with its powerful capabilities today!
12V DC High Performance DC Gear Motor Parameters
Specifications: 12V DC, high power 12W, reversible CW / CCW, speed reduction. Shaft info: 21mm shaft length, of which the length of D-cut is 12mm; 6mm diameter. Appr weight: 190g, various reduction ratios, diverse parameters, and varying weights. Long lifetime: More than 1,000hours
| Gear Ratio | No-load Current | No-load Speed | Rated Torque | Rated Torque | Rated Speed | Rated Current | Stall Current | Gearbox Length |
|---|---|---|---|---|---|---|---|---|
| 6.3:1 | ≤140mA | 1150rpm | 1.7kg.cm | 167mN.m | 600rpm | ≤2.0A | ≤3.8A | 19mm |
| 10:1 | ≤140mA | 730rpm | 2.7kg.cm | 265mN.m | 380rpm | ≤2.0A | ≤3.8A | 19mm |
| 18.8:1 | ≤140mA | 385rpm | 5.0kg.cm | 490mN.m | 200rpm | ≤2.0A | ≤3.8A | 19mm |
| 30:1 | ≤140mA | 242rpm | 8.0kg.cm | 784mN.m | 125rpm | ≤2.0A | ≤3.8A | 21.5mm |
| 50:1 | ≤140mA | 145rpm | 13.5kg.cm | 1324mN.m | 75rpm | ≤2.0A | ≤3.8A | 24mm |
| 90:1 | ≤140mA | 80rpm | 25.0kg.cm | 2450mN.m | 42rpm | ≤2.0A | ≤3.5A | 24mm |
| 150:1 | ≤140mA | 40rpm | <35.0kg.cm | <3.5N.m | 25rpm | ≤2.0A | ≤3.8A | 26.5mm |
| 270:1 | ≤140mA | 16rpm | <35.0kg.cm | <3.5N.m | 16rpm | ≤1.8A | ≤3.8A | 26.5mm |
| 450:1 | ≤140mA | 12rpm | <35.0kg.cm | <3.5N.m | 10rpm | ≤1.5A | ≤3.8A | 29mm |
| 650:1 | ≤140mA | 11rpm | <35.0kg.cm | <3.5N.m | 8rpm | ≤1.2A | ≤3.8A | 29mm |
| 810:1 | ≤140mA | 9rpm | <35.0kg.cm | <3.5N.m | 7rpm | ≤1.0A | ≤3.8A | 29mm |
Note: all reduced no-load speeds have a tolerance of ±15%.
High Quality Spur Gear Motor Outline Drawing
Spur gear motors can vary in noise levels depending on factors such as design, quality, load, speed, and lubrication. Higher-quality motors generally operate quieter, but noise can still vary significantly based on environmental conditions and how well-maintained the motor is.
DC Brushed Geared Motor Stator Housing Material Comparison
- Thickness of the galvanized shell is 1.0mm, thicker than ordinary ones 0.8mm, corrosion resistance.
- Strong magnetic tiles, strong endurance, strong tightness.
- High center magnetic force, high temperature resistance.
Metal DC Geared Motor Carbon Crystal Structure Size Comparison
- Integrated plastic end cover base structure for higher precision, ordinary motor is two-piece split end cover base structure.
- Carbon brush size 2.5 × 3.0mm, ordinary motor 1.8 × 2.3mm
- Three times longer wear life.
Keywords:
37mm metal gear motor, NFP-GM37-3429, high torque motor, 12V gear motor, low-speed motor, precision DC motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Phil Stewart –
I’m very happy with this metal gear motor. I built a small robotic arm with it and it handled everything I threw at it. It also runs very smoothly and quietly.Great choice if you need a reliable motor with plenty of power!
