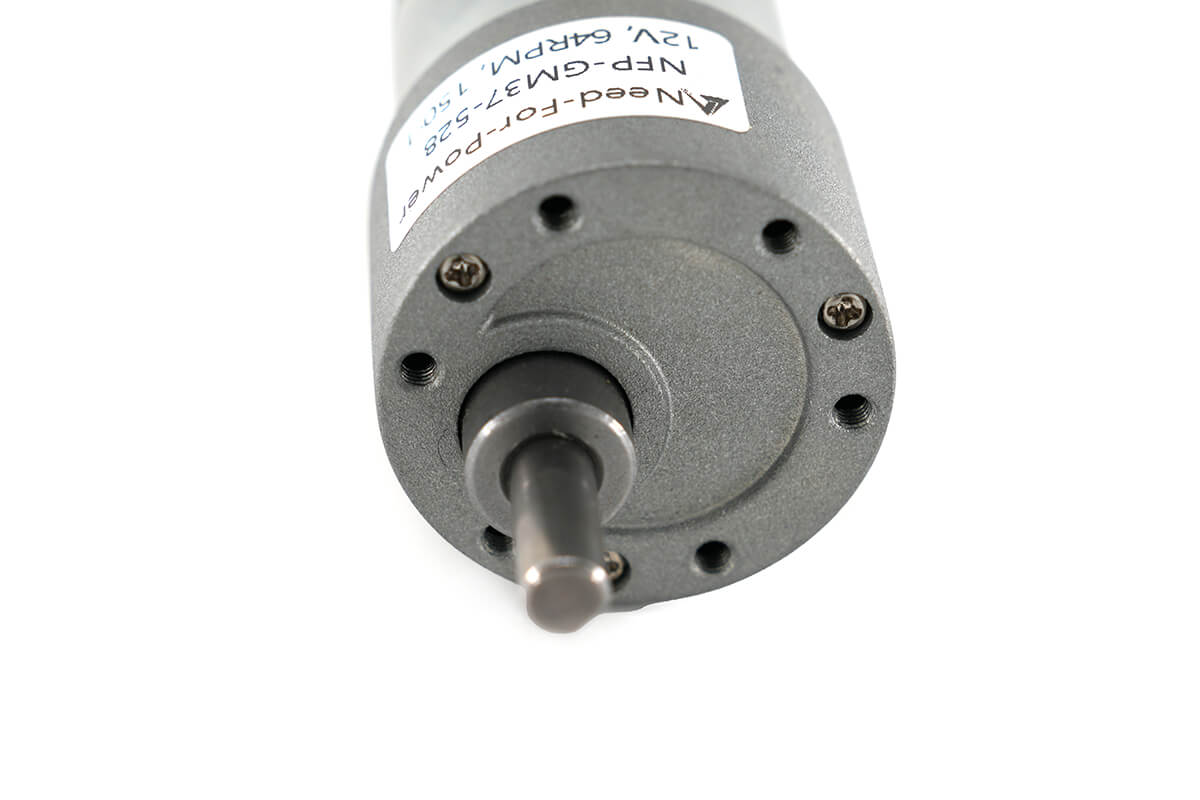

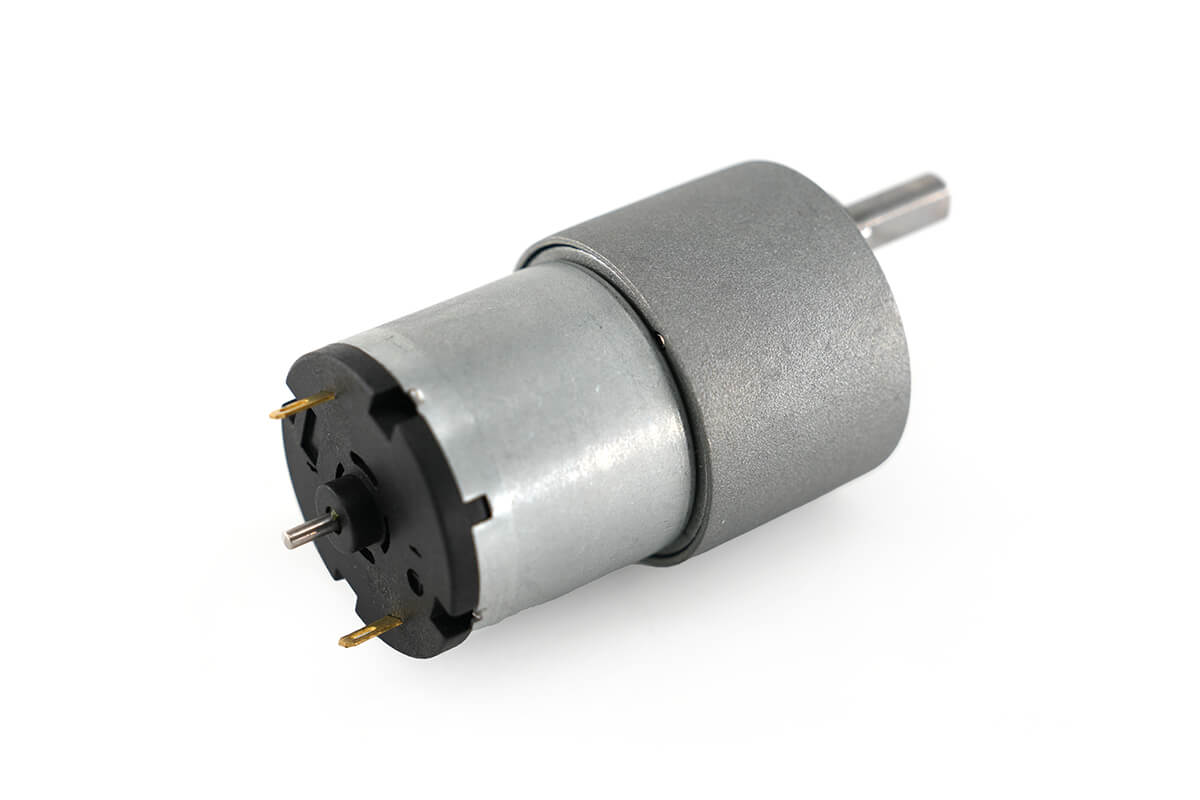

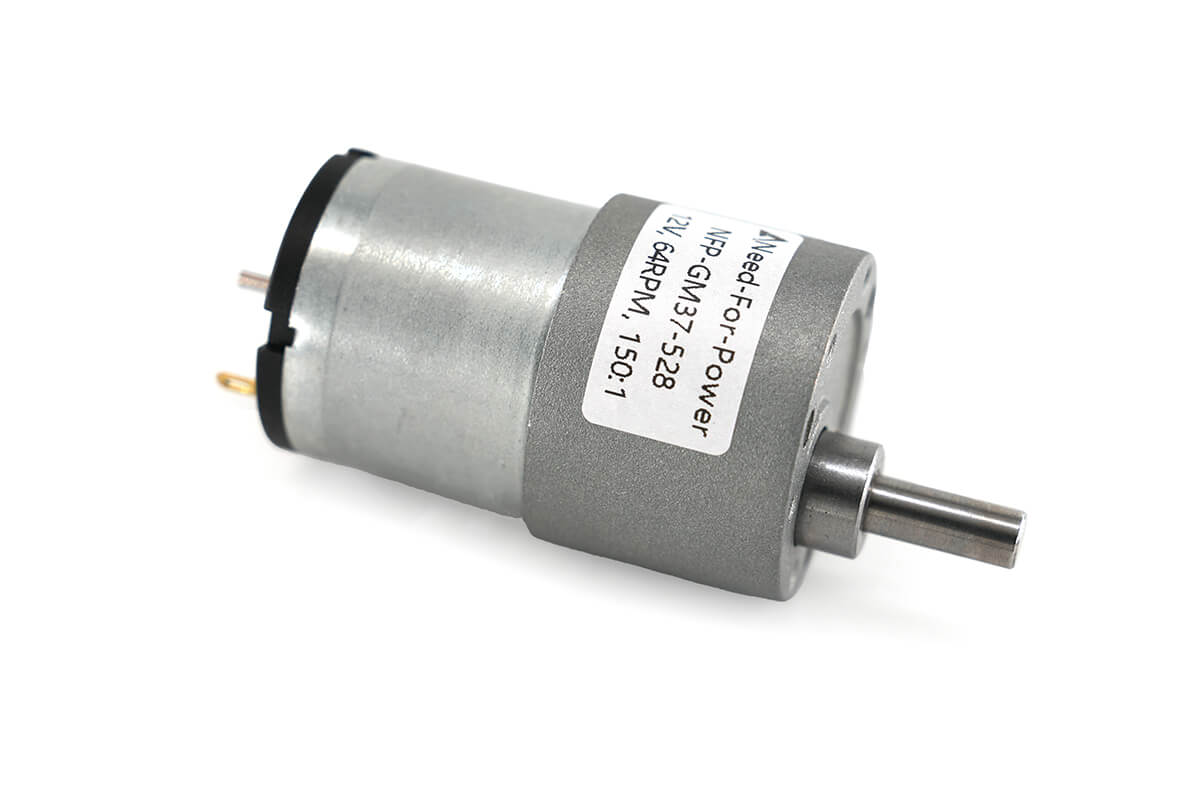

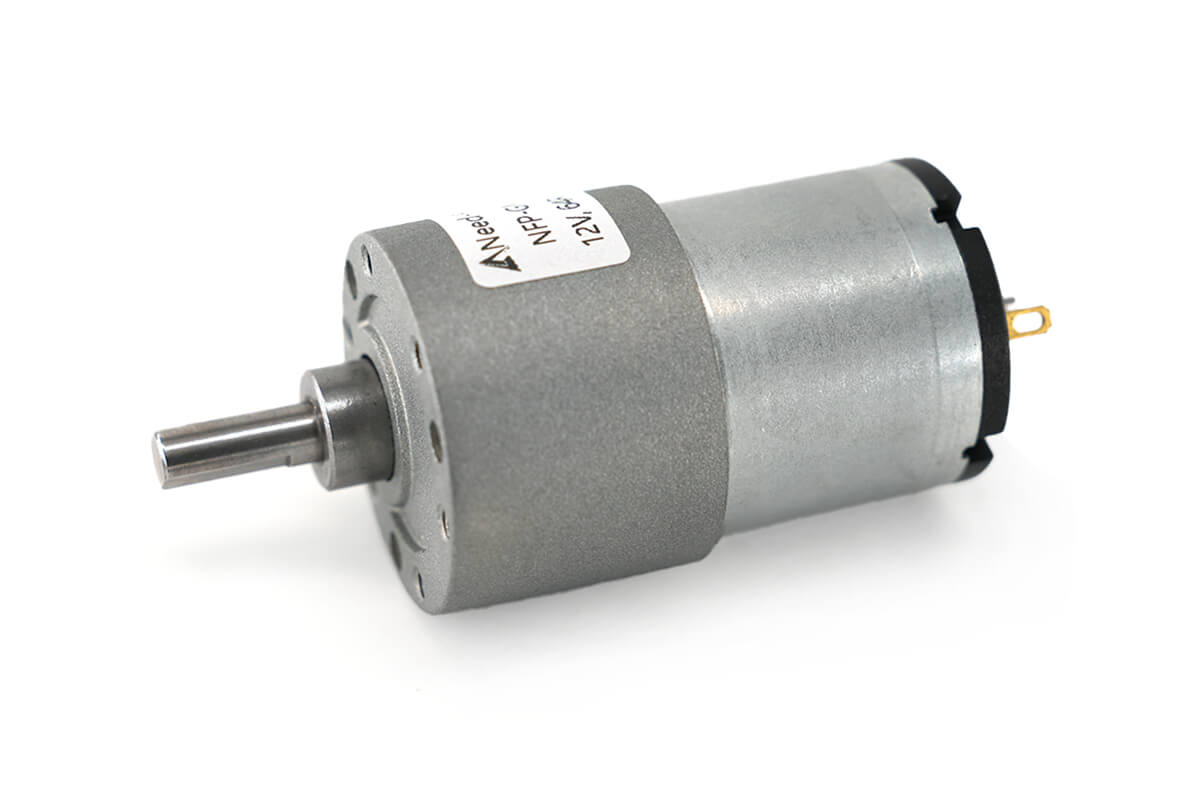

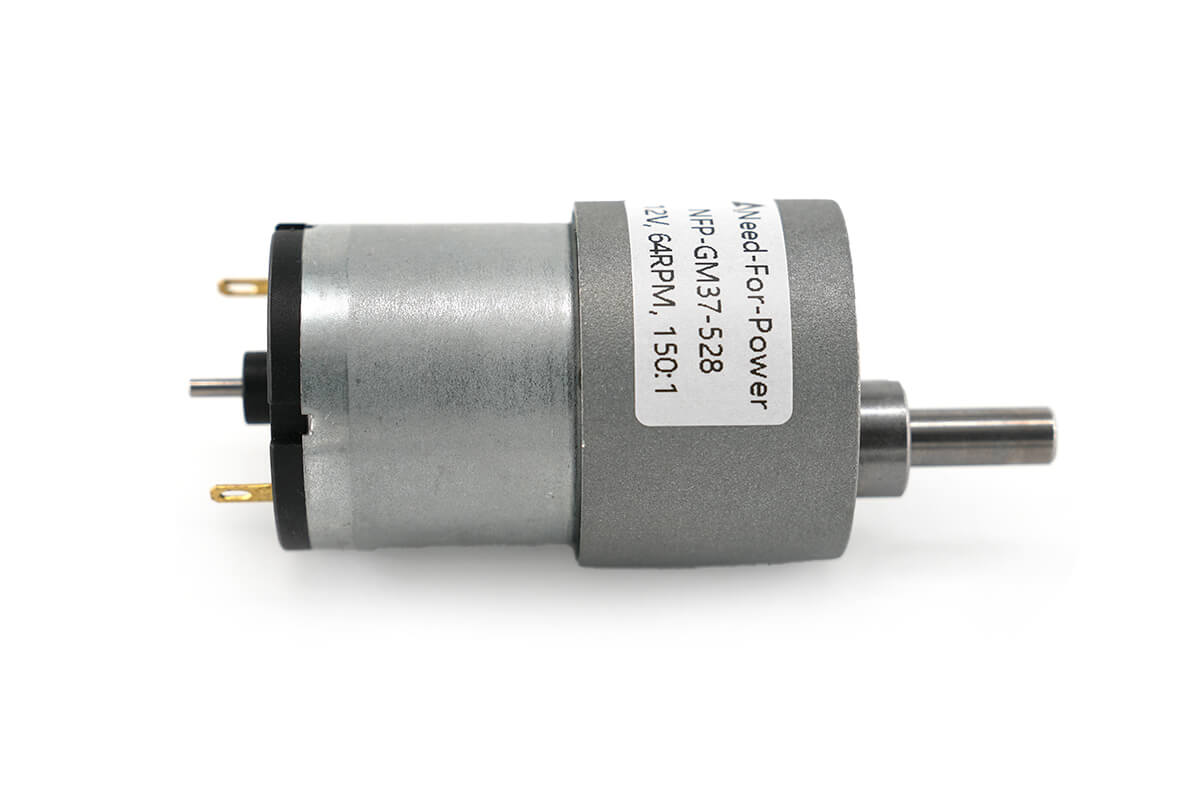

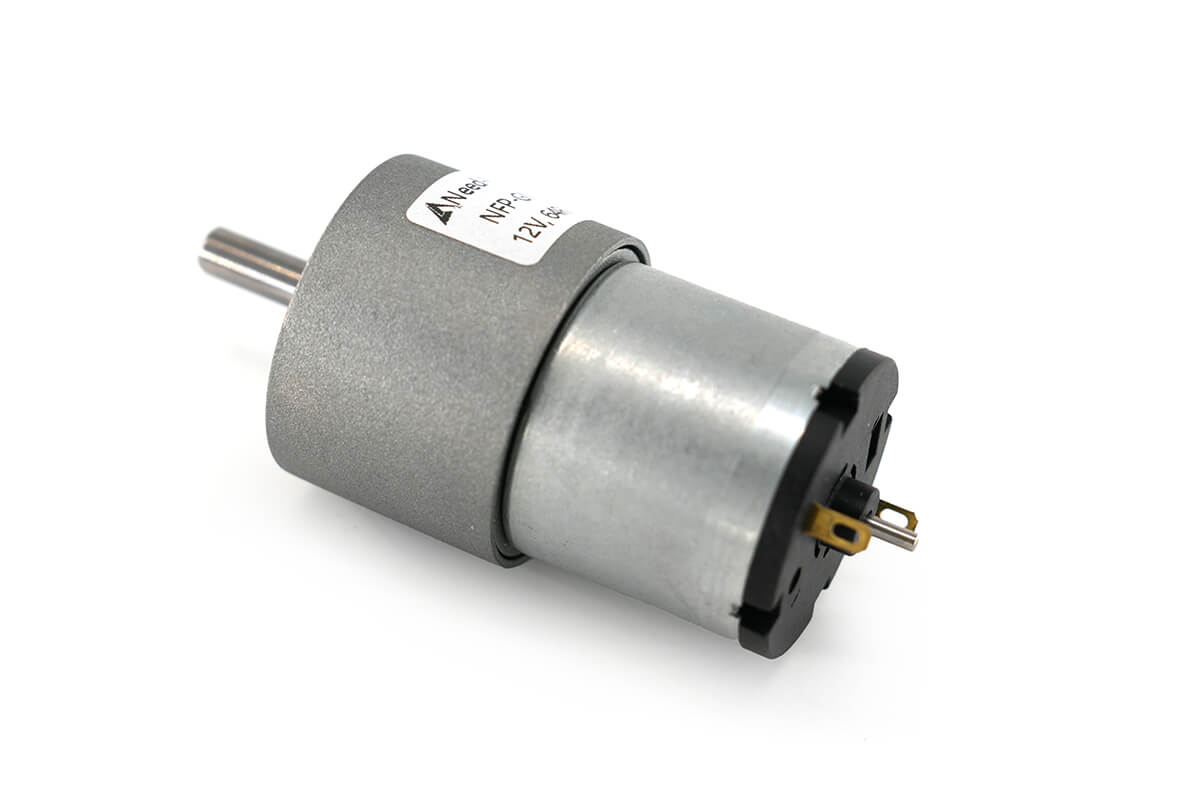

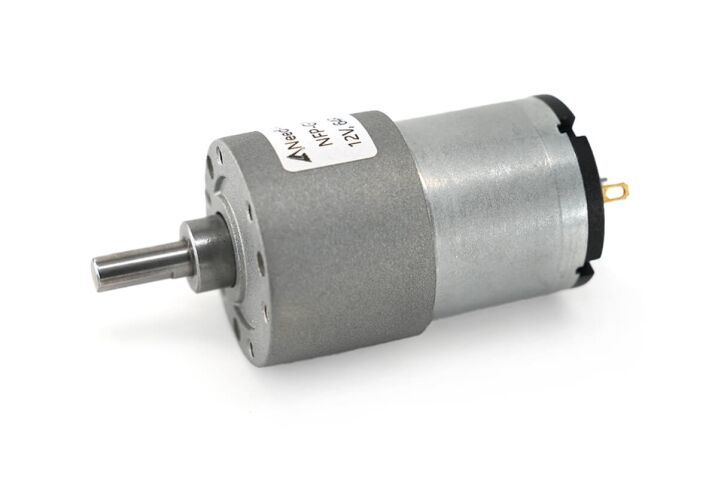

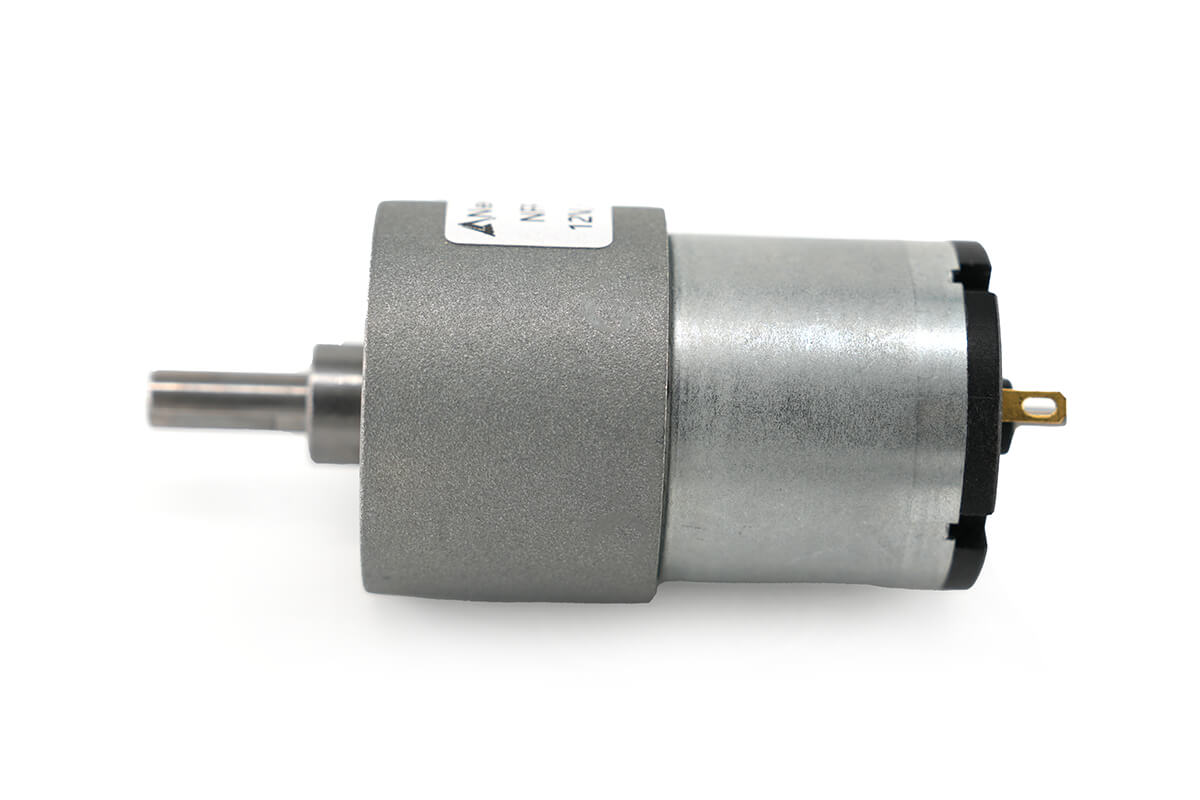

37mm Metal Gear Motor Model NFP-GM37-528
$15.50
Experience enhanced torque with the 37mm spur gear motor low speed high torque. Its durable design ensures long-lasting reliability. Buy now!
24V 12V DC Motor with Gearbox Datasheet
First, the NFP-GM37-528 is a 12V and 24V DC motor with gearbox. Also, it is an upgraded version of the NFP-GM37-520 reduction motor.
In addition, the motor length is increased by 8.5mm. As a result, the torque is increased by about 30% compared with the 520 reduction motor.
Moreover, the carbon brush uses a damping strip. Therefore, the motor can provide elastic, stable, and durable brush contact under suitable use.
Main Product Features
- First, upgraded motor: The 528 motor gives about 30% higher torque than the 520 motor.
- In addition, longer body: The motor length is increased by 8.5mm.
- Also, voltage options: The motor supports 12V and 24V DC.
- Next, carbon brush design: The damping strip helps support stable brush contact.
- Finally, high torque: Higher ratios provide strong low-speed output.
General Motor Data
First, the table below shows the main motor data. Also, it helps users check voltage, speed, current, power, shaft size, rotation, and weight before choosing a ratio.
| Model | NFP-GM37-528 |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No-load Speed | 15.5rpm – 1,530rpm |
| No-load Current | ≤0.13A / ≤0.2A |
| Power | 10W / 12W |
| Shaft Diameter | 6mm |
| Shaft Length | 21mm |
| Rotation | CW / CCW |
| Weight | Appr. 170g |
As a result, this motor gives high torque in a compact 37mm gear motor body. Moreover, the 6mm shaft helps connect wheels, gears, arms, and other drive parts.
Model: NFP-GM37-528, 12V DC
First, the 12V DC version is useful for compact 12V drive systems. Also, the table below helps users compare ratio, gearbox length, speed, current, torque, and stall data.
Therefore, users can choose a low ratio for higher speed. In addition, users can choose a high ratio for stronger slow-speed output.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤0.2A | 1,530rpm | ≤2.0A | 1,030rpm | 0.6kg.cm | ≤6.0A | 1.6kg.cm |
| 10:1 | 19mm | ≤0.2A | 960rpm | ≤2.0A | 650rpm | 1.0kg.cm | ≤6.0A | 2.7kg.cm |
| 18.8:1 | 21.5mm | ≤0.2A | 510rpm | ≤2.0A | 346rpm | 1.8kg.cm | ≤6.0A | 4.8kg.cm |
| 30:1 | 22mm | ≤0.2A | 320rpm | ≤2.0A | 215rpm | 3.0kg.cm | ≤6.0A | 7.5kg.cm |
| 50:1 | 24mm | ≤0.2A | 192rpm | ≤2.0A | 130rpm | 4.8kg.cm | ≤6.0A | 13kg.cm |
| 90:1 | 24mm | ≤0.2A | 107rpm | ≤2.0A | 72rpm | 8.5kg.cm | ≤6.0A | 21kg.cm |
| 150:1 | 26.5mm | ≤0.2A | 64rpm | ≤2.0A | 43rpm | 14.5kg.cm | ≤6.0A | 33kg.cm |
| 260:1 | 26.5mm | ≤0.2A | 35rpm | ≤2.0A | 25rpm | 20kg.cm | ≤6.0A | not allowed stalling |
| 450:1 | 29mm | ≤0.2A | 21rpm | ≤2.0A | 14rpm | 25kg.cm | ≤6.0A | not allowed stalling |
| 630:1 | 29mm | ≤0.2A | 15.5rpm | ≤2.0A | 10rpm | 30kg.cm | ≤6.0A | not allowed stalling |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 12V version covers speeds from 15.5rpm to 1,530rpm. Moreover, the 630:1 ratio gives the strongest rated torque in this table.
Model: NFP-GM37-528, 24V DC
Next, the 24V DC version gives the same speed range with lower current than the 12V version. Also, it is useful for 24V systems that need strong torque and steady output.
Therefore, users can choose this version for higher-voltage control boards. In addition, the high-ratio options support slow drive tasks with strong torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤0.13A | 1,530rpm | ≤1.2A | 1,030rpm | 0.6kg.cm | ≤3.5A | 1.6kg.cm |
| 10:1 | 19mm | ≤0.13A | 960rpm | ≤1.2A | 650rpm | 1.0kg.cm | ≤3.5A | 2.7kg.cm |
| 18.8:1 | 21.5mm | ≤0.13A | 510rpm | ≤1.2A | 346rpm | 1.8kg.cm | ≤3.5A | 4.8kg.cm |
| 30:1 | 22mm | ≤0.13A | 320rpm | ≤1.2A | 215rpm | 3.0kg.cm | ≤3.5A | 7.5kg.cm |
| 50:1 | 24mm | ≤0.13A | 192rpm | ≤1.2A | 130rpm | 4.8kg.cm | ≤3.5A | 13kg.cm |
| 90:1 | 24mm | ≤0.13A | 107rpm | ≤1.2A | 72rpm | 8.5kg.cm | ≤3.5A | 21kg.cm |
| 150:1 | 26.5mm | ≤0.13A | 64rpm | ≤1.2A | 43rpm | 14.5kg.cm | ≤3.5A | 33kg.cm |
| 260:1 | 26.5mm | ≤0.13A | 35rpm | ≤1.2A | 25rpm | 20kg.cm | ≤3.5A | not allowed stalling |
| 450:1 | 29mm | ≤0.13A | 21rpm | ≤1.2A | 14rpm | 25kg.cm | ≤3.5A | not allowed stalling |
| 630:1 | 29mm | ≤0.13A | 15.5rpm | ≤1.2A | 10rpm | 30kg.cm | ≤3.5A | not allowed stalling |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 24V version is a good fit for higher-voltage systems that need lower current and strong low-speed torque. Also, the 630:1 ratio gives the strongest rated torque.
High Torque Miniature DC Gear Motor Outline Drawing
First, the outline drawing helps users check motor size, gearbox length, shaft size, and mounting space. Therefore, it is useful before sample testing and product design.
In addition, this motor uses an all-metal gear structure. As a result, the spiral gear starting structure helps support stable motor work.

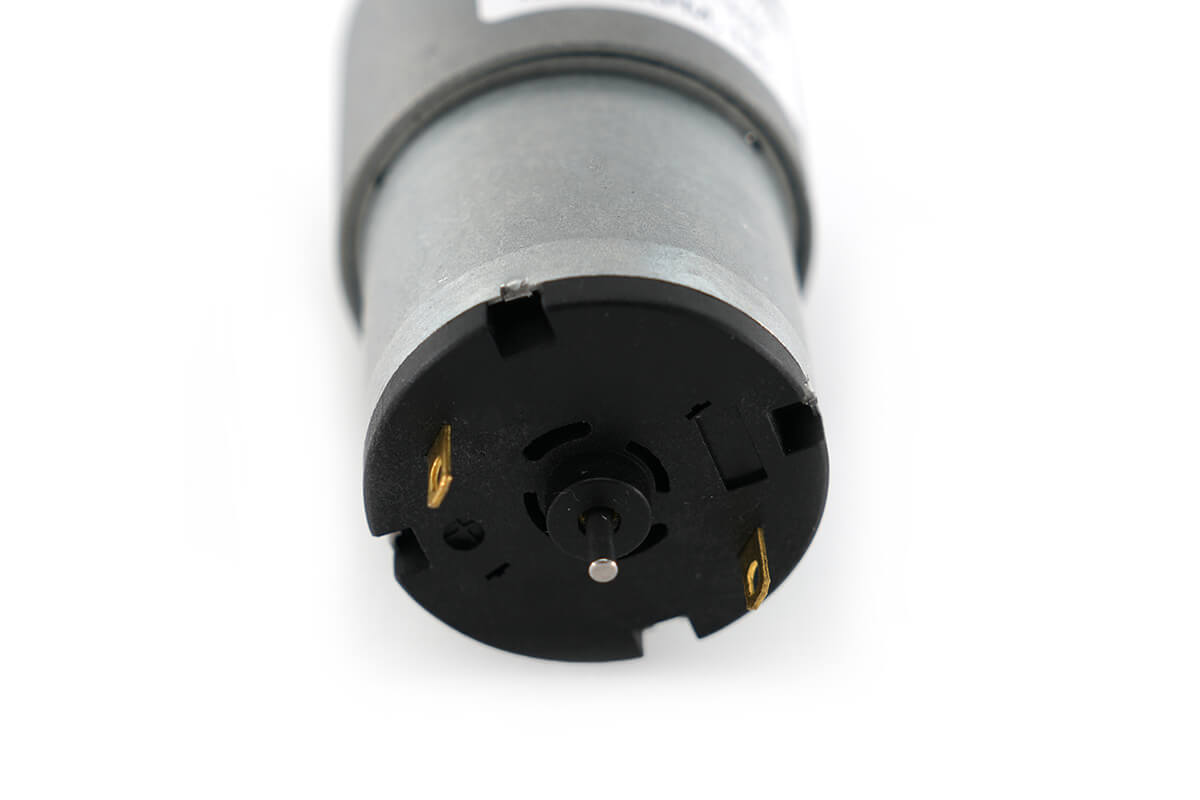

Moreover, the D-type shaft is convenient for fixed output use. Also, the reserved rear shaft makes encoder installation easier.
Outline Drawing and Design Benefits
- First, all-metal gears: The gear structure helps improve strength under load.
- In addition, spiral gear start: The structure helps support stable performance.
- Also, D-type shaft: The shaft helps connect drive parts firmly.
- Next, rear shaft: The reserved rear shaft makes encoder installation easier.
- Finally, high torque: The gearbox helps provide strong slow-speed output.
Typical Applications
Finally, this 12V and 24V DC motor with gearbox is useful for products that need strong torque and stable output. For example, it can work in robots, smart devices, tools, and compact machines.
- Robots
- Smart devices
- Electric tools
- Compact machines
- Automation systems
- Drive modules
- Low-speed high-torque products
In short, the NFP-GM37-528 DC motor with gearbox is a good fit for products that need 12V or 24V DC power, higher torque than the 520 motor, all-metal gears, 6mm shaft, and strong low-speed output.
Keywords: 37mm metal gear motor, NFP-GM37-528, high torque motor, low speed motor, 12V motor, 24V DC motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
