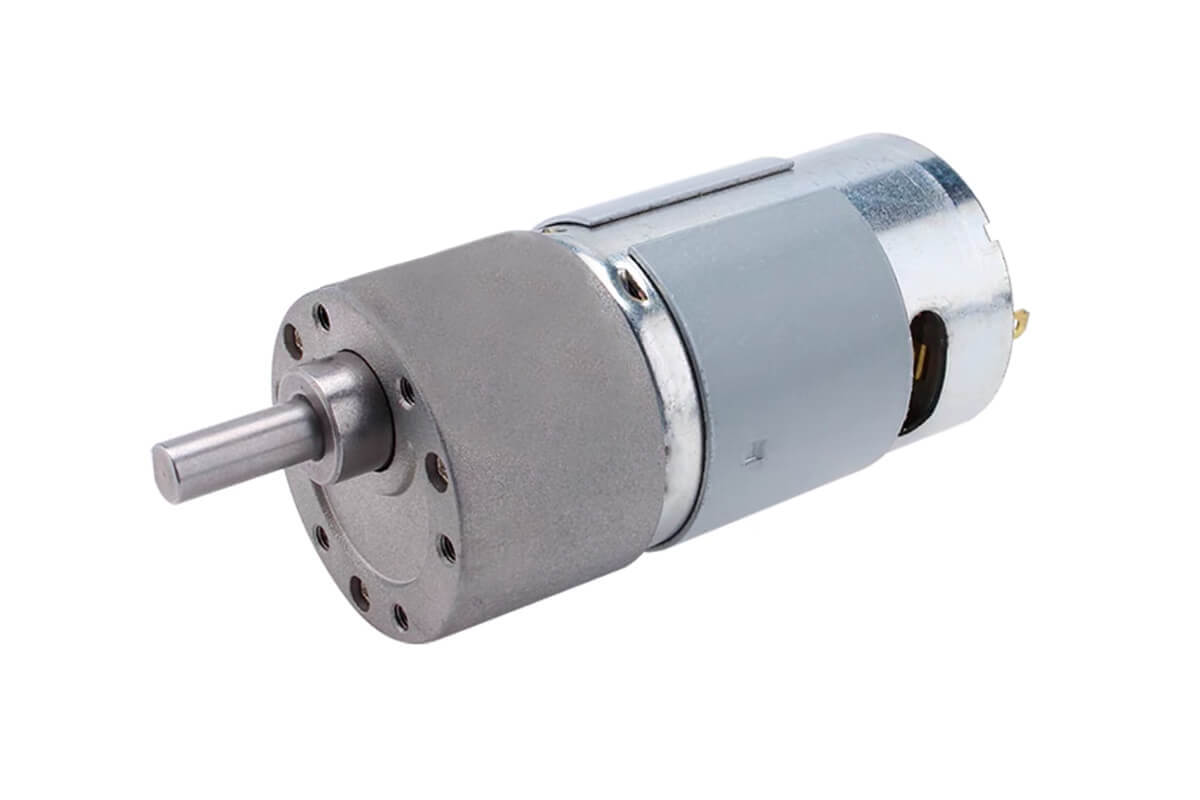

37mm Metal Gear Motor Model NFP-GM37-545
$18.50
Maximize your potential with the 545 brushed gear motor with reducer high torque. It’s designed for efficiency and performance in numerous applications.
12 Volt Gear Reduction Motor NFP-GM37-545 Performance
First, the NFP-GM37-545 is a strong 12V / 24V DC gear motor for high torque and smooth running. Also, it offers many gear ratios from 6.3:1 to 810:1.
In addition, this motor gives torque from 0.5kg.cm to 30kg.cm. Therefore, it is useful for low-speed and high-torque use in robots, factory machines, and tools.
Moreover, the metal gearbox helps reduce speed and raise torque. As a result, users can choose a fast ratio or a slow high-torque ratio for each project.
Main Product Features
- First, high torque output: The motor gives strong torque for robots and factory machines.
- In addition, durable build: The metal gears help improve wear life and support steady work.
- Also, many gear ratios: The ratios range from 6.3:1 to 810:1.
- Next, smooth running: The machined parts help the motor run smoothly under load.
- Finally, wide use: The motor is a good choice for robots, machines, and tools.
12V DC Gear Motor Performance Table
First, the 12V DC version is useful for compact systems that need low current and stable torque. Also, the table below helps users compare ratio, gearbox length, speed, current, and torque.
Therefore, users can choose a lower ratio for higher speed. In addition, users can choose a higher ratio for stronger low-speed output.
Model: NFP-GM37-545, 12V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤120mA | 550rpm | ≤0.55A | 490rpm | 0.3kg.cm | 3.6A | ≥2.5kg.cm |
| 10:1 | 19mm | ≤120mA | 350rpm | ≤0.55A | 308rpm | 0.4kg.cm | 3.6A | ≥4kg.cm |
| 30:1 | 22mm | ≤120mA | 116.5rpm | ≤0.55A | 100rpm | 1.1kg.cm | 3.6A | ≥12kg.cm |
| 50:1 | 24mm | ≤120mA | 70rpm | ≤0.55A | 60rpm | 2.1kg.cm | 3.6A | ≥19kg.cm |
| 90:1 | 24mm | ≤120mA | 39rpm | ≤0.55A | 34rpm | 3.5kg.cm | / | ≥32kg.cm |
| 150:1 | 26.5mm | ≤120mA | 23.5rpm | ≤0.55A | 20rpm | 6.5kg.cm | / | ≤35kg.cm |
| 270:1 | 26.5mm | ≤120mA | 13.5rpm | ≤0.55A | 11rpm | 10kg.cm | / | ≤35kg.cm |
| 450:1 | 29mm | ≤120mA | 8rpm | ≤0.55A | 6rpm | 18kg.cm | / | ≤35kg.cm |
| 650:1 | 29mm | ≤120mA | 5.5rpm | ≤0.55A | 4rpm | 25kg.cm | / | ≤35kg.cm |
| 810:1 | 29mm | ≤120mA | 4.5rpm | ≤0.55A | 3rpm | 25kg.cm | / | ≤35kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, higher gear ratios give more torque but lower speed. Therefore, users should choose the ratio that best matches the load.
In addition, all 12V ratios share the same low no-load current of ≤120mA. Moreover, the gearbox length stays compact even at higher ratios.
24V DC Gear Motor Performance Table
Next, the 24V DC version gives higher speed than the 12V version at each ratio. Also, it is useful when faster output is needed in the same gear motor size.
Therefore, users can choose this version for 24V control systems. In addition, the high-ratio options still provide strong low-speed torque.
Model: NFP-GM37-545, 24V DC
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤150mA | 1111rpm | ≤0.8A | 980rpm | 0.5kg.cm | 7.5A | ≥5kg.cm |
| 10:1 | 19mm | ≤150mA | 700rpm | ≤0.8A | 617rpm | 0.8kg.cm | 7.5A | ≥8kg.cm |
| 30:1 | 22mm | ≤150mA | 233rpm | ≤0.8A | 205rpm | 2.3kg.cm | 7.5A | ≥24kg.cm |
| 50:1 | 24mm | ≤150mA | 140rpm | ≤0.8A | 123rpm | 3.9kg.cm | 7.5A | ≤35kg.cm |
| 90:1 | 24mm | ≤150mA | 78rpm | ≤0.8A | 69rpm | 6.5kg.cm | / | ≤35kg.cm |
| 150:1 | 26.5mm | ≤150mA | 47rpm | ≤0.8A | 41rpm | 11kg.cm | / | ≤35kg.cm |
| 270:1 | 26.5mm | ≤150mA | 27rpm | ≤0.8A | 24rpm | 20kg.cm | / | ≤35kg.cm |
| 450:1 | 29mm | ≤150mA | 16rpm | ≤0.8A | 14rpm | 30kg.cm | / | ≤35kg.cm |
| 650:1 | 29mm | ≤150mA | 11rpm | ≤0.8A | 9rpm | 30kg.cm | / | ≤35kg.cm |
| 810:1 | 29mm | ≤150mA | 9rpm | ≤0.8A | 8rpm | 30kg.cm | / | ≤35kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
Similarly, the 24V version produces about double the speed at each ratio compared with the 12V model. Therefore, it is the better choice when faster output is needed.
Furthermore, the high-ratio options can support strong torque for heavy loads. In short, both voltage options cover many real drive needs.
DC Brush Gear Motor 12V 24V Outline Drawing
First, the outline drawing helps users check motor size, gearbox length, shaft size, and mounting space. Also, it is useful before sample testing and product design.
In addition, this motor runs well under load while keeping current use low. Therefore, it is useful for battery-powered systems and compact machines.
Moreover, the low-speed and high-torque design helps reduce power waste. As a result, the motor suits equipment that needs steady motion without frequent charging.
Outline Drawing and Design Benefits
- First, metal gearbox: The gearbox helps provide strong low-speed torque.
- In addition, wide ratio range: Users can choose speed or torque based on the load.
- Also, low current: The no-load current helps support energy-saving designs.
- Next, compact body: The motor can fit tight product spaces.
- Finally, two voltage options: 12V and 24V versions support different systems.
Applications
First, this motor is well suited for robotics, industrial machinery, and precision tools. Also, the metal gearbox gives better strength and service life.
In addition, the wide gear ratio range gives more design freedom. For example, users can choose a high-speed low-torque option or a low-speed high-torque option.
Furthermore, the motor is easy to add to new or existing systems. In conclusion, the NFP-GM37-545 is a flexible and reliable choice for engineers and product designers.
- Robotics
- Industrial machinery
- Precision tools
- Battery-powered systems
- Compact machines
- Low-speed drive products
- High-torque drive units
In short, the NFP-GM37-545 gear reduction motor is a good fit for products that need 12V or 24V DC power, compact gearbox, low current, many ratio choices, and strong low-speed torque.
