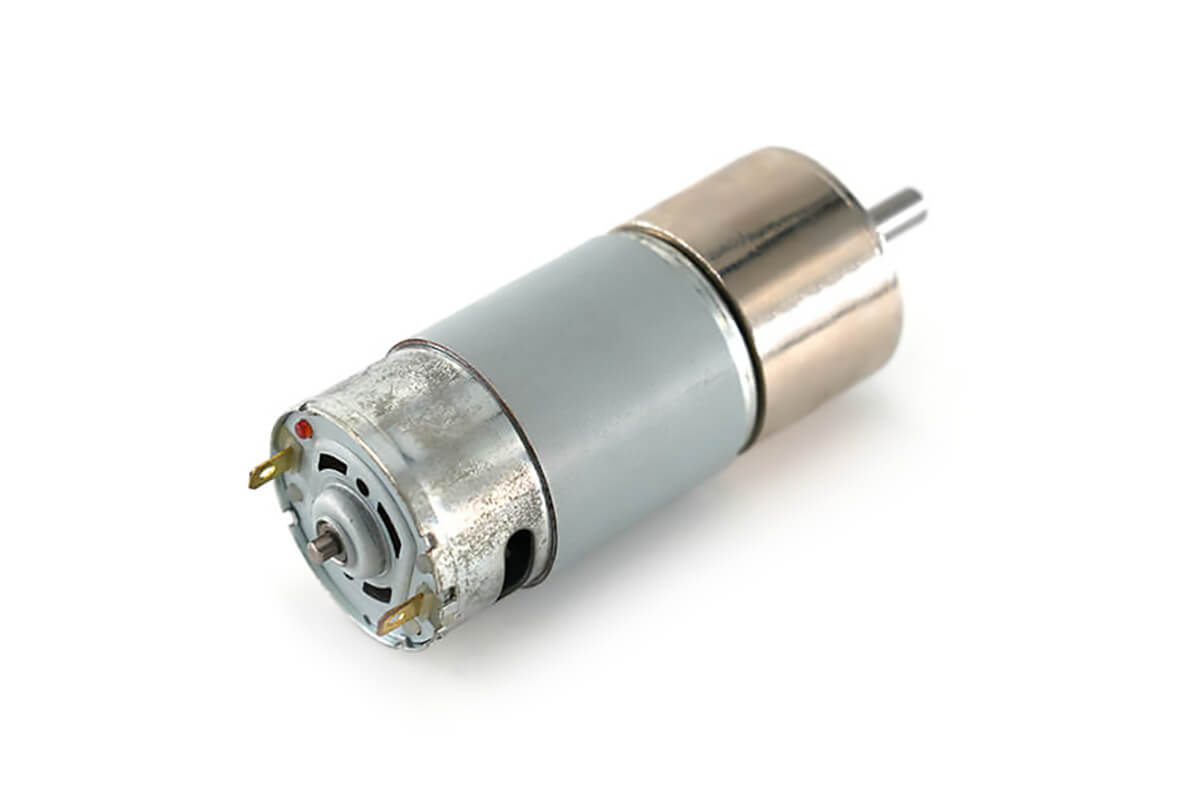

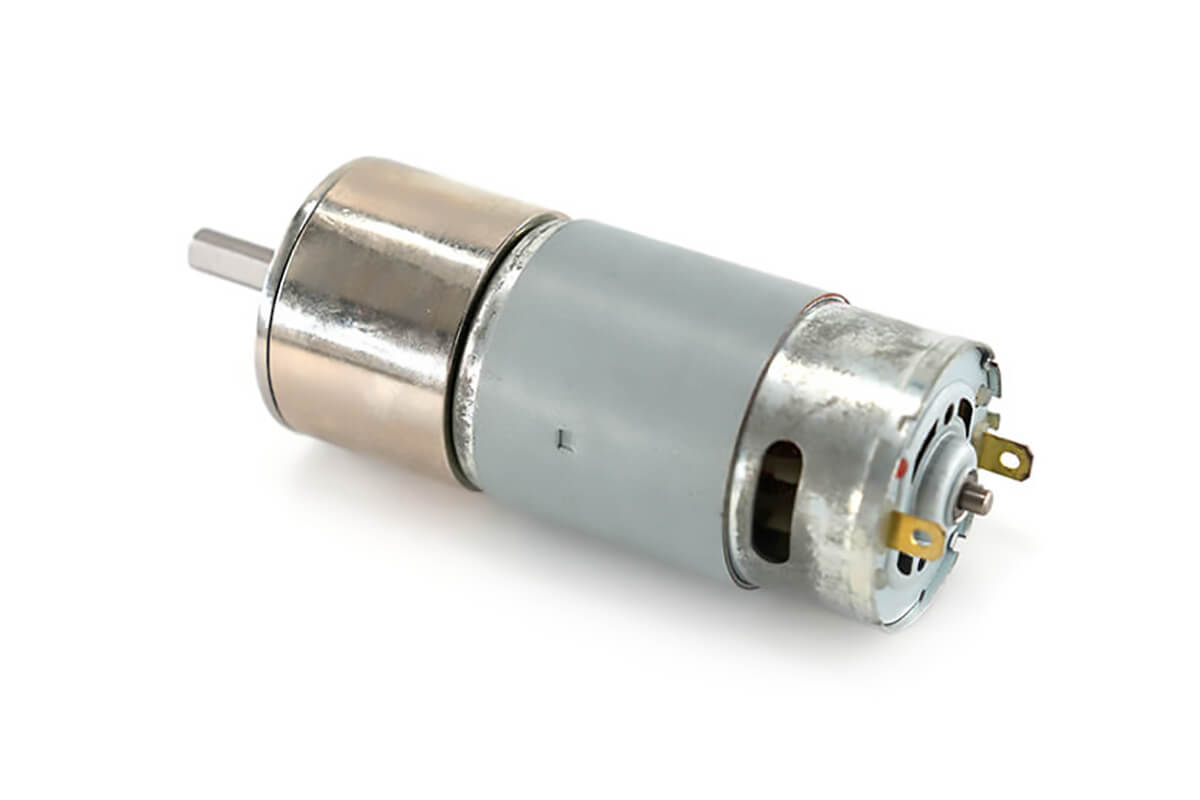

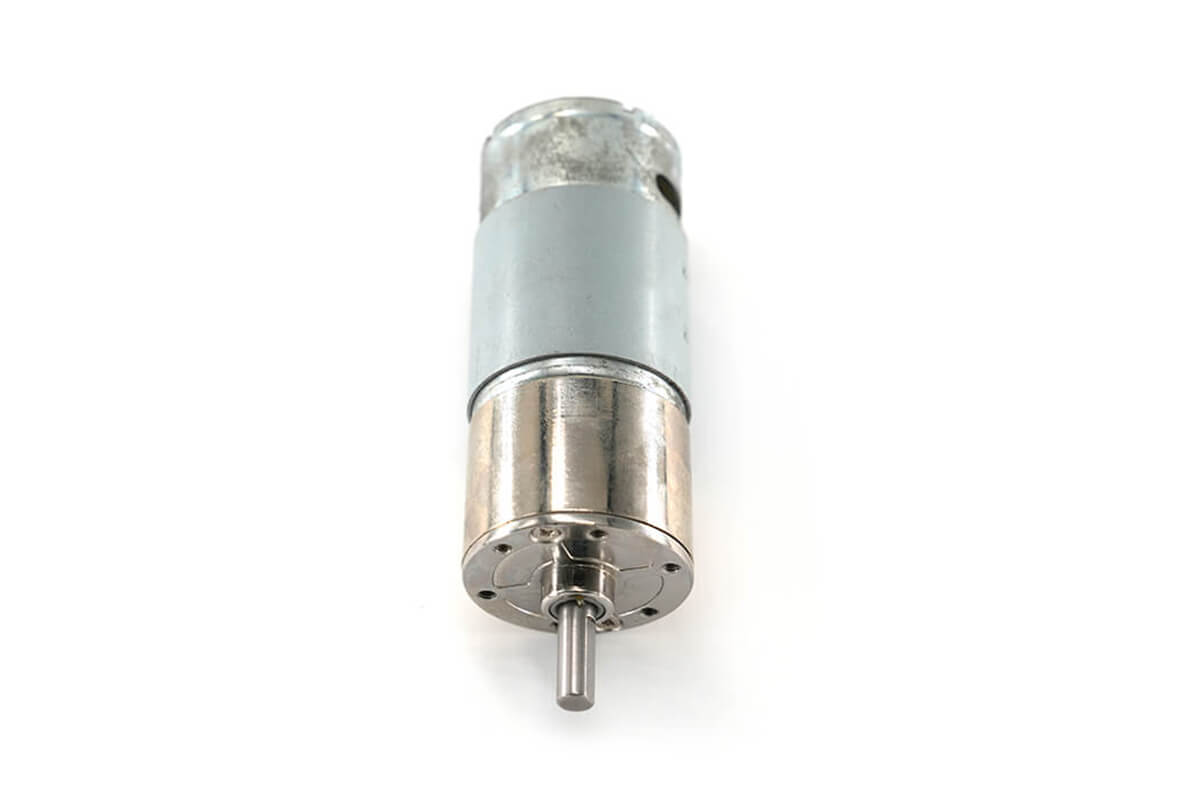

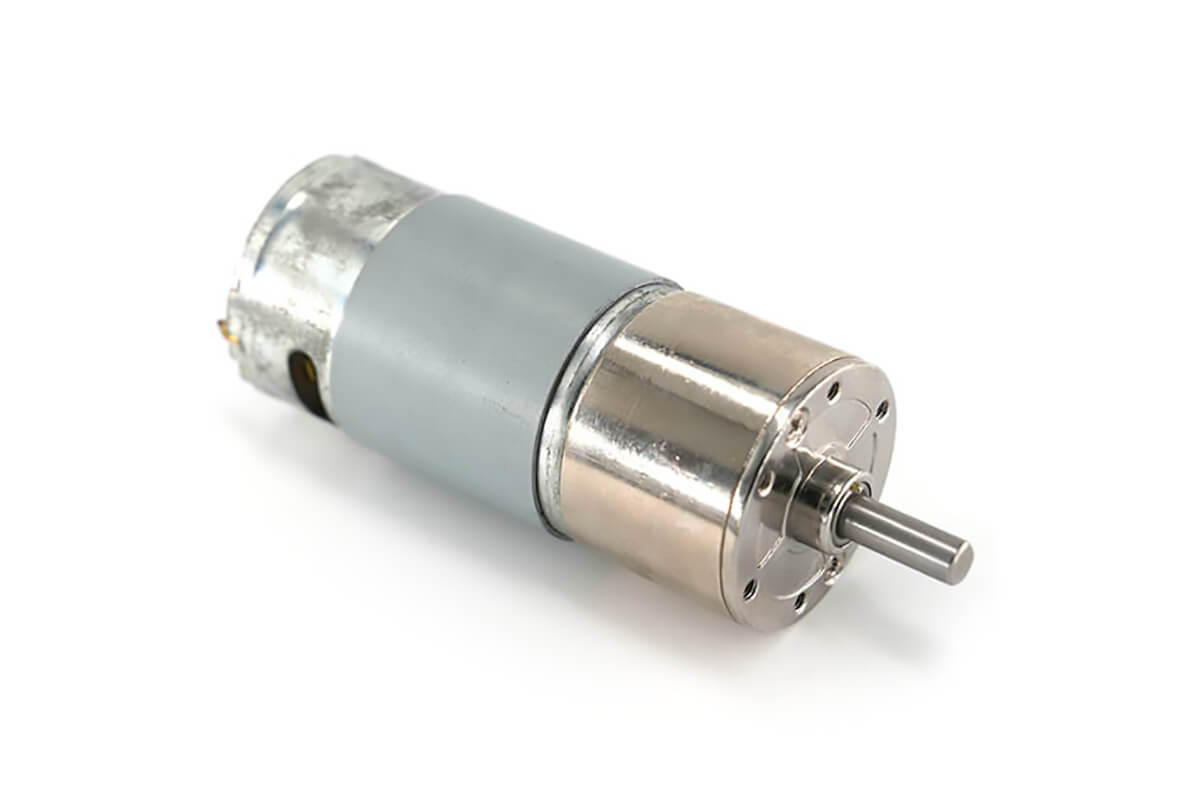

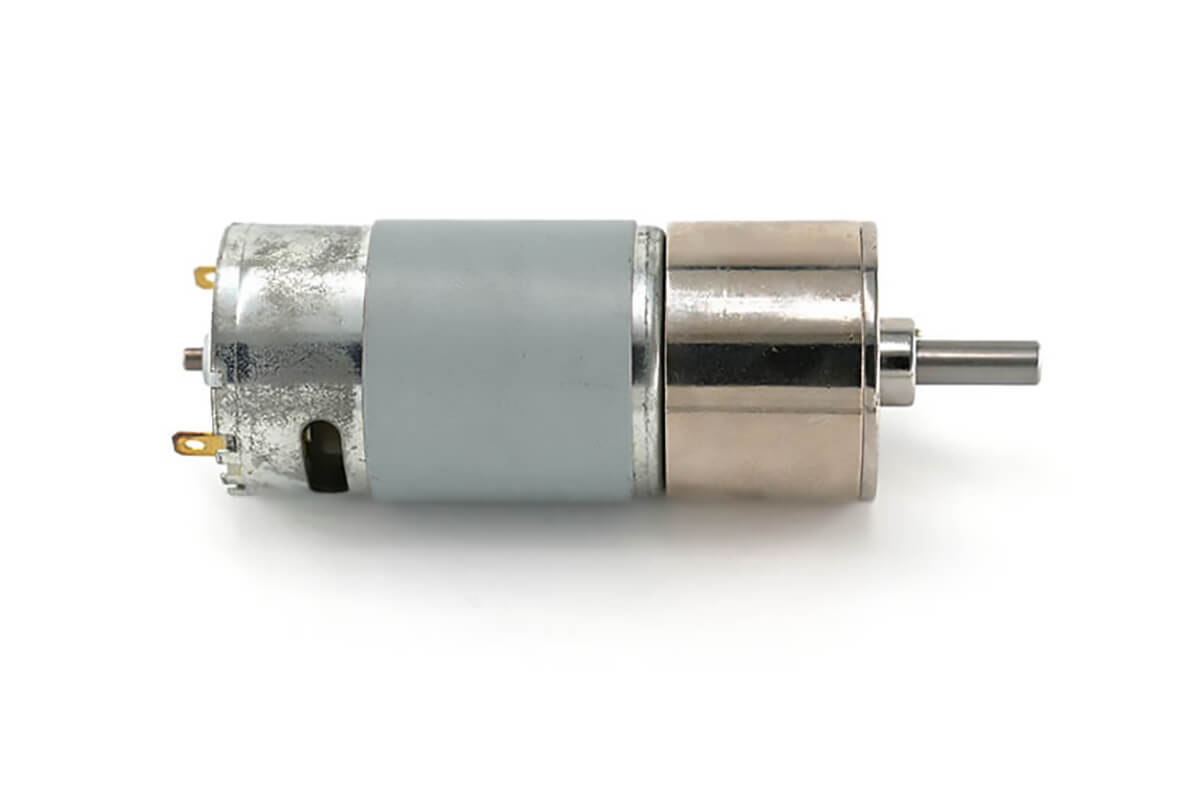

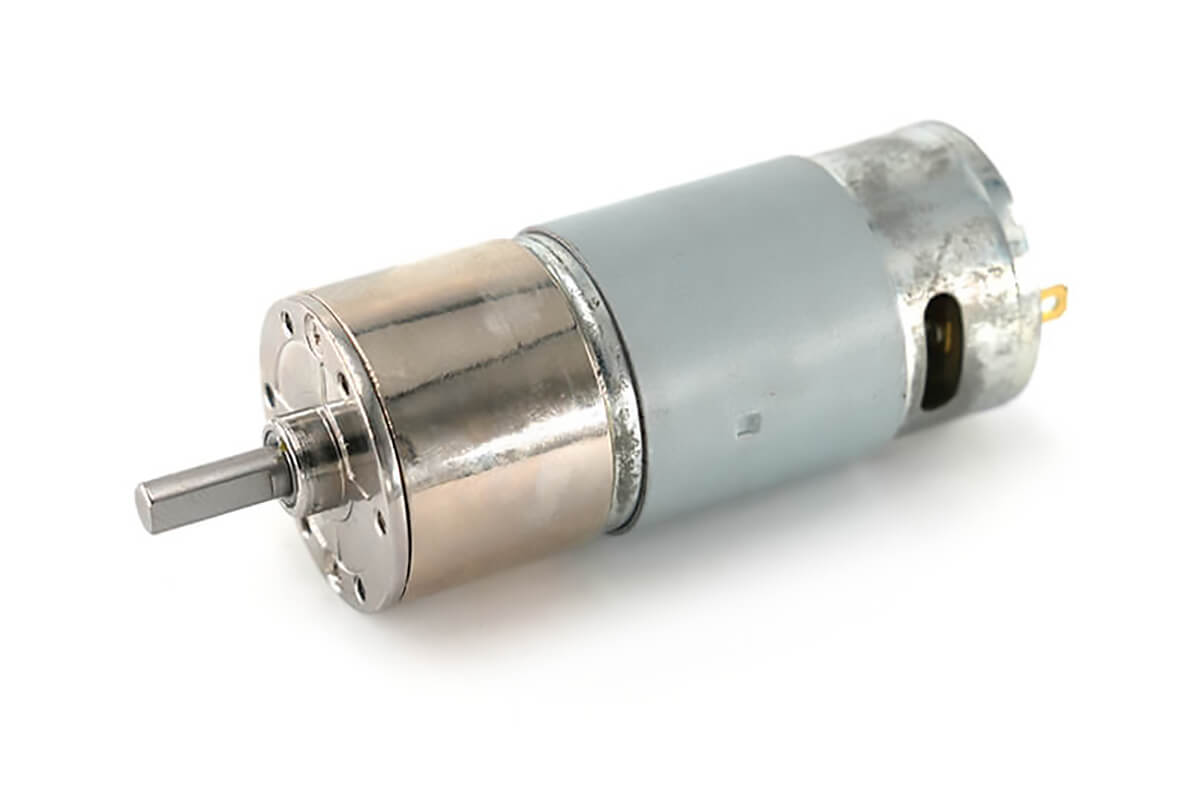

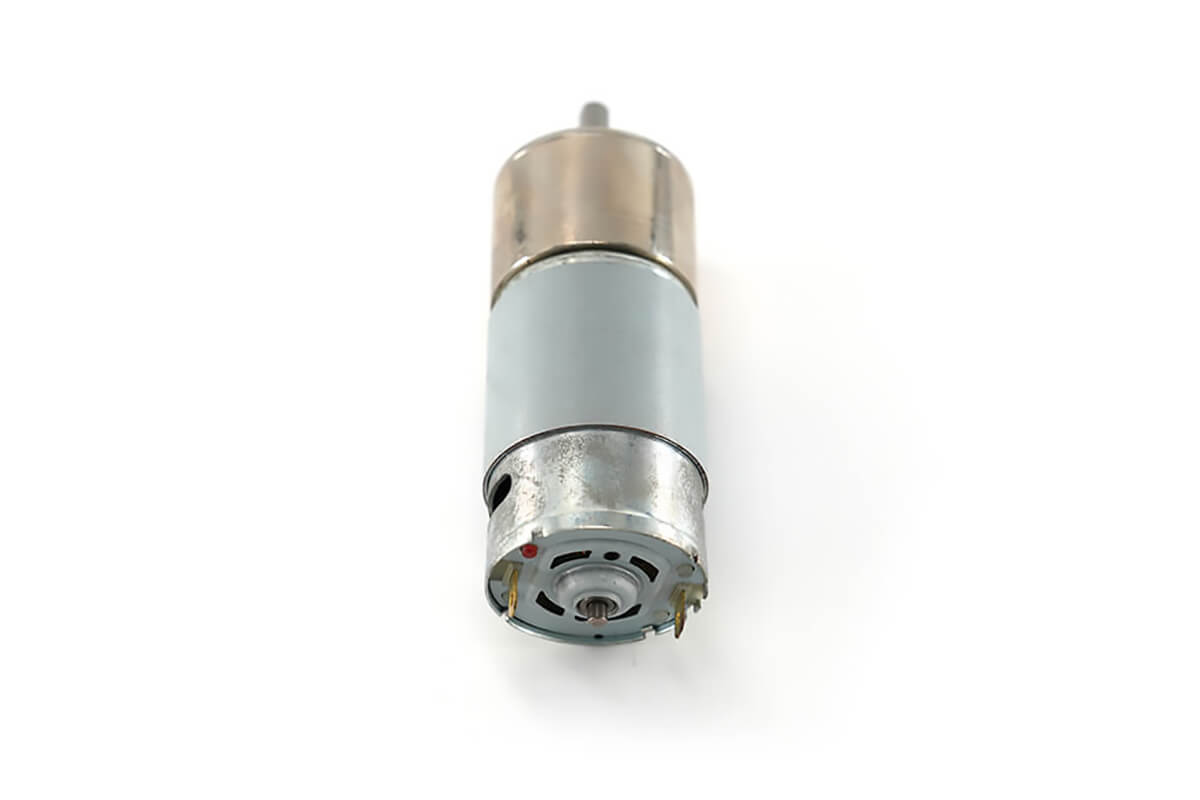

37mm Metal Gear Motor Model NFP-GM37-550CS
$20.00
Enhance your builds with the reliable 37mm metal gear motor centre shaft. Achieve optimal output speed and torque with every use! ⚙️
DC Gear Motor 12V 24V Specification
First, the NFP-GM37-550CS is a high-torque DC gear motor for compact drive systems. Also, it supports both 12V and 24V DC power.
In addition, this model combines an electric motor, a metal gearbox, and a center output shaft. Therefore, it can reduce speed and raise torque for many machines and drive units.
Moreover, the 37mm metal gearbox gives strong output in a compact body. As a result, this motor is a good choice for products that need low speed and high torque.
Gear Motor Components
- Electric motor: The motor supplies the main drive power.
- Gearbox: The gearbox lowers speed and raises output torque.
- Output shaft: The shaft transfers power to the connected machine or drive part.
Main Product Features
- 37mm metal gearbox: Supports strong and stable torque output.
- Voltage options: Available for 12V and 24V DC systems.
- Wide speed range: Offers no-load speeds from 40rpm to 650rpm.
- High torque: Provides up to 30kg.cm torque.
- Long life: Supports a service life of at least 800h under suitable use.
- Center output shaft: Makes connection to wheels, gears, and drive parts easier.
General Motor Data
First, the table below shows the main motor data. Also, it helps users compare voltage, speed, current, torque, shaft size, rotation, life, and weight.
Therefore, users can check the basic motor limits before selecting a gearbox ratio. In addition, the data helps match the motor to the available power supply and load.
| Model | NFP-GM37-550CS |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No-load Speed | 40rpm–650rpm |
| No-load Current | ≤0.45A / ≤0.6A |
| Max Torque | 30kg.cm |
| Shaft Diameter | 6mm |
| Shaft Length | 21mm |
| Rotation | CW / CCW |
| Lifetime | ≥800h |
| Weight | Approx. 300g |
As a result, this model offers strong torque in one compact gear motor body. Moreover, the 6mm shaft can connect to wheels, gears, arms, and other drive parts.
Model: NFP-GM37-550CS, 12V DC
First, the 12V DC version is suitable for compact 12V drive systems. Also, the table below compares ratio, gearbox length, current, speed, torque, and stall data.
Therefore, a lower ratio gives higher output speed. In addition, a higher ratio gives lower speed and stronger output torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 22.6:1 | 24.7mm | ≤0.45A | 325rpm | ≤2A | 275rpm | 4kg.cm | ≤13A | ≥20kg.cm |
| 53:1 | 27.2mm | ≤0.45A | 135rpm | ≤2A | 115rpm | 10kg.cm | ≤13A | ≤30kg.cm |
| 77:1 | 27.2mm | ≤0.45A | 95rpm | ≤2A | 80rpm | 14kg.cm | ≤13A | ≤30kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
As a result, the 12V version covers no-load speeds from 95rpm to 325rpm. Moreover, the 77:1 ratio gives the highest rated torque in this table.
For example, the 22.6:1 ratio is a better choice when higher speed is more important. Similarly, the 77:1 ratio is useful when the load needs more torque at a lower speed.
Model: NFP-GM37-550CS, 24V DC
Next, the 24V DC version gives higher speed and stronger output than the 12V version. Also, it is suitable for 24V systems that need more drive power.
Therefore, users can select this version for heavier drive tasks. In addition, the higher ratios support lower speed and higher torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|---|
| 22.6:1 | 24.7mm | ≤0.6A | 650rpm | ≤4A | 550rpm | 8kg.cm | ≤26A | ≤30kg.cm |
| 53:1 | 27.2mm | ≤0.6A | 270rpm | ≤4A | 230rpm | 20kg.cm | ≤26A | ≤30kg.cm |
| 77:1 | 27.2mm | ≤0.6A | 190rpm | ≤4A | 160rpm | 25kg.cm | ≤26A | ≤30kg.cm |
Note: All reduced no-load speeds have a tolerance of ±15%.
In conclusion, the 24V version covers no-load speeds from 190rpm to 650rpm. Also, the 77:1 ratio gives the highest rated torque for heavy drive tasks.
For example, the 22.6:1 ratio supports faster movement at 650rpm. In contrast, the 77:1 ratio lowers the speed to 190rpm and raises the rated torque to 25kg.cm.
High-Torque Spur Gear Motor Dimensions
First, the outline drawing helps users check motor size, gearbox length, shaft size, and mounting space. Therefore, it is useful before sample tests and product design.
In addition, the working principle of this DC gear motor is simple. The RS-550 motor creates drive power, while the gears lower speed and raise output force.
Moreover, the metal gear system supports stable motion under load. As a result, the motor can work well in machines that need low speed and high torque.
Outline Drawing and Design Benefits
- Center output shaft: Helps connect drive parts in a stable way.
- High torque: The gearbox raises output force for heavier loads.
- 12V and 24V options: Supports different DC power systems.
- Compact gearhead: Saves space in small machines and devices.
- Long lifetime: Supports a service life of at least 800h under suitable use.
Also, the image below shows the main outline dimensions of the motor and gearbox. Therefore, users can check the available mounting space before building a sample.
As a result, the drawing makes it easier to plan the shaft connection, gearbox position, and motor mounting points. In addition, it helps reduce fit problems during product assembly.
Typical Applications
Finally, this DC gear motor is useful for products that need high torque and steady output. For example, it can work in robots, electric tools, small machines, and control systems.
- Robots
- Electric tools
- Small machines
- Control systems
- High-torque drive units
- Low-speed gear motor systems
In short, the NFP-GM37-550CS DC gear motor is a good fit for products that need 12V or 24V DC power, high torque, a 6mm shaft, long life, and stable low-speed output.
Keywords: 37mm metal gear motor, NFP-GM37-550CS, high torque motor, 12V gear motor, 24V gear motor, low-speed motor, center shaft gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Roys Mansur –
The metal gears are sturdy and durable, and the motor is also very durable. I’ve run it for hours straight with no signs of wear. 🩵🩵
swati bhati –
The product is basically the same as the seller’s description and very practical. Ordered it according to the parameter table. The motor is well made and has many options for torque. I recommended!
