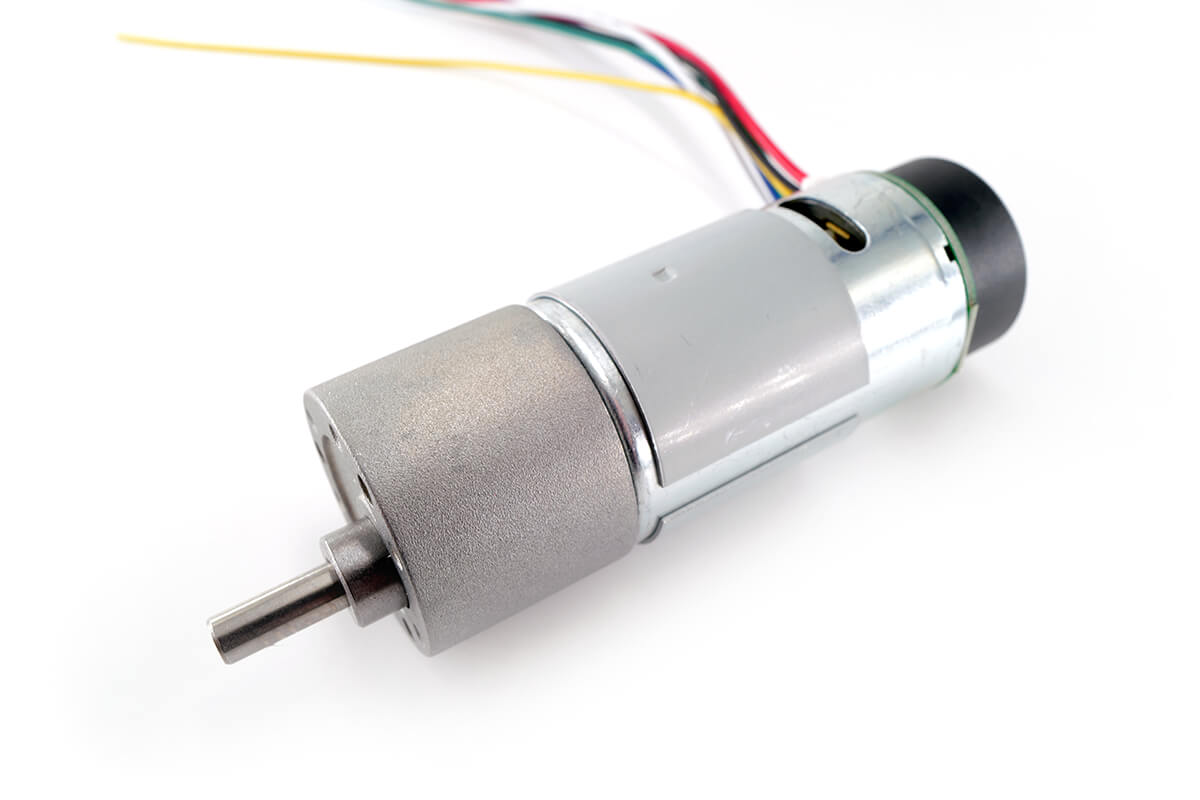

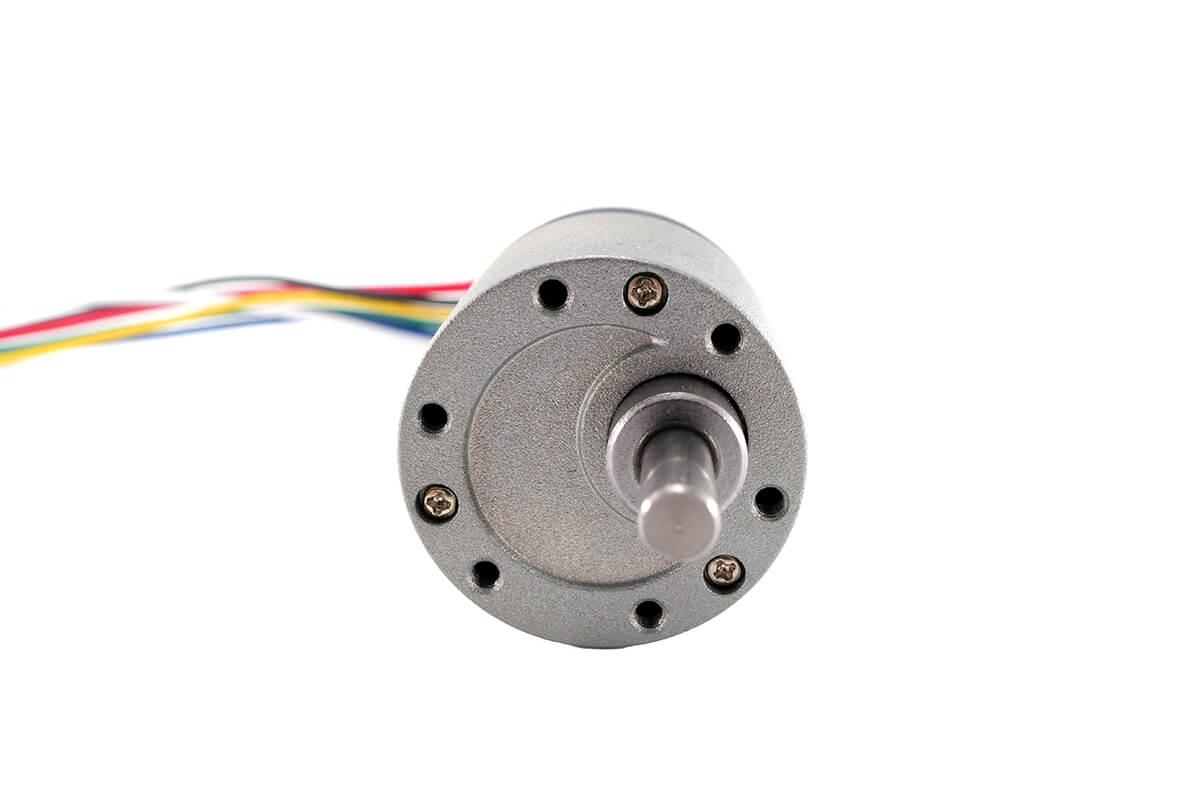

37mm Metal Gear Motor Model NFP-GM37-555-EN
$29.50
Discover superior durability with the 37mm brushed gear motor with encoder. Ideal for both professionals and hobbyists, get yours and innovate!
Premium 37mm Metal Gearbox For Hobbyists Parameters
First, this 37mm metal gearbox motor combines a strong RS-550 brush DC motor with a tough metal gearbox. Therefore, it is a good choice for robotics, automation, DIY models, and light industrial projects.
Also, the motor is built for stable output, long service life, and easy project use. In addition, the gearbox offers many ratio choices, so users can select high speed or high torque based on their needs.
Main Features
- With coded protective cover
- All metal gears
- Built-in cooling fan blades
- Suitable for 6V, 12V, and 24V systems
NFP-GM37-555-0610, 6V DC
First, the 6V DC version provides several gear ratios for different speed needs. Also, lower ratios give higher speed, while higher ratios provide more torque.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤950mA | 1300rpm | ≤3.5A | 850rpm | 98mNm | 10A |
| 10:1 | 19mm | ≤950mA | 820rpm | ≤3.5A | 535rpm | 147.1mNm | 10A |
| 18:1 | 21.5mm | ≤950mA | 450rpm | ≤3.5A | 285rpm | 274.5mNm | 10A |
| 30:1 | 21.5mm | ≤950mA | 275rpm | ≤3.5A | 180rpm | 441.2mNm | 10A |
| 50:1 | 24mm | ≤950mA | 165rpm | ≤3.5A | 105rpm | 735.3mNm | 10A |
| 90:1 | 24mm | ≤950mA | 90rpm | ≤3.5A | 60rpm | 1274.5mNm | 10A |
| 150:1 | 26.5mm | ≤950mA | 55rpm | ≤3.5A | 36rpm | 2059mNm | 10A |
| 270:1 | 26.5mm | ≤950mA | 30rpm | ≤3.5A | 20rpm | Max 3.4Nm | 10A |
| 450:1 | 29mm | ≤950mA | 18rpm | ≤3.5A | 16rpm | Max 3.4Nm | 10A |
Therefore, this 6V table helps users compare speed, torque, current, and gearbox length quickly. In short, all reduced no-load speeds have a tolerance of ±15%.
NFP-GM37-555-1221, 12V DC
Next, the 12V DC 1221 version offers balanced speed and torque for general drive systems. Also, it works well when a project needs steady power with moderate current.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤450mA | 1200rpm | ≤3.5A | 840rpm | 196.1mNm | 13A |
| 10:1 | 19mm | ≤450mA | 750rpm | ≤3.5A | 525rpm | 294.1mNm | 13A |
| 18:1 | 21.5mm | ≤450mA | 415rpm | ≤3.5A | 280rpm | 539.2mNm | 13A |
| 30:1 | 21.5mm | ≤450mA | 250rpm | ≤3.5A | 175rpm | 882.3mNm | 13A |
| 50:1 | 24mm | ≤450mA | 150rpm | ≤3.5A | 105rpm | 1470.6mNm | 13A |
| 90:1 | 24mm | ≤450mA | 83rpm | ≤3.5A | 58rpm | 2647.1mNm | 13A |
| 150:1 | 26.5mm | ≤450mA | 50rpm | ≤3.5A | 35rpm | Max 3.4Nm | 13A |
| 270:1 | 26.5mm | ≤450mA | 27rpm | ≤3.5A | 21rpm | Max 3.4Nm | 13A |
| 450:1 | 29mm | ≤450mA | 16rpm | ≤3.5A | 12rpm | Max 3.4Nm | 13A |
As a result, this 12V motor can support both speed control and torque output. In short, all reduced no-load speeds have a tolerance of ±15%.
NFP-GM37-555-1240, 12V DC
Furthermore, the 12V DC 1240 version is designed for higher speed output. Therefore, it is useful for projects that need faster motion from a 37mm metal gear motor.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤1100mA | 2650rpm | ≤6A | 1700rpm | 196.1mNm | 20A |
| 10:1 | 19mm | ≤1100mA | 1650rpm | ≤6A | 1100rpm | 294.1mNm | 20A |
| 18:1 | 21.5mm | ≤1100mA | 875rpm | ≤6A | 580rpm | 539.2mNm | 20A |
| 30:1 | 21.5mm | ≤1100mA | 550rpm | ≤6A | 360rpm | 882.3mNm | 20A |
| 50:1 | 24mm | ≤1100mA | 330rpm | ≤6A | 215rpm | 1470.6mNm | 20A |
| 90:1 | 24mm | ≤1100mA | 180rpm | ≤6A | 120rpm | 2647.1mNm | 20A |
| 150:1 | 26.5mm | ≤1100mA | 110rpm | ≤6A | 70rpm | Max 3.4Nm | 20A |
| 270:1 | 26.5mm | ≤1100mA | 60rpm | ≤6A | 50rpm | Max 3.4Nm | 20A |
| 450:1 | 29mm | ≤1100mA | 36rpm | ≤6A | 24rpm | Max 3.4Nm | 20A |
Moreover, this version gives higher no-load speed than the lower-speed 12V option. In short, all reduced no-load speeds have a tolerance of ±15%.
NFP-GM37-555-2485, 24V DC
Finally, the 24V DC version provides strong output for systems that use higher voltage. Also, it offers a wide ratio range for both fast and low-speed motion.
| Ratio | Gearbox Length | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 6.3:1 | 19mm | ≤650mA | 2400rpm | ≤7.5A | 1680rpm | 392.2mNm | 26A |
| 10:1 | 19mm | ≤650mA | 1500rpm | ≤7.5A | 1050rpm | 588.2mNm | 26A |
| 18:1 | 21.5mm | ≤650mA | 830rpm | ≤7.5A | 560rpm | 1078mNm | 26A |
| 30:1 | 21.5mm | ≤650mA | 500rpm | ≤7.5A | 350rpm | 1765mNm | 26A |
| 50:1 | 24mm | ≤650mA | 300rpm | ≤7.5A | 210rpm | 2941mNm | 26A |
| 90:1 | 24mm | ≤650mA | 165rpm | ≤7.5A | 120rpm | Max 3.4Nm | 26A |
| 150:1 | 26.5mm | ≤650mA | 100rpm | ≤7.5A | 75rpm | Max 3.4Nm | 26A |
| 270:1 | 26.5mm | ≤650mA | 54rpm | ≤7.5A | 45rpm | Max 3.4Nm | 26A |
| 450:1 | 29mm | ≤650mA | 32rpm | ≤7.5A | 25rpm | Max 3.4Nm | 26A |
Therefore, this 24V option is suitable for higher-voltage control boards and stronger drive systems. In short, all reduced no-load speeds have a tolerance of ±15%.
37mm Reduction Motor Outline Drawing
In addition, the outline drawing helps users check the body size, shaft position, and installation space before design. Also, the RS-550 motor and 37mm metal gearbox build provide high torque and good durability.

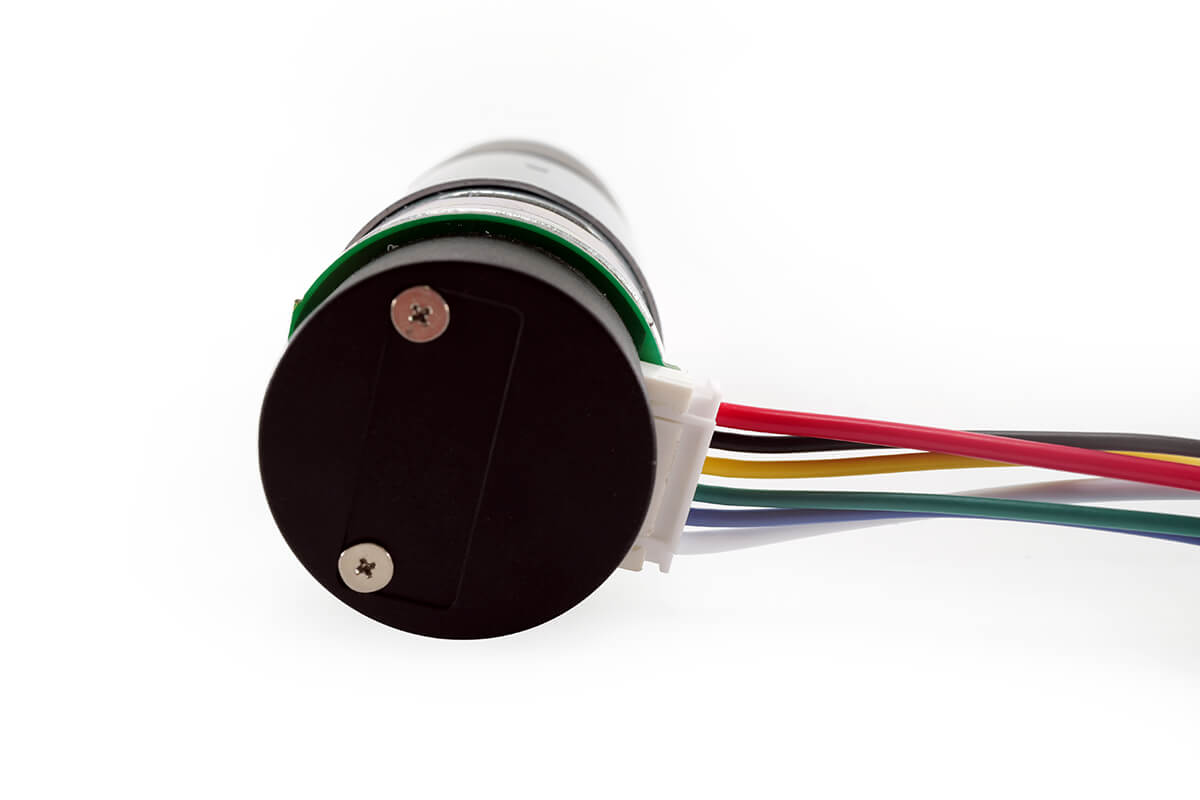

37mm Motor With Encoder Parameters
First, the encoder version supports 6V, 12V, and 24V motor choices. Also, the encoder can help with speed feedback, position feedback, and closed-loop control.
Furthermore, the metal gears help the motor run smoothly under load. As a result, this 37mm motor with encoder is useful for robotics, automation, and custom motion systems.
Next, the encoder table shows the main signal and wiring data. Therefore, users can match the motor with a microcontroller or motion control board more easily.
| Attribute | Specification |
|---|---|
| Type | AB dual-phase incremental magnetic Hall encoder |
| Line Speed | Base pulse 17 PPR x Gear reduction ratio |
| Supply Voltage | DC 3.3V / DC 5V |
| Basic Function | Built-in pull-up shaping resistor, direct connection to microcontroller |
| Interface Type | XH2.54-6PIN (standard connection cable) |
| Output Signal Type | Square wave AB phase |
| Response Frequency | 100KHz |
| Base Pulse Count | 17 PPR |
| Magnetic Ring Poles | 34 poles (17 pairs) |
As a result, the AB Hall encoder can provide clear square wave feedback for many control systems. In short, it is a practical option when speed or position feedback is required.
Applications
For example, this 37mm metal gear motor can be used in small mobile robots, automation equipment, and custom machines. Also, the wide voltage and ratio range makes it flexible for many designs.
- Robotics: Ideal for powering wheels, arms, and other moving parts in robotic projects.
- Automation: Good for automated systems that need a reliable motor solution.
- DIY Projects: Suitable for custom RC cars, boats, and other models.
- Industrial Use: Useful for light industrial applications where control and dependability are needed.
In conclusion, this 37mm metal gearbox motor offers strong torque, many ratio options, and optional encoder feedback. Therefore, it is a flexible drive solution for hobby, automation, and industrial projects.
