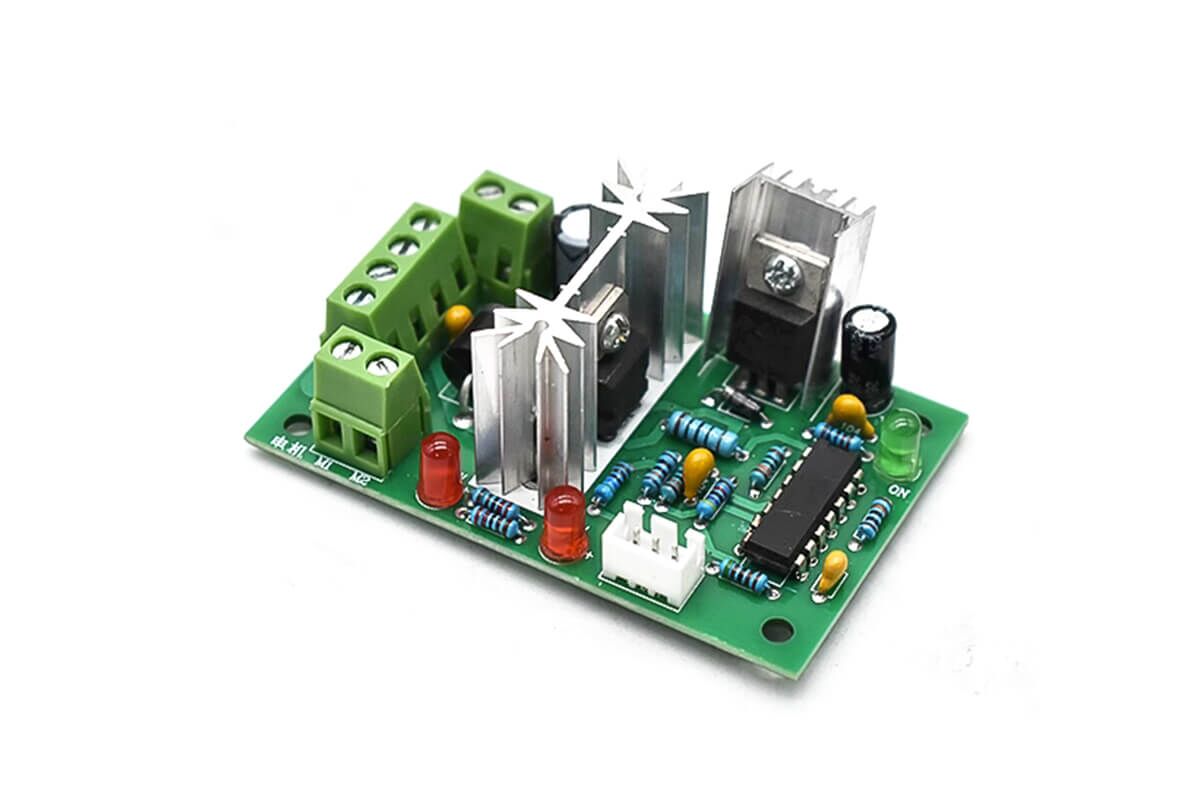

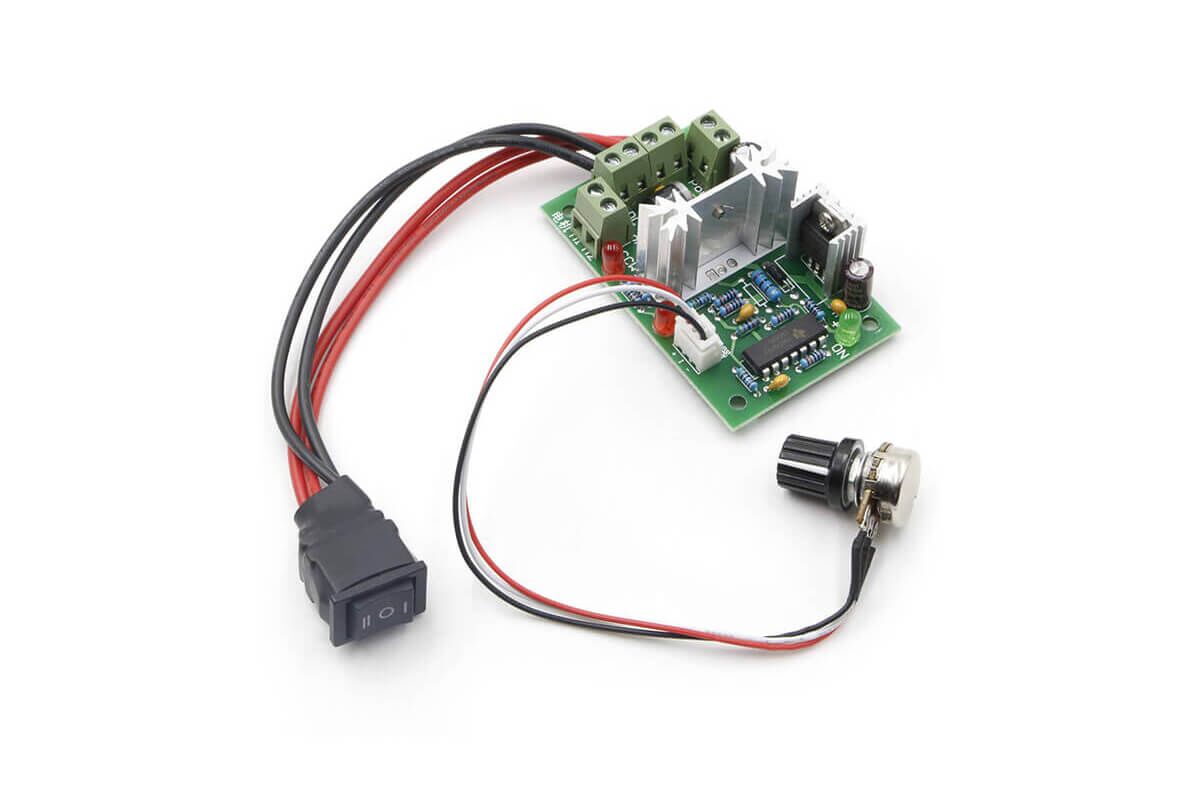

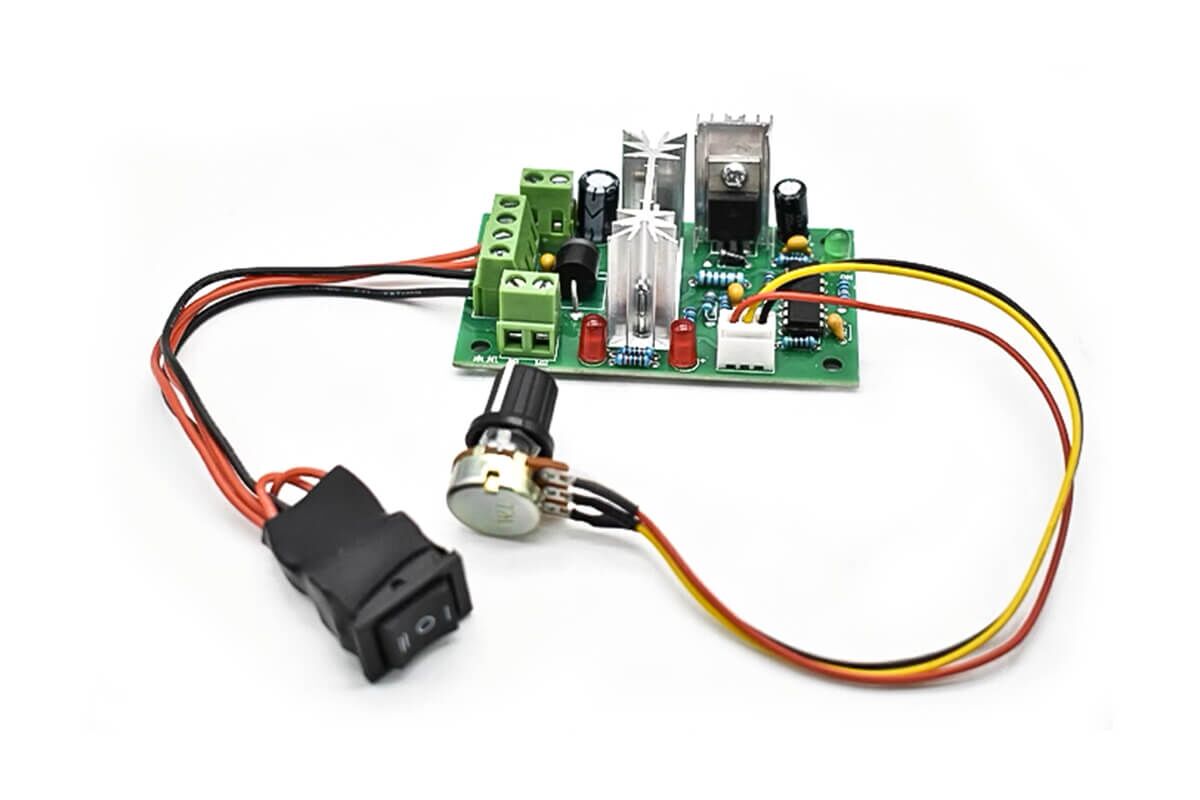

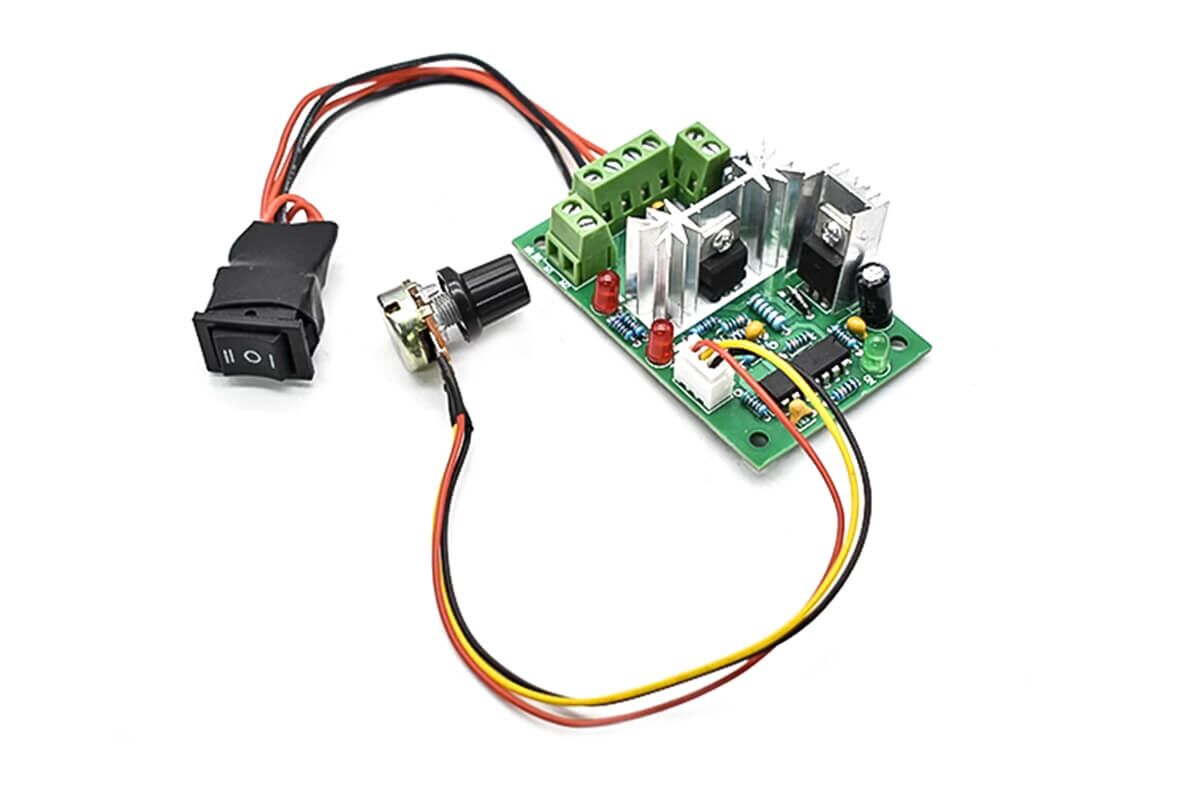

3A 12V 24V DC Motor Speed Controller PWM Reversing Model NFP-PWM-CCM2
$10.00
Optimize your motor performance with our DC Motor Speed Controller. Ideal for brush motors, it operates between 10V and 30V. Try it out!
Stable Performance PWM Motor Speed Controller Specifications
- Please note: This controller has a low frequency causing some types of the motor to whine at low speeds but not all motors will be like this
| Model | NFP-PWM-CCM2 |
|---|---|
| Motor Type | Brush |
| Working Voltage | 10V – 30V DC |
| PWM Frequency | 500Hz |
| Current | 3A |
| Max Current | 4A |
| Max Power | 120W |
| PWM Range | 5% – 95% |
| Control Power | 12V*3A=36W, 24V*3A=72W, more than 24V max 120W |
| Size | 74x47x28mm |
| Weight | 70g |
Brush DC Motor Controller Technical Parameters
12V-30V120W Drive Board DC Motor Controller Circuit
DC Motor Driver PWM Adjustable Switch Module Dimension
