4.6mm Stepper Gear Motor − 16mm Type Model NFP-4616-36-MG
$24.90
Unlock the potential of your designs using our 4.6mm stepper gear motor. Perfect for small mechanisms needing precise control. Buy today!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $24.90 | 0% |
| 10 - 49 | $23.40 | 6.02% |
| 50 - 99 | $21.90 | 12.05% |
| 100+ | $19.80 | 20.48% |
NFP 5V 36:1 Geared Stepper Motor Datasheet
Product Overview

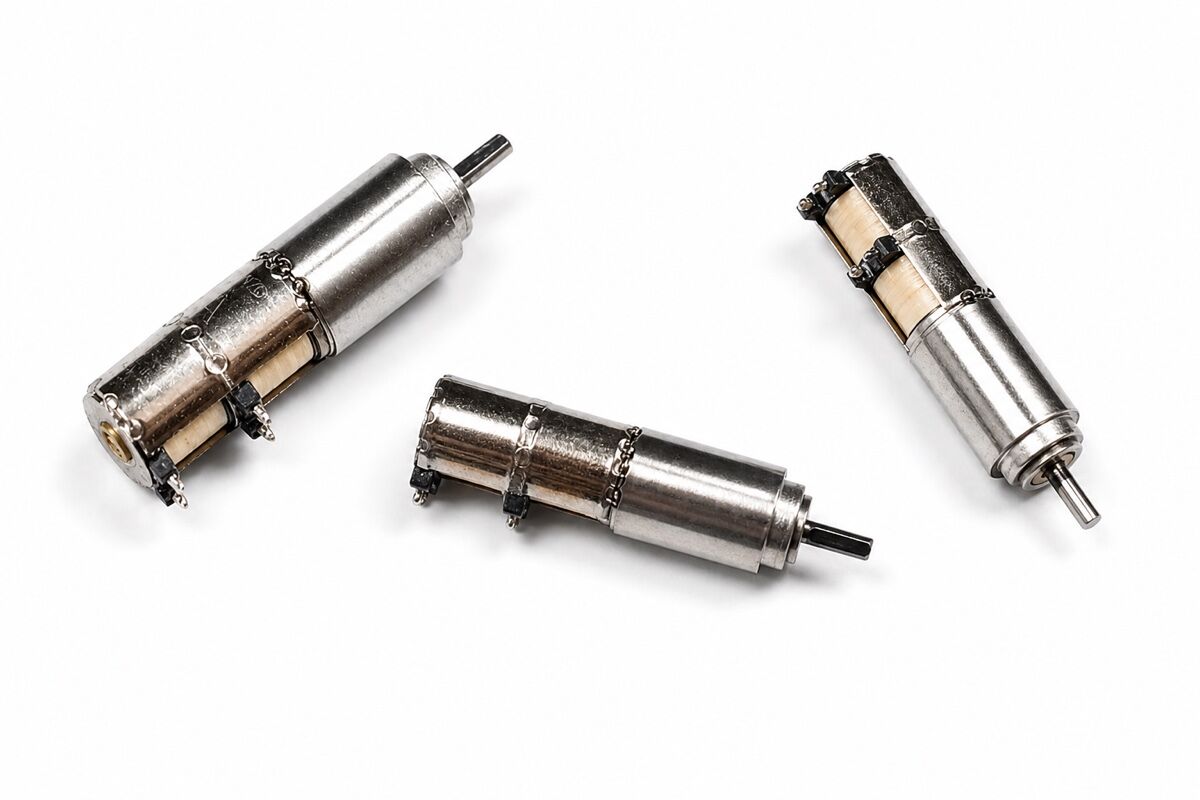

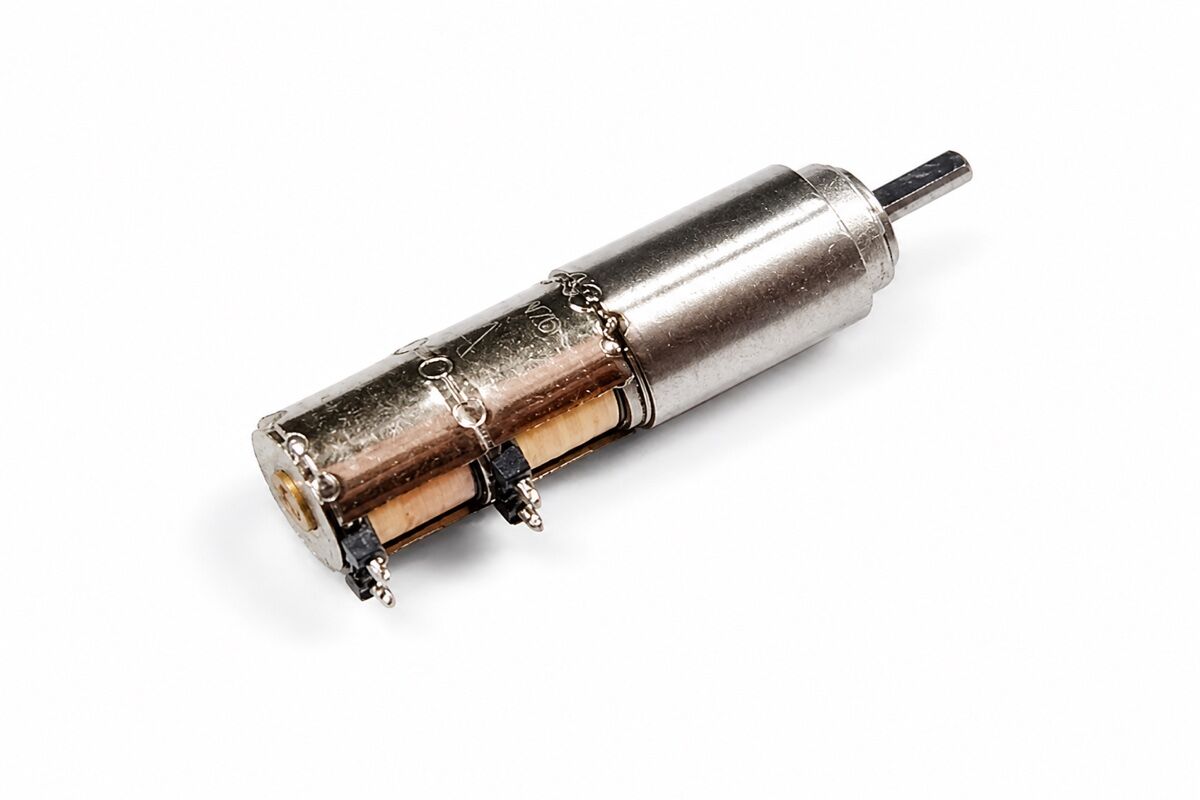

The NFP 5V 36:1 geared stepper motor is a small motor for compact precision drive systems. Therefore, it is suitable for low-noise motion control, small positioning parts, and light gear drive tasks.
In addition, the 36:1 gearbox helps increase output torque. As a result, the motor can provide stable step control in a small body.
Main Features
- 5V DC drive: The motor works with a 5V DC power supply. Therefore, it fits many small control boards.
- 36:1 gearbox: The gearbox increases torque. As a result, the motor can support small positioning tasks.
- Low noise: The stepper motor runs with lower noise than many brushed motors. In addition, it suits quiet devices.
- Compact size: The motor weighs only 1.5g. Therefore, it works well in small and light products.
- No encoder: The motor does not include an encoder. However, users can still control position through step control.
Technical Specifications
The table below shows the main motor data. Therefore, users can check voltage, ratio, torque, speed, wiring notes, and control limits before testing.
| Item | Specification |
|---|---|
| Rated Voltage | 5V DC |
| Reduction Ratio | 36:1 |
| Motor Step Angle | 18° without gearbox step angle |
| Rated Drive Frequency | 2000PPS |
| Rated Output Torque | 55gf.cm |
| Stall Output Torque | Approx. 80gf.cm |
| Rated Output Speed | 167RPM |
| Model | NFP-4616-36-MG, 5V, 36:1 |
| Motor Type | Geared stepper motor |
| Weight | 1.5g |
| Lead Wire | The motor ships without wires. Therefore, users need to solder it to the circuit. |
| Encoder | No encoder |
| Feedback Signal | No feedback signal |
| Noise | The stepper motor has lower noise than ordinary brushed motors. |

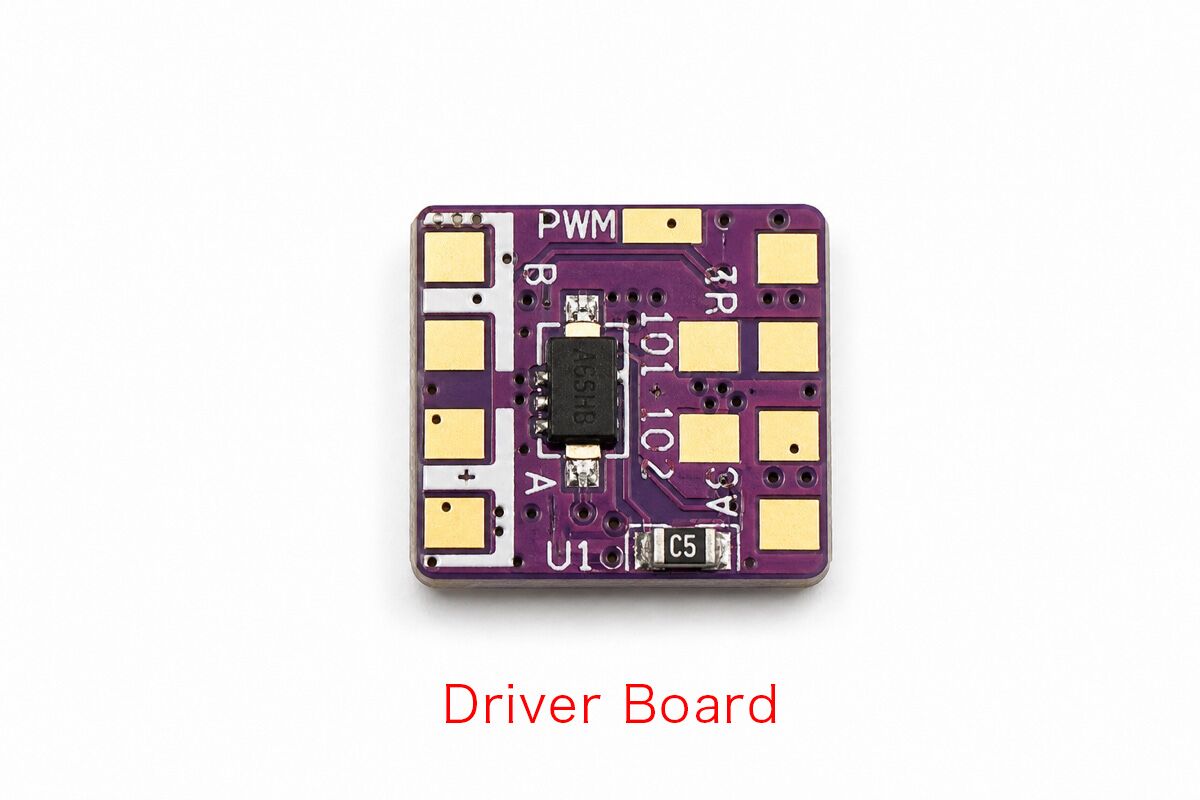

| PCB Connection | If users choose a PCB board, they need to solder it for terminal board connection. |
| Soldering Note | Do not damage the phase wires during soldering. In addition, check the phase wire if the motor does not run correctly. |
| Phase Wire Note | The motor can rotate with one phase connected. However, it may rotate unevenly and produce weak torque. |
6mm Planetary DC Step Gear Motor Outline Drawing
Outline Drawing
The outline drawing below shows the motor shape and size. Therefore, users can check the mounting space before product design.
Moreover, the compact structure helps save space in small devices. As a result, this motor is useful for small drive modules and light positioning systems.
Typical Applications
- Small positioning systems: The motor can move small parts step by step.
- Mini robots: It can support light motion in compact robot designs.
- Camera modules: It can help with small focus or angle control tasks.
- Smart devices: It can drive small moving parts in tight spaces.
- Test projects: It works well for prototype and sample testing.
Keywords:
small stepper gearmotor, stepper motor, stepper dc gear motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
