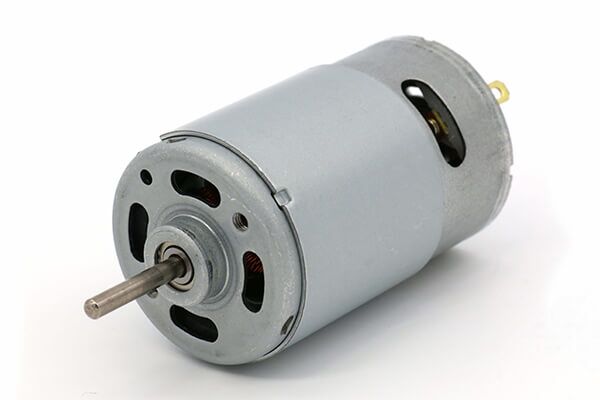

44mm Brushed DC Motor – 66mm Type Model NFP-RC-775SHP
$18.50
Push your creations further with the 775 mabuchi same type brushed dc motor! With exceptional speed, this motor meets your needs seamlessly. 🔋
Notice: this motor model need to make new ones that would take extra 2-3weeks.
| Quantity | Price | Discount |
|---|---|---|
| 10 - 99 | $18.50 | 0% |
| 100 - 999 | $6.50 | 64.86% |
| 1000+ | $3.95 | 78.65% |
RS-775 Ball Bearings Performance Motor Datasheet
The NFP-RC-775SHP series is a 44mm RS-775 brushed DC motor line with ball bearings. It includes 12V, 18V, and 24V rated voltage options for different speed, current, and torque needs.
First, this motor series provides high torque and stable speed in a strong brushed motor body. Also, the ball bearing structure helps reduce friction during operation. Therefore, it is useful for robotics, tools, DIY projects, and high-power drive systems.
In addition, the wide voltage ranges help users match different DC power systems. As a result, engineers can choose the right motor based on load, speed, and final product size.
Main Product Features
- First, voltage options: The series includes 12V, 18V, and 24V rated voltage models.
- In addition, ball bearing support: The bearing structure helps reduce friction and wear.
- Also, high speed: The no-load speed can reach up to 20,000RPM.
- Next, strong torque: Stall torque can reach up to 5000g.cm.
- Finally, wide use: The motor can support robotics, tools, DIY projects, and compact power systems.
RS-775 Ball Bearing Motor Performance Data
Next, the table below helps users compare voltage range, rated voltage, speed, current, torque, and efficiency. Therefore, it is easier to choose the right RS-775 motor for a high-power product design.
| Motor Model | NFP-RC-775SHP-2898V | NFP-RC-775SHP-7015 | NFP-RC-775SHP-4538 |
|---|---|---|---|
| Voltage Range | 18V – 28V | 12V – 24V | 8V – 16V |
| Rated Voltage | 24V | 18V | 12V |
| No-Load Current | 0.19A | 2.4A | 0.6A |
| No-Load Speed | 3,800RPM | 20,000RPM | 5,000RPM |
| Max Efficiency | 64.85% | 77.55% | 59.14% |
| Max Efficiency Current | 1.03A | 10.85A | 3.28A |
| Max Efficiency Speed | 3,211RPM | 16,370RPM | 4,228RPM |
| Max Efficiency Torque | 491.21g.cm | 905.54g.cm | 540g.cm |
| Stall Current | 5.63A | 49.06A | 17.99A |
| Stall Torque | 3166g.cm | 5000g.cm | 3497g.cm |
Also, the NFP-RC-775SHP-7015 gives the highest no-load speed, max efficiency, max efficiency torque, and stall torque. However, the NFP-RC-775SHP-2898V has the lowest no-load current and supports 24V rated voltage.
As a result, users can choose the NFP-RC-775SHP-7015 for higher speed and torque, or choose the NFP-RC-775SHP-2898V for lower-current 24V operation.
775 DC Motor Outline Drawing
First, the outline drawing helps users review the RS-775 motor body, shaft, and installation size. Therefore, it is useful before sample testing and final product design.
In addition, the ball bearing structure helps support smoother rotation and longer service life. As a result, this 775 performance motor can work in demanding products that need high torque and stable output.
Outline Drawing and Design Benefits
- First, 44mm motor body: The RS-775 size supports higher power output than smaller DC motors.
- In addition, ball bearings: The bearing structure helps reduce friction and wear.
- Also, high torque: The motor can provide strong stall torque for demanding loads.
- Next, voltage flexibility: The series supports 8V – 28V operation ranges across different models.
- Finally, stable performance: The motor can support tools, robots, and DIY drive systems.
Typical Applications
Next, this RS-775 brushed DC motor is suitable for products that need strong torque, high speed, and reliable ball bearing support. For example, it can work in robotics, tools, and DIY projects.
- Robotics
- Power tools
- DIY projects
- High-torque drive systems
- Compact equipment
- Electric model products
- Small automation systems
Finally, the NFP-RC-775SHP ball bearing motor is a good fit for products that need 12V, 18V, or 24V DC power, high torque, stable speed, and reliable brushed motor performance.
Keywords: 775 performance motor, 775 performance motor, mabuchi rs 775wc, rs 775sh, mabuchi rs 775vc, mabuchi 775
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Jan Hartmann –
This is a fairly robust motor that just works great. In case it is useful to your application, I measured the cylindrical body of the motor is about 44mm diameter, 66mm long. The shaft sticks out 10mm from the front bearing. So the shaft is about 15mm long including the parts of the shaft which are inside the motor, as described in the drawings. Lastly, these brushed dc motors are low noise, that is nice.
Stacey Clark –
I hooked this motor up to a 12V power supply and it worked, but the speed was a bit slow, I thought it broken, actually the motor’s rated voltage I bought is 24v…The start voltage is really low.
Rick Walter –
Small 775 performance motor with high torque, ball bearing works stably. A few motors’ metal cases have a little scratches, but unconspicuous.👌
Karen Millison –
This standard 775 brushed DC motor provides high speed and big torque. Fast delivery time by DHL. A pleasant shopping experience！
