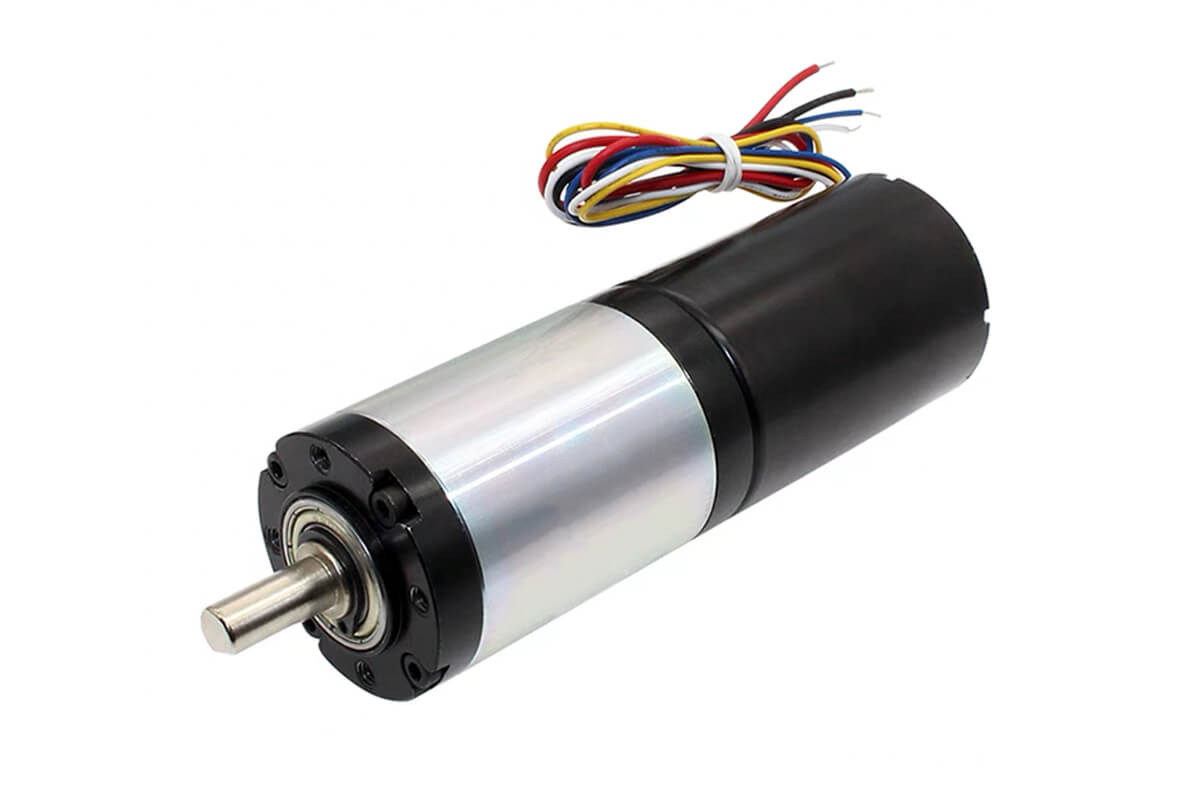

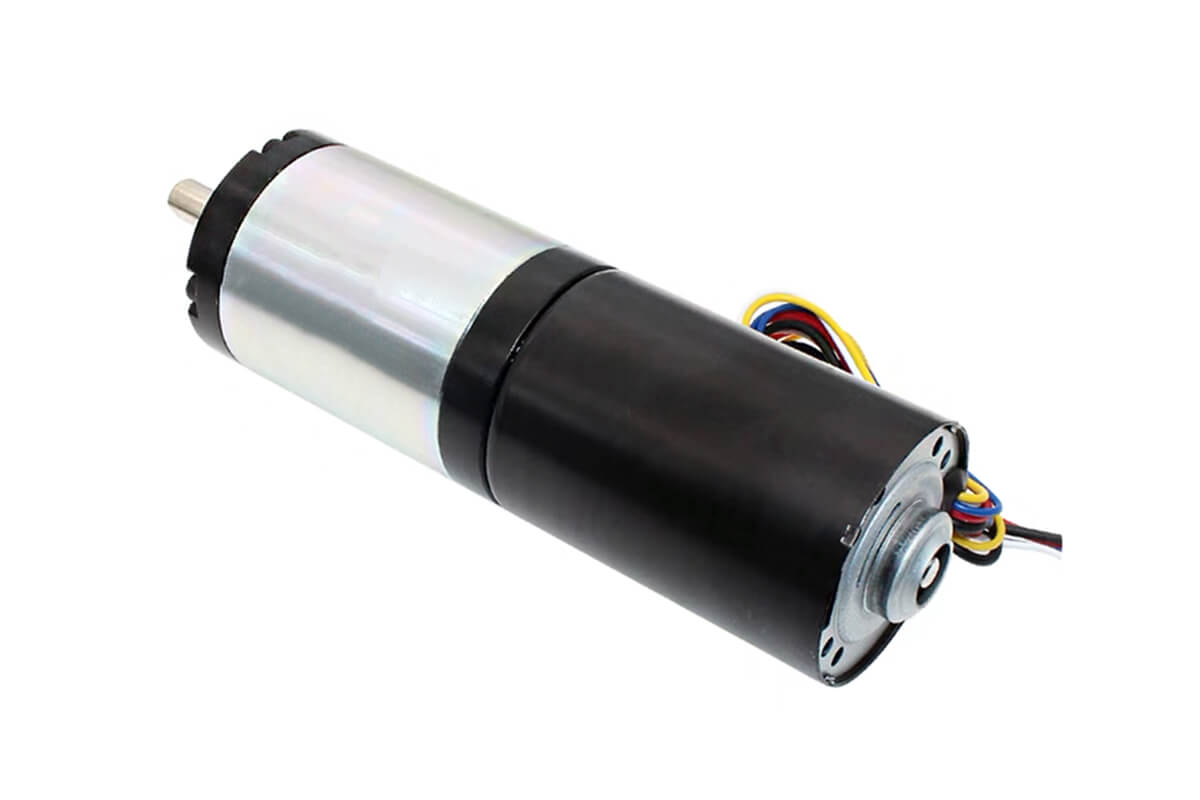

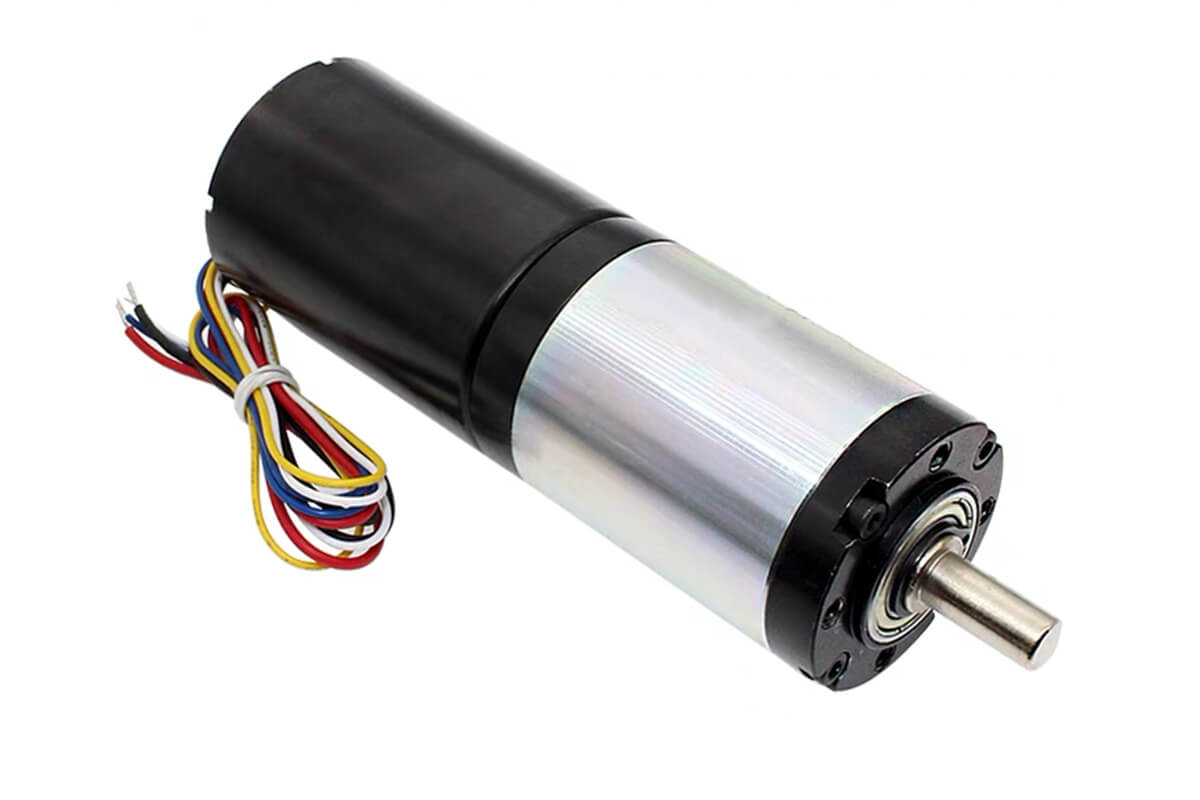

42mm Planetary Gear Motor Model NFP-42GP-BL4260
$75.00
– High Torque Performance: Delivers exceptional torque output, making it suitable for demanding applications that require robust power.
– Wide Voltage Range: Operates efficiently at a range of voltages, offering flexibility for different power requirements and ensuring adaptability across various projects.
– Durable Metal Construction: Built with high-quality metal materials, this gear motor is designed to withstand rigorous use and harsh conditions, providing long-term reliability.
– Precision Engineering: Ensures smooth and accurate motion control, essential for detailed and complex applications in automation and machinery.
– Integrated Encoder (Optional): Features an optional encoder for precise position and speed feedback, enhancing control and performance in automated systems.
Ask for a quotation for mass production quantity, contact us or customizations and integration.
Brushless Motor Planetary Gearbox Built-in Hall Driver Data Sheet
Product Overview
First, the 42mm planetary gear motor, model NFP-42GP-BL4260, is a brushless DC gear motor with a planetary gearbox. Therefore, it can give stable speed and strong torque in compact drive systems.
Also, this motor supports 12V DC and 24V DC options. As a result, users can choose the right voltage for different control boards, power systems, and machine designs.
In addition, the built-in Hall driver helps simplify speed and direction control. Therefore, this motor is useful for automation, robotics, smart equipment, and industrial drive projects.
Main Features
For example, the features below show the main benefits of this 42mm brushless planetary gear motor. Also, they help users understand why it fits high torque applications.
- Brushless motor: No carbon brush, less wear, and longer service life.
- Planetary gearbox: Strong torque output and smooth low-speed drive.
- Built-in Hall driver: Easier speed control, direction control, and wiring.
- High torque output: Up to 50kg.cm rated torque for heavy-load tasks.
- 12V and 24V options: Suitable for many control systems and power supplies.
In short, these features make the motor easy to use in many drive systems. Moreover, the metal gearbox helps improve strength and working life.
12V DC Performance Data
First, the table below shows the 12V DC performance data. Therefore, users can compare each ratio by speed, current, torque, and stall data.
Also, this data helps users choose a suitable speed range before testing. As a result, motor selection becomes faster and clearer.
Model: NFP-42GP-BL4260, 12V DC
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 3.7:1 | ≤0.35A | 1,050rpm | ≤2.0A | 590rpm | 2kg.cm | ≤4.0A | ≥4kg.cm |
| 5:1 | ≤0.35A | 800rpm | ≤2.0A | 420rpm | 3kg.cm | ≤4.0A | ≥6kg.cm |
| 13:1 | ≤0.35A | 305rpm | ≤2.0A | 170rpm | 7kg.cm | ≤4.0A | ≥16kg.cm |
| 18:1 | ≤0.35A | 220rpm | ≤2.0A | 120rpm | 9kg.cm | ≤4.0A | ≥20kg.cm |
| 25:1 | ≤0.35A | 160rpm | ≤2.0A | 88rpm | 13kg.cm | ≤4.0A | ≥30kg.cm |
| 49:1 | ≤0.35A | 80rpm | ≤2.0A | 45rpm | 25kg.cm | ≤4.0A | ≤60kg.cm |
| 67:1 | ≤0.35A | 58rpm | ≤2.0A | 33rpm | 35kg.cm | ≤4.0A | ≤60kg.cm |
| 92:1 | ≤0.35A | 43rpm | ≤2.0A | 24rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 246:1 | ≤0.35A | 16rpm | ≤2.0A | 9rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 336:1 | ≤0.35A | 12rpm | ≤2.0A | 8rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 625:1 | ≤0.35A | 6rpm | ≤2.0A | 5rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
In addition, the 12V DC version gives many speed choices from 1,050rpm to 6rpm. Therefore, it can support both fast motion and high torque low-speed drive.
Moreover, all reduced no-load speeds have a tolerance of ±15%. As a result, users should allow normal speed changes during testing.
24V DC Performance Data
Next, the table below shows the 24V DC performance data. In addition, this version provides higher no-load speed than the 12V DC version.
Therefore, the 24V DC option is useful for faster drive systems. Also, it can support stronger power systems in automation and machine projects.
Model: NFP-42GP-BL4260, 24V DC
| Ratio | No-load Current | No-load Speed | Rated Current | Rated Speed | Rated Torque | Stall Current | Stall Torque |
|---|---|---|---|---|---|---|---|
| 3.7:1 | ≤0.5A | 2,100rpm | ≤2.8A | 1,180rpm | 4kg.cm | ≤4.0A | ≥8kg.cm |
| 5:1 | ≤0.5A | 1,520rpm | ≤2.8A | 840rpm | 6kg.cm | ≤4.0A | ≥12kg.cm |
| 13:1 | ≤0.5A | 570rpm | ≤2.8A | 340rpm | 14kg.cm | ≤4.0A | ≥30kg.cm |
| 18:1 | ≤0.5A | 420rpm | ≤2.8A | 240rpm | 18kg.cm | ≤4.0A | ≥40kg.cm |
| 25:1 | ≤0.5A | 300rpm | ≤2.8A | 175rpm | 25kg.cm | ≤4.0A | ≤60kg.cm |
| 49:1 | ≤0.5A | 160rpm | ≤2.8A | 90rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 67:1 | ≤0.5A | 116rpm | ≤2.8A | 65rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 92:1 | ≤0.5A | 84rpm | ≤2.8A | 48rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 246:1 | ≤0.5A | 32rpm | ≤2.8A | 18rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 336:1 | ≤0.5A | 23rpm | ≤2.8A | 16rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
| 625:1 | ≤0.5A | 12rpm | ≤2.8A | 11rpm | 50kg.cm | ≤4.0A | ≤60kg.cm |
Furthermore, the 24V DC version gives speed choices from 2,100rpm to 12rpm. Therefore, it is a good choice when users need more speed from the same motor size.
In conclusion, all reduced no-load speeds have a tolerance of ±15%. As a result, users should test the motor under real load before final design.
Ball Bearing BLDC Planetary Gearhead Motor Outline Drawing
Motor Outline and Structure
First, the outline drawing shows the motor size and gearbox shape. Therefore, users can check the shaft, mounting holes, and full body size before installation.
Also, the ball bearing design helps the motor run smoothly. As a result, it can reduce friction and support stable motion in long working cycles.
Next, the image below helps confirm the mechanical layout. In addition, it can support product design, machine layout, and prototype testing.
Moreover, this drawing helps reduce installation errors. In short, users should confirm the motor size before designing the bracket or housing.
Key Design Advantages
For example, the design points below show why this 42mm gear motor is suitable for compact drive systems. Also, they help users compare this model with standard brushed gear motors.
- Metal gearbox: Better strength and load capacity for heavy-duty use.
- Brushless motor: Less brush wear and longer service life.
- Ball bearing support: Lower friction and smoother running.
- High torque output: Up to 50kg.cm rated torque for low-speed drive tasks.
- Optional encoder support: Feedback support for speed or position control.
Finally, these design points make the motor useful for both sample testing and mass production. Therefore, it is a good choice for stable motion control.
Brushless and DC Planetary Gear Motors Connection Mode
Wiring Diagram
First, the wiring diagram below shows the main connection method. Therefore, users should check wire color, voltage, PWM input, and direction control before power-on.
Also, correct wiring can help protect the motor and driver. As a result, users should not change the wire order during testing.
In addition, the diagram helps users connect the motor to a controller. Therefore, it is useful during sample tests and system assembly.
Connection Data
Next, the table below explains each connection signal. In addition, it helps users wire the motor to the power supply and controller correctly.
Moreover, users can check the input and output signals before running the motor. As a result, the risk of wrong wiring can be reduced.
| Terminations | Parameter | I/O | Conditions | Remark |
|---|---|---|---|---|
| GND | IN | Ground | (black wire) Ground | |
| Vcc | IN | DC 24V ± 10% | (red wire) Power supply | |
| FG | VOH | OUT | Min 4V at 5V 10KΩ pull up | (yellow wire) Open collector output for speed signal detection through FG output |
| FG | VOL | OUT | Min0V Max0.6V | (yellow wire) Open collector output for speed signal detection through FG output |
| FG | FG current | OUT | FG current: Max 5mA | (yellow wire) Open collector output for speed signal detection through FG output |
| FG | FG pulse quality | OUT | FG pulse quantity: 12 pulse/round | (yellow wire) Open collector output for speed signal detection through FG output |
| PWM | Input Voltage | IN | Input voltage: 0~5V | (blue wire) |
| PWM | VIH | IN | VIH: Min 2.0V | Motor running |
| PWM | VIL | IN | VIL: Max 0.6V | Motor stop |
| PWM | PWM Frequency | IN | PWM frequency: Max 50kHz | Advise 15~25kHz |
| CW/CCW | Input Voltage | IN | Input voltage: 0~5V | (white wire) |
| CW/CCW | VIH | IN | VIH: Min 2.0V | CCW |
| CW/CCW | VIL | IN | VIL: Max 0.6V | CW |
Furthermore, this connection table helps reduce wiring errors. Therefore, users should confirm the power input, ground wire, PWM signal, and CW/CCW signal before testing the motor.
In short, users should connect GND and Vcc first, then check FG, PWM, and CW/CCW signals. Also, the advised PWM frequency is 15~25kHz.
Application Areas
For example, this 42mm brushless planetary gear motor works well in many motion systems. In addition, users can apply it in automation, medical equipment, and smart devices.
Moreover, its high torque output makes it useful for heavy-load motion. Therefore, it can support both prototype testing and production projects.
- Industrial automation: Conveyor systems, robot arms, and automated machines.
- Commercial equipment: Packaging machines, vending machines, and service machines.
- DIY and hobby projects: Heavy-duty custom projects and test systems.
- Medical devices: Strong and stable motion control.
- Automotive systems: Power windows, seats, and moving parts.
- Security systems: Automatic doors and camera movement systems.
Finally, these application areas show the wide use of this 42mm planetary gear motor. As a result, it can meet many low-speed and high-torque drive needs.
