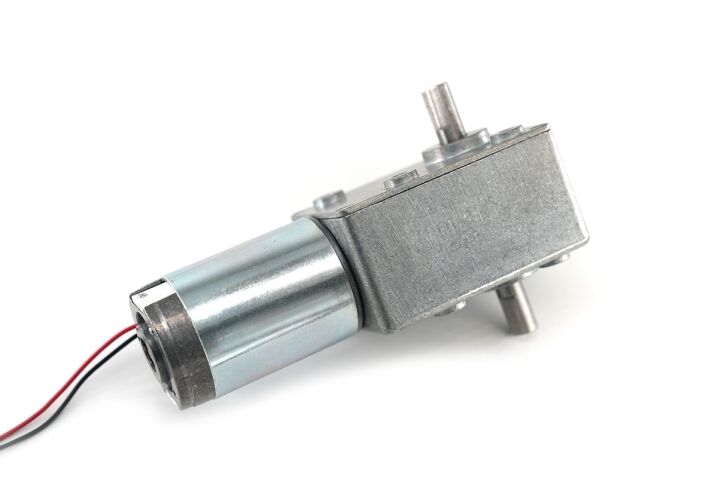

44mm Worm Gear Motor Model NFP-WG5882-4468-DS
$63.00
Enhance your designs with the sturdy 44mm Worm Gear Motor, delivering up to 200kg.cm torque with ease. Elevate your engineering today! ⚙️
High Torque Speed Reduction Motor Datasheet
First, with a compact form factor, this motor offers a space-efficient design for your setups. In addition, its 3rpm to 60rpm speed ensures smooth operation across many mechanical systems.
| Model | NFP-5882-4468-DS |
|---|---|
| Rated Voltage | 12V / 24V DC |
| No-load Current | 0.3A – 1.5A |
| No-load Speed | 3rpm – 175rpm |
| Max Torque | 200kg.cm |
| Power | 37W / 59W |
| Shaft Diameter | 10mm |
| Shaft Length | 20mm |
| Rotation | CW / CCW |
| Weight | appr. 950g |
Model: NFP-5882-4468-DS, 12V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Current | Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 50:1 | 170rpm | 0.8A | 131rpm | 5A | 15kg.cm | 40kg.cm | 14A |
| 50:1 | 120rpm | 0.6A | 93rpm | 3A | 15kg.cm | 45kg.cm | 11A |
| 92:1 | 90rpm | 1A | 70rpm | 4.4A | 50kg.cm | 150kg.cm | 13A |
| 92:1 | 60rpm | 0.6A | 45rpm | 3.2A | 30kg.cm | 90kg.cm | 9A |
| 175:1 | 25rpm | 0.4A | 18rpm | 3A | 60kg.cm | 150kg.cm | 7A |
| 175:1 | 15rpm | 1.5A | 11rpm | 7A | 200kg.cm | / | 13A |
| 527:1 | 8rpm | 0.6A | 6rpm | 4A | 200kg.cm | / | 8.5A |
| 862:1 | 5rpm | 0.4A | 3.5rpm | 3.5A | 200kg.cm | / | 6A |
| 862:1 | 3rpm | 0.4A | 2.1rpm | 3.1A | 120kg.cm | / | 3.5A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Model: NFP-5882-4468-DS, 24V DC
| Ratio | No-load Speed | No-load Current | Rated Speed | Current | Torque | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|
| 50:1 | 175rpm | 0.7A | 140rpm | 6.5A | 40kg.cm | 120kg.cm | 16A |
| 50:1 | 120rpm | 0.5A | 98rpm | 3.5A | 30kg.cm | 90kg.cm | 9A |
| 92:1 | 90rpm | 1A | 71rpm | 6A | 60kg.cm | 173kg.cm | 16.5A |
| 92:1 | 70rpm | 0.5A | 56rpm | 3.3A | 50kg.cm | 143kg.cm | 9A |
| 175:1 | 50rpm | 0.8A | 38rpm | 6A | 130kg.cm | / | 15A |
| 175:1 | 30rpm | 0.6A | 24rpm | 3.5A | 100kg.cm | / | 10A |
| 527:1 | 16rpm | 0.6A | 12rpm | 3A | 200kg.cm | / | 16A |
| 862:1 | 10rpm | 0.5A | 8rpm | 4A | 200kg.cm | / | 15A |
| 862:1 | 6rpm | 0.4A | 4rpm | 3A | 200kg.cm | / | 8A |
| 862:1 | 3rpm | 0.3A | 2.2rpm | 1A | 200kg.cm | / | 1.6A |
Note: all reduced no-load speeds have a tolerance of ±15%.
Reversible Worm Gearbox Motor Outline Drawing
Engineers often use this gearbox motor for custom projects. For example, it works well in solar tracking systems, educational robotics, camera stabilizers, and custom CNC machines where high torque is vital.
Customizable Worm Drive Motor Shaft Shape
You can choose from several shaft options to match your project needs:
- Hollow D-shaft – Engineered for light weight while keeping strong durability.
- Keyway Slot – Helps align parts and holds them firmly during operation.
- Hollow Gear Machining – Uses fine tooth details for strong support under heavy loads.
- Solid D-shaft – Ideal for projects that require extra strength and steady performance.
