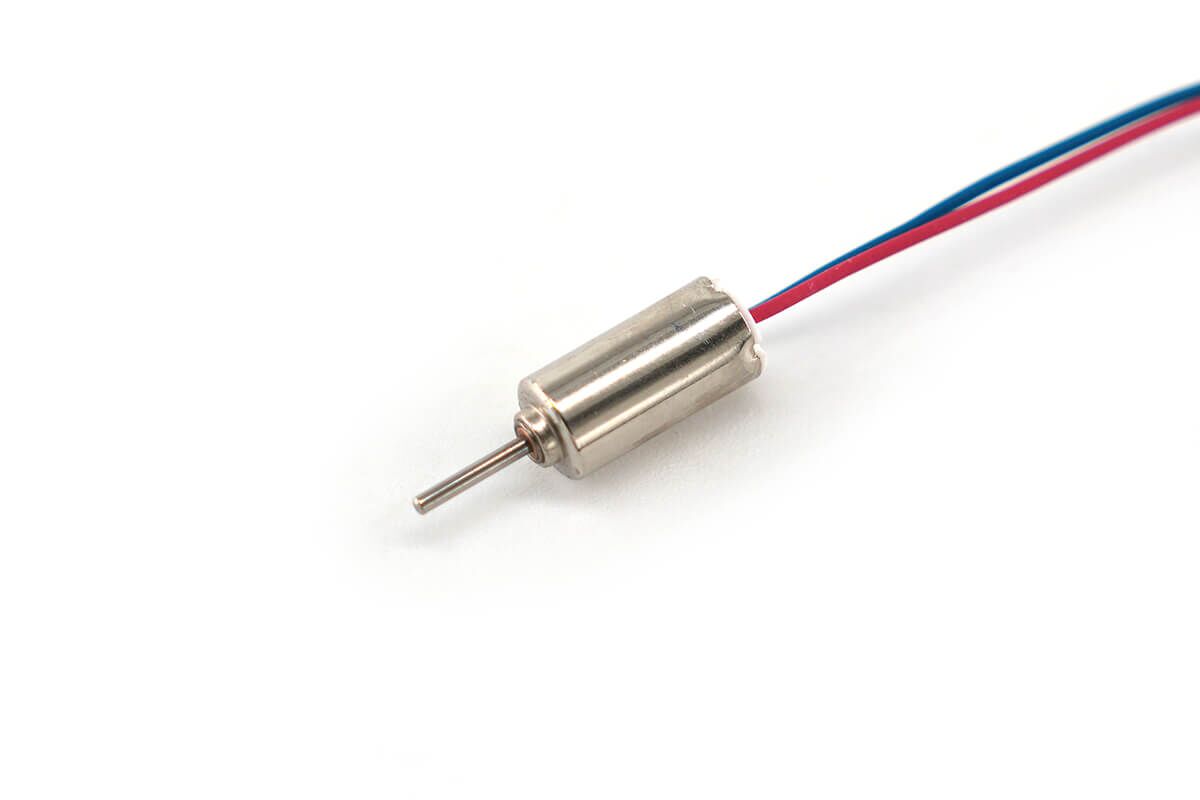

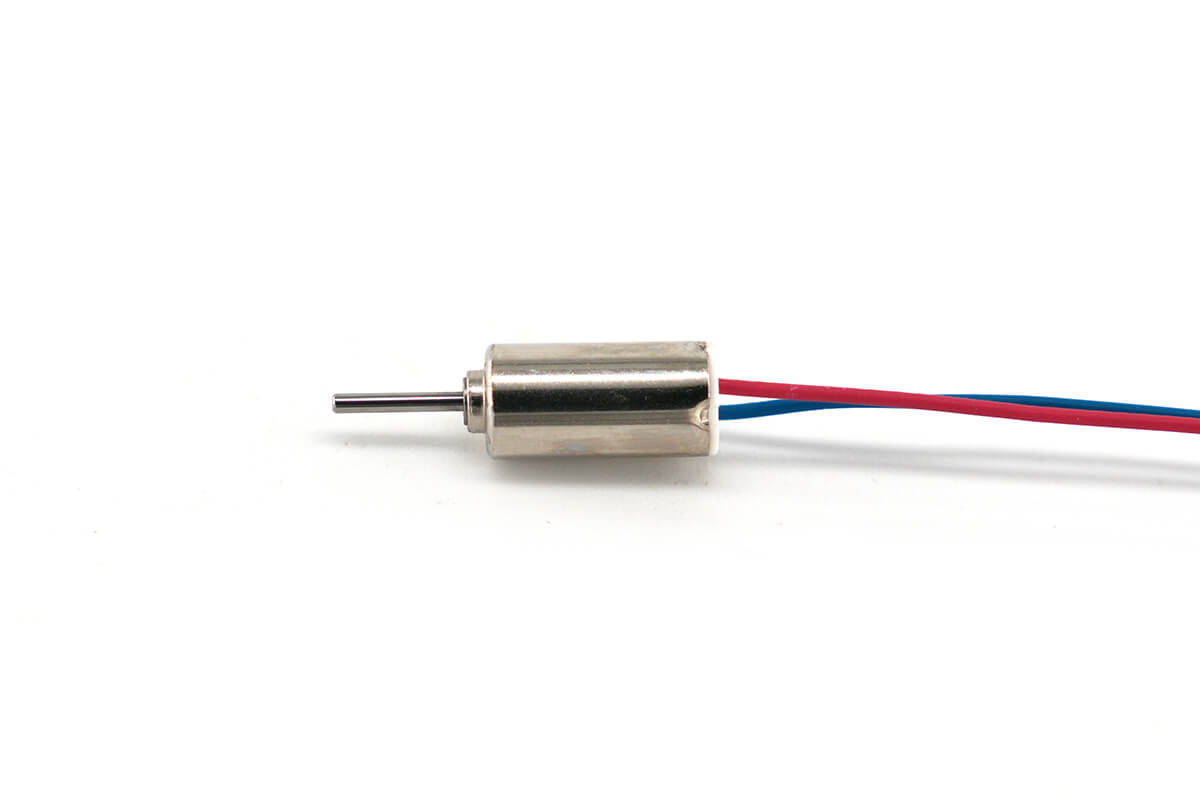

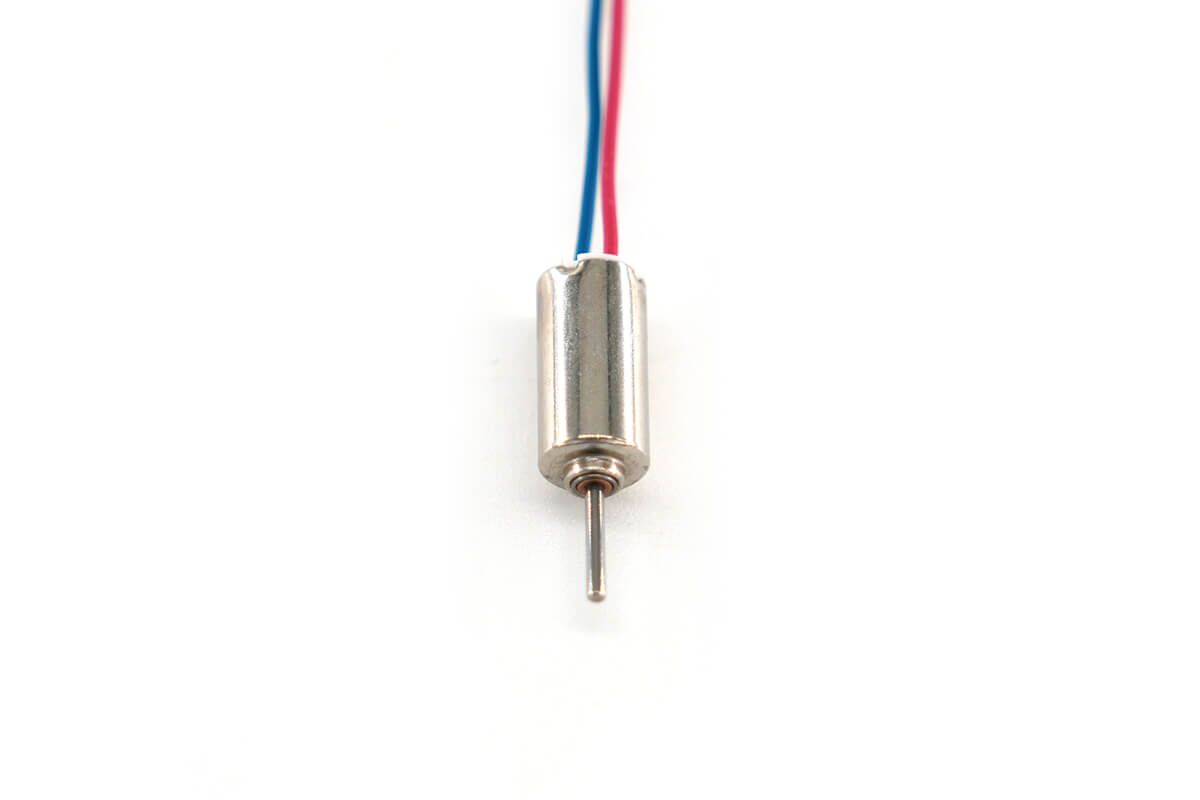

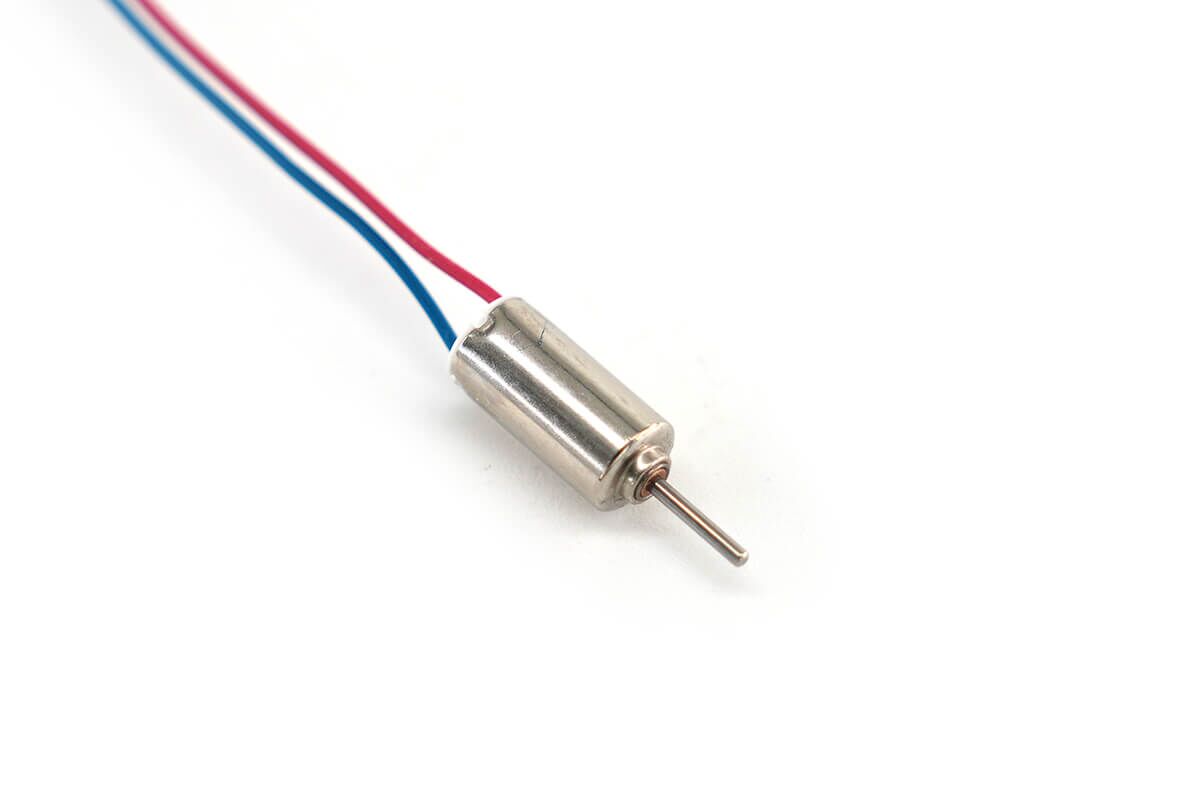

4mm Coreless DC Motor – 8mm Type Model NFP-D0408
$3.00
Notice: this motor model need to make new ones that would take extra 2-3weeks.
Transform your projects with our 4mm mini coreless dc motor. Compact and robust, it’s the perfect fit for your portable technology solutions!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 99 | $3.00 | 0% |
| 100 - 999 | $1.20 | 60% |
| 1000+ | $0.88 | 70.67% |
4mm Small Coreless Motors Parameters
The NFP-D408 series is a 4mm small coreless motor line for compact and portable products. It includes NFP-D408-A, NFP-D408-B, and NFP-D408-C options.
First, these 4mm motors are very small and light. Also, each model weighs only 0.5g. Therefore, they are useful for products that need a tiny motor with high speed.
In addition, the 3.7V design works well with small battery-powered devices. As a result, these motors can fit many portable and low-power systems.
Main Product Features
- First, compact size: The 4mm body fits very small product spaces.
- In addition, low weight: Each motor weighs only 0.5g.
- Also, high speed: The no-load speed can reach up to 88,000rpm.
- Next, 3.7V power: The motor works with small battery systems.
- Finally, multiple options: Three models are available for different speed and current needs.
4mm Coreless Motor Performance Data
Next, the table below helps users compare voltage, speed, current, torque, output power, and efficiency. Therefore, it is easier to choose the right model for a small device.
| Model | NFP-D408-A | NFP-D408-B | NFP-D408-C |
|---|---|---|---|
| Voltage | 3.7V | 3.7V | 3.7V |
| Terminal resistance | 11.3Ω | 9Ω | 32.4Ω |
| No-load-speed | 84,000rpm | 88,000rpm | 54,000rpm |
| No-load-current | 50mA | 59mA | 16mA |
| Stall torque | 0.95g.cm | 1.15g.cm | 0.53g.cm |
| Stall current | 330mA | 410mA | 110mA |
| Max output power | 0.204W | 0.261W | 0.073W |
| Max efficiency | 35% | 36% | 37% |
| Torque constant | 3.4g.cm/A | 3.3g.cm/A | 5.4g.cm/A |
| Rotor inertia | <0.01g.cm² | <0.01g.cm² | <0.01g.cm² |
| Weight | 0.5g | 0.5g | 0.5g |
Also, the NFP-D408-A and NFP-D408-B are better for very high speed use. However, the NFP-D408-C has lower no-load current, so it can help reduce power use in some designs.
Find All 4mm Coreless DC Motor Suppliers Outline Drawing
First, this outline drawing shows the 4mm coreless DC motor structure and size. Therefore, it can help users check the motor fit before product design.
In addition, this small coreless motor is suitable for energy-saving applications. For example, it can be used in solar-powered devices, small battery devices, and portable tools.
Terminal and Wiring Note
Note: The terminals are custom-made. Please contact us by email if you need them. Also, the default product is a wiring model without terminals.
Same Size More Options
Next, the same 4mm motor size can support different parameter options. As a result, users can choose a model based on speed, current, torque, and power needs.
Also, this motor can support custom projects. For example, it can be used in art devices, education tools, small automation systems, and compact medical tools.
Typical Applications
- Wearable devices
- Portable medical tools
- Solar-powered devices
- Battery-operated equipment
- Educational tools
- Small custom automation projects
Finally, if you need more 4mm coreless DC motors with different parameters, you can contact us through the form at the bottom of the page.
Keywords: 4mm micro motor, 4mm motor, mini coreless dc motor, buy coreless dc motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
