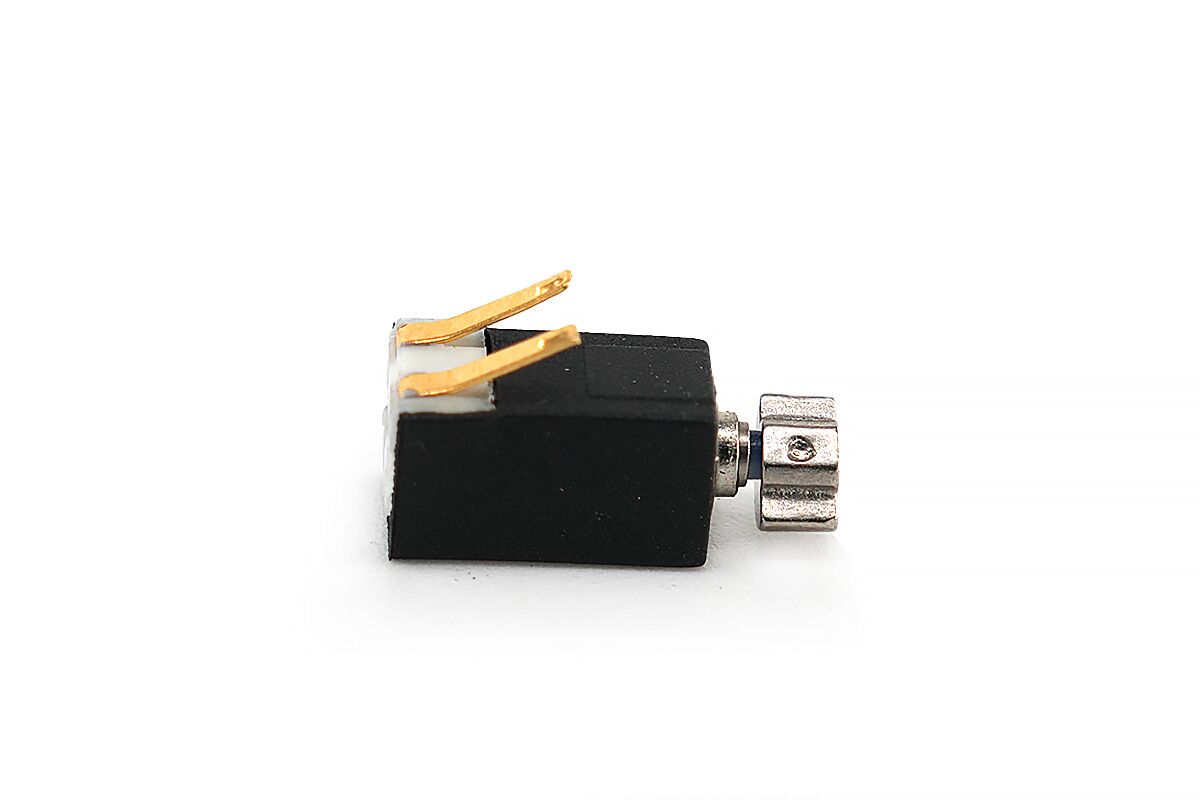

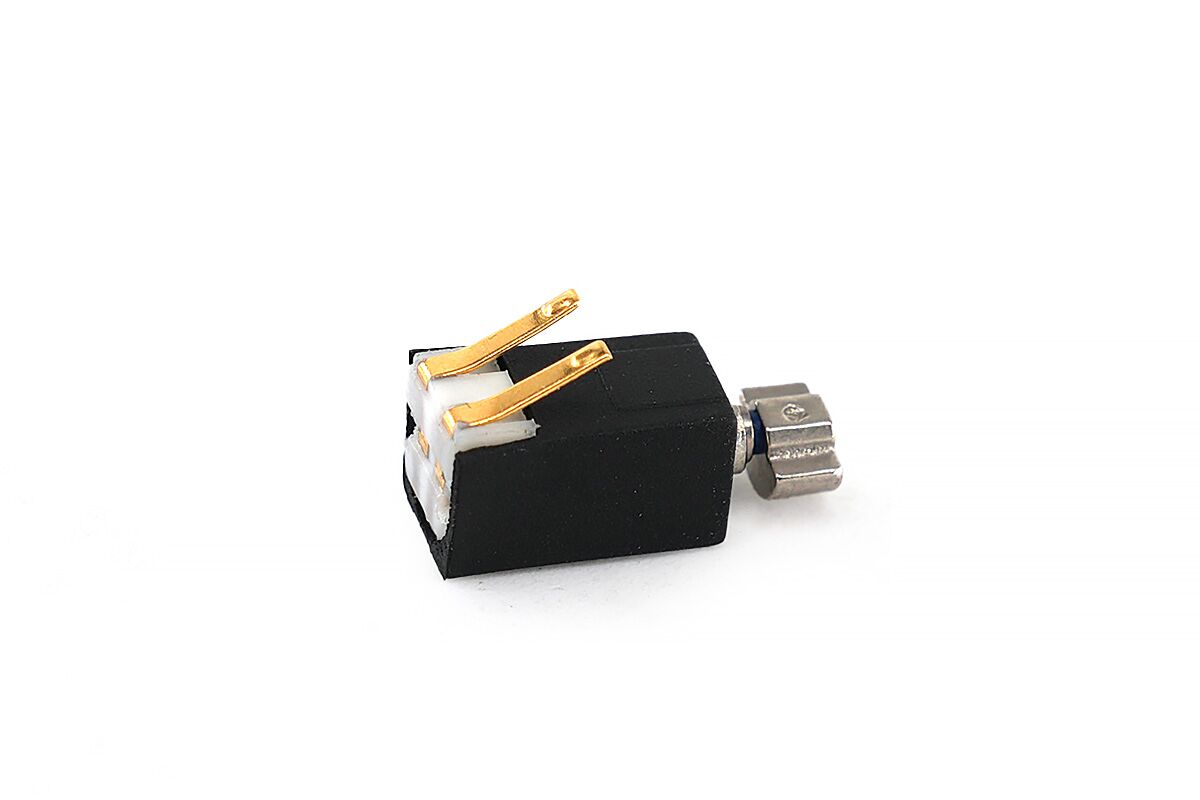

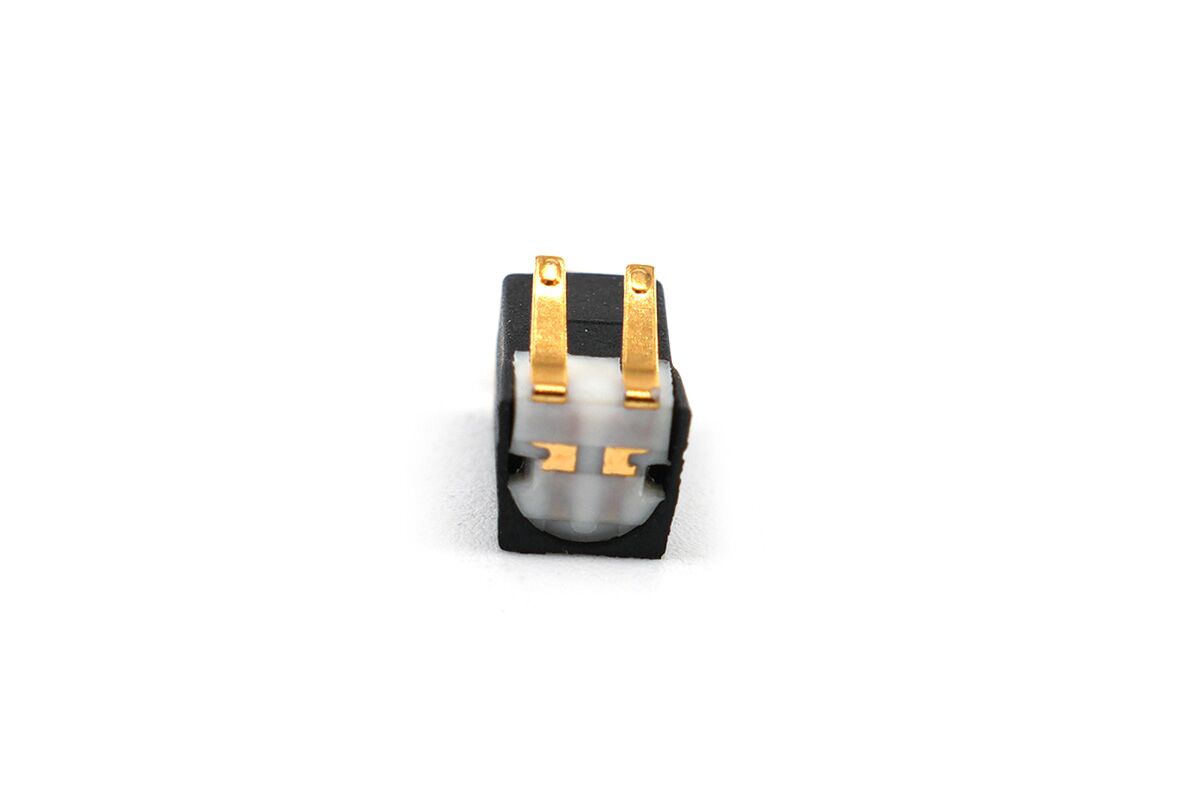

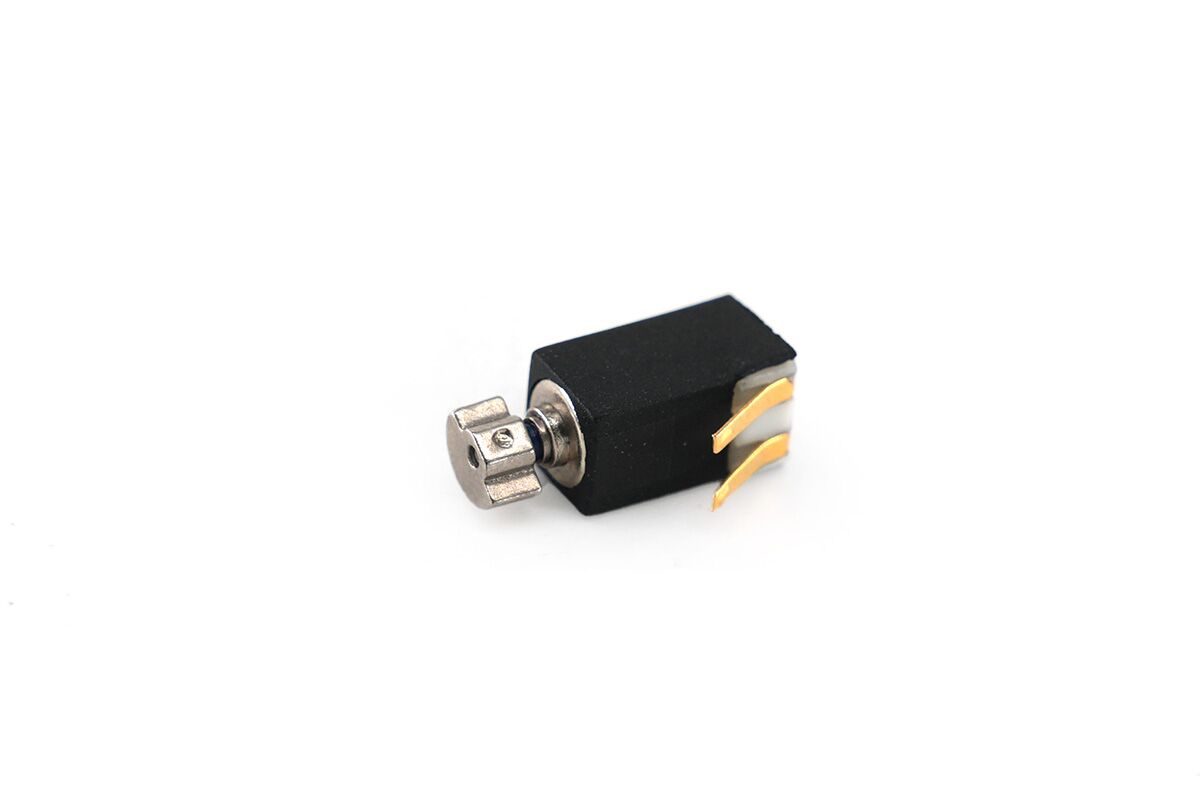

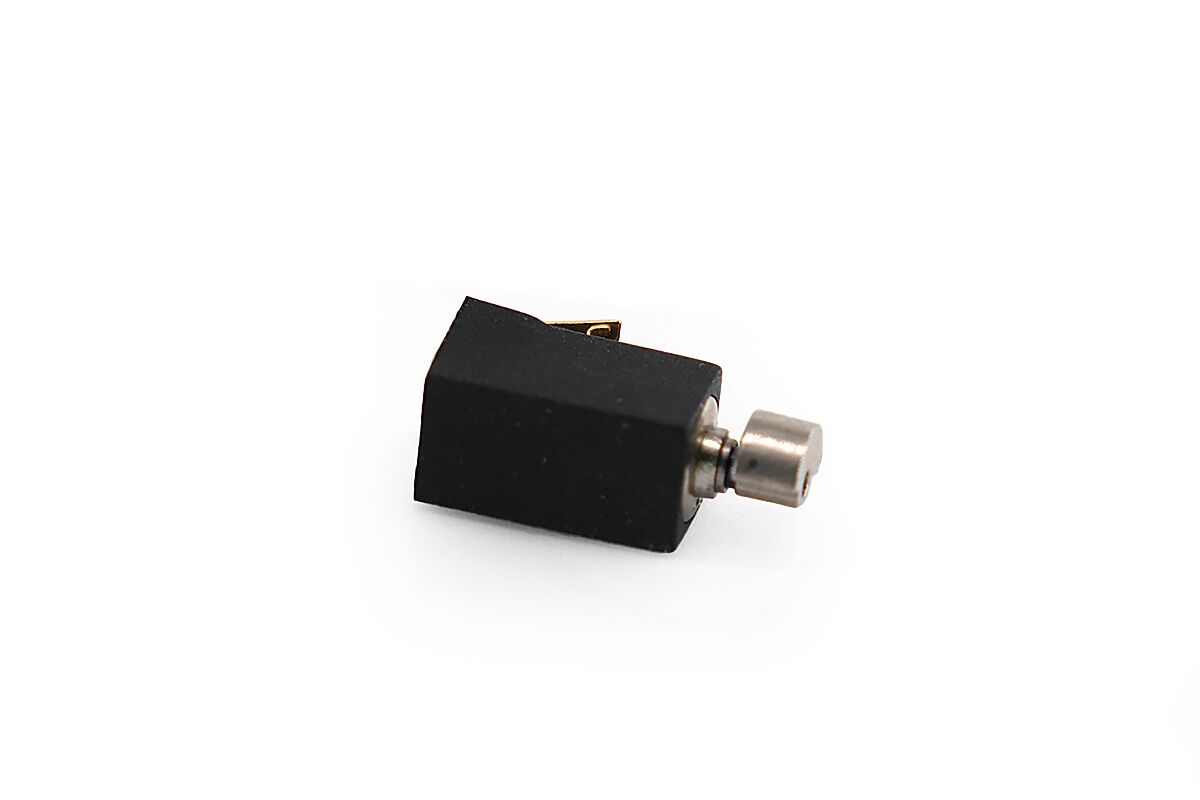

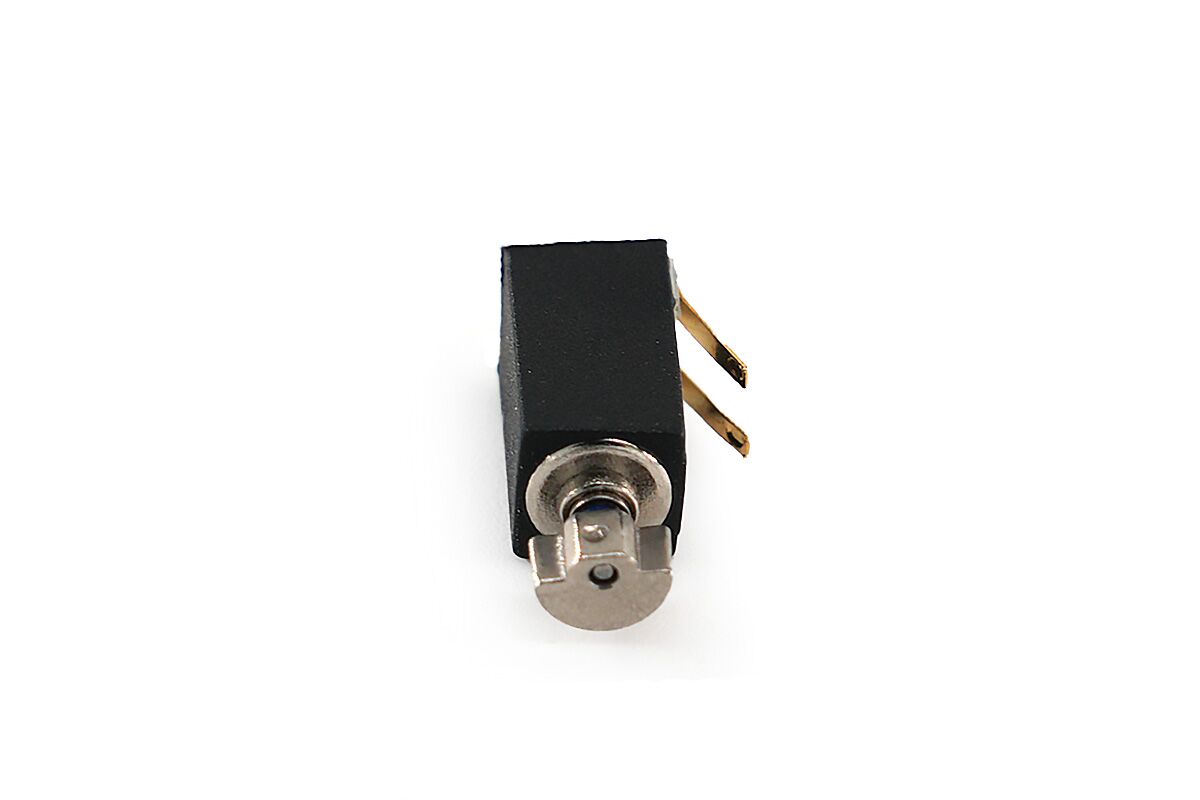

4mm Small Vibration Device – 8mm Type Model NFP-Y0408-0312
$5.00
Experience superior performance with our 4mm Small Vibration Device. Perfect for your engineering projects, it guarantees reliability and efficiency.
20 in stock
| Quantity | Price | Discount |
|---|---|---|
| 1 - 2999 | $5.00 | 0% |
| 3000 - 9999 | $0.53 | 89.40% |
| 10000+ | $0.39 | 92.20% |
Small Vibration Motor Model NFP-Y0408-0312 Parameters
This series of surface mount vibration motors, with spring contacts, make an excellent choice for a variety of reasons. While this series and our SMT reflow motor series are leadless, this series of motor has some distinct advantages over our SMT reflow motors.
| Motor Model | NFP-Y0408-0312 |
|---|---|
| Shaft End Play | 0.05mm – 2mm |
| Rated Voltage | 3.0V DC |
| Starting Voltage | 2.3V DC Max |
| Operating Voltage | 2.8V – 3.6V |
| Rated Speed | 14,000 ± 2,500rpm |
| Rated Current | 90mA Max |
| Vibration Quantity | 1G Min |
| Stall Current | 110mA Max |
| Eccentric Mass Weight | 0.22 ± 10%g |
| Motor Weight | 0.75 ± 10%g |
| Terminal Resistance | 33Ω ± 20% |
| Insulation Resistance | 10MΩ Min |
| Rotation | CW / CCW |
| Operating Environment | -20°C – 60°C, no coagulation of moisture |
| Storage Environment | -30°C – 70°C, no coagulation of moisture |
| Mechanical Noise | ≤50dB |
| Weight | 0.97g ± 10% |
Outline Drawing
Keywords:
small vibration motor, 3V vibration motor, small vibrating motor, massage motor, vibration motor projects
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
Yulanda Wiegert –
This small 4 mm vibrator offers high performance in a compact package. It is ideal for delicate work, runs quietly, consumes very little power, and is the first choice for small spaces.🫶
