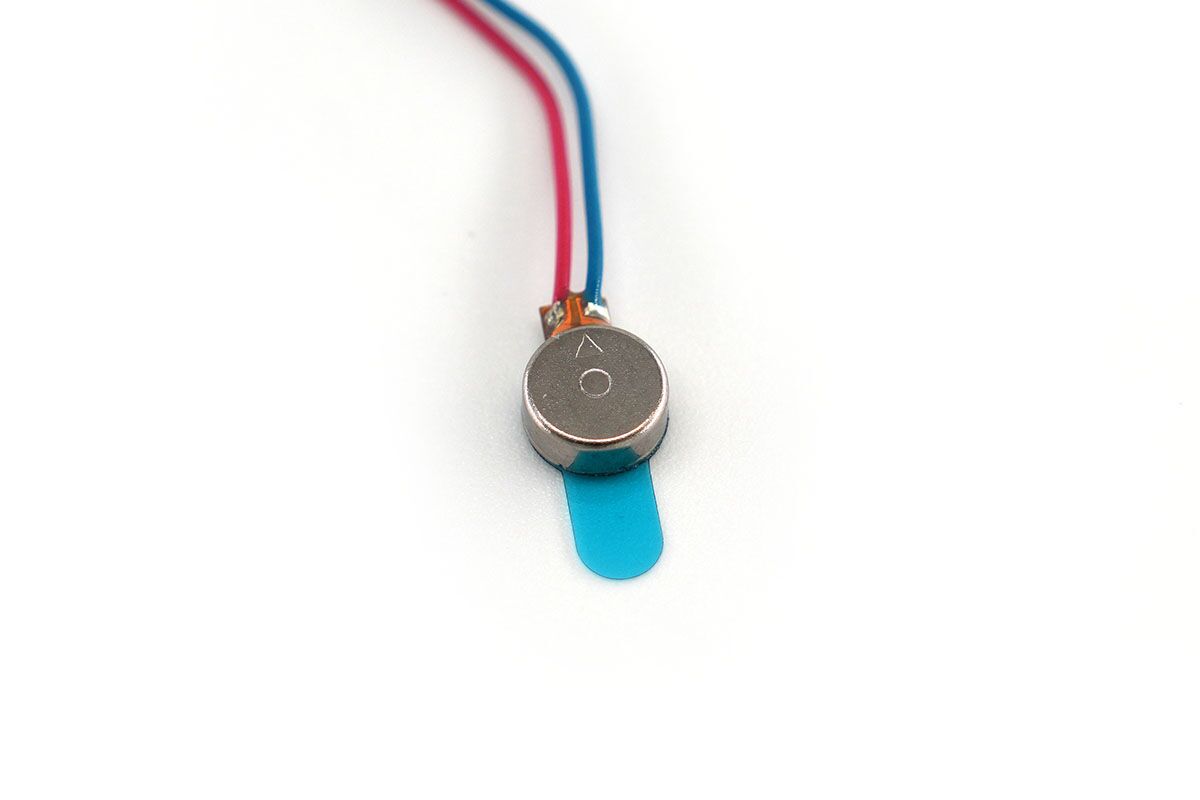

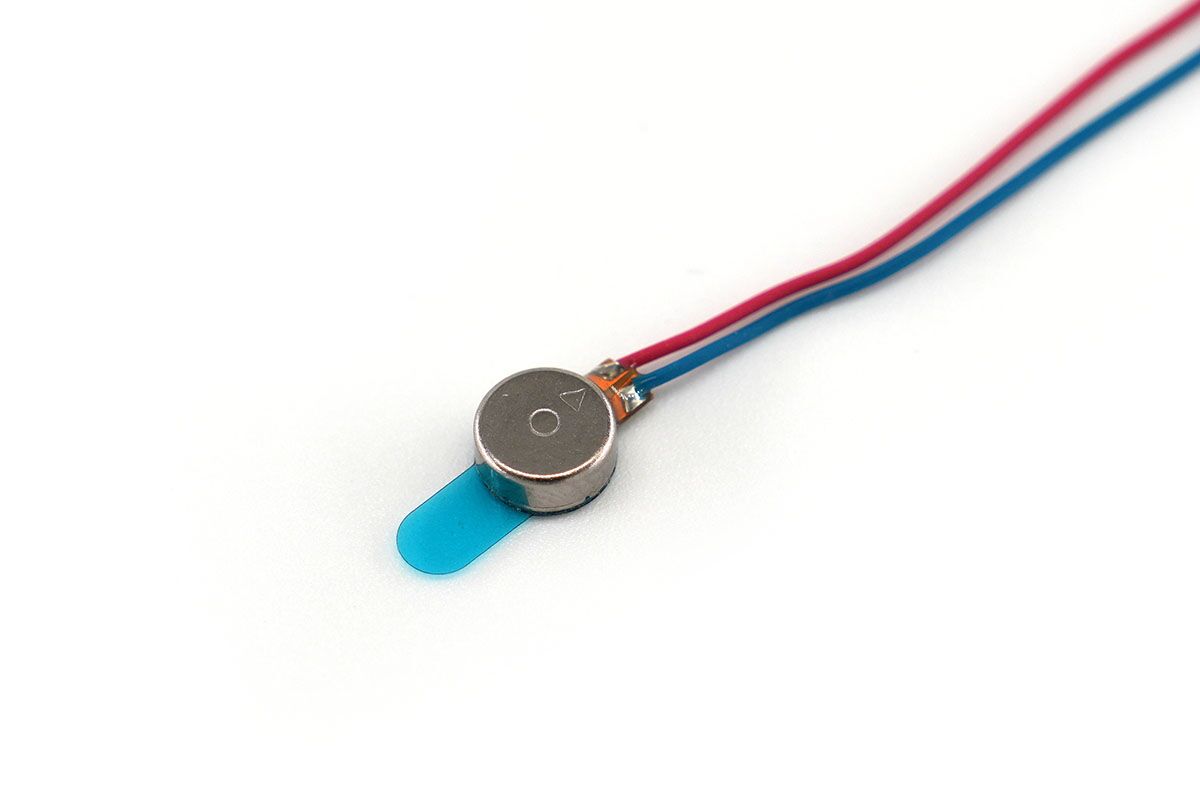

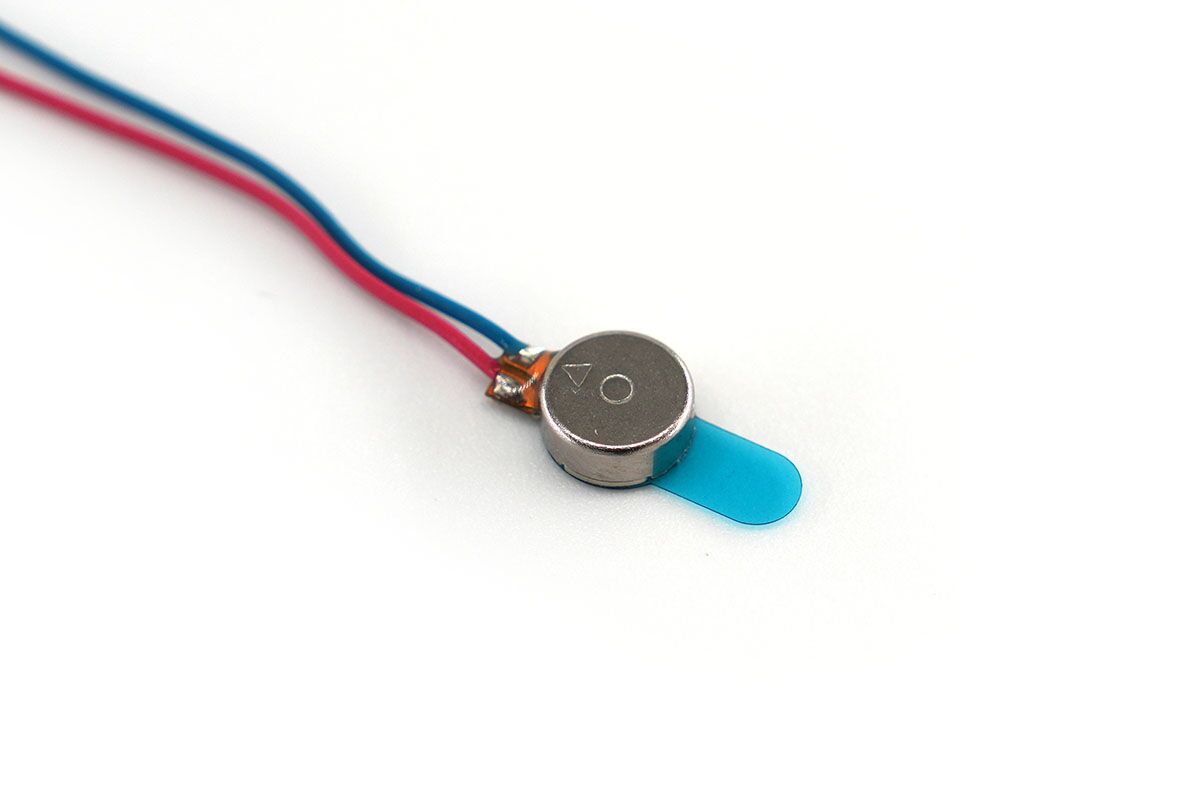

5mm Coin Vibration Motor – 2mm Type Model NFP-WS0520
$8.00
Smallest 5mm diameter coin vibration motor with ultra-thin 2mm profile. Ideal for smart rings, wearables, and compact electronic devices.
Out of stock
Φ5mm Diameter Flat BLDC Pancake Vibration Motor Parameter
Product Overview
The NFP-WS0520 is a 5mm brushless coin vibration motor. Therefore, it is suitable for very small devices that need light vibration feedback.
In addition, this motor has a low G force of 0.20 on a 30g sled. As a result, it works best in very light wearable products, such as smart rings and slim wearable devices.
Moreover, the motor includes a built-in driver IC. Therefore, users do not need an external driver IC for basic DC operation.
Main Features
- Small size: The 5mm body saves space. Therefore, it fits very compact product designs.
- Brushless design: The BLDC structure helps improve service life. In addition, it reduces brush wear.
- Built-in driver: The motor has an internal driver IC. As a result, users can simplify the drive circuit.

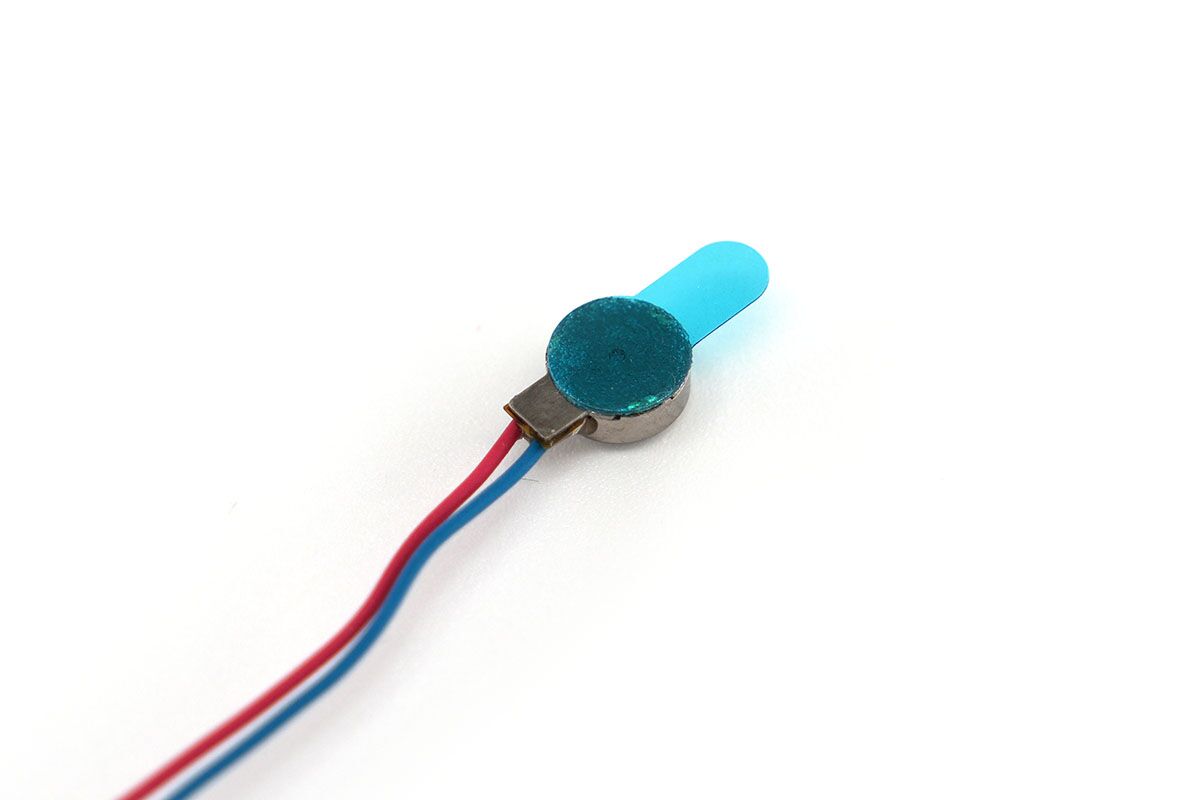

- Easy mounting: Double-sided tape on the case bottom helps with installation. Therefore, users can mount the motor more easily.
- Light vibration: The motor provides low vibration force. However, this makes it more suitable for light wearable devices.
Important Drive Notes
- Use DC voltage only: This motor works with DC voltage. Therefore, do not use a PWM signal to drive it.
- Check polarity: Users must connect the voltage polarity correctly. Otherwise, wrong polarity may damage the internal driver IC.
- Use within voltage range: The operating voltage range is 2.7V to 3.3V DC. In addition, 3.0V DC is the rated voltage.
Technical Specifications
The table below shows the main motor data. Therefore, users can check voltage, speed, current, test conditions, and operating limits before testing.
| Item | Specification |
|---|---|
| Rated Voltage | 3.0 V DC |
| Operating Voltage Range | 2.7 to 3.3 V DC |
| Rotation Direction | CW (clockwise) |
| Operating Environment | –20 to +60 °C, 10 to 90 %RH |
| Storage Environment | –30 to +70 °C, 10 to 90 %RH |
| Test Temperature | 25 ±3 °C |
| Test Humidity | 65 ± 20% RH |
| Air Pressure | 1013 ± 40 hPa |
| Power Supply | Constant DC current |
| Rated Speed | 12,500 ± 4,500 rpm |
| Rated Current | 90 mA max |
| Starting Current | 175 mA max |
| Starting Voltage | 2.5 V DC max |
| Insulation Resistance | 10 MΩ min |
Smallest Brushless DC Vibrating Coin Motor Outline Drawing
Motor Outline
The outline drawing below shows the shape and size of the 5mm brushless coin motor. Therefore, users can check the mounting space before product design.
In addition, the flat pancake structure helps reduce product thickness. As a result, this motor is useful for slim wearable devices and other compact electronics.
Typical Applications
- Smart rings: The motor can provide light haptic feedback in a very small space.
- Wearable devices: It can support silent alerts in slim wearable products.
- Compact electronics: The small body helps save PCB and housing space.
- Light haptic products: The low vibration force works well for light-touch feedback.
- Prototype testing: Engineers can use it for early wearable device tests.
