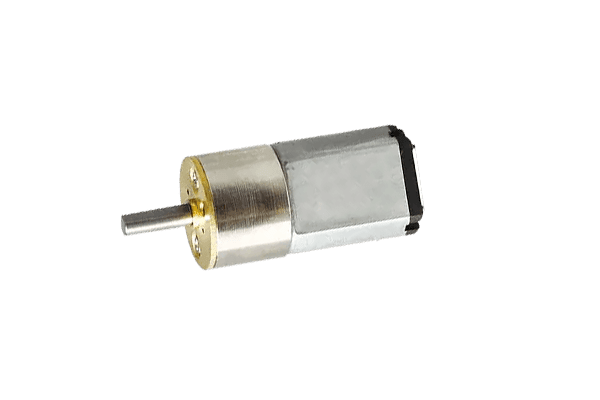

15mm Standard Gear Motor Model NFP-GM16-030PK

5V, 6V, 12V Micro DC Gear Motor Model NFP-GM16-030PK Description

First, the NFP-GM16-030PK is a micro DC gear motor series for compact drive systems. Also, it supports 5V, 6V, and 12V DC base motor options.

In addition, this motor series provides gear ratios from 3:1 to 360:1. Therefore, users can choose higher output speed or stronger low-speed torque based on the final load.

Moreover, the compact gearbox structure helps save installation space. As a result, this motor is suitable for small robots, smart devices, mini tools, and compact automation modules.

Main Product Features

• First, micro DC gear motor: The small gearbox helps fit limited product space.
• In addition, voltage options: The motor supports 5V, 6V, and 12V DC versions.
• Also, wide ratio range: Ratios from 3:1 to 360:1 support different speed and torque needs.
• Next, 11mm gearbox length: The same gearbox length helps simplify product design.
• Moreover, high speed options: Lower ratios provide fast output for light-load movement.
• Finally, high peak torque options: Higher ratios provide stronger force for compact drive tasks.

Single Motor Technical Data

First, the table below compares the single motor data before gearbox reduction. Also, it helps users check voltage, no-load speed, current, output power, stall torque, and stall current.

Therefore, users can choose the base motor voltage before selecting the gearbox ratio. In addition, the 12.0V DC motor provides the highest listed no-load speed and output in this table.

NFP-GM16-030PK Gear Motor Performance Data

Gear Motor NFP-GM16-030PK-09220-XXX Technical Data

First, the NFP-GM16-030PK-09220-XXX version uses a 6.0V DC base motor. Therefore, it is useful for compact 6V drive systems that need stable speed reduction.

In addition, lower ratios provide faster output speed. However, higher ratios provide lower speed and stronger max peak torque for small force-driven mechanisms.

Note: All reduced no-load speeds have a tolerance of ±15%.

As a result, the 6.0V version covers no-load speeds from 30rpm to 3,600rpm. Moreover, the 360:1 ratio provides the strongest max peak torque in this table.

6.0V DC Selection Notes

• First, for higher speed: Choose 3:1, 10:1, or 20:1.
• In addition, for balanced output: Choose 35:1, 63:1, 86:1, 115:1, or 150:1.
• Also, for higher torque: Choose 250:1 or 360:1.
• Finally, for 6V systems: Use this version when the product uses a 6.0V DC power supply.

Gear Motor NFP-GM16-030PK-10180-XXX Technical Data

Next, the NFP-GM16-030PK-10180-XXX version uses a 5.0V DC base motor. Also, it provides the same listed gearbox ratio and speed data as the 6.0V version.

Therefore, this version is useful for 5V controller boards and compact smart devices. In addition, users can choose it when a 5V power supply is required.

Note: All reduced no-load speeds have a tolerance of ±15%.

Therefore, the 5.0V version covers no-load speeds from 30rpm to 3,600rpm. Also, the 360:1 ratio provides the strongest max peak torque in this table.

5.0V DC Selection Notes

• First, for higher speed: Choose 3:1, 10:1, or 20:1.
• In addition, for balanced output: Choose 35:1, 63:1, 86:1, 115:1, or 150:1.
• Also, for higher torque: Choose 250:1 or 360:1.
• Finally, for 5V systems: Use this version when the product uses a 5.0V DC power supply.

Gear Motor NFP-GM16-030PK-06400-XXX Technical Data

Furthermore, the NFP-GM16-030PK-06400-XXX version uses a 12.0V DC base motor. Therefore, it is suitable for products that need higher voltage and higher listed output speed.

In addition, this version provides 4,000rpm no-load speed at 3:1. As a result, it is useful for compact drive systems that need faster output.

Note: All reduced no-load speeds have a tolerance of ±15%.

In conclusion, the 12.0V version covers no-load speeds from 35rpm to 4,000rpm. Also, the 360:1 ratio provides the strongest max peak torque in this table.

12.0V DC Selection Notes

• First, for higher speed: Choose 3:1, 10:1, or 20:1.
• In addition, for balanced output: Choose 35:1, 63:1, 86:1, 115:1, or 150:1.
• Also, for higher torque: Choose 250:1 or 360:1.
• Finally, for 12V systems: Use this version when the product uses a 12.0V DC power supply.

Performance Selection Notes

• First, choose voltage: Use 5V, 6V, or 12V based on the power supply.
• In addition, choose ratio: Select lower ratios for speed and higher ratios for torque.
• Also, check length: All listed gear ratios use an 11mm gearbox length.
• Next, check torque: Compare rated torque and max peak torque with the real load.
• Moreover, check current: Make sure the driver can support the selected motor current.
• Finally, test real load: Confirm current, speed, torque, noise, and temperature before production.

NFP-GM16-030PK Micro DC Gear Motor Outline Drawing

Motor Outline and Mounting Reference

First, the outline drawing helps users check the GM16 gear motor size, gearbox shape, output shaft, and mounting space. Therefore, it is useful before sample testing and product design.

In addition, users looking for a motor plus gearbox can use this series as a compact drive solution. As a result, it can support many small motion systems.

Moreover, the NFP-GM16-030PK series offers ratio options from 3:1 to 360:1. Therefore, users can choose a suitable option for speed, torque, and space needs.

Outline Drawing and Design Benefits

• First, compact gearbox: The small gearbox helps save product space.
• In addition, multiple voltage options: Users can choose 5V, 6V, or 12V DC motor versions.
• Also, multiple ratio options: Users can choose fast or slow output.
• Next, 11mm gearbox length: The common gearbox length helps simplify layout design.
• Moreover, small DC motor input: The base motor supports compact drive designs.
• Finally, clear dimensions: The drawing helps users design brackets, housings, and fixtures.

Applications and Selection Tips

Typical Applications

Finally, this NFP-GM16-030PK micro DC gear motor is useful for compact products that need small size, flexible voltage, and multiple ratio choices. For example, it can work in robots, smart devices, toys, precision instruments, and mini automation modules.

• First, robots: The gear motor can drive wheels, arms, and small motion parts.
• In addition, smart devices: The compact gearbox helps save internal product space.
• Also, toys and models: The small motor size supports compact battery-powered products.
• Next, precision instruments: The gearbox provides controlled output speed.
• Moreover, mini automation modules: The motor can support compact push, pull, or rotation tasks.
• Finally, custom mechanisms: The ratio options help match many motion needs.

How to Choose the Right Version

First, choose the base motor voltage based on the power supply. Also, choose the ratio based on output speed, rated torque, max peak torque, and gearbox length.

In addition, lower ratios provide faster output speed. Therefore, they are better for quick movement and lighter loads.

Moreover, higher ratios provide slower output and stronger max peak torque. As a result, they are better for compact force-driven tasks.

Final Product Summary

In short, the NFP-GM16-030PK micro DC gear motor is a compact solution for products that need 5V, 6V, or 12V DC power, 3:1 to 360:1 ratio options, 11mm gearbox length, and flexible speed selection.

Moreover, the 250:1 and 360:1 ratios provide stronger max peak torque. Therefore, they are useful when compact products need slower speed and higher force.

Keywords: DC gear motor datasheet, gear motor mechanism, mini DC gear motor
