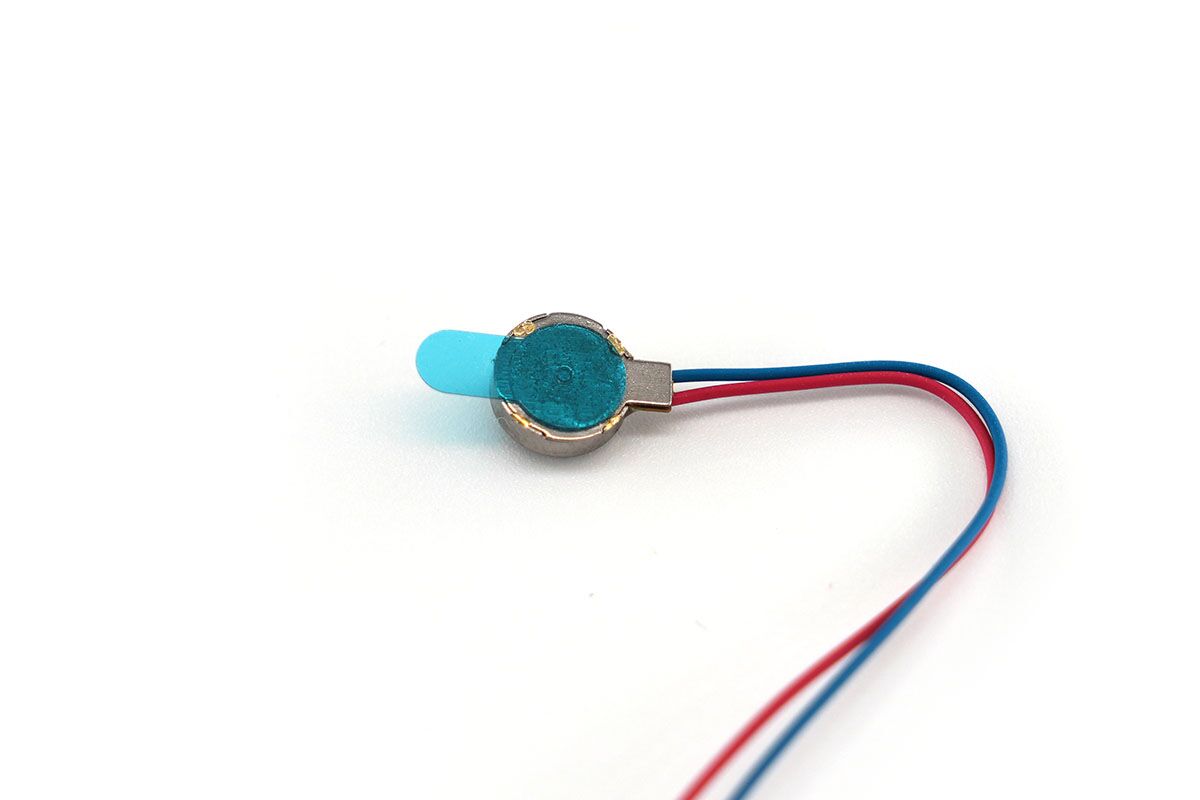

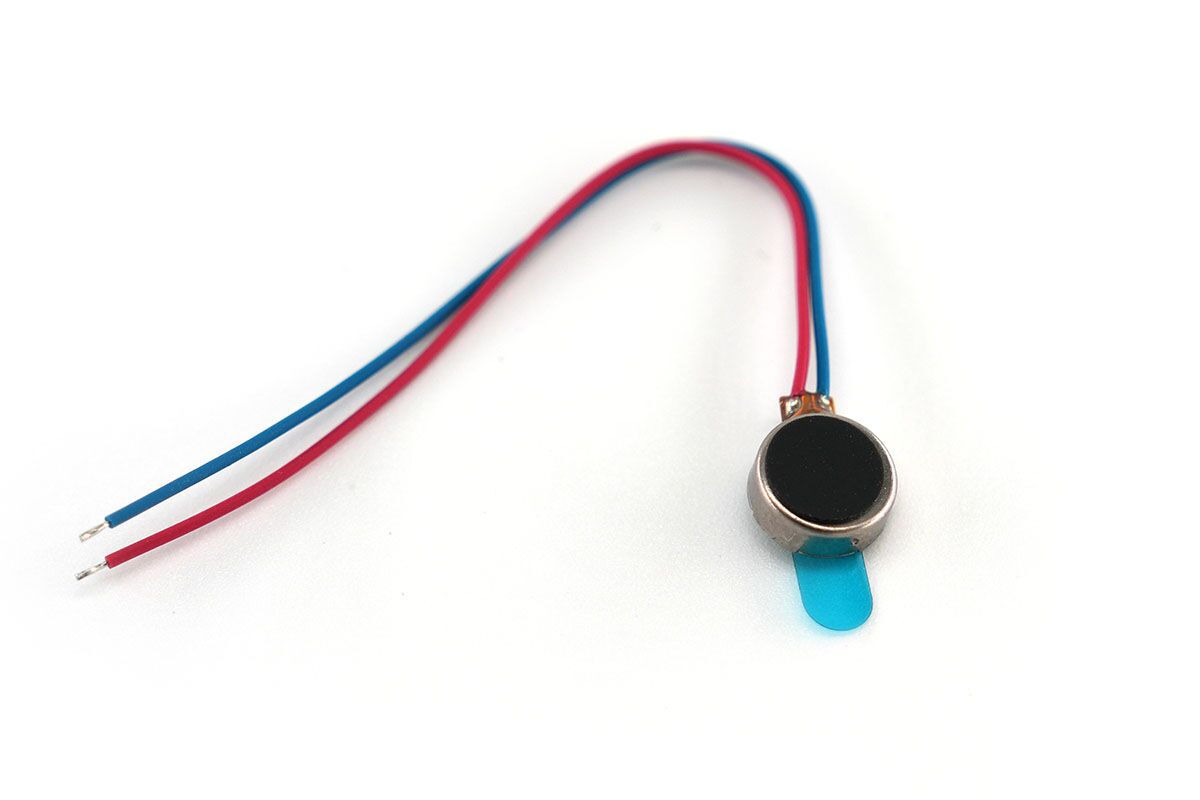

6mm Coin Vibration Motor – 2mm Type Model NFP-WS0620
$8.00
Maximize your project’s efficiency with our 6mm brushless coin vibration motor. Designed for high duty cycles, it ensures smooth operation with ease!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $8.00 | 0% |
| 10 - 19 | $7.50 | 6.25% |
| 20 - 49 | $6.90 | 13.75% |
| 50 - 99 | $5.50 | 31.25% |
| 100 - 499 | $4.80 | 40% |
| 500+ | $3.20 | 60% |
High-Reliability BLDC Coin Vibration Motor with Built-in Driver IC
Product Overview
The NFP-WS0620 is a high-reliability brushless coin vibration motor with a built-in driver IC. Therefore, it can run with standard DC voltage without an external driver circuit.
In addition, this BLDC coin motor is suitable for high duty cycle applications. As a result, it can support medical devices, wearable technology, precision instruments, and other compact products that need long service life.
Moreover, the motor provides up to 1 million cycles of lifetime. Therefore, it offers a better life option than many brushed coin vibration motors.
Main Advantages
- Long lifespan: The motor can reach up to 1 million cycles. Therefore, it can support high-reliability projects.
- Built-in driver IC: The motor does not need an external driver circuit. As a result, users can save PCB space and design cost.
- DC voltage operation: The motor works with standard DC voltage. Therefore, users can drive it more easily than many other BLDC vibration motors.
- High duty cycle support: The brushless design helps improve durability. In addition, it works well for frequent vibration feedback.
- Compact coin shape: The 6mm diameter and 2mm thickness help save space. Therefore, it fits thin and compact product designs.
Why Choose a Brushless Coin Motor
Unlike brushed coin motors, this BLDC coin motor does not rely on brush contact for commutation. Therefore, it can reduce brush wear and improve working life.
In addition, the embedded driver IC simplifies integration. As a result, product engineers can use it in compact designs without adding a separate controller.
However, users should still follow the rated voltage range. Therefore, use 3.0V DC nominal input and keep the operating voltage within 2.7V DC to 3.3V DC.
Technical Specifications
The table below shows the main motor data. Therefore, users can check size, voltage, speed, current, response time, coil impedance, and vibration force before product testing.
| Motor Model | NFP-WS0620 |
|---|---|
| Motor Diameter | 6mm ± 0.05mm |
| Motor Thickness | 2mm ± 0.1mm |
| Rated Voltage | 3.0V DC |
| Operating Voltage | 2.7V DC ~ 3.3V DC |
| Rotation | CW(clockwise) |
| Operating environment | -20~+60℃, 10~90%RH |
| Storage environment | -30~+70℃, 10~90%RH |
| Testing Temperature | 25 ± 3℃ |
| Testing Humidity | 65 ± 20% RH |
| Testing Air Pressure | 1013 ± 40 hPa |
| Testing Power | Constant DC Current |
| Rated Speed | 16,000 ± 3,000 rpm |
| Rated Current | 80mA Max |
| Starting Current | 150mA Max |
| Starting Voltage | 2.5V DC Max |
| Insulation Resistance | 10MΩ Min |
| Response Time | ≤190 ms |
| Coil impedance | 12 ± 15%Ω |
| Vibration Force | 0.35 Grms |
Micro BLDC Vibration Motor 2mm Thickness Outline Drawing
Motor Outline
The outline drawing below shows the 6mm coin motor structure and 2mm thickness. Therefore, users can check the mounting space before product design.
In addition, the thin coin shape helps support compact PCB and device layouts. As a result, this motor is useful for slim wearable products and small electronic devices.
ERM Coin Motor Structure

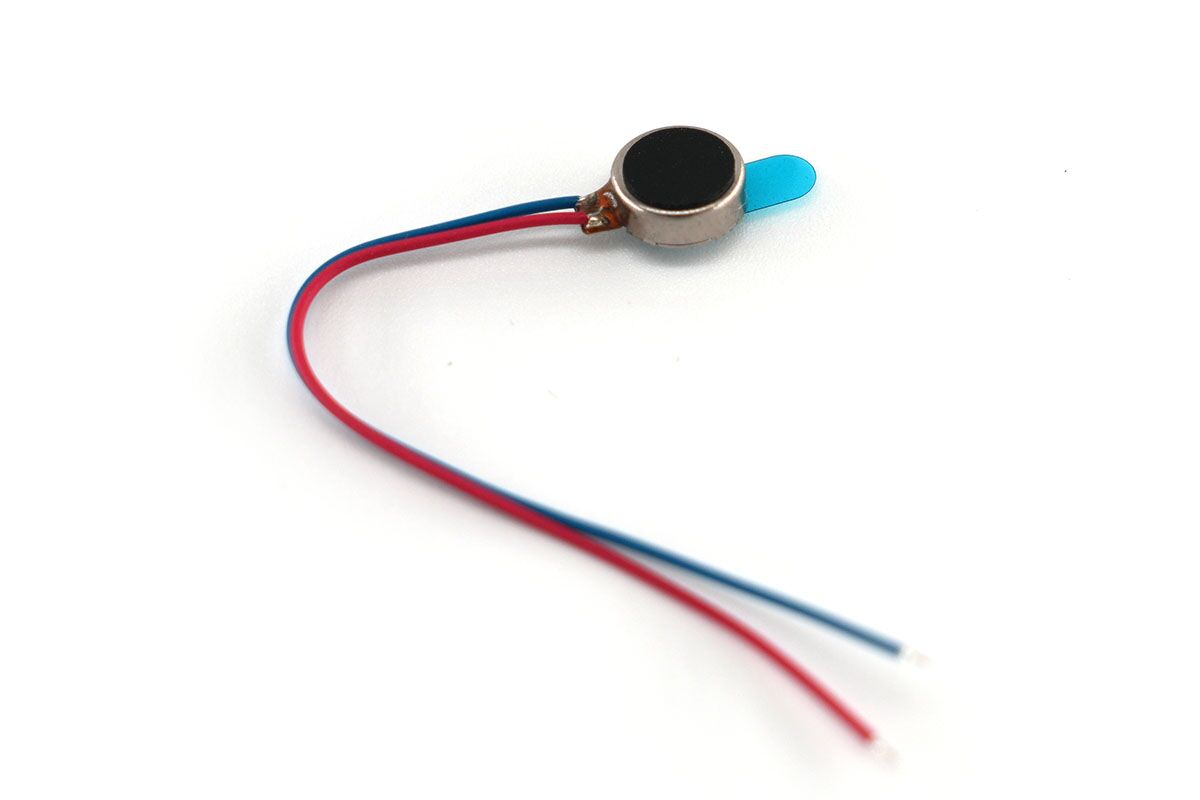

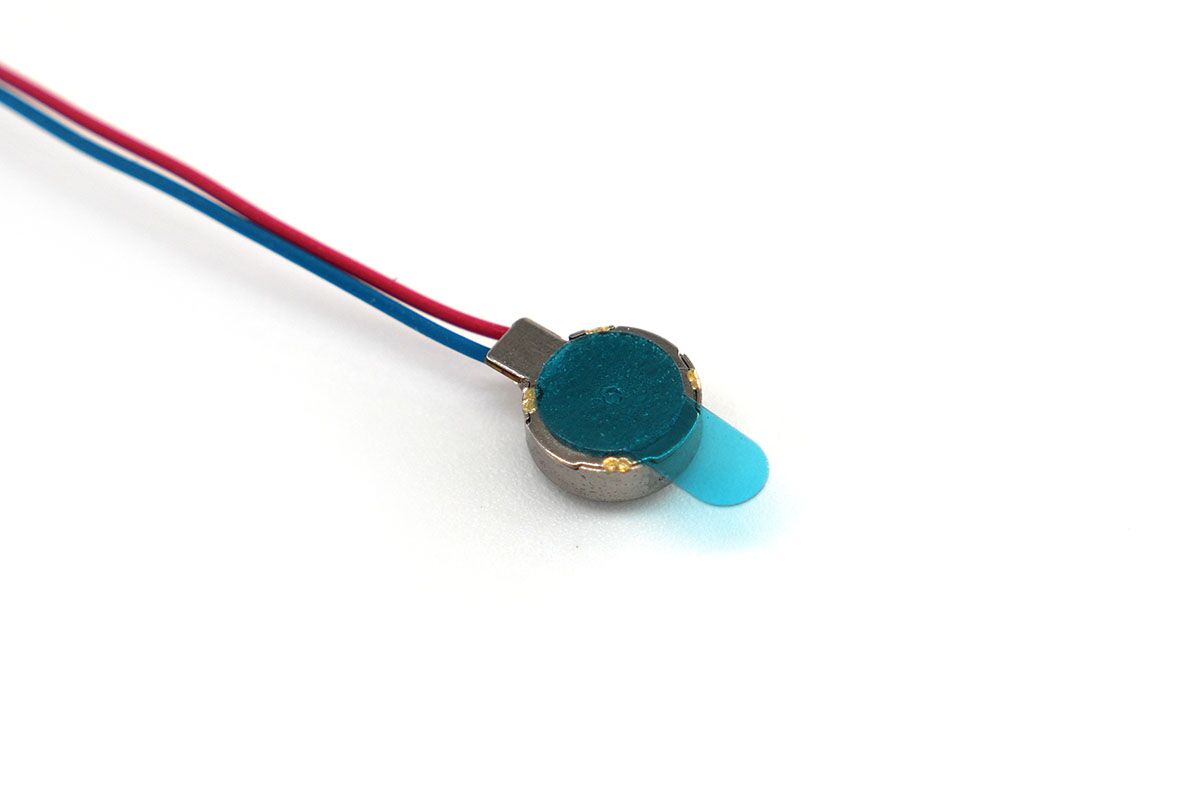

The image below shows the small ERM coin vibration motor type. Moreover, the compact form factor helps engineers add vibration feedback without using much space.
Therefore, users can apply this model when the design needs a small, flat, and long-life vibration source.
Typical Applications
- Medical devices: The long-life BLDC design helps support high-reliability vibration feedback.
- Wearable technology: The 2mm thickness helps fit thin product structures.
- Precision instruments: The motor can provide compact vibration alerts in small devices.
- Smart electronics: The built-in driver IC helps simplify product design.
- High duty cycle products: The brushless design helps reduce wear during frequent use.
Selection Notes
- Check voltage: Use 3.0V DC rated input. In addition, keep the operating voltage within 2.7V DC to 3.3V DC.
- Check current: Make sure the power supply can support up to 150mA starting current.
- Check space: Confirm the 6mm diameter and 2mm thickness before assembly.
- Check duty cycle: Choose this BLDC model when the product needs longer life than a brushed coin motor.
- Check vibration force: Use this motor when the design needs about 0.35 Grms vibration force.
Keywords:
coin vibration, coin mobile phone vibration motor, pancake motor, coin vibration motor, coin type vibration motor, 3v vibration motor, brushless vibration motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
