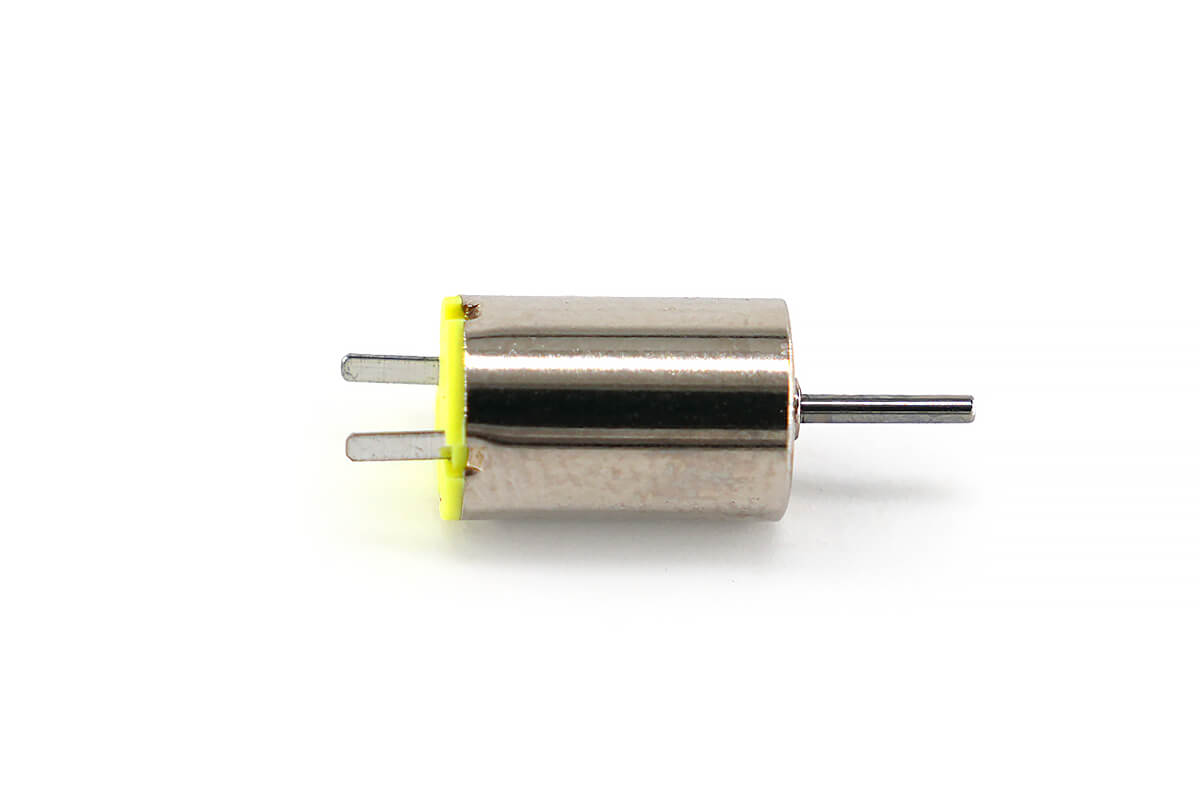

6mm Coreless DC Motor – 9mm Type Model NFP-D0609-JE
$3.00
Experience remarkable efficiency with the NFP-D0609-JE 6mm coreless dc motor smt, perfect for precision instruments. Order today for superior quality!
22 in stock
| Quantity | Price | Discount |
|---|---|---|
| 1 - 19 | $3.00 | 0% |
| 20 - 99 | $1.20 | 60% |
| 100 - 999 | $1.10 | 63.33% |
| 1000+ | $0.88 | 70.67% |
Micro Coreless Motor Factory Quality Data Sheet
First, the NFP-D0609-JE is a 6mm coreless DC motor made for small devices that need fast speed and steady output. Also, its 9.3mm body length helps save space in compact products.
In addition, this motor works at 3V DC and reaches a no-load speed of 33,000rpm. Therefore, it is a good choice for precision tools, small robots, drones, and other compact systems.
Moreover, the outline drawing below shows the main body size, shaft size, pin layout, and mounting details. As a result, engineers can check the fit before design or assembly.
Next, the table lists the key size and performance data for the NFP-D0609-JE. Also, it includes voltage, speed, current, torque, resistance, inductance, and back EMF data.
| Motor model | NFP-D0609-JE |
|---|---|
| Motor length – A | 9.3mm ± 0.2mm |
| Motor Diameter – ΦB | 6mm ± 0.1mm |
| Output Shaft Total Length – C | 5.0mm +/-0.2mm |
| Output Shaft Diameter – ΦD | 0.8mm (+0.0/-0.01) |
| Step Height – E | 0.3mm – 0.5mm |
| Step Diameter – F | 1.7mm (+0.0/-0.02) |
| Pitch – G | 4.0mm +/-0.05mm |
| Positioning Hole – H | 1.0mm +/-0.06mm |
| Positioning Hole Diameter – ΦJ | 1.73mm +/-0.06mm |
| Positioning Hole Location – K | 1.0mm +/-0.06mm |
| Pin length – L | 2.7mm ± 0.3mm |
| Mounting Hole – M | M 0.7 |
| Metal Pin Spacing – P | 4.2mm ± 0.2mm |
| Metal Pin Thickness – Q | 0.2mm ± 0.05mm |
| Metal Pin Width – R | 0.8mm ± 0.1mm |
| Voltage | 3V DC |
| No-load Current | 40mA max |
| No-load Speed | 33,000 ± 10%rpm |
| Start Voltage | 0.8V max |
| Stall Current | 230mA max |
| Rotation | CW |
| Stall Torque | 1.2g.cm |
| Resistance | 16.8 ± 10% Ω |
| Noise | No strange sound, no sound change |
| Inductance | 5–50 µH (measured at 1.0 V, 1 kHz) |
| Back EMF Constant | 0.000082 V/rpm ±15% |
Furthermore, these values help users compare this motor with other 6mm coreless motor options. In short, the NFP-D0609-JE is suitable when small size, simple mounting, and high speed are required.
Features
Also, the NFP-D0609-JE offers several useful features for compact product design. Therefore, it can support both sample testing and small device production.
- Compact size: 6mm diameter and 9.3mm body length help save space.
- High speed: 33,000rpm no-load speed supports fast response.
- Low noise: smooth running helps reduce sound change during use.
- Tough build: quality materials help provide stable performance.
- Easy mounting: metal pins and mounting holes support compact assembly.
Applications
For example, this 6mm coreless DC motor can be used in many small devices. In addition, its low weight and fast speed make it useful for precision systems.
- Medical devices: small tools that need compact size and steady output.
- Robotics: small robots that need quick motor response.
- Drones: light and high-speed drive systems for mini UAVs.
- Consumer electronics: electric shavers, toothbrushes, and game controllers.
- Automotive systems: small parts such as power door locks and electronic mirrors.
In conclusion, the NFP-D0609-JE is a compact 3V micro coreless motor for products that need fast speed, low noise, and easy installation.
Keywords: 6mm coreless DC motor, micro coreless motor, high-speed micro motor, NFP-D0609-JE, miniature DC motor, precision micro motor
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
