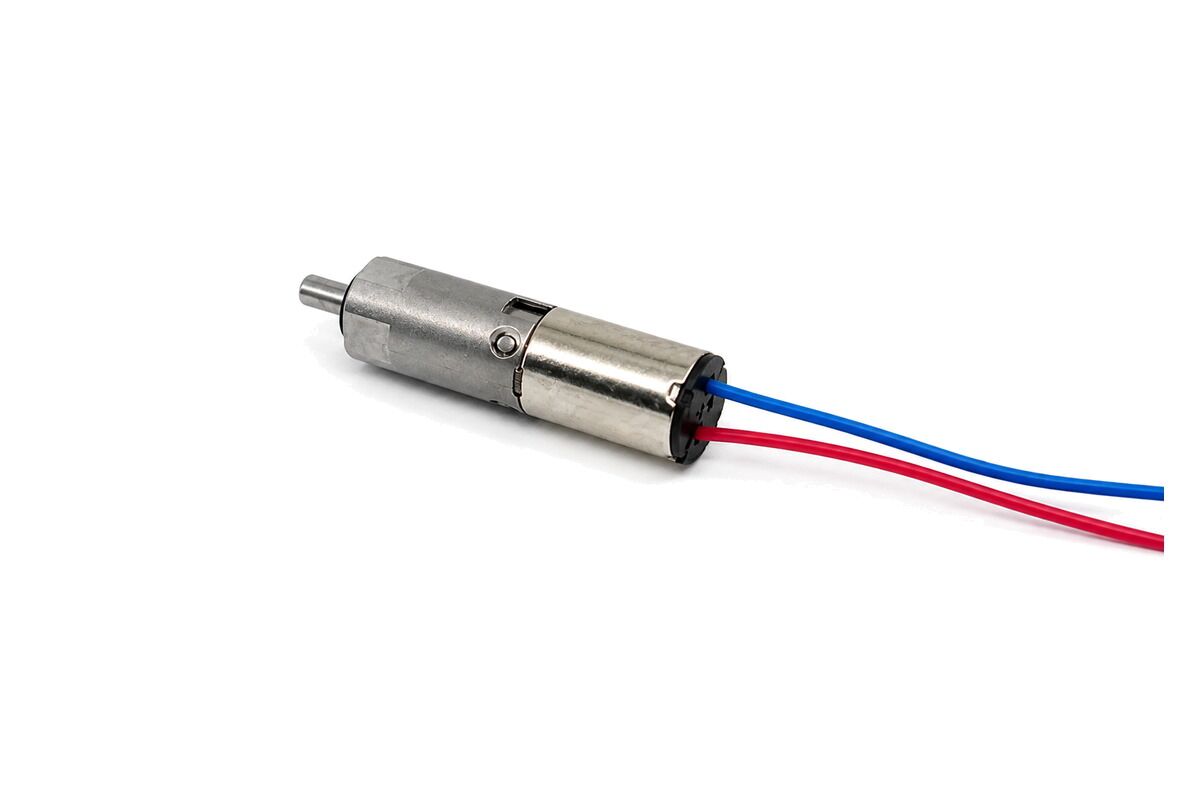

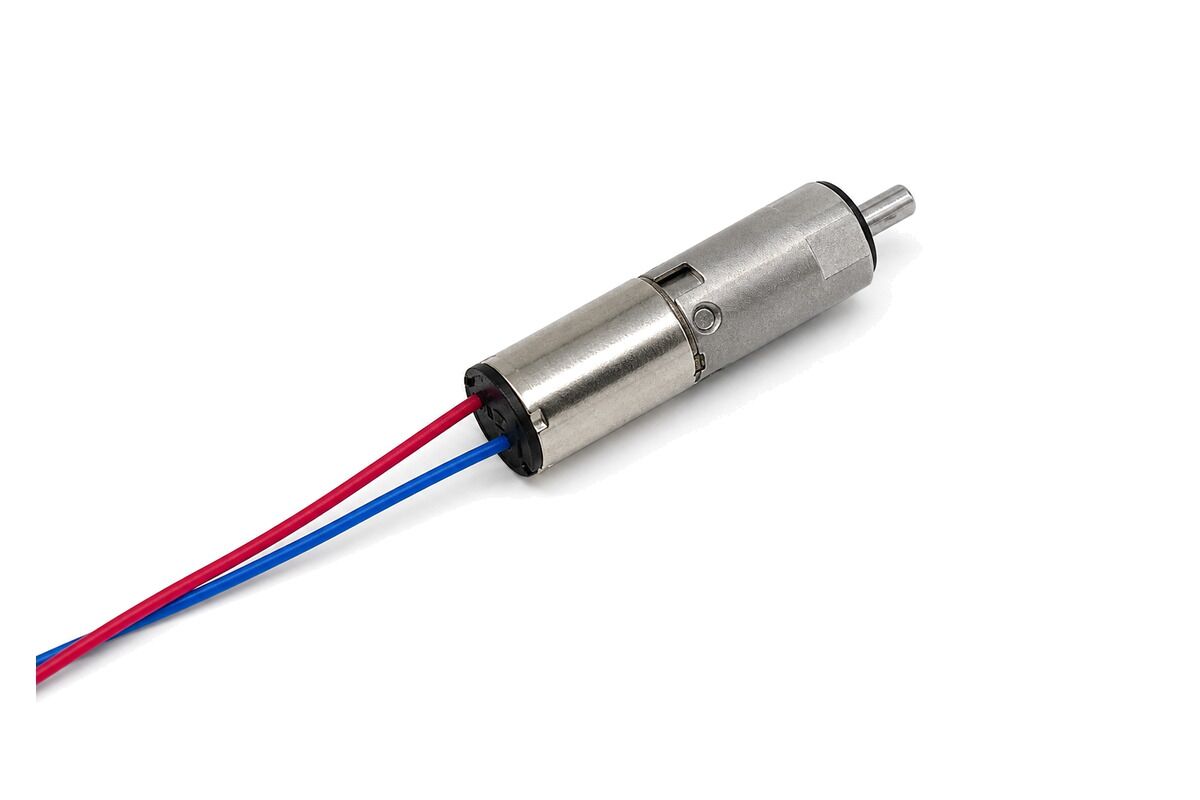

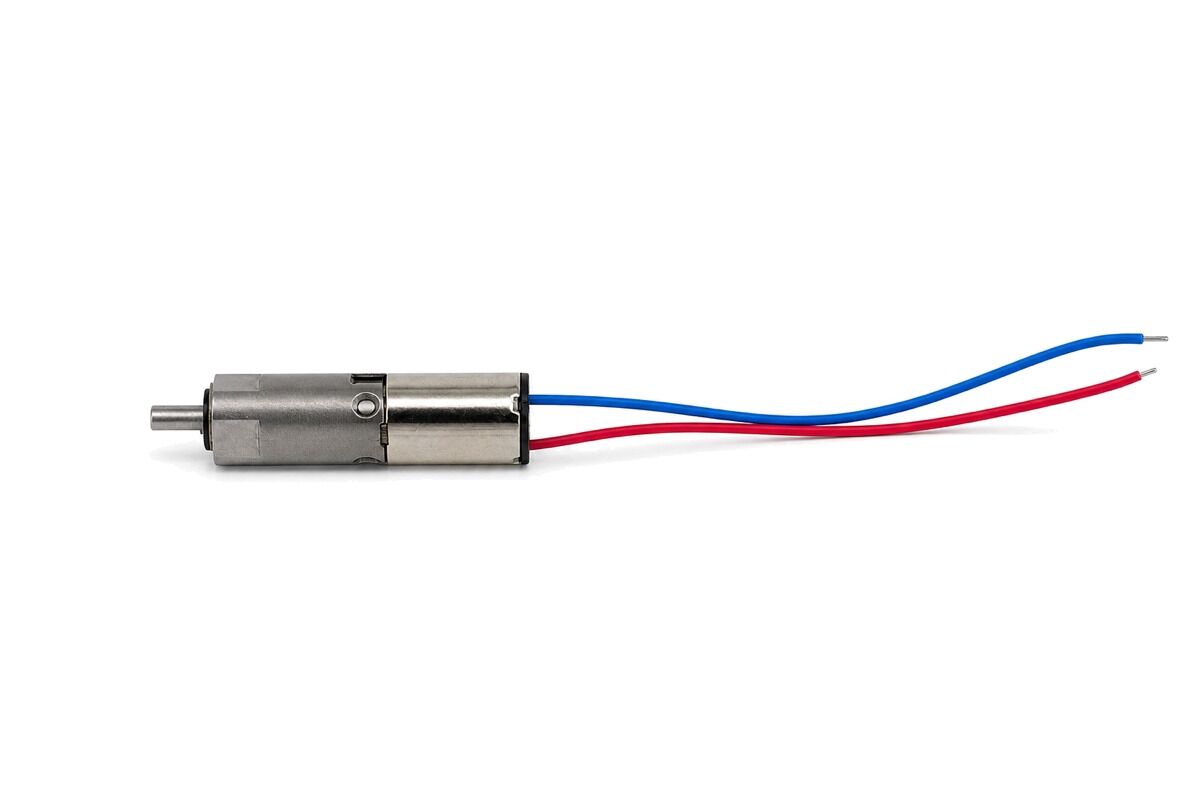

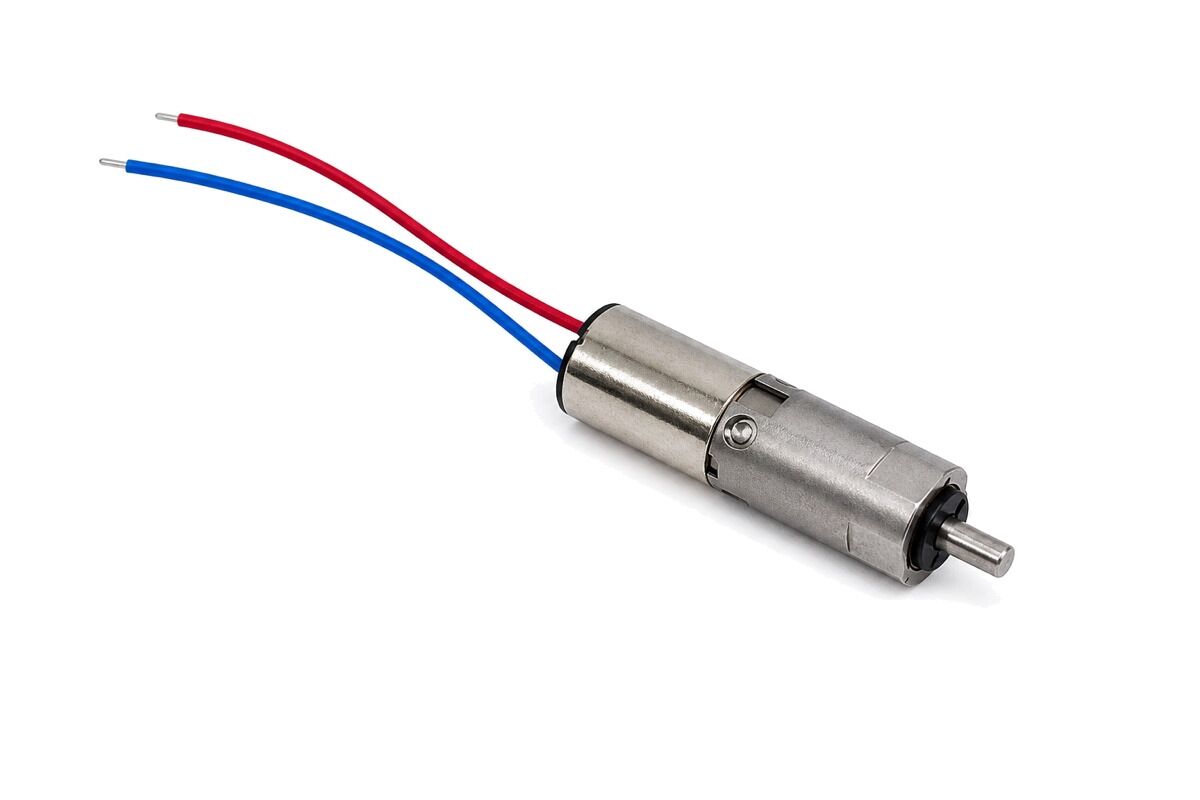

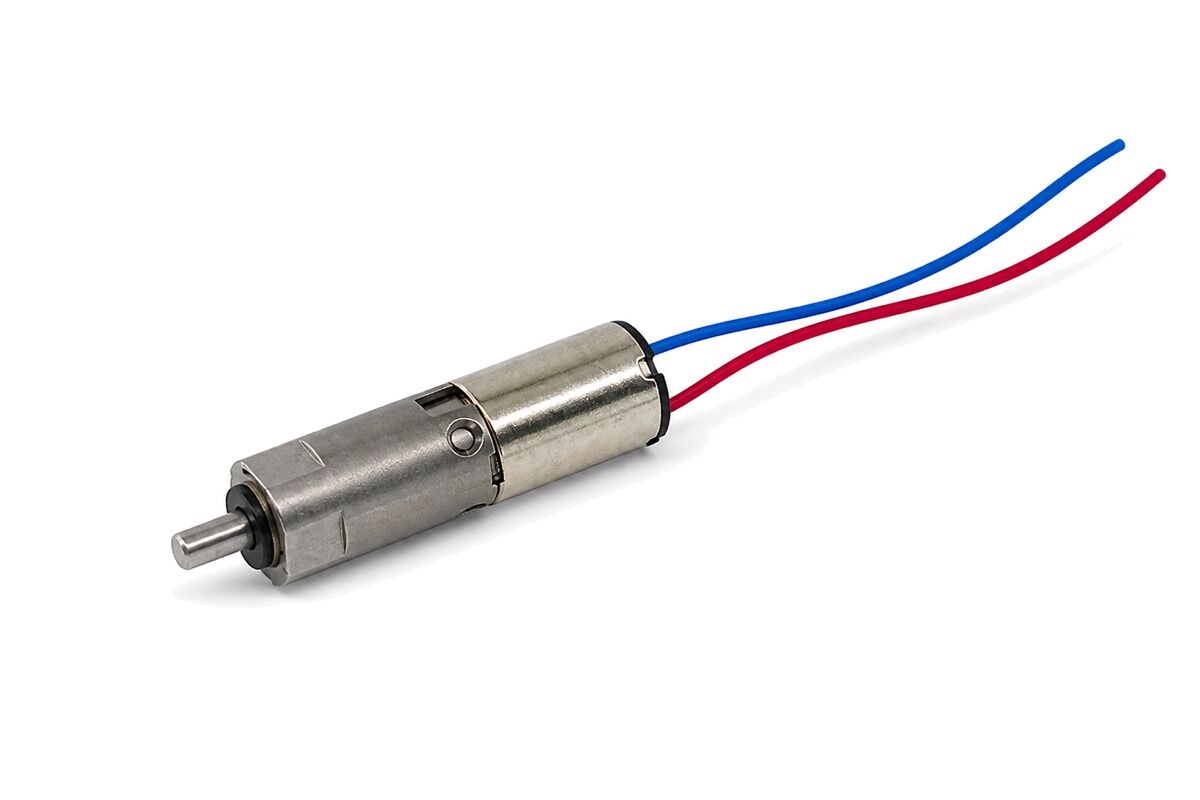

6mm Coreless Metal Gearbox Motor Model NFP-609-266-MGB

6mm DC Planetary Metal Gear Motor Performance Curve

First, the performance curve below shows the working data of a 6mm DC planetary metal gear motor. Also, it helps users review the relationship between speed, torque, current, power, and efficiency.

In addition, this curve is useful during motor selection. Therefore, users can compare the motor’s operating point before sample testing and product design.

Moreover, the 6mm planetary gearbox provides compact size and stable reduction output. As a result, it is suitable for small devices that need low speed, higher torque, and precise motion.

Performance Curve Overview

First, the curve helps users understand how motor speed changes when load increases. Also, it shows how current and torque change under different working conditions.

In addition, users can check the safer working range before long-time operation. Therefore, this data can help reduce overload risk during design.

Curve Reading Notes

• First, speed: The motor speed usually decreases as the load torque increases.
• In addition, current: The motor current usually rises when the load becomes heavier.
• Also, torque: The torque curve helps users estimate the usable output range.
• Next, efficiency: The efficiency data helps users choose a better working point.
• Finally, testing: Real load testing is still needed before production.

Typical Applications

Furthermore, this 6mm miniature gearmotor is useful for compact products that need small size and stable output. For example, it can work in robotic hands, precision actuators, medical devices, wearable devices, and small instruments.

• First, robotic hands: The 6mm gearbox can support small finger and joint motion.
• In addition, precision actuators: The motor can drive compact push, pull, or rotation parts.
• Also, medical devices: The small body helps fit mini care and test equipment.
• Next, wearable devices: The compact gear motor helps reduce total product size.
• Finally, small instruments: The planetary gearbox supports controlled low-speed movement.

Selection Notes

First, users should review the curve before choosing the motor. Also, users should compare the required speed, torque, current, and duty cycle with the actual application.

In addition, the motor should not be used near overload conditions for long periods. Therefore, real load testing is important before mass production.

• First, check speed: Confirm that the output speed matches the product requirement.
• In addition, check torque: Make sure the motor can handle the real load.
• Also, check current: Confirm that the driver and battery can support the working current.
• Next, check temperature: Test motor temperature during long-time operation.
• Finally, check lifetime: Run a sample test before using the motor in production.

In short, this 6mm DC planetary metal gear motor performance curve helps users select a suitable working range for compact drive systems that need small size, stable speed reduction, and controlled torque output.
