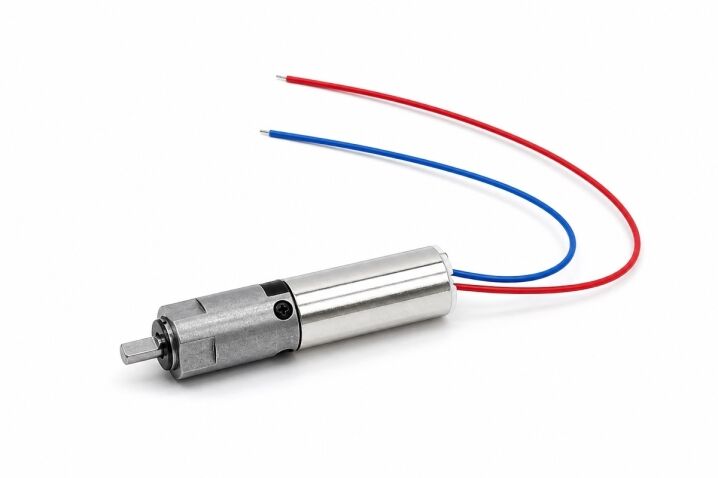

6mm Coreless Metal Gearbox Motor Model NFP-615-266-MG
$32.50
Elevate your project with our 7.4V all metal 6mm gearmotor. Enjoy exceptional performance with high stall torque and reliability. Buy now!
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | $32.50 | 0% |
| 10 - 49 | $29.50 | 9.23% |
| 50 - 99 | $29.30 | 9.85% |
| 100+ | $27.80 | 14.46% |
NFP-D615-266-MG 7.4V DC Metal Gear Motor Datasheet
Buy NFP-612-266-MG 6mm coreless metal gearbox motor for robotic hands, micro actuators and precision motion control projects.
| Item | Specification |
|---|---|
| Model | NFP-D615-266-MG |
| Motor Type | Brushed strong magnetic coreless metal gearbox motor |
| Rated Voltage | 7.4V DC |
| Gearbox Material | Metal |
| Transmission Gear Material | Metal MIM |
| Rotation Direction | Forward and reverse rotation by switching positive and negative poles |
| Wire Length | 120mm |
| Weight | 3.65g including wires |
| Reduction Ratio | 266:1 |
| Reduction Stages | 3 stages |
| No-load Current | Approx. 40mA |
| No-load Speed | Approx. 185rpm at 7.4V DC |
| Stall Torque at 7.4V | Approx. 2000gf.cm |
| Stall Current at 7.4V | Approx. 1.0A |
| Stall Torque at 5V | Approx. 1200gf.cm |
| Stall Current at 5V | Approx. 0.65A |
| Stall Torque at 3.7V | 950gf.cm |
| Stall Current at 3.7V | Approx. 0.5A |
Planetary Reduction Gearbox Motor Outline Drawing
6mm Brushed DC Motor Performance Curve
Keywords:
6mm metal gear motor, metal gearbox, NFP-615-266-MG, robotic hand motor
Payment:
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
1.Payment methods : Paypal, T/T
Shipping:
1.Delivery: DHL/FedEx 3-5 days.
2.Item will be shipped within 1-3 business days after the payment.
3.If you haven’t received the item on the Delivery Time, pls contact us by email if you have any questions. Normally, we will give you a reply within 24 hours, if not, pls check the spam of your email box. We will do our best to help you solve the problems.
4.Please make sure your address is matched with the finally shipping address before you pay.
FAQ
Q: If customized, what information should you provide?
A: You need to provide the basic specification of the motor, such as: Dimensions, Sizes Applications, Voltage, Speed and Torque. It’s better to offer application prototype drawings to us if possible.
Q: What’s your main motors?
A: Diameter 4mm~42mm Dc Micro Motor And Gear Motor, Auto Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, Brushless Dc Motor, Spur Gear Motor, Micro Motor, Vibration Motor Etc.
Q: What’s the main application of the micro dc motor?
A: Our mini DC motors are widely used in Home Applications, Office Equipment, Health-Care Application, Sanitation Industry, High-Class Toy, Banking System, Electronic and Electrical Tools, Automation Industry, Bank Equipments, Payment Equipments, Vending Machines, Power Door Lock, Electric Door Lock.
