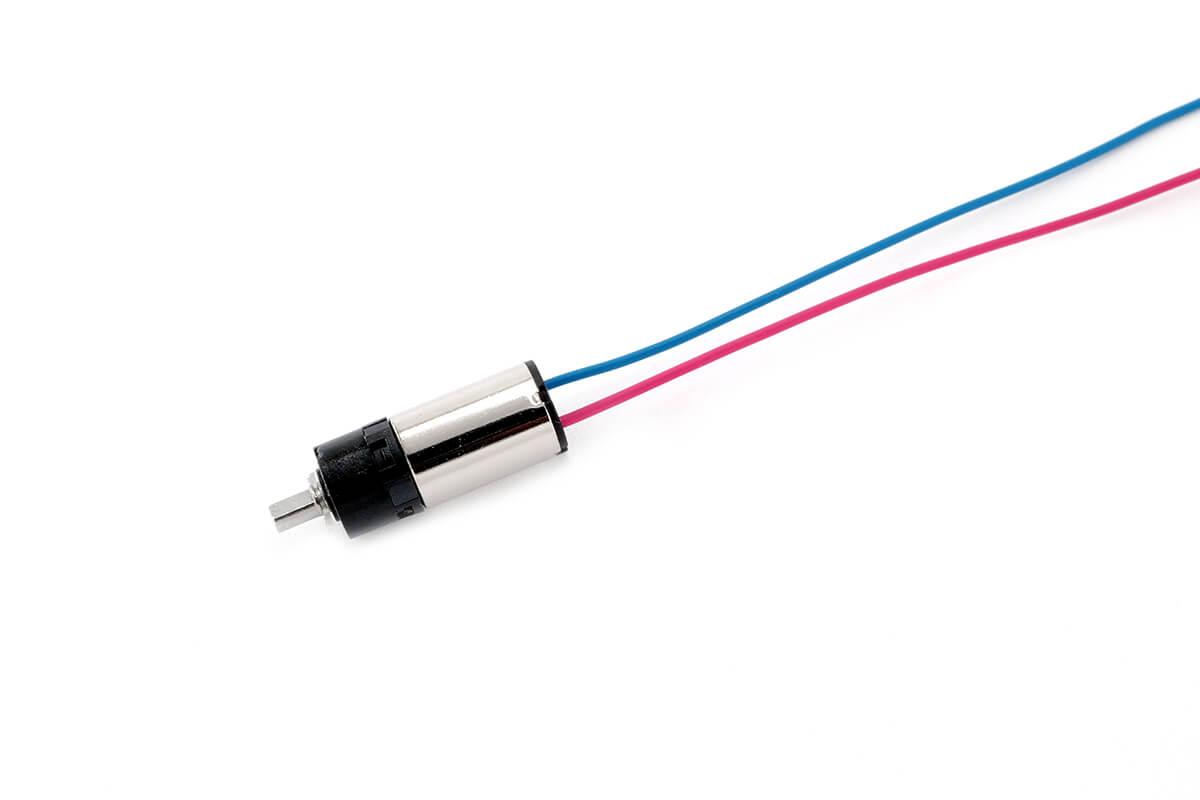

6mm Mini DC Gear Motor – 15mm Type Model NFP-609-5.14-0675-MS Metal Shaft

6mm Mini DC Gear Motor – 15mm Type Performance

First, the NFP-609-5.14-0675-MS is a 6mm mini DC gear motor for compact products that need high speed, small size, and light torque output. Also, it uses a 3V DC motor with a 1:5 ratio.

In addition, this miniature gearmotor provides 6,000rpm no-load speed and CW/CCW rotation. Therefore, it is suitable for small products that need fast reversible motion.

Moreover, the motor has a short 14mm gear motor length and 50mm wire length. As a result, it can fit compact electronic devices, small robots, and mini drive modules.

Main Product Features

• First, compact 6mm body: The small motor size helps fit very tight product spaces.
• In addition, 1:5 ratio: The gearbox provides high-speed output in a compact body.
• Also, 3V DC power: The motor is suitable for low-voltage compact devices.
• Next, reversible rotation: CW/CCW rotation supports forward and reverse movement.
• Moreover, short output shaft: The 3.6mm output shaft length helps fit small mechanisms.
• Finally, wire support: The 50mm wire length helps simplify small device assembly.

Important Design Notes

• First, specification notice: Above specifications are subject to change without notice, just for reference and customizable according to requirements.
• In addition, plastic output shaft: Plastic output shaft is better to be used in those conditions need small torque, or of no radial load, or via coupling joint.
• Also, load check: Users should compare stall torque with the real product load before final design.
• Finally, sample testing: Confirm speed, current, torque, noise, and temperature before mass production.

Basic Motor Specifications

First, the table below shows the main motor data. Also, it helps users check voltage, rotation, current, speed, torque, body length, shaft size, ratio, wire length, and gear motor length before sample testing.

Therefore, this 6mm mini DC gear motor is useful when a design needs compact size and fast output. In addition, the 14mm gear motor length should be checked before housing design.

6mm Miniature Geared Motor Outline Drawing

Motor Outline and Mounting Reference

First, the outline drawing helps users check the 6mm planetary DC gear motor body, gearbox, shaft size, and wire layout. Therefore, it is useful before sample testing and final product design.

In addition, the 1:5 ratio helps provide high-speed gearbox output. As a result, this model can support compact products that need fast movement and small installation size.

Outline Drawing and Design Benefits

• First, compact 6mm size: The small body helps fit very small devices.
• In addition, 1.90mm shaft: The shaft diameter should be checked before coupling or gear design.
• Also, D-cut shaft: The 1.44mm D-cut size helps improve output connection stability.
• Next, short body length: The 13.9mm body length helps save installation space.
• Moreover, 50mm wire: The wire length helps support compact assembly layouts.
• Finally, clear dimensions: The drawing helps users design brackets, housings, and fixtures.

Applications and Selection Tips

Typical Applications

Finally, these 6mm precision gear motors are widely used in compact products that need small size, fast output, and controlled movement. For example, they can work in electronic rotating mascaras, robotic mechanisms, medical equipment, and mini drive modules.

• First, electronic rotating mascaras: The small motor size helps fit compact beauty devices.
• In addition, robotic mechanisms: The gearbox can support fast and controlled small movement.
• Also, medical equipment: The compact body helps fit mini internal structures.
• Next, small electronic devices: The 3V motor can support compact battery-powered products.
• Moreover, custom DC gear motor projects: The gearbox can be adjusted to match project requirements.
• Finally, compact speed systems: The high-speed output helps support fast small mechanisms.

How to Choose This Motor

First, check whether the product can use a 3V DC power supply. Also, compare the 6,000rpm no-load speed with the target output speed.

In addition, check whether 5.3g.cm stall torque is suitable for the product load. Therefore, real load torque should be confirmed before final design.

Moreover, check the shaft size, D-cut size, and wire length before mechanical design. As a result, the motor can be matched to the final coupling, gear, PCB, or housing layout.

Final Selection Notes

• First, check voltage: Use a 3V DC power supply.
• In addition, check ratio: Confirm the 1:5 ratio before speed calculation.
• Also, check speed: Compare the 6,000rpm no-load speed with the product target.
• Next, check torque: Compare 5.3g.cm stall torque with the real load.
• Moreover, check size: Confirm the 14mm gear motor length before product design.
• Finally, check wiring: Confirm the 50mm wire length before final assembly.

In short, the NFP-609-5.14-0675-MS is a 6mm miniature gearmotor for products that need 3V DC power, compact size, 1:5 reduction, high-speed output, CW/CCW rotation, and short body length.
